Ge WH12X22716 Pressure Switch (Water Level) OEM Part

Product Details

Genuine Ge part. Ge brands include General Electric, Hotpoint, RCA, Kenmore, and others.
GE also makes various appliance models for Sears / Kenmore.

Cross Reference Information

Part Number WH12X22716 replaces AP5982455, 4378117, PS11701136.

Description

This pressure switch senses the washer's tub water level and signals the control to stop filling and advance the cycle. Replacing a faulty switch restores proper fill levels and helps resolve overfilling, no-fill, and cycle-advance issues.

• Monitors water level via air pressure through the tub's pressure hose
• Signals the control to shut the inlet valves and begin wash/agitate or spin
• Helps advance the cycle once the target water level is reached
• Common failure symptoms include continuous filling/overfill, no fill or low fill, won't agitate/spin, or stopping mid-cycle with water-level errors

What's included: 1 pressure switch Install notes:

• Unplug the washer before servicing; turn off water supply

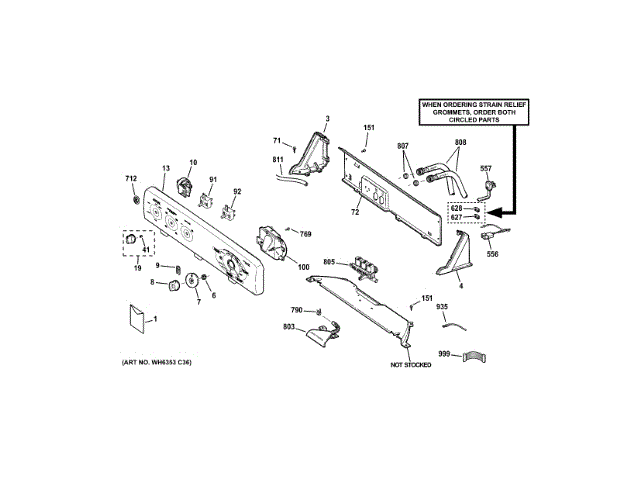

• Access the switch in the control console/top panel; move wire connectors to the new switch one at a time
• Inspect the pressure hose for kinks, cracks, or water in the line and seat it firmly on the new switch
• Run a test fill to ensure the water shuts off at the selected level
