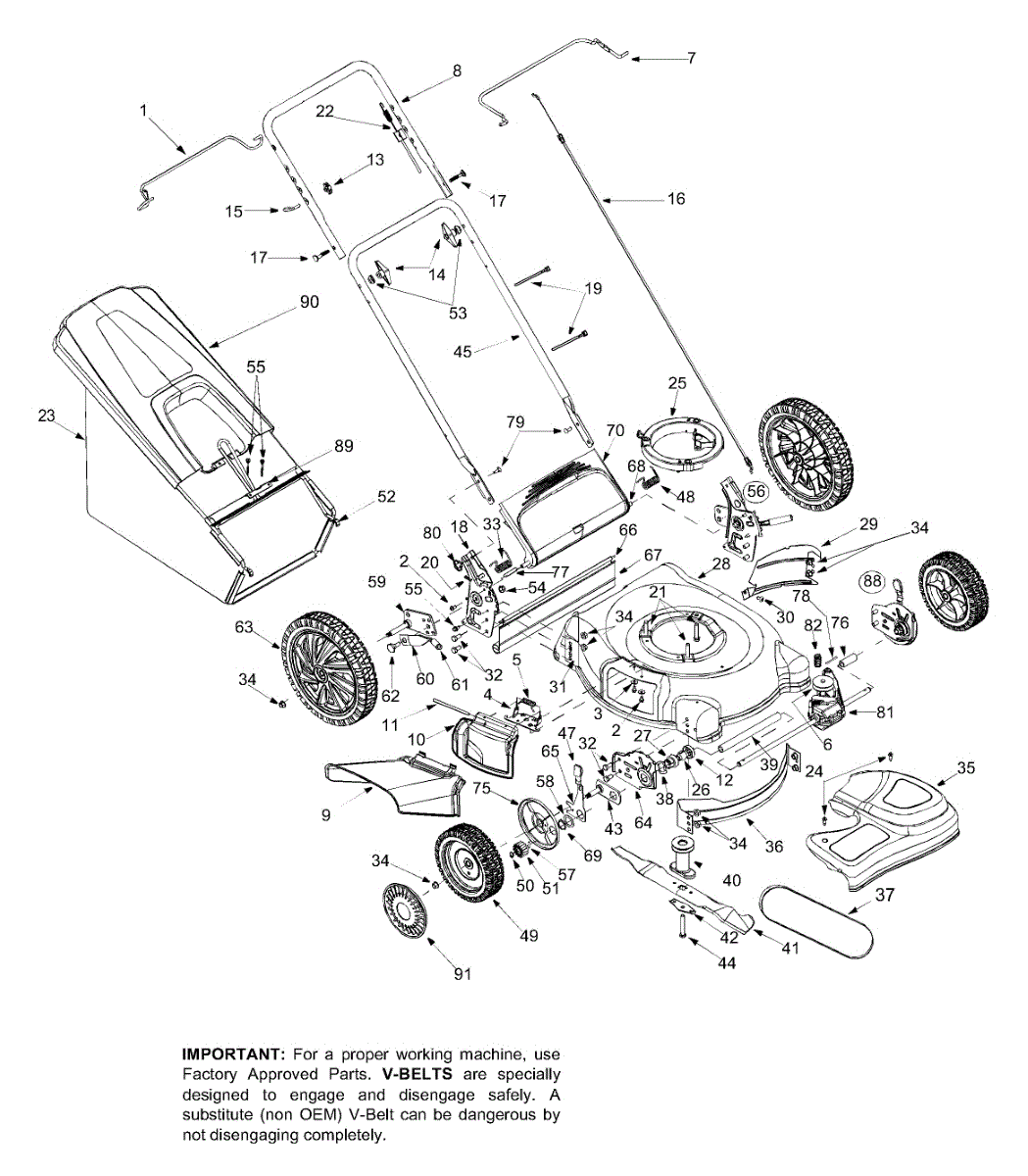

Parts for Yard-Man 12A-567A796 / 2004: General Assembly A796 Parts

Drive bail handle for walk-behind and self-propelled mowers. Mounts to the upper handle assembly. Replace if cracked, bent, or broken for safe operation.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

Replace worn spring bell washers causing loose parts or rattling noises. This conical washer cushions heavy loads in lawn equipment. Simple DIY fix.

Adapter plate for lawn mowers. Mounts between components to ensure proper alignment and secure attachment. Replace if cracked, bent, or missing.

This control handle is designed specifically as a replacement for use on select walk-behind lawn mowers. The control handle is the safety that is engaged to allow the engine to run. When holding the control handle in, the pull start can be activated and the engine will run. Once the control handle is released, the engine will stop. In the event that the control handle becomes damaged or fails, it will need to be replaced so that the mower can continue to be used. This handle can provide a genuine replacement for compatible models. This control handle is manufactured to exact standards by MTD and provides an exact fit. It is compatible with hundreds of models, including select models from RYOBI, Yard Machines, Troy-Bilt, Yard-Man, Husky, Bolens, and Cub Cadet. This part is also known as the control bar, control handle, engine stop handle, bail control, or mower bail. It is made of durable metal and sold individually. No tools are required for the installation of this part. To replace the handle, simply squeeze the existing control handle to remove it from the outer handle, and then align the new handle and slide it into place. When properly installed, the pressure will hold it in place and allow for proper operation.

Upper handle for walk-behind mowers. Mounts at the top of the handle assembly to control mower movement. Replace if cracked, bent, or broken from impact.

Replacement discharge chute for 21-inch walk-behind mowers. Directs grass clippings from the deck during discharge. Needed when original is cracked or missing.

Mulch plug assembly for walk-behind mowers. Blocks the discharge chute opening to enable mulching mode. Replace if cracked, broken, or missing.

This is a knob handle that is used on various types of lawn and garden equipment. It is responsible for helping to make adjustments to the upper handle of the lawnmower or other machine. If the knob handle no longer works, is broken, or falls off, adjustments can no longer be made to the equipment. If this situation occurs, the knob handle will need to be replaced.Take a look at the knob handle and determine if it has been damaged. It could have cracks, broken areas, or excessive scratches that make it hard or impossible to use. If the knob handle is not present, this also necessitates a replacement. The part is easy to replace and requires no tools to install. Simply remove the old handle and place the new one in the same location.This is an authentic OEM replacement knob handle that is directly sourced from the manufacturer. It is sold as an individual component. The knob handle is used on lawnmowers, snowblowers, string trimmers, leaf blowers, wood chippers, and edgers. It fits various models offered by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

Star knob connects upper and lower handles on lawn mowers and outdoor equipment. Replace if threading is worn, cracked, or knob is missing for secure assembly.

Rope guide eyebolt for lawn mower recoil starters. Guides the starter rope smoothly during pull starts. Replace if bent, broken, or missing.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

Grass catcher bag for walk-behind mowers. Attaches to cutting deck frame to collect clippings. Replace if torn, worn, or damaged for proper collection.

The shoulder screw is used in places where a spacer or bearing surface is needed, since the top half of the screw is unthreaded. These fasteners are often used for guides, pivot points, mounting pins, axles, and even a shaft for bearings and bushings in various MTD engines. With regular use, the screws can wear down or be lost. Always repair the missing hardware promptly with genuine OEM replacements. Disengage the spark plug and wear gloves when performing work on engines for safety. This genuine OEM replacement shoulder screw has been designed to be compatible with machines from MTD, Troy-Bilt, Yard-Man, Yard Machines, Bolens, Cub Cadet, and Craftsman. It can be used for multiple applications and in multiple locations in different models of lawnmowers, tractors, and chippers that use the screw in various applications. Check your parts diagrams for the exact location and use of these screws before ordering. This is sold as an individual unit; order multiple quantities as needed.

Replacement baffle for lawn mower decks. Directs airflow and grass clippings toward the discharge chute or bag. Replace if cracked, broken, or missing.

Self-tapping screw for lawn mowers and outdoor power equipment. Secures panels, covers, and components. Replace if stripped, missing, or corroded.

This baffle is a genuine MTD part. It is made for use with walk-behind and self-propelled lawnmowers. It is a rear mulching baffle, which means that it aids in mulching lawn clippings, cutting them down into very small pieces. These clippings can either be disposed of, composted, or used as fertilizer.This mulching baffle is a genuine OEM part sourced directly from the manufacturer and is sold individually. Most mowers have more than one baffle, so be sure to check if others also need to be replaced.This baffle is manufactured for compatibility with lawnmowers made by Bolens, Columbia, MTD Pro, White Outdoor, Yard Machines, and Yard-Man. Some of these models are electric mowers, while others are gas-powered. It is also compatible with some stand-alone mulching kits. Use the compatibility checker before purchasing.

Hex screw for lawn mowers and outdoor power equipment. Secures components and panels. Replace if stripped, rusted, or missing for proper assembly.

Front baffle for lawn mowers. Installs in the deck area to direct airflow and debris. Replace if cracked, broken, or missing for proper operation.

This V-belt is a genuine MTD part, sold individually. This V-belt can be used as a replacement part for lawnmowers. The v-belt of a lawn mower is operated by a network of pulleys that work in conjunction to turn the belt powered by the engine. The purpose of the V-belt for a lawnmower is to rotate the lawnmower blades.A V-belt might suffer damage that can stop the belt from helping the lawn mower blades to rotate and mow effectively. Symptoms of a damaged v-belt can include visible cracks, deterioration, or erosion, or visible damage to the side wall. If any of these symptoms are attributable to a malfunctioning or damaged V-belt, the component should be removed and replaced with this genuine OEM replacement part before operating the lawn mower again. Remember to wear gloves when handling, repairing, and using outdoor equipment.This is an OEM part sourced directly from the manufacturer, and it is sold individually. This V-belt is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, Huskee, Bolens, Yard-Man, and MasterCut.

Blade adapter for 21-inch walk-behind and self-propelled mowers. Connects cutting blade to drive shaft. Replace if cracked, stripped, or worn.

Hex screw fastener for lawn mower and lawn tractor small engines. Secures components together. Replace if lost, stripped, or corroded during maintenance.

This is a height adjuster knob for walk-behind lawn mowers. It attaches to the height adjuster lever. This component is used to adjust the front wheels on the lawnmower deck. This adjustment allows the user to select the desired cutting height of the grass. This component is made out of a hardened foam material that is easy to grip.If the height adjuster knob falls off of the height adjust lever and will not reattach, it is likely that it will need to be replaced. The height adjuster lever itself is sold separately. The repair person may wish to wear gloves when replacing this part.This component is sourced straight from the manufacturer. It is sold individually and is a genuine OEM part. This height adjuster knob is compatible with walk-behind lawnmowers that are manufactured by the Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, Craftsman, and Husky brands.

This is a complete wheel assembly for walk-behind and push lawnmowers. It is a single replacement wheel for the front wheels on a mower. Wheels may be damaged by impact with hard objects or from exposure to the elements over time. When the wheel is visibly damaged or otherwise does not roll as well as it should, it should be replaced.If the user is having difficulty pushing the walk-behind lawn mower, a visual inspection of the wheels will determine if a new part is required. Replacing a wheel on a lawn mower is simple. Tools including a socket set, pliers, and a screwdriver may be necessary to perform the repair.This wheel is a genuine OEM replacement part. It is compatible with MTD, Troy-Bilt, and Yard-Man machines. It is sold as an individual unit. The wheel is made of durable plastic.

Snap ring fastener for lawn mowers and outdoor power equipment. Secures components on shafts and axles. Replace if worn, broken, or missing.

Fix mower that won't move or has grinding noises with this 14-tooth left-hand spur gear. Essential transmission component for self-propelled models.

Replace your lawn mower's worn or damaged 14-tooth right-hand spur gear. Fits gas walk-behind, self-propelled, and hi-wheel mowers. Order now.

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

Foam grip for lawn mower handles. Provides comfortable cushioning and vibration dampening. Replace if worn, cracked, torn, or missing for better control.

Left-hand spring lever for lawn mowers. Installs on the handle assembly. Replace if lever is bent, broken, or missing to restore proper operation.

Replacement wire that securely attaches the rear skirt trail shield to your lawn mower deck. Replace if broken, detached, or missing for proper skirt fit.

Replaces cracked or missing grass deflector shield on walk-behind mowers. Mounts at discharge chute to control clippings and debris direction.

Carriage bolt for lawn mowers and outdoor power equipment. Fastens components together with a nut. Replace if lost, stripped, or damaged during repair.

Compression spring for gas walk-behind mowers. Installs in the drive or control mechanism. Replace if worn, broken, or missing to restore proper fit.
