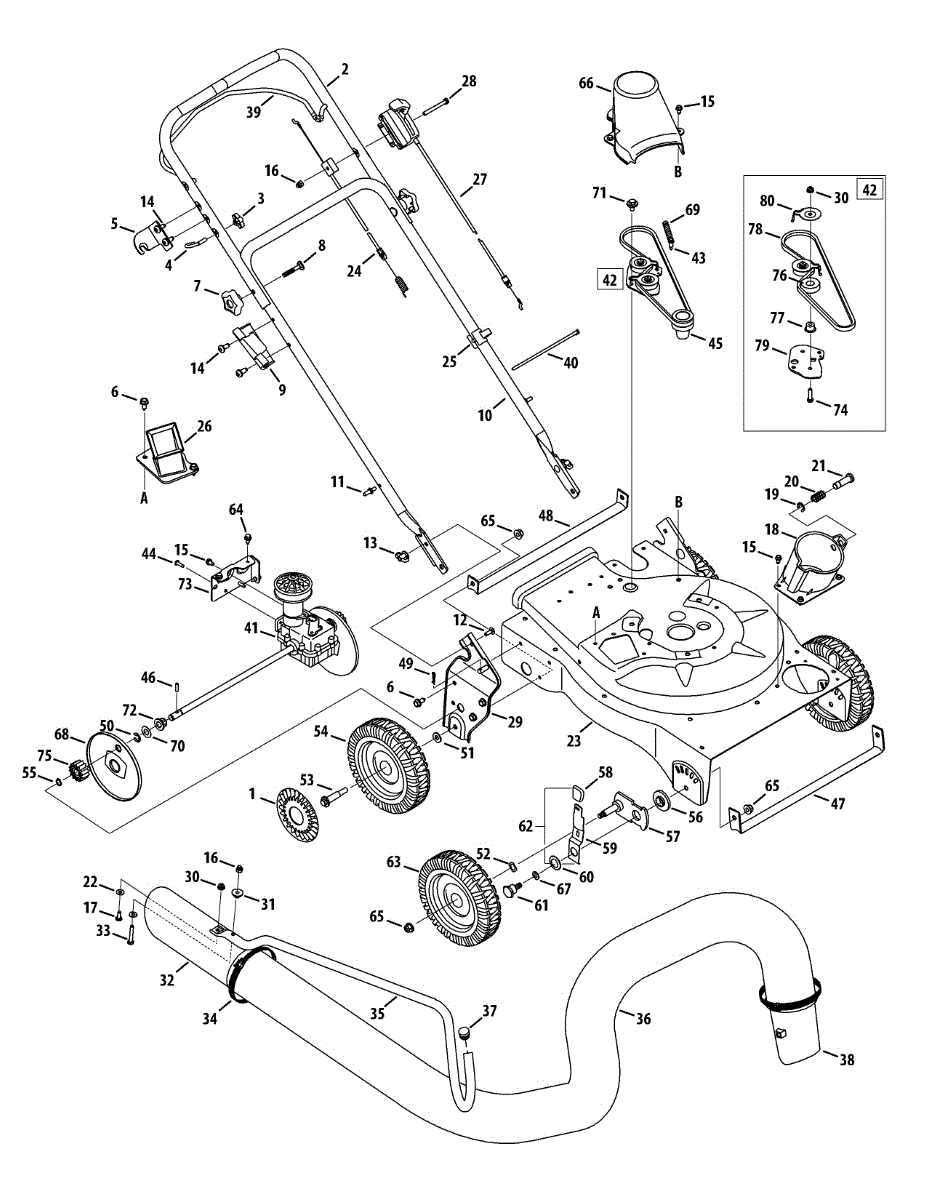

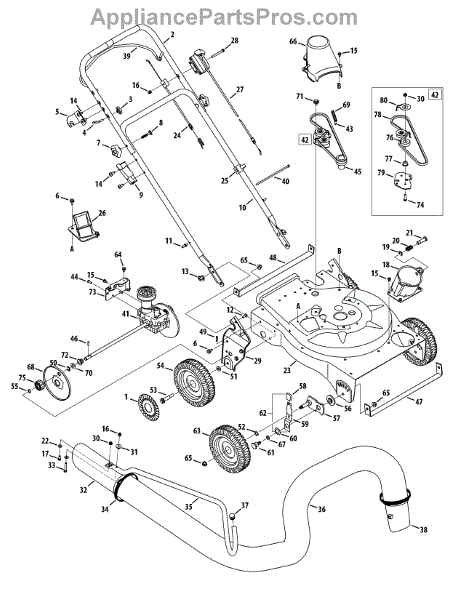

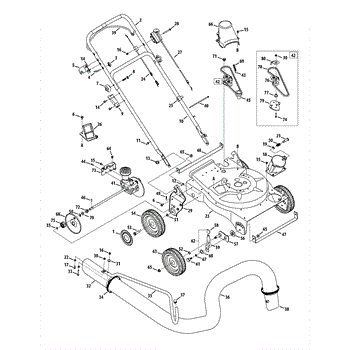

Parts for Craftsman 247.77013 / 2011: General Assembly Parts

Grey plastic wheel hubcap for lawn mowers, snow throwers, and outdoor power equipment. Replaces cracked, broken, or missing hubcaps to protect wheel hubs.

This replacement part is an upper gullwing handle intended for use with lawn mowers. The handle assists the user in maneuvering the machine during use. Additionally, this part might be able to control certain settings.A new upper gullwing handle might be needed if the current one is missing or damaged in any way. This can be from an isolated incident or normal damage over time. If the handle is bent, dented, cracked it should be replaced as soon as possible. This is a genuine replacement part made by MTD. It is an OEM replacement part which will ensure a proper fit. This part is sold individually.

This is a knob handle that is used on various types of lawn and garden equipment. It is responsible for helping to make adjustments to the upper handle of the lawnmower or other machine. If the knob handle no longer works, is broken, or falls off, adjustments can no longer be made to the equipment. If this situation occurs, the knob handle will need to be replaced.Take a look at the knob handle and determine if it has been damaged. It could have cracks, broken areas, or excessive scratches that make it hard or impossible to use. If the knob handle is not present, this also necessitates a replacement. The part is easy to replace and requires no tools to install. Simply remove the old handle and place the new one in the same location.This is an authentic OEM replacement knob handle that is directly sourced from the manufacturer. It is sold as an individual component. The knob handle is used on lawnmowers, snowblowers, string trimmers, leaf blowers, wood chippers, and edgers. It fits various models offered by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

Rope guide eyebolt for lawn mower recoil starters. Guides the starter rope smoothly during pull starts. Replace if bent, broken, or missing.

Upper handle bracket secures the handle assembly on chipper shredders and lawn vacuums. Replace if cracked, bent, or broken to restore handle stability.

Self-tapping screw for lawn mowers and garden equipment. Secures metal, wood, and plastic parts. Replace if stripped, missing, or corroded.

Star knob connects upper and lower handles on lawn mowers and outdoor equipment. Replace if threading is worn, cracked, or knob is missing for secure assembly.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

Handle nozzle clip for chipper shredders and lawn vacuums. Secures the handle to the nozzle assembly. Replace if clip is broken, cracked, or missing.

Lower handle for chipper shredders. Provides stable grip for steering and control. Replace if cracked, broken, or worn for safe operation.

Belt keeper pin fastener for lawn mowers. Secures the belt guard or keeper assembly in place. Replace if pin is bent, sheared, missing, or damaged.

Carriage bolt for lawn mowers and outdoor power equipment. Fastens components together with a nut. Replace if lost, stripped, or damaged during repair.

Fastening screw for lawn tractors and mowers. Secures components together. Replace if stripped, missing, or damaged during maintenance or repairs.

This replacement part is a screw. This is a genuine replacement part made by MTD. A screw is a small part but important to the overall workings of many appliances. Screws work with other small pieces such as nuts and washers to keep parts in place and secure during use.A new screw might be needed if the current one is missing or damaged. This can be caused by normal wear and tear or an isolated incident. Screws endure friction over time and can become worn down.This part is sold individually and is sourced directly from the manufacturer. This is a genuine OEM replacement part.

Hex cap screw fastener for outdoor power equipment. Secures components with hexagon-shaped head. Replace if stripped, broken, or missing threads.

E-ring retainer for lawn tractors and outdoor power equipment. Secures components on 0.500-inch shafts. Replace if missing, bent, or damaged.

This is a control cable that connects the operator handle lever to the drive clutch mechanism on a lawn vacuum or chipper shredder. It engages and disengages the drive system when the lever is squeezed or released. Replace this cable if the self-propel function does not engage, the cable is frayed or stretched, or the drive does not disengage when the lever is released.

This speed control cable connects the handle-mounted speed lever to the drive system on a self-propelled lawn mower. It allows the operator to adjust ground speed by transmitting input from the control lever to the transmission. Replace this cable if the mower no longer responds to speed adjustments, the cable is frayed or kinked, or the self-propel function is intermittent.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

Spacer component for chipper shredder hose hanger assembly. Reduces friction between mounted parts. Replace if worn, cracked, or missing for proper fit.

Hex bolt with patch for lawn tractors, tillers, and chippers. Replaces broken, stripped, or missing bolts in assembly and mounting locations.

Secure hose clamp for chipper shredder vacuum systems. Replace if hose connections loosen or clamp shows wear. Verify fit with your model number.

Replacement nozzle handle for chipper shredders and lawn vacuums. Installs on vacuum hose attachments. Replace if broken, cracked, or missing.

Replacement debris collection hose for chipper shredders and lawn vacuums. Connects unit to collection bag. Replace if cracked, torn, or missing.

Replacement hose adapter for chipper shredders and lawn vacuums. Connects vacuum hose securely to machine outlet. Replace if cracked or broken.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

This is the complete transmission assembly designed for chipper shredder and lawn vacuum equipment. It transfers power from the engine to the drive system, enabling the unit to move and operate effectively. Replace this assembly if the machine loses drive power, makes grinding noises during operation, or the wheels no longer engage properly.

The shoulder screw is used in places where a spacer or bearing surface is needed, since the top half of the screw is unthreaded. These fasteners are often used for guides, pivot points, mounting pins, axles, and even a shaft for bearings and bushings in various MTD engines. With regular use, the screws can wear down or be lost. Always repair the missing hardware promptly with genuine OEM replacements. Disengage the spark plug and wear gloves when performing work on engines for safety. This genuine OEM replacement shoulder screw has been designed to be compatible with machines from MTD, Troy-Bilt, Yard-Man, Yard Machines, Bolens, Cub Cadet, and Craftsman. It can be used for multiple applications and in multiple locations in different models of lawnmowers, tractors, and chippers that use the screw in various applications. Check your parts diagrams for the exact location and use of these screws before ordering. This is sold as an individual unit; order multiple quantities as needed.

Dowel pin fastener for lawn mowers and outdoor power equipment. Secures two components together. Replace if damaged, worn, or missing during repairs.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

E-ring retainer for lawn tractors and outdoor power equipment. Secures components on 0.500-inch shafts. Replace if missing, bent, or damaged.

Flat washer for lawn tractors and riding mowers. Installs with bolts and screws to secure components. Replace if washer is missing or worn.

Fastener washer for lawn mowers and outdoor power equipment. Replaces worn, damaged, or missing washers on mounting hardware and bolt assemblies.

This is a complete wheel assembly for walk-behind and push lawnmowers. It is a single replacement wheel for the front wheels on a mower. Wheels may be damaged by impact with hard objects or from exposure to the elements over time. When the wheel is visibly damaged or otherwise does not roll as well as it should, it should be replaced.If the user is having difficulty pushing the walk-behind lawn mower, a visual inspection of the wheels will determine if a new part is required. Replacing a wheel on a lawn mower is simple. Tools including a socket set, pliers, and a screwdriver may be necessary to perform the repair.This wheel is a genuine OEM replacement part. It is compatible with MTD, Troy-Bilt, and Yard-Man machines. It is sold as an individual unit. The wheel is made of durable plastic.

Snap ring fastener for lawn mowers and outdoor power equipment. Secures components on shafts and axles. Replace if worn, broken, or missing.

This is a height adjuster knob for walk-behind lawn mowers. It attaches to the height adjuster lever. This component is used to adjust the front wheels on the lawnmower deck. This adjustment allows the user to select the desired cutting height of the grass. This component is made out of a hardened foam material that is easy to grip.If the height adjuster knob falls off of the height adjust lever and will not reattach, it is likely that it will need to be replaced. The height adjuster lever itself is sold separately. The repair person may wish to wear gloves when replacing this part.This component is sourced straight from the manufacturer. It is sold individually and is a genuine OEM part. This height adjuster knob is compatible with walk-behind lawnmowers that are manufactured by the Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, Craftsman, and Husky brands.

This is a replacement front lever spring. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a broken or defective front lever spring on a variety of outdoor power equipment models. This part helps to adjust the height of the equipment deck to allow it to reach the optimal cutting height for different types of terrain. When working on or near an engine, ensure the equipment is powered off and completely cooled down before starting any repairs. Access to proper tools is required to install this part. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this front lever spring, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this front lever spring is suitable for use on several different lawnmower models, log splitters, and chippers manufactured by MTD, Craftsman, Yard Man, Cub Cadet, Husky, Yard Machines, and Troy-Bilt. This is a genuine part made of high-quality, durable materials and is sold individually.

Bell washer for lawn mowers and outdoor power equipment. Replaces worn, missing, or damaged washers. Installs on drive assemblies and shafts.

Shoulder screw for lawn mowers and outdoor power equipment. Replaces worn, stripped, or missing screws that secure components during operation.

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

This is a protective cover that fits over the wheel on a lawn vacuum or chipper/shredder. It helps prevent dust, debris, and grass clippings from accumulating around the wheel hub and axle. Replace this cover if it is cracked, broken, or missing, which can allow debris buildup that impedes wheel rotation.

Flat washer for lawn mowers and outdoor power equipment. Installs between fasteners to distribute load and prevent damage. Replace if missing or worn.

Hex screw for lawn tractors, mowers, snow blowers, and tillers. Replaces broken, stripped, or missing screws in various assembly points.

Replace your lawn mower's worn or damaged 14-tooth right-hand spur gear. Fits gas walk-behind, self-propelled, and hi-wheel mowers. Order now.

Fix mower that won't move or has grinding noises with this 14-tooth left-hand spur gear. Essential transmission component for self-propelled models.

Sealed ball bearing reduces friction between fixed parts and rotating shafts. Replace if you hear grinding noise or notice wheel wobble. Verify fit.
