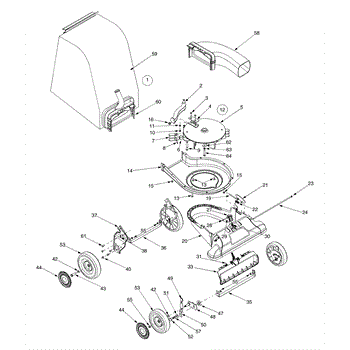

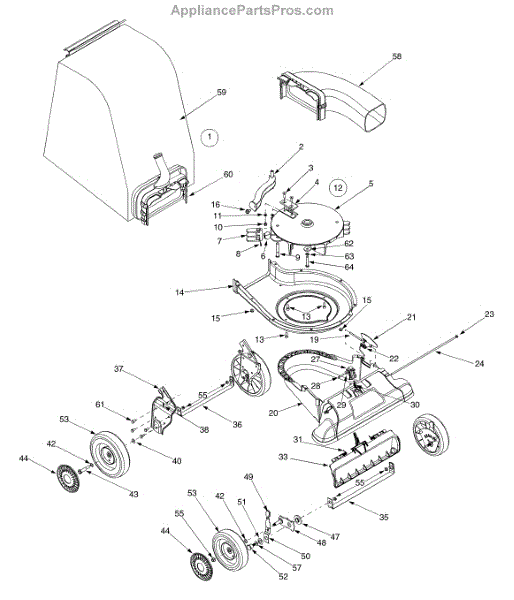

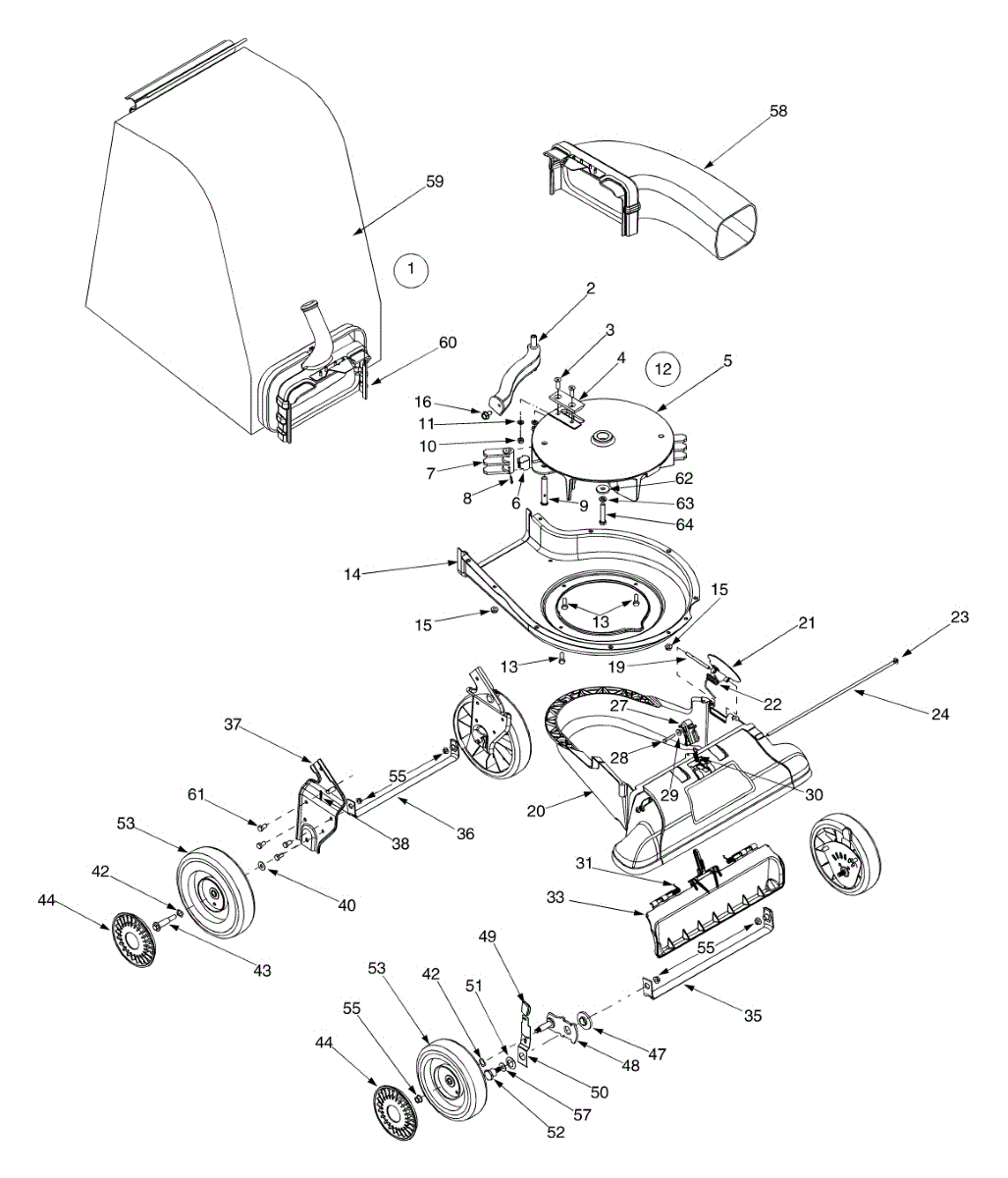

Parts for Craftsman 247.77055 / 2005: General Assembly Parts

This part is a replacement grass bag. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a damaged or torn grass bag in a variety of lawnmower models. This lawn bag attaches to the lawnmower to catch grass clippings as they are expelled. This helps to keep the mowed area clean as well as allows for easy disposal of clippings. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. No special tools are necessary to replace this part. For more accurate information on how and where to install this grass bag, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this grass bag is suitable for use on several different models of lawnmowers manufactured by MTD and Yard Man. This is a genuine part made of high-quality, durable materials and is sold individually.

This is a replacement screw for lawn and garden equipment that is typically used on the blades. The flat head of the screw ensures that they will sit flush once they have been installed. These screws, which have hex-socket heads, are often found on the blades of chippers and shredders. If a blade is loose, it could be a problem with the screws that are holding it in place. This could make the machine inefficient and even dangerous to operate. Therefore, if there are screws that are worn down or that are no longer doing their job, it is important to replace them. It is essential to use the appropriate screws for a repair. This is a genuine OEM sourced replacement part that comes from the manufacturer. This helps to ensure quality and compatibility. The screw is sold individually. It is compatible with a range of chippers and shredders from MTD, Troy-Bilt, Cub Cadet, Ryobi, Yard-Man, Yard Machines, and Mastercut.

This is a genuine replacement pin clip for select models of chipper-shredder equipment. This pin clip is a specialty part that is responsible for helping to secure the blade bail. If the blade bail cannot be secured, it will be difficult or impossible to operate the machine. This is a safety part that is required for operation and if it is missing or damaged, it needs to be replaced immediately. This pin clip is small and can become worn, corroded, or lost over time. A genuine part like this offers an exact replacement for compatible models. This genuine OEM pin clip is manufactured by MTD and meets exact standards to offer an identical replacement for select chipper/shredder units from the brand, along with those from Troy-Bilt, Yard Machines, Huskee, and Cub Cadet. There are over 150 chippers that will take this part, but it may have different locations depending on the model. Owners should consult the parts diagram for the exact location of this clip prior to replacement. This is sold as an individual item. Additional hardware and parts will require a separate purchase. To replace the pin clip, a screwdriver and pliers will be necessary.

This is a replacement flail blade that is used with various models of chippers and shredders. The purpose of the flail blade is to rotate so it can shred grass and other types of debris. The blade will attach to the impeller assembly. It will help to break down the material, as long as it is in good condition. The flail blade works hard, and it is sometimes in contact with materials that could cause damage. The blade could become bent or broken. In some cases, it could become corroded and rusty. When the flail blade is in poor condition, it will no longer work as efficiently or effectively as it once did. If they are no longer in good condition, owners will want to replace the flail blades on their machines as soon as they can. This is a genuine OEM replacement flail blade. It is sold individually, but machines may require more than one. Buyers should consider replacing them all at the same time. The blades are used specifically for chippers and shredders. They are compatible with models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Yard-Man, and MasterCut.

This is a genuine OEM replacement pin commonly found in chippers and shredders. This pin is part of a larger clevis pin and helps secure the larger pin into an engine. Clevis pins are inexpensive metal fasteners that connect parts without having to thread into the body of another part. They have a three-part construction consisting of the clevis, a pin, and a tang. This part is the pin that fasteners the clevis. The most likely reason why this pin would need replacing is if it fell out while the engine was running. Engines produce enough heat to cause parts to expand, and it is possible that a clevis could have expanded and the pin fell out. Should this happen, the clevis will no long fasten, and the pin will need to be replaced. Clevises are found in multiple places throughout an engine, so be sure to follow the user's manual to identify the right part. This pin is compatible with MTD, Huskee, Bolens, and Troy-Bilt clevises and comes sourced from the original manufacturer. This pin does not include a replacement clevis. It ships individually.

The shoulder screw is used in places where a spacer or bearing surface is needed, since the top half of the screw is unthreaded. These fasteners are often used for guides, pivot points, mounting pins, axles, and even a shaft for bearings and bushings in various MTD engines. With regular use, the screws can wear down or be lost. Always repair the missing hardware promptly with genuine OEM replacements. Disengage the spark plug and wear gloves when performing work on engines for safety. This genuine OEM replacement shoulder screw has been designed to be compatible with machines from MTD, Troy-Bilt, Yard-Man, Yard Machines, Bolens, Cub Cadet, and Craftsman. It can be used for multiple applications and in multiple locations in different models of lawnmowers, tractors, and chippers that use the screw in various applications. Check your parts diagrams for the exact location and use of these screws before ordering. This is sold as an individual unit; order multiple quantities as needed.

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

This hex screw is a genuine MTD part, sold individually. This hex screw can be used as a replacement part in a lawn mower, snowblower, or wood chipper.The hex screw in a lawn mower, snowblower, or wood chipper might have to be replaced if it is lost, misplaced, or damaged. The screw is a small component which can easily disappear while the appliance is in operation without necessarily noticing its absence; additionally, the screw can suffer from puncturing, scraping, denting, warping, or eroding over time. If this occurs, the screw should be replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This hex screw is compatible with the following outdoor appliance brands: MTD, Cub Cadet, Craftsman, Ryobi, Troy-Bilt, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, and MasterCut.

This replacement part is a shoulder spacer, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. A shoulder spacer is found in different areas inside lawn mowers. This type of spacer allows for two parts to operate together but prevents friction from building up during use.A new shoulder spacer might be needed if the user is able to see that the current one is damaged or missing. Any spacer that is missing causes unnecessary friction and can then cause the machine to overheat. If there are noises coming from inside the machine that are unfamiliar, it might be because of the spacer. This spacer is sold individually and is a genuine OEM replacement part. This part is sourced directly from the manufacturer to ensure proper fit on many different devices. Be sure that the engine is completely powered off before attempting this repair.

This replacement part is an extension spring and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This extension spring is found in different types of lawn mowers and helps other parts to work together and allow the engine to run properly and smoothly.A new extension spring might be needed if the current one is damaged or missing from the appliance. Because of the nature of the extension spring, it is not unusual for it to become stripped or snapped due to normal wear and tear within the machine. Unusual sounds may come from inside the machine if this spring is not working properly. This is a genuine OEM replacement part and is sold individually. This spring is sourced directly from the manufacturer to ensure proper fit.

This is a replacement torsion spring that can be used for a range of purposes on various machines. The helical spring is used as a means to create a torque or rotary force. The ends of the springs are attached to other elements in the machine. When those other elements rotate around the center of the spring, the spring will push them to their original position. If the spring is damaged, the machine will not function properly.The torsion spring could become worn out due to a lot of use over the years. It could also become corroded, or it could be lost when making another repair on the machine. If there are issues with the spring, it should be replaced to ensure the machine works correctly.The replacement torsion spring can be used for models of yard vacuums and chippers from Craftsman, MTD, and Troy-Bilt. This is a genuine OEM replacement part that has been sourced from the manufacturer. It is sold individually.

This replacement part is a door nzle intended for use in different lawn mowers. This is a genuine replacement part made by MTD. Door nzles are used attach to the door of the lawn mower and protect the user from the sharp and dangerous blades that are inside. A new door nzle might be needed if the current one is damaged or broken in any way. It is common for this part to be replaced after years of normal wear and tear. Be sure the appliance is completely powered down and cooled off before attempting to replace this part. For more detailed instructions on how to replace this specific part, please reference the user guide.This is an OEM part sourced directly from the manufacturer. It is sold individually. This replacement part is compatible with lawn mowers made by MTD.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This is a height adjuster knob for walk-behind lawn mowers. It attaches to the height adjuster lever. This component is used to adjust the front wheels on the lawnmower deck. This adjustment allows the user to select the desired cutting height of the grass. This component is made out of a hardened foam material that is easy to grip.If the height adjuster knob falls off of the height adjust lever and will not reattach, it is likely that it will need to be replaced. The height adjuster lever itself is sold separately. The repair person may wish to wear gloves when replacing this part.This component is sourced straight from the manufacturer. It is sold individually and is a genuine OEM part. This height adjuster knob is compatible with walk-behind lawnmowers that are manufactured by the Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, Craftsman, and Husky brands.

This is a replacement front lever spring. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a broken or defective front lever spring on a variety of outdoor power equipment models. This part helps to adjust the height of the equipment deck to allow it to reach the optimal cutting height for different types of terrain. When working on or near an engine, ensure the equipment is powered off and completely cooled down before starting any repairs. Access to proper tools is required to install this part. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this front lever spring, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this front lever spring is suitable for use on several different lawnmower models, log splitters, and chippers manufactured by MTD, Craftsman, Yard Man, Cub Cadet, Husky, Yard Machines, and Troy-Bilt. This is a genuine part made of high-quality, durable materials and is sold individually.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

This part is a replacement discharge chute. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a damaged or faulty discharge chute in a variety of chipper or shredder models.This discharge chute ensures that debris is efficiently expelled from the chipper or shredder. This part is subject to significant wear and tear and therefor may require replacement. Proper tools are required to install this part. When working on or near an engine, ensure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this discharge chute, the appropriate owner's manual and equipment diagrams should be referenced. As an authentic replacement part, this discharge chute is suitable for use on several different models of chipper/shredders manufactured by MTD, Yard Machines, Cub Cadet, Yard Man, and Troy-Bilt. This is a genuine part made of high-quality, durable materials and is sold individually.

This is a self-tapping screw that can be used on a wide variety of lawn and garden equipment in many applications. A self-tapping screw is used to secure metal, wood, plastic, and brick together. When using a self-tapping screw, there's no need to drill a pilot hole since the screw makes its own hole. The only exception is with metal, which will still need a drilled hole before installation. There are many situations when a screw may need to be replaced. Some screws are damaged or broken, while others can become loose and no longer hold materials together. Screw heads can become stripped, which will also mean they need to be replaced. A visual inspection can often give an indication of whether you should replace a self-tapping screw. This is a genuine OEM hex head screw that can be used on various lawn and garden equipment, including wood chippers, lawn mowers, snowblowers, log splitters, tillers, edgers, and leaf blowers. It's compatible with products by MasterCut, Craftsman, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Troy-Bilt, Montgomery Wards, Murray, Huskee, Yard Machines, MTD, and more. This screw is sold individually.
