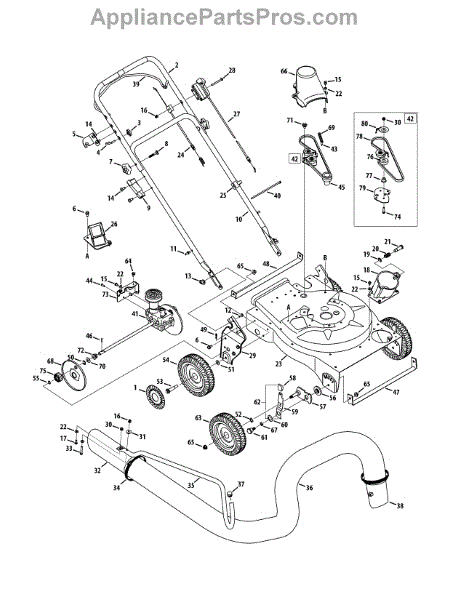

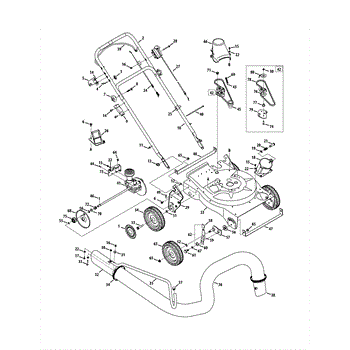

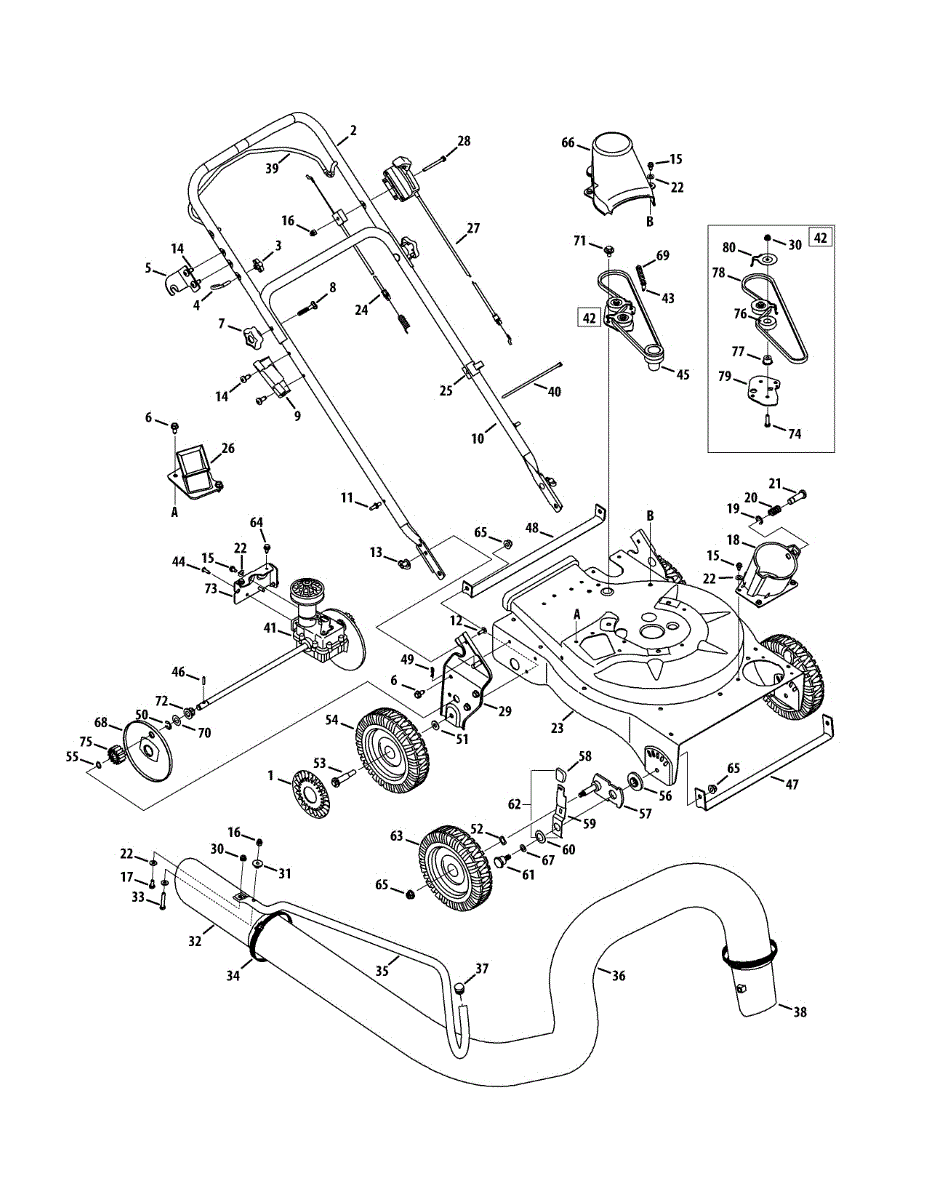

Parts for Craftsman 247.77366 / 2010: General Assembly Parts

This replacement part is an upper gullwing handle intended for use with lawn mowers. The handle assists the user in maneuvering the machine during use. Additionally, this part might be able to control certain settings.A new upper gullwing handle might be needed if the current one is missing or damaged in any way. This can be from an isolated incident or normal damage over time. If the handle is bent, dented, cracked it should be replaced as soon as possible. This is a genuine replacement part made by MTD. It is an OEM replacement part which will ensure a proper fit. This part is sold individually.

This is a knob handle that is used on various types of lawn and garden equipment. It is responsible for helping to make adjustments to the upper handle of the lawnmower or other machine. If the knob handle no longer works, is broken, or falls off, adjustments can no longer be made to the equipment. If this situation occurs, the knob handle will need to be replaced.Take a look at the knob handle and determine if it has been damaged. It could have cracks, broken areas, or excessive scratches that make it hard or impossible to use. If the knob handle is not present, this also necessitates a replacement. The part is easy to replace and requires no tools to install. Simply remove the old handle and place the new one in the same location.This is an authentic OEM replacement knob handle that is directly sourced from the manufacturer. It is sold as an individual component. The knob handle is used on lawnmowers, snowblowers, string trimmers, leaf blowers, wood chippers, and edgers. It fits various models offered by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

A rope guide eyebolt is an important piece of hardware designed for use with pieces of outdoor lawn and garden power equipment that have small engines, such as lawn mowers. It is compatible with products by brands such as Craftsman, Bolens, Husky, Yard Machines, Yard Man, MTD, and Troy-Bilt.The rope guide eyebolt part plays a valuable role in making the lawn mower easier to operate. The metal rope guide eyebolt is to be mounted to the side rail of the handle, which then keeps it secured with a handle knob. The rope guide eyebolt keeps the starter rope on the upper handle for ease of access. The purpose of all of this is simply to keep the rope out of the way while operating. The replacement or repair process of the rope guide eyebolt should be straightforward, but the user replacing the part should always be sure to wear gloves during any assembly, replacement, or installation processes.The user should also refer to the owner's manual of their equipment and any guiding diagrams that clarify the placement location. This part is made out of metal. This rope guide eyebolt is an original OEM part sourced directly from the manufacturer, MTD. It is sold individually.

This upper handle bracket is a genuine MTD part, sold individually. This upper handle bracket can be used as a replacement part in a lawn mower or a wood chipper. The purpose of the upper handle bracket in a lawn mower or a wood chipper is to secure the upper handle.The upper handle bracket could be subject to multiple forms of damage during the standard lifespan of a lawn mower or a wood chipper, including puncturing, scraping, denting, warping, or cracking. If the upper handle is no longer supported by the bracket, the upper handle bracket should be removed and replaced by this genuine OEM replacement part. It is a simple replacement process that will require only basic tools to execute properly.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This upper handle bracket is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, and Troy-Bilt.

This is a self-tapping screw that can be used on a wide variety of lawn and garden equipment in many applications. A self-tapping screw is used to secure metal, wood, plastic, and brick together. When using a self-tapping screw, there's no need to drill a pilot hole since the screw makes its own hole. The only exception is with metal, which will still need a drilled hole before installation. There are many situations when a screw may need to be replaced. Some screws are damaged or broken, while others can become loose and no longer hold materials together. Screw heads can become stripped, which will also mean they need to be replaced. A visual inspection can often give an indication of whether you should replace a self-tapping screw. This is a genuine OEM hex head screw that can be used on various lawn and garden equipment, including wood chippers, lawn mowers, snowblowers, log splitters, tillers, edgers, and leaf blowers. It's compatible with products by MasterCut, Craftsman, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Troy-Bilt, Montgomery Wards, Murray, Huskee, Yard Machines, MTD, and more. This screw is sold individually.

A star knob connects the upper and lower handles on an outdoor appliance, and if removed, the upper and lower handles are quick-released. This part is made of black heavy-duty black plastic, and the threads are made of steel. Over time, the threading can become worn out, making the connection loose, and causing the two handles to no longer stay in place. Star knobs are a straightforward repair that can be done in a matter of minutes. Just unscrew the original, damaged knob and screw in the new knob. The knob is designed to be unscrewed by hand, so there is no need for additional tools to make this repair. This genuine OEM replacement part is designed for a variety of outdoor appliances, including lawnmowers, edgers, chippers, tractors, trimmers, and cultivators. This star knob is compatible with Yard Machines, Yard-Man, Cub Cadet, Bolens, Craftsmen, and Ryobi products. This part ships individually.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

This lower handle is a genuine MTD part, sold individually. This lower handle can be used as a replacement part in lawnmowers, leaf blowers, and wood chippers. The purpose of the lower handle for one of these outdoor appliances is to allow the operator to grab onto a steady support in order to steer the appliance by hand.The lower handle for one of these outdoor appliances might need to be replaced at some point within the typical lifespan of the appliance if the lower handle is punctured, dented, cracked, warped, eroded, or otherwise damaged to the point that a basic repair cannot fix the functionality of the component. If this occurs, the lower handle should be removed and replaced by this genuine OEM replacement part.This component is a genuine OEM replacement part, sourced directly from the manufacturer. It is sold individually. This lower handle is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Yard Machines, and Yard-Man.

Carriage bolts are flat-tipped with round heads, and their function in small engine appliances is to fasten together components and to secure that connection with a nut. There are various reasons that a carriage bolt might have to be removed and replaced, among them misplacement of the small, easily lost part. Other reasons to replace a carriage bolt could include damage or erosion that prevents the bolt from attaching the materials to one another effectively. If a carriage bolt is subject to this kind of damage, it should be replaced before using the small engine appliance. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This genuine MTD carriage bolt can be used as a replacement part for several different kinds of appliances that require small engines, including lawnmowers, snowblowers, wood-chippers, tillers, string trimmers, leaf blowers, and edgers. The OEM carriage bolt is compatible with the following brands: Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut. This part is sold individually.

This screw is a genuine MTD part, sold individually. This screw can be used as a replacement part in lawn mowers, lawn tractors, chipper shredders, and wood chippers. The purpose of the screw in one of these small engine outdoor appliances is to serve as a fastening component for one or more parts.The screw is a small component that can be easily lost or misplaced during use or maintenance. If the screw is lost at some point, it should be replaced by this genuine OEM replacement part. As a result of general wear and tear over long-term use, the screw can also be stripped or damaged to the point that it cannot serve its function of fastening one or more internal components of the appliance. If this occurs, the screw should be removed and replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Ryobi, Troy-Bilt, Murray, Yard Machines, Huskee, Bolens, and Yard Man.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This part is a hex cap screw that is used on a variety of outdoor power equipment. A hex cap screw is used to fasten components together securely. The head of the screw is shaped like a hexagon, hence the name "hex cap screw."A new hex cap screw may be needed if the current one is stripped, broken, or missing. Since screws are such a small component, it is important to place them in a safe place so that they are not lost. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This hex cap screw is a genuine Husqvarna part. It is sold individually. This particular hex cap screw is compatible with chippers, shredders, lawnmowers, lawn tractors, snowblowers, and vacuums that are manufactured by the following brands: Husqvarna, Craftsman, Bolens, Husky, Yard Machines, Yard-Man, MTD, and Troy-Bilt.

This part is a replacement speed control cable. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a defective, broken, or worn speed control cable in a variety of chipper and shredder models. The speed control cable allows the user to select the desired transmission speed. This part is subject to wear and tear and can snap or stretch over time. If this occurs, the equipment will not be able to be controlled properly and may be inoperable. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this speed control cable, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this speed control cable is suitable for use on several different models of chipper or shredders manufactured by MTD, Troy-Bilt, and Cub Cadet. This is a genuine part made of high-quality, durable materials and is sold individually.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

This hose hanger spacer is a genuine MTD part, sold individually. A hose hanger spacer can be used as a replacement part in a lawn mower or a wood chipper. The purpose of this genuine OEM part is to reduce friction between one or more components held together within the internal machinery of the appliance.The hose hanger spacer in a lawn mower or a wood chipper might need to be replaced if the spacer has been lost or damaged to the point of reduced functionality. If this occurs to the spacer from general wear and tear over long-term usage, the spacer should be removed and replaced by this genuine OEM replacement part.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hose hanger spacer is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Yard Man, and Yard Machines.

This nzle handle is a genuine MTD part. It is for use on chipper-shredders, vacuum hoses, hose attachments, wood chippers, lawn mowers, and log splitters.While most nzle handles on these machines will not wear out over time through wear and tear, its position on these machines means that it can break or become damaged in an accident or through misuse. This nzle handle is a genuine OEM part sourced directly from the manufacturer. It is sold individually. It also replaces obsolete part numbers 749-1270A-0637, 749-1270-0637 and 749-1270. It is made to be compatible with machines made by Craftsman, Cub Cadet, MTD, Troy-Bilt, White Outdoor, and Yard-Man.

This replacement part is a lawn hose. It is a genuine replacement part made by MTD. This lawn hose is similar to a vacuum hose in that it is able to collect leaves and other debris and dispose of them into the collection bag. This makes it easier for the user to dispose of the items rather than use another device such as a leaf blower. A new lawn hose might be needed if the user notices the current one is not as effective as before. If the hose is unable to connect it might be time to replace it. It is also possible that the hose can become worn down or damaged over time and will not be able to effectively collect debris using the suction force. This is a genuine OEM replacement part and is sourced directly from the manufacturer and is sold individually.

This is a replacement hose adapter for use with chippers and chipper shredders. These machines help make yard cleanup easier by turning branches and twigs into mulch. Often, hoses are attached to the machine to make the cleanup even easier. The hose adapter ensures that hoses will fit onto the machine properly. If the adapter being used currently is not working properly, the hose might not provide proper suction.These pieces are made from plastic, and they are typically used outside. They could become damaged, cracked, and broken. They could even be lost and will require a replacement. The adapter does not require tools and should fit easily onto the machine. Owners should be able to add it in a matter of minutes.This replacement hose adapter can work for models of machines from MTD, Troy-Bilt, and Cub Cadet. It is a genuine OEM replacement part that has been sourced right from the manufacturer. This adapter is solid individually.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

This transmission assembly is a genuine Husqvarna part, sold individually. This transmission assembly can be used as a replacement part in a leaf blower or a leaf vacuum.The transmission assembly in a leaf blower or a leaf vacuum might need to be replaced at some point within the standard lifespan of the appliance. This could occur if the component suffers damage from general wear and tear over long-term use, as the result of an accident, or from exposure to the elements. If this occurs, the component should be removed and replaced by this genuine OEM replacement part in accordance with the instructions located in the proper appliance manual.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This transmission assembly is compatible with the following outdoor appliance brands: Husqvarna, Troy-Bilt, Cub Cadet, and Craftsman.

The shoulder screw is used in places where a spacer or bearing surface is needed, since the top half of the screw is unthreaded. These fasteners are often used for guides, pivot points, mounting pins, axles, and even a shaft for bearings and bushings in various MTD engines. With regular use, the screws can wear down or be lost. Always repair the missing hardware promptly with genuine OEM replacements. Disengage the spark plug and wear gloves when performing work on engines for safety. This genuine OEM replacement shoulder screw has been designed to be compatible with machines from MTD, Troy-Bilt, Yard-Man, Yard Machines, Bolens, Cub Cadet, and Craftsman. It can be used for multiple applications and in multiple locations in different models of lawnmowers, tractors, and chippers that use the screw in various applications. Check your parts diagrams for the exact location and use of these screws before ordering. This is sold as an individual unit; order multiple quantities as needed.

This dowel pin is a genuine MTD part, sold individually. This dowel pin can be used as a replacement part for a lawn mower, a tiller, or a wood chipper. The purpose of a dowel pin in one of these tools is to serve as a fastening component that affixes two different components to one another by fitting into the cylindrical hole of the dowel pin.The dowel pin can be easily lost or misplaced as it is a small component. The dowel pin can also become stripped. If this occurs, the component should be immediately replaced. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement. The operator of the appliance should be aware that this component is a genuine OEM replacement part, sourced directly from the manufacturer. It is sold individually. This dowel pin is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, Huskee, Bolens, MasterCut, and Yard Man.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

This washer is a genuine MTD part, sold individually. This washer can be used as a replacement part for a variety of small engine outdoor appliances including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, wood chippers, and edgers. The purpose of a washer for such outdoor appliances is to provide separation and sealing between fastening components of the appliance so the fastening components are not damaged from friction.The washer is a small component that can be easily lost or misplaced. Additionally, it may become warped or damaged. If any of these things occur, this genuine OEM replacement part should be ordered. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is an OEM part sourced directly from the manufacturer. It is sold individually. This washer is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Yard Machines, Yard-Man, and Troy-Bilt.

This is a height adjuster knob for walk-behind lawn mowers. It attaches to the height adjuster lever. This component is used to adjust the front wheels on the lawnmower deck. This adjustment allows the user to select the desired cutting height of the grass. This component is made out of a hardened foam material that is easy to grip.If the height adjuster knob falls off of the height adjust lever and will not reattach, it is likely that it will need to be replaced. The height adjuster lever itself is sold separately. The repair person may wish to wear gloves when replacing this part.This component is sourced straight from the manufacturer. It is sold individually and is a genuine OEM part. This height adjuster knob is compatible with walk-behind lawnmowers that are manufactured by the Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, Craftsman, and Husky brands.

This is a replacement front lever spring. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a broken or defective front lever spring on a variety of outdoor power equipment models. This part helps to adjust the height of the equipment deck to allow it to reach the optimal cutting height for different types of terrain. When working on or near an engine, ensure the equipment is powered off and completely cooled down before starting any repairs. Access to proper tools is required to install this part. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this front lever spring, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this front lever spring is suitable for use on several different lawnmower models, log splitters, and chippers manufactured by MTD, Craftsman, Yard Man, Cub Cadet, Husky, Yard Machines, and Troy-Bilt. This is a genuine part made of high-quality, durable materials and is sold individually.

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

This replacement part is a dust wheel. This is a genuine replacement part made by MTD. This part is used to help prevent wheels from becoming too dusty or dirty when not in use. A new dust wheel might be needed if the current on is missing or damaged. If the dust wheel is torn or unable to close properly, it might be time to replace it. This is a fairy simple repair as the user should be able to slip the dust wheel on over the current wheels. Be sure to purchase the correct amount as these are sold individually. Refer to the user manual for more instructions on how to replace this specific part. This part is sold individually and is sourced directly from the manufacturer. This part is also a genuine OEM replacement part to ensure proper fit.

This hex screw is a genuine MTD part. It is a replacement part for lawn tractors, edgers, lawn mowers, snow blowers, tillers, string trimmers, chainsaws, log splitters, and wood chippers. It is a standard-sized part and it may be compatible with other machines as well.This particular screw is a one-inch metal screw and may be found in various places on the pieces of equipment. Refer to a parts diagram to find out where it is used on the equipment.This hex screw is a genuine OEM part sourced directly from the manufacturer. It is sold individually. Most machines have multiple screws; check others to see if more need replacement. It is compatible with several makes, including but not limited to Bolens, MTD, Troy-Bilt, Yard-Man, Yard Machines, Ryobi, Husky, Cub Cadet, Montgomery Ward, MasterCut, Turf King, and more.

The sealed ball bearings are used as a means to limit the amount of friction that occurs between a fixed part of the assembly and a rotating shaft. They can be used for numerous applications in lawn and garden equipment. The ball bearings are used in various locations of different types of machines, so the issues that could crop up will vary. Typically, bad ball bearings will create knocking sounds in the engine, or parts in the engine could be difficult to turn. When the ball bearings are no longer sealed or not functioning properly, they should be replaced. This genuine OEM replacement ball bearing is sold individually. The ball bearing works with many models of lawn mowers, snowblowers, edgers, wood chippers, and tillers. Compatible brands include Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut. Buyers should always ensure they are buying the correct parts for their make and model.
