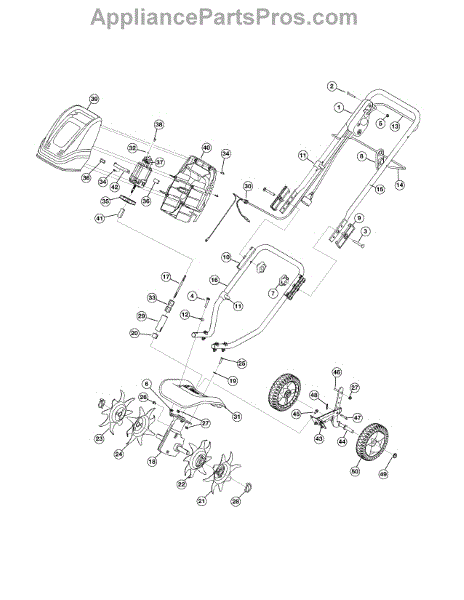

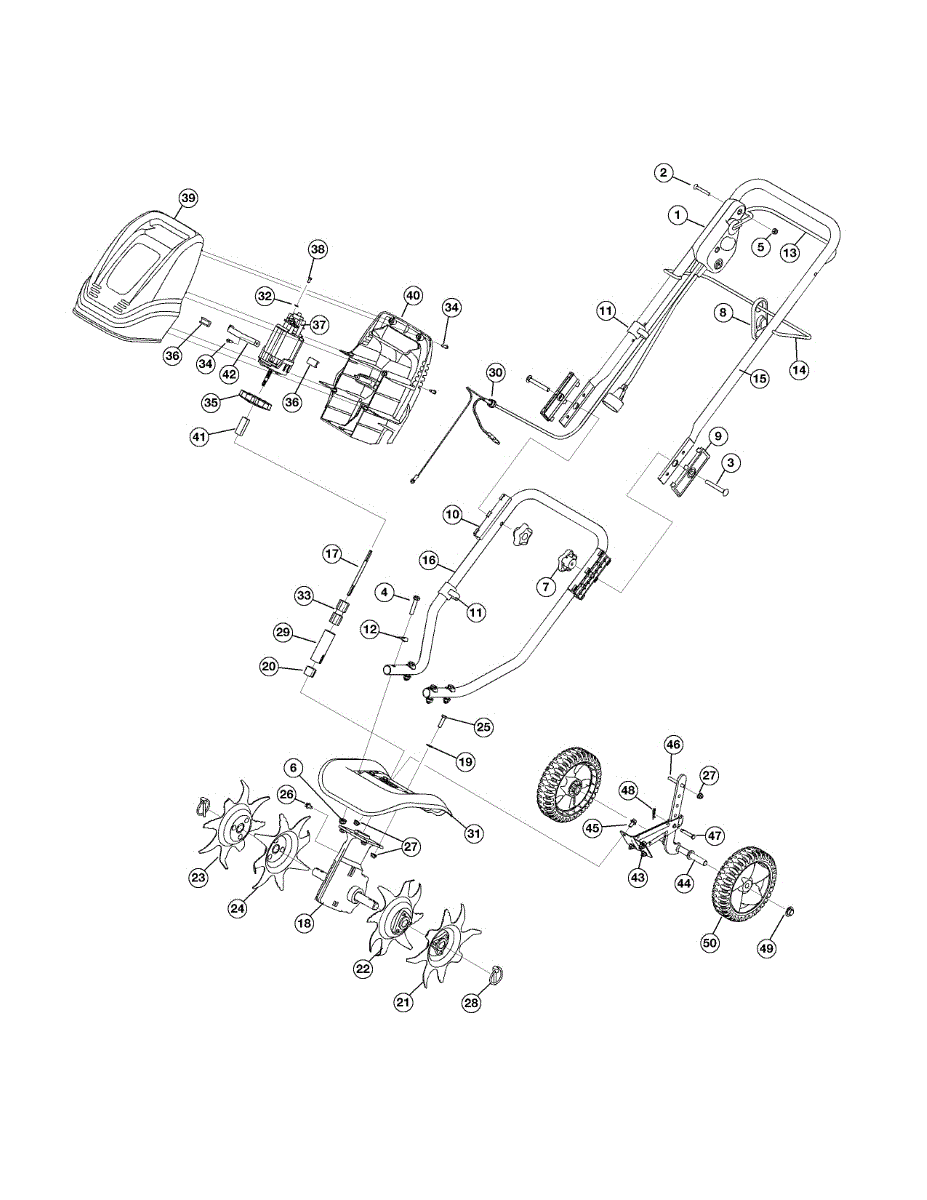

Parts for Craftsman 316.29263 / 2011: General Assembly Parts

This replacement screw is a flat screw that is designed for use in select outdoor equipment. The flat screw has several applications on various equipment, and is generally used to secure the housing or other components of the unit in place. These durable screws are made of metal, but they are small and they can become lost. They may also wear down or strip, which would require a replacement.This OEM screw can replace faulty parts on compatible units from MTD, as well as those from Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, Yard-Man, and Bolens. Each unit will have different applications so owners should refer to their manual to figure out which screws need replaced and where they should be installed. The screw is sold individually and does not include any washers or other components. It can be used on lawn mowers, snowblowers, tillers, and log splitters that take the part. It will require an Allen wrench for replacement.

This carriage bolt is a genuine MTD part, sold individually. This carriage bolt can be used as a replacement part in lawnmowers, snowblowers, tillers, and edgers. The purpose of the carriage bolt for one of these outdoor appliances is to work in conjunction with a nut to affix two metal components to one another or one metal component to another wood component.The carriage bolt in an outdoor appliance might have to be completely replaced if it cannot affix two or more components together. This could occur if the carriage bolt has been punctured, dented, cracked, warped, or eroded to the point that it loses its functionality. If this occurs, the carriage bolt should be removed and replaced by this genuine OEM replacement part.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This carriage bolt is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, Huskee, Bolens, Yard-Man, and MasterCut.

This replacement part is a nut, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. Nuts are a small part found in many different types of machinery and are used to connect different parts and secure things together.A new nut might be needed if the current ones are missing or damaged in any way. It is common that nuts become stripped overtime and might get stuck or fall out of place. In this case, it is recommended that the nut be replaced. Be sure to review the specific owner's manual for more information on how to replace the nuts. This part is sold as an individual piece. Be sure to purchase the correct amount as many different machines use more than one during operation. This is also a genuine OEM replacement part sourced directly from the manufacturer.

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

A star knob connects the upper and lower handles on an outdoor appliance, and if removed, the upper and lower handles are quick-released. This part is made of black heavy-duty black plastic, and the threads are made of steel. Over time, the threading can become worn out, making the connection loose, and causing the two handles to no longer stay in place. Star knobs are a straightforward repair that can be done in a matter of minutes. Just unscrew the original, damaged knob and screw in the new knob. The knob is designed to be unscrewed by hand, so there is no need for additional tools to make this repair. This genuine OEM replacement part is designed for a variety of outdoor appliances, including lawnmowers, edgers, chippers, tractors, trimmers, and cultivators. This star knob is compatible with Yard Machines, Yard-Man, Cub Cadet, Bolens, Craftsmen, and Ryobi products. This part ships individually.

This part is a replacement gearbox assembly. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It is intended to replace a defective or broken gearbox assembly in various models of tillers.The gearbox assembly is essential to the tiller's functionality as it is what rotates the tine shaft in order to spin the tines themselves. If the current gearbox is worn, malfunctioning, or otherwise broken, it will need to be replaced immediately. Wear work gloves to protect the hands and check that equipment is powered off and cooled down before starting the repair process. For more accurate information on how and where to use this gearbox assembly, the appropriate owner's manual and equipment diagrams should be referred to. This gearbox assembly is a genuine OEM part made of durable metal and is sold individually. It is suitable for use with tiller models that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands.

This hex screw is a genuine MTD part. It is a replacement part for lawn tractors, edgers, lawn mowers, snow blowers, tillers, string trimmers, chainsaws, log splitters, and wood chippers. It is a standard-sized part and it may be compatible with other machines as well.This particular screw is a one-inch metal screw and may be found in various places on the pieces of equipment. Refer to a parts diagram to find out where it is used on the equipment.This hex screw is a genuine OEM part sourced directly from the manufacturer. It is sold individually. Most machines have multiple screws; check others to see if more need replacement. It is compatible with several makes, including but not limited to Bolens, MTD, Troy-Bilt, Yard-Man, Yard Machines, Ryobi, Husky, Cub Cadet, Montgomery Ward, MasterCut, Turf King, and more.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

This replacement part is a pin lynch. This is a genuine replacement part made by MTD. This part is small but important to ensure that the axle or shaft is working properly during use.A new pin lynch might be needed if the current one is missing or damaged. It is not uncommon for the pin to be stripped down over time due to normal wear and tear in the machine. Often times the pin also gets lodged into place and should be replaced if this ever occurs. Wear work gloves when completing this repair to prevent injury. The engine should be completely turned off and cooled down. This part is sold individually and is sourced directly from the manufacturer. This is a genuine OEM replacement part.

This is an anti-rotation screw. The lower handle clip on many devices, including lawn and garden equipment and tools, holds an anti-rotation screw. With use, over time, or because of other damages, the screw may be broken or stripped. When this occurs, a replacement anti-rotation screw is required to keep the machine secured together correctly for safe use.The replacement of an anti-rotation screw is quick and easy. A Torx screwdriver is recommended for replacing the part. Allow the machine to cool completely before working with it. Wear protective gloves for safety always. Remove a stripped or worn out screw if there is one present before securing in the new part to the lower handle clip.This anti-rotation screw is a genuine OEM part. It is sourced from the manufacturer. The replacement part is sold as an individual unit. The piece is made from high-quality, durable metal. It can be used in a variety of brands, including Ryobi, Troy-Bilt, MTD, Bolens, Yard-Man, Yard Machines, and Cub Cadet. The anti-rotation screw is compatible with many models of blowers, cultivators, edgers, snowblowers, trimmers, vacuums, and other tools and lawn and garden equipment.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

This genuine OEM replacement part is a push cap designed for snowblower, tiller, and edger wheel assemblies. A push cap is a special type of nut, or fastener, that helps to hold unthreaded shafts in place. Although small, this push cap helps to secure the wheel to the axle. Push caps are most commonly damaged if the operator uses their appliance in rough terrain. If damaged, it can fall off, causing the wheel to also fall off. Replacing push caps is an easy repair as they attach to the outside of the wheel assembly. The only hardware required to make this repair is a nut driver. If you do not have a nut driver, a pair of pliers can also be used to attach the new push cap. This part is a high-quality replacement part meant for Yard Man, Husky, Ryobi, Yard Machines, Troy-Bilt, MTD, Bolens, and Cub Cadet appliances. It is sourced direct from its original manufacturer and ships individually.
