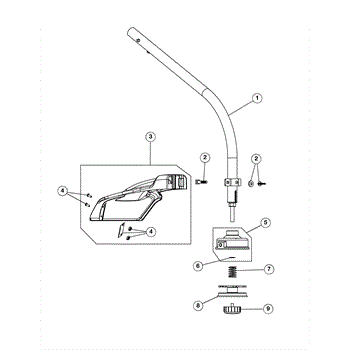

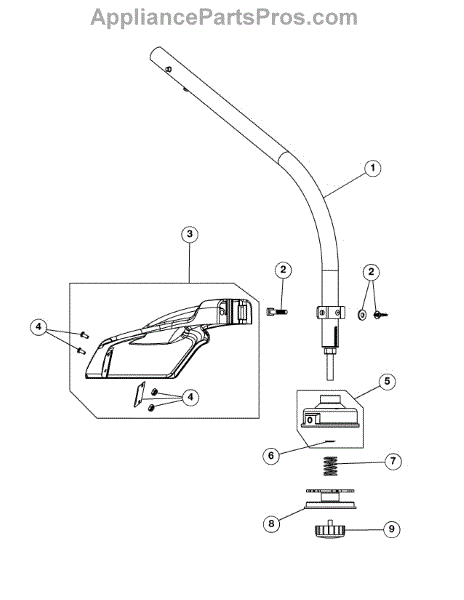

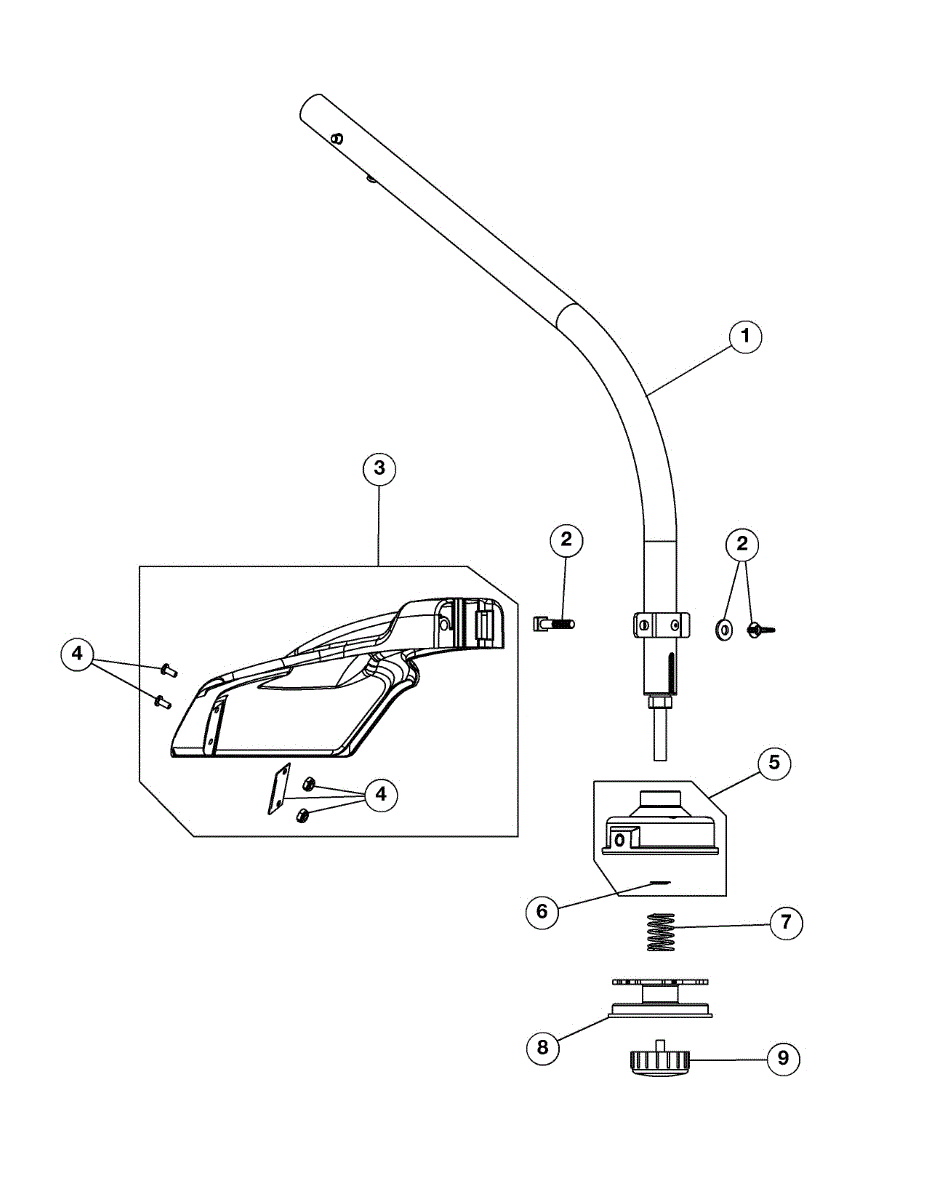

Parts for Craftsman 41AJCS-C799: General Assembly Parts

This reel is a genuine MTD replacement part for a lawn trimmer, which is designed to cut grass, shrubs, bushes, and weeds. The function of a reel in a lawn trimmer is to collect the line in the reel housing and then unspool the line from the housing while the lawn trimmer is in use. Within the lifespan of a lawn trimmer, it is likely that the reel will suffer some damage. This might result in issues with unspooling the line, rendering the lawn trimmer impossible to use. Damage to the reel might occur as a result of general wear and tear, overuse, exposure to the elements, or collision with the ground or another object; additionally, the reel could suffer from gradual deterioration in the form of anything from small cuts and nicks to serious piercings and erosion. If the reel is damaged to the point that the lawn trimmer is unusable, the reel should be removed and replaced immediately. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This reel is compatible with the following brands: MTD and Craftsman. This part sold individually.

This is a high-quality retainer that is typically used in string trimmers. It is made of durable metal and fits in the area between the outer spool assembly and the spring on the trimmer. The purpose of the retainer is to ensure the spool stays in the correct location while the string trimmer is being used. This component can become damaged, break, or be lost and will need to be replaced in order to be sure the spool is supported and secure.If there is an issue with the string trimmer retainer, it can cause excessive noise during use. It also may prevent the trimmer from starting if other components are affected. A wrench and work gloves may be required to replace the part. Gain access to the retainer and remove it using the wrench. The new replacement part can be installed in the same place. Reassemble other parts, and the trimmer will be ready to use.This retainer is designed to fit string trimmers manufactured by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, Bolens, MTD, and Yard-Man. It is sold as an individual part. It is an authentic OEM replacement part that is sourced directly from the manufacturer.

Bump head trimmers use the impulse of a bump against the earth to release a measured amount of cutting twine from the spool. In actual use, this happens so quickly that an observer may not realize the user has bumped for more twine and resumed trimming. A simple but absolutely necessary piece of this procedure is the bump head spring that sits beneath the plastic bump cover and the cutting head. The spring signals the cutting head to release twine. While this system functions quite well and is the default method used by most grass trimmers, it should be noted that the spring can fail for a couple of reasons. First is simple overuse, revealed when the spring doesn't produce enough bounce back to cause the spool to release twine. This is the result of constant bumping. A second problem that arises is the stress the spring undergoes when twice spools are constantly changed. It is often the case that springs are incorrectly placed and bent in the process. When replacing the spring, it's essential to use one like this one, an OEM certified replacement that identically matches the original. This spring is compatible with Craftsman, Bolen, and Troy-Bilt trimmers.

The inner spool reel is a genuine replacement part for select models of string trimmers. The inner reel is where the string for the trimmer is wound. Once the string has been wound around the reel, it is attached to the outer spool assembly and then threaded onto the trimmer and secured in place. This part is regularly exposed to repetitive motion and ground contact, and it can become damaged with use and require a replacement. With a genuine OEM part, owners can guarantee an exact fit for their compatible machines. This inner reel is manufactured to specific standards by MTD for use on hundreds of trimmers, including those from MTD, RYOBI, Cub Cadet, Yard Man, Bolens, Yard Machines, and Troy-Bilt. This reel does not require any tools to install. Use caution when winding the trimmer line so as not to create tangles that could jam the trimmer while it is being used. Disengage the engine before working on trimmers and always wear eye and hand protection for added safety. This inner reel is made of durable plastic and sold as a single unit. Other components will need to be purchased separately.

A bump head knob is a part of a string trimmer. When the trimmer is tapped against the ground or any hard surface, it will let out more line. This component, which is primarily made from rubber, is also responsible for securing the spool to the trimmer head. Over time, a bump knob can break. If it is damaged, the trimmer won't release more lines. It is easy to install a brand-new bump head knob replacement. First, get a screwdriver and unscrew the old bump knob. Grab the replacement and screw it to the trimmer head. Tighten it for a secure fit. This replacement only comes with a bump head knob. It doesn't have other string trimmer replacement parts. For an efficient, compatible part replacement, choose this MTD 791-153066B Bump Head Knob. You can use it with string trimmer models made by MTD, Bolens, Yard-Mad, Yard Machines, Craftsman, Troy-Bilt, and Ryobi. It is a genuine OEM part that is sold individually.

This reel spool assembly is specifically designed for use with string trimmers and comes with all necessary parts, including the trimmer line and the spool. The line itself is used when the trimmer is in use to cut grass and foliage. The spool is the component that the string is wrapped around to keep it secure while using the trimmer.If the reel spool or the line is damaged or broken, the reel spool assembly should be replaced. A wrench or a screwdriver will be needed to go through the process. When replacing the parts in the reel spool assembly, the spool cover will need to be removed. Make sure the string trimmer is on a sturdy surface and the spark plug wire has been disconnected. Place the spool assembly in the housing, feed the line, and replace the cap.This is an authentic OEM replacement part that is sourced directly from the manufacturer. It is sold as an individual component. The reel spool assembly is compatible with many string trimmers manufactured by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Bolens, and Yard-Man.
