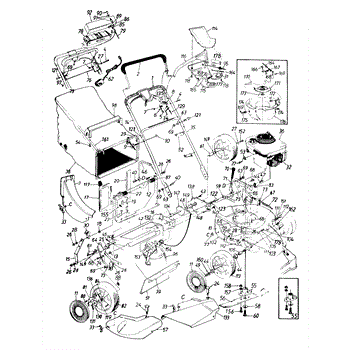

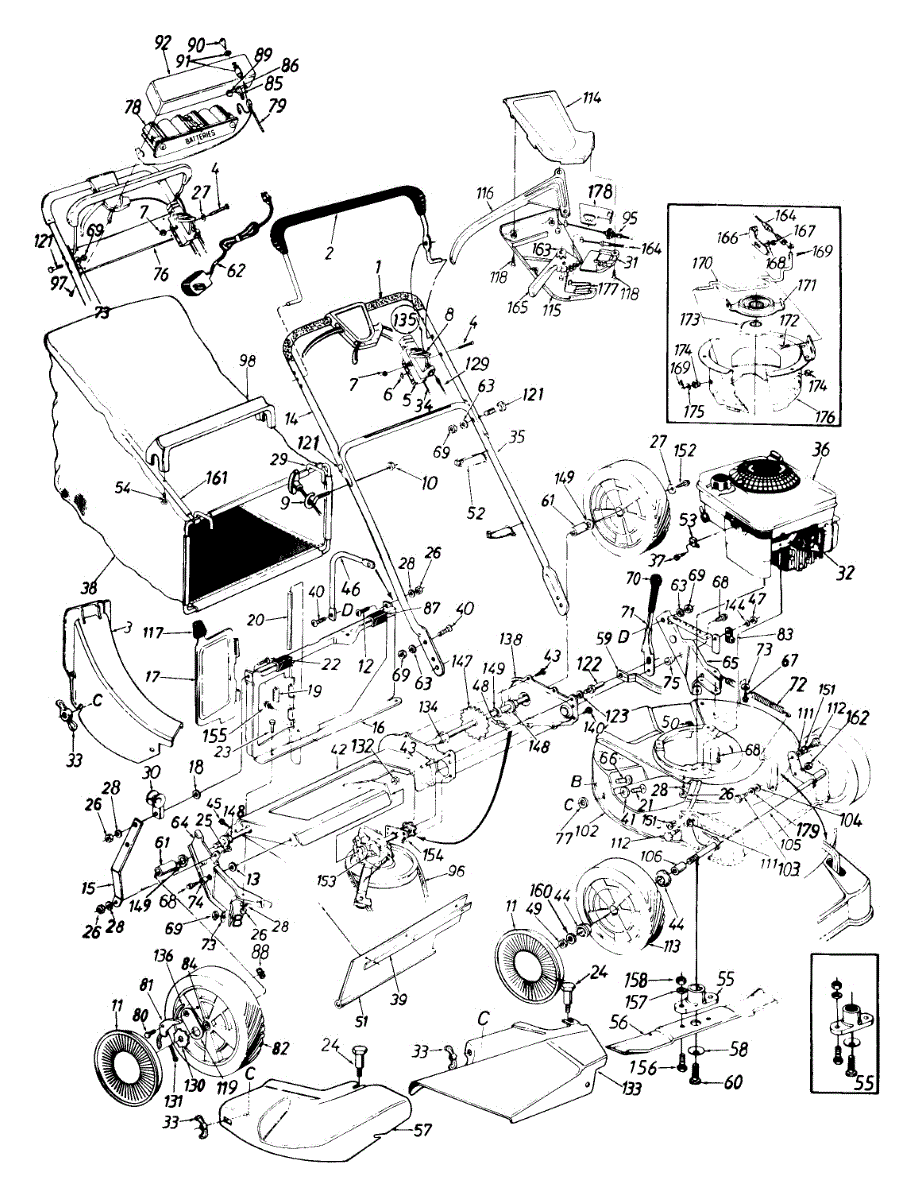

Parts for Grass Handler 122-848E101 / 1992: General Assembly Parts

A rope guide eyebolt is an important piece of hardware designed for use with pieces of outdoor lawn and garden power equipment that have small engines, such as lawn mowers. It is compatible with products by brands such as Craftsman, Bolens, Husky, Yard Machines, Yard Man, MTD, and Troy-Bilt.The rope guide eyebolt part plays a valuable role in making the lawn mower easier to operate. The metal rope guide eyebolt is to be mounted to the side rail of the handle, which then keeps it secured with a handle knob. The rope guide eyebolt keeps the starter rope on the upper handle for ease of access. The purpose of all of this is simply to keep the rope out of the way while operating. The replacement or repair process of the rope guide eyebolt should be straightforward, but the user replacing the part should always be sure to wear gloves during any assembly, replacement, or installation processes.The user should also refer to the owner's manual of their equipment and any guiding diagrams that clarify the placement location. This part is made out of metal. This rope guide eyebolt is an original OEM part sourced directly from the manufacturer, MTD. It is sold individually.

This replacement part is a nut, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. Nuts are a small part found in many different types of machinery and are used to connect different parts and secure things together.A new nut might be needed if the current ones are missing or damaged in any way. It is common that nuts become stripped overtime and might get stuck or fall out of place. In this case, it is recommended that the nut be replaced. Be sure to review the specific owner's manual for more information on how to replace the nuts. This part is sold as an individual piece. Be sure to purchase the correct amount as many different machines use more than one during operation. This is also a genuine OEM replacement part sourced directly from the manufacturer.

This flat washer is a genuine MTD part, sold individually. This flat washer can be used as a replacement part in lawn mowers, snowblowers, tillers, edgers, chainsaws, log splitters, and wood chippers. The purpose of a flat washer for one of these small engine outdoor appliances is to serve as a fastening component, spacing internal parts out to reduce friction.The flat washer in a small engine outdoor appliance is a small component that can easily be lost or misplaced, in which case it should be replaced as soon as the operator notices its absence. The flat washer can also be stripped away over time, in which case it should be removed and replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This flat washer is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Troy-Bilt, Yard Machines, Huskee, MasterCut, Yard Man, Turf King, Montgomery Wards, Husky, and Murray.

This carriage screw is a replacement part for Craftsman, Yard-Man, MTD, and Yard Machines lawnmowers and snowblowers. Carriage screws are made from durable metal and have a flat tip with a round head and threading on a portion of the shank. These screws may also be called coach screws or plow screws and are corrosion resistant, strong, and resistant to scratches. If a carriage screw breaks or beings to become weak, replacement may be required. In many cases, it’s possible to inspect the screw to determine whether it is still doing its job. The screw might be rusted or appear beaten up, which means it should be replaced. In most cases, it can be removed using a wrench unless the rusting is extreme. The new screw can be placed into the original hole and tightened to keep your snowblower running correctly. This is a genuine OEM replacement component for use with lawn tractors and snowblowers. It’s made of metal and can be found in various locations depending on the tool model. The screw comes as an individual item and will require the use of a wrench to install.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

This genuine replacement part is a MTD flat washer flange sized .339 X .640 inch X .033 inch. This MTD flat metal washer flange has a variety of applications for many types of equipment including lawn mowers, snow blowers, tillers, edgers, and log splitters. Washers are important to the proper functioning of the product. They spread the load of a threaded fastener, such as a bolt or nut, or can be used as a spacer. However, they can often wear down or become damaged through extended normal use and may not last the full life cycle of the product, leading to improper operation. This high quality OEM replacement part is sourced directly from the manufacturer, and is sold individually. This MTD flat washer flange has multiple applications in a wide range of products from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery, Wards, Bolens, Yard-Man, Turf King, MasterCut, and more. Please note: original part number 166763 is now obsolete, and manufacturer has replaced the original part number with this part.

This hex screw is a genuine MTD part, sold individually. A hex screw can be used as a replacement part for outdoor appliances including lawn mowers, snowblowers, leaf blowers, and wood chippers. This part is a fastener.The hex screw in a outdoor appliance might be easily lost or damaged at some point within its typical lifespan. If the screw has been lost, it should be immediately replaced by this genuine OEM replacement part; additionally, if the screw has been punctured, dented, cracked, warped, or eroded, it should be immediately replaced.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This hex screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Husky, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

This spacer is a genuine MTD part, sold individually. This spacer can be used as a replacement part in lawnmowers, snowblowers, and wood chippers. This part assists in fastening two components together by creating a slight gap that reduces friction.The spacer might have to be replaced if it is lost, misplaced, or damaged from general wear and tear with long-term use. If the spacer is lost at some point within the typical operation of the appliance and its absence is noticed by the operator, the spacer should be replaced by this genuine OEM replacement part. If the spacer is damaged beyond functionality, the spacer should be immediately replaced. This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This spacer is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Huskee, Yard Machines, Montgomery Wards, Yard-Man, Turf King, and MasterCut.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

This screw is a genuine MTD part, sold individually. This screw can be used as a replacement part in a lawn mower or a wood chipper.The screw in a lawn mower or a wood chipper might have to be replaced at some point within the typical lifespan of the appliance if it is lost, misplaced, or stripped away from general wear and tear over long-term usage. If the screw suffers from one of these things, it should be removed and replaced by this genuine OEM replacement part.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This screw is compatible with the following outdoor appliance brands: MTD, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, Huskee, Montgomery Wards, Yard Man, Turf King, and MasterCut.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This part is a hex cap screw that is used on a variety of outdoor power equipment. A hex cap screw is used to fasten components together securely. The head of the screw is shaped like a hexagon, hence the name "hex cap screw."A new hex cap screw may be needed if the current one is stripped, broken, or missing. Since screws are such a small component, it is important to place them in a safe place so that they are not lost. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This hex cap screw is a genuine Husqvarna part. It is sold individually. This particular hex cap screw is compatible with chippers, shredders, lawnmowers, lawn tractors, snowblowers, and vacuums that are manufactured by the following brands: Husqvarna, Craftsman, Bolens, Husky, Yard Machines, Yard-Man, MTD, and Troy-Bilt.

This hex nut is designed for use with select trimmers and mowers. It is a standard hardware part that may have multiple applications depending on the type of unit and model. The nut is typically used to secure engine components or housing elements to provide safe use of the machine. These nuts are durable, but they are small and can become lost during other repairs. The constant exposure to vibrations and use can also cause them to strip or become damaged over time. Either way, a replacement with this genuine hex nut will resolve the issue and get equipment back in working order. This genuine OEM hex nut is manufactured to exact standards and sourced from the manufacturer. It can be used with trimmers and mowers from RYOBI, MTD, Bolens, Troy-Bilt, Yard Machines, Huskee, Yard Man, and Cub Cadet. Check the parts diagram for exact application and location of this nut and note that it may have multiple uses on select models. This hex nut is sold individually, and additional nuts will require the purchase of multiple pieces. In order to replace this nut, a hex socket wrench and driver will be required. Always wear gloves for safety.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

This carriage bolt is a self-locking bolt designed to be used in an unthreaded square or round hole. These bolts are used in outdoor lawn and garden equipment due to their ability to handle heavy weight loads.Carriage bolts are often used to join lawnmower handles to the base of the mower. Over time, the vibration of the lawnmower may cause the bolt to become loose. During routine maintenance, if the bolt is loose, use a wrench to tighten the nut holding the bolt in place. If the bolt is missing, this carriage bolt replacement can be installed. Push the bolt through the hole; if the fit is snug, it may need to be lightly tapped. Once the bolt is through the other side, thread a nut on the bolt. Tighten the nut with a wrench.This is a genuine OEM part sourced directly from the manufacturer. It is sold as an individual unit and does not come with the nut. This carriage bolt is designed for lawnmowers, snowblowers, and other outdoor lawn and garden equipment manufactured by Bolens, Craftsman, Cub Cadet, Huskey, Troy-Bilt, Turf Pro, MTD, Ryobi, and Mastercut.

This shift spring is a genuine MTD part, sold individually. This shift spring can be used as a replacement part in a lawn mower or a snowblower. The purpose of the shift spring in a lawn mower or a snowblower is to regulate and coordinate the opening and closing of the lever that facilitates the control cable mechanism of the appliance, allowing the operator to navigate the appliance across a variety of surfaces.The shift spring in a lawn mower or a snowblower might need to be replaced if the shift spring can no longer maintain its tension within the infrastructure of the appliance so that it can regulate the secure the control cable and its associated parts. If the shift spring suffers damage in the form of puncturing, scraping, denting, warping, or eroding, the shift spring should be removed and replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This shift spring is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, Huskee, Montgomery Wards, and Yard Man.
