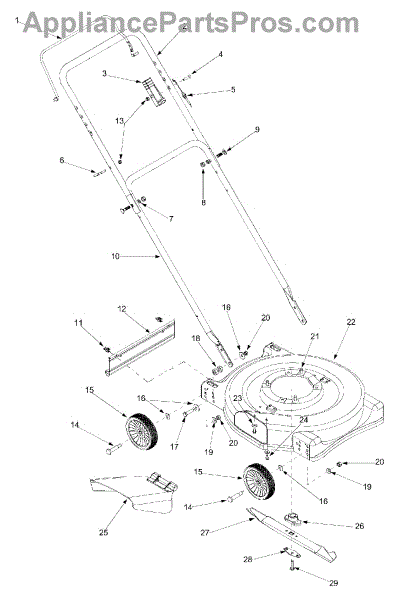

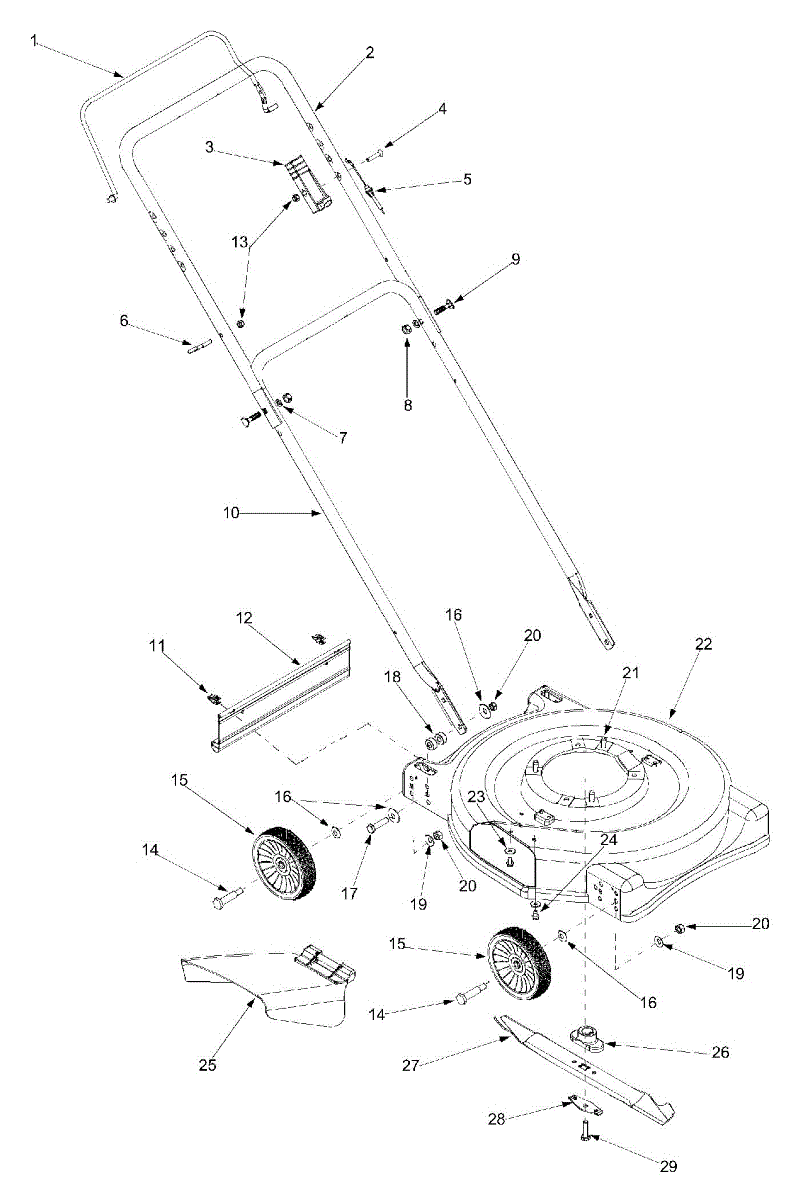

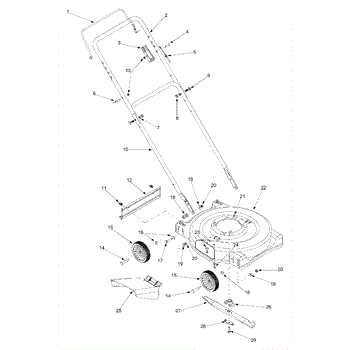

Parts for Ranch King 11B-062A205 / 2002: General Assembly Parts

Parts for Ranch King 11B-062A205 / 2002: General Assembly Parts

Location on Diagram
Part Description
Price & Availability
3
Product photo
By: Mtd

Fix a mower that won't start or has loose throttle cable control with a new throttle housing. This plastic grip component secures the throttle cable.

More
$18.54
Compare At:
$20.68
You Save:
$2.14

IN STOCK
Ships Today Guaranteed
Add to Cart
4
Product photo
$7.39
Compare At:
$8.34
You Save:
$0.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
6
Product photo
By: Mtd

Rope guide eyebolt for lawn mower recoil starters. Guides the starter rope smoothly during pull starts. Replace if bent, broken, or missing.

More
$4.45
Compare At:
$5.25
You Save:
$0.80

IN STOCK
Ships Today Guaranteed
Add to Cart
9
By: Mtd

Replacement bolt for lawn mowers and outdoor power equipment. Secures components and ensures stable assembly. Order a new bolt if yours is missing or damaged.

More
$5.95
Compare At:
$7.08
You Save:
$1.13

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
10
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

12
By: Mtd

Replacement rear discharge flap assembly for walk-behind lawn mowers. Installs at the rear deck opening to shield against debris. Needed when cracked or torn.

More
$29.95
Compare At:
$35.94
You Save:
$5.99

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
13
Product photo
By: Mtd

Nylon nut for lawn equipment. Secures and connects components throughout the machine. Replace if cracked, stripped, or missing for proper assembly.

More
$4.14
Compare At:
$4.55
You Save:
$0.41

IN STOCK
Ships Today Guaranteed
Add to Cart
16
Product photo
By: Mtd

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a

More
$4.71
Compare At:
$5.60
You Save:
$0.89

IN STOCK
Ships Today Guaranteed
Add to Cart
17
Product photo
By: Mtd

Hex screw for lawn mowers and outdoor power equipment. Replaces lost, stripped, or damaged hardware. Secures components and panels during assembly.

More
$8.95
Compare At:
$10.65
You Save:
$1.70

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
19
Product photo
By: Mtd

Bell washer for lawn mowers and tractors. Installs to secure components and prevent loosening. Replace if cracked, worn, or missing for proper assembly.

More
$4.70
Compare At:
$5.55
You Save:
$0.85

IN STOCK
Ships Today Guaranteed
Add to Cart
20
Product photo
By: Mtd

Replace a lost, stripped, or corroded nut on your lawn mower, tractor, or outdoor power equipment. Secures components for safe operation.

More
$4.95
Compare At:
$5.89
You Save:
$0.94

IN STOCK
Ships Today Guaranteed
Add to Cart
21
Product photo
By: Mtd

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolt

More
$4.95
Compare At:
$5.89
You Save:
$0.94

IN STOCK
Ships Today Guaranteed
Add to Cart
23
Product photo
By: Mtd

Replace worn spring bell washers causing loose parts or rattling noises. This conical washer cushions heavy loads in lawn equipment. Simple DIY fix.

More
$4.70
Compare At:
$5.55
You Save:
$0.85

IN STOCK
Ships Today Guaranteed
Add to Cart
24
Product photo
By: Mtd

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

More
$5.95
Compare At:
$7.08
You Save:
$1.13

IN STOCK
Ships Today Guaranteed
Add to Cart
29
Product photo
5.0 (1)
By: Mtd

Hex bolt secures blade adapter and other components on lawn mowers. Replace if bolt is stripped, damaged, or missing to properly fasten parts.

More
$5.95
Compare At:
$7.08
You Save:
$1.13

IN STOCK
Ships Today Guaranteed
Add to Cart
