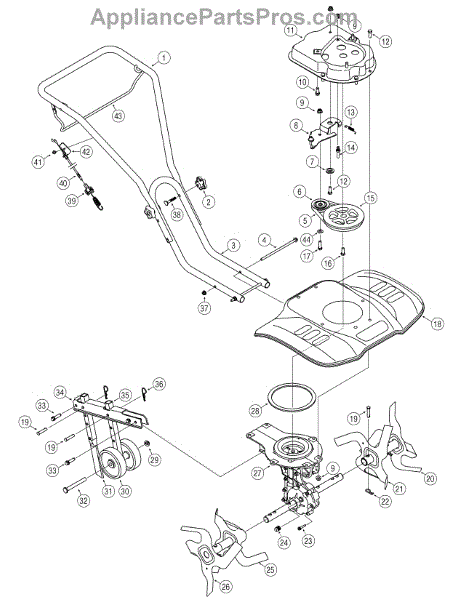

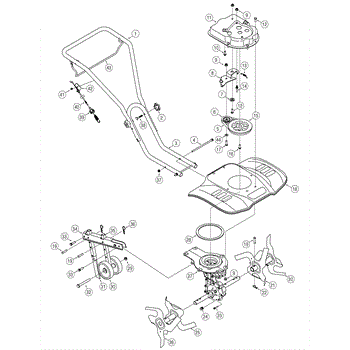

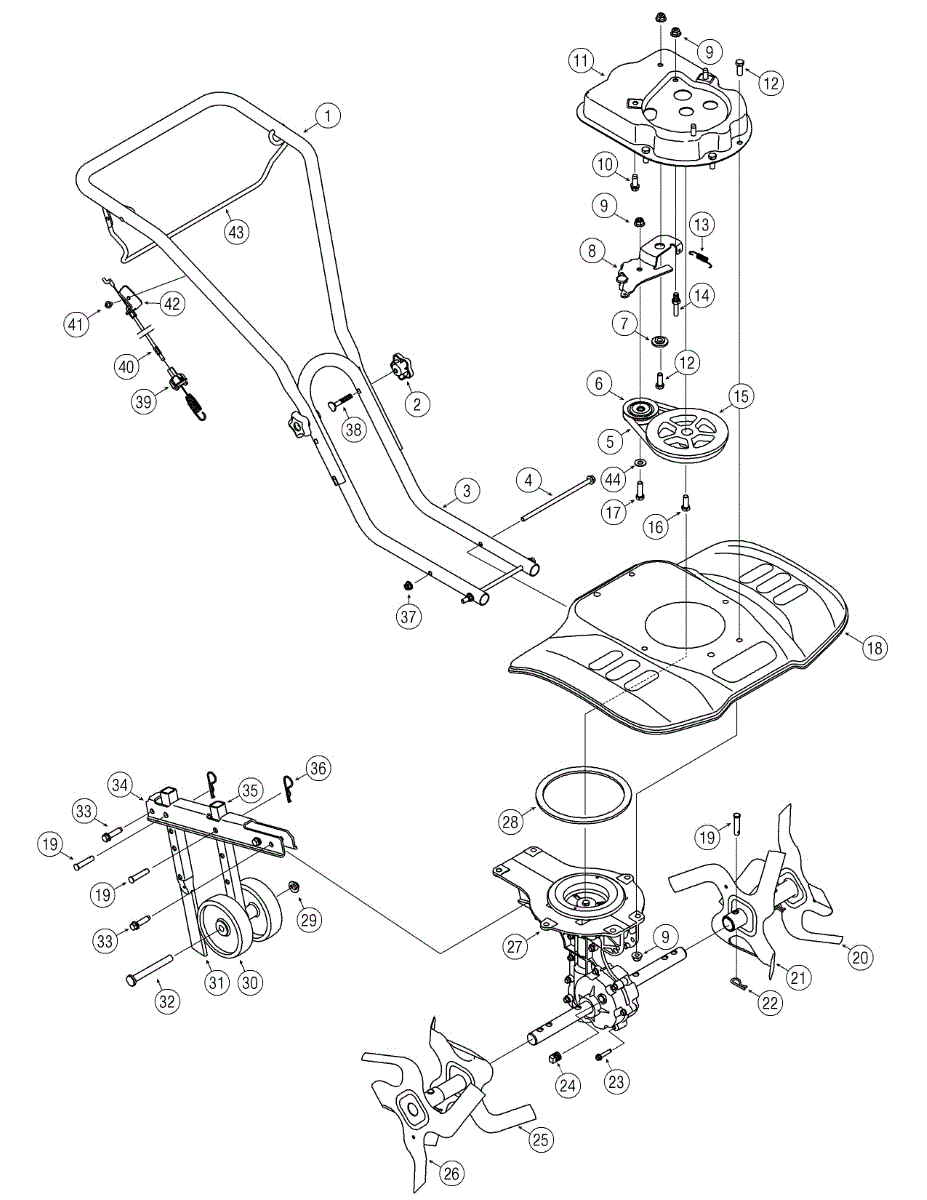

Parts for Yard Machines 21A-241E052 / 2007: General Assembly Parts

Upper loop handle for front-tine and rear-tine tillers. Replace this handle if yours is bent, cracked, broken, or causing discomfort during operation.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

Replacement spring for lawn tractors and tillers. Restores proper tension and function when the original spring is stretched, broken, or missing.

Flywheel pulley for tillers. Mounts to the engine flywheel to drive the belt system. Replace if cracked, worn, or damaged to restore proper operation.

Hex screw for tillers and outdoor power equipment. Secures internal components. Replace if stripped, corroded, missing, or damaged from overtightening.

This hex screw is a genuine MTD part. A hex screw can be used as a replacement part in refrigerators, humidifiers, lawn mowers, snowblowers, tillers, log splitters, and wood chippers. The purpose of this genuine OEM part is to stabilize and secure the placement of components within the internal or external machinery of one of these appliances.In lawn equipment a screw might easily be lost, misplaced, or damaged; if this occurs, the screw should be removed and replaced by this genuine OEM replacement part so that all components can maintain their placement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with equipment manufactured by MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Sub Zero, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

Tine shaft oil seal prevents contaminants and leaks in your tiller's gear system. Replace if you notice oil leaking or debris contamination. Confirm fit.

Replace your tiller's worm gear case assembly when you experience grinding noises, difficulty engaging tines, or transmission slippage during operation.

This genuine OEM replacement part is a push cap designed for snowblower, tiller, and edger wheel assemblies. A push cap is a special type of nut, or fastener, that helps to hold unthreaded shafts in place. Although small, this push cap helps to secure the wheel to the axle. Push caps are most commonly damaged if the operator uses their appliance in rough terrain. If damaged, it can fall off, causing the wheel to also fall off. Replacing push caps is an easy repair as they attach to the outside of the wheel assembly. The only hardware required to make this repair is a nut driver. If you do not have a nut driver, a pair of pliers can also be used to attach the new push cap. This part is a high-quality replacement part meant for Yard Man, Husky, Ryobi, Yard Machines, Troy-Bilt, MTD, Bolens, and Cub Cadet appliances. It is sourced direct from its original manufacturer and ships individually.

Plastic deck wheel for lawn mowers and lawn tractors. Attaches to the mower deck to prevent scalping and provide smooth gliding. Replace if cracked or worn.

Depth stake tube for front-tine tillers. Installs to measure tilling depth. Replace if bent, cracked, or missing for accurate depth control.

Replace your lawn mower's hex head tap screw if lost, stripped, or damaged. This small fastener secures components on mowers, tillers, and edgers.

Internal cotter pin for tillers and outdoor power equipment. Secures moving parts and assemblies. Replace if bent, broken, or missing for safe operation.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.
