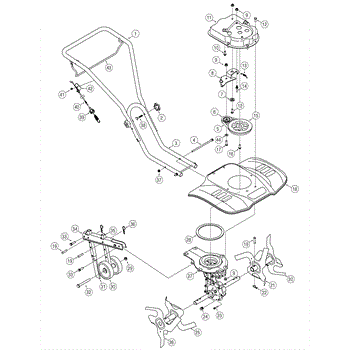

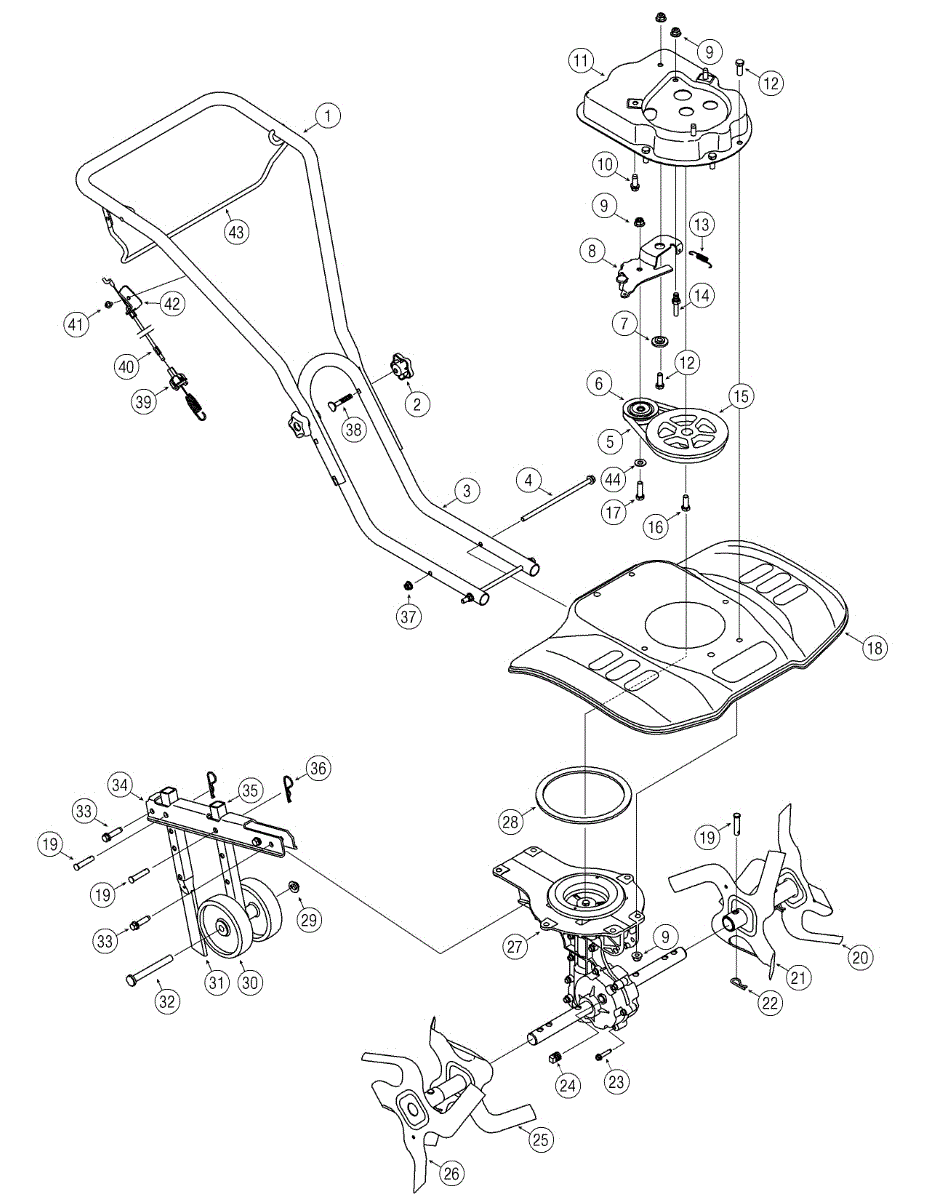

Parts for Yard Machines 21A-241F252 / 2007: General Assembly Parts

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

This replacement part is a hex screw. This part is small but important in many types of equipment. Hex screws are used with washers or nuts to secure components within the equipment.If it has been stripped because of overtightening, it can come loose and fall out. Over time, a screw can corrode, as well, causing it to get stuck in place or break. If this is the case, it is recommended that this part be replaced.This is a genuine OEM replacement part manufactured by MTD. This part is sold individually.

This hex screw is a genuine MTD part. A hex screw can be used as a replacement part in refrigerators, humidifiers, lawn mowers, snowblowers, tillers, log splitters, and wood chippers. The purpose of this genuine OEM part is to stabilize and secure the placement of components within the internal or external machinery of one of these appliances.In lawn equipment a screw might easily be lost, misplaced, or damaged; if this occurs, the screw should be removed and replaced by this genuine OEM replacement part so that all components can maintain their placement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with equipment manufactured by MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Sub Zero, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

This is a genuine OEM replacement tiller oil seal sourced from the manufacturer. It is designed for use with the tine shaft on various tillers. It prevents outside contaminants like water and debris from reaching the oil. The seal also prevents oil leaks, which would cause the bearing and gears not to receive adequate lubrication. Normal wear and tear will take a toll on the oil seal. Changing this seal should be done regularly, and anytime the tiller shows signs of decreased performance. Before starting, make sure the tiller is cool. Park it on a flat surface and remove the spark plug. Drain the fuel from the engine. Remove the gear housing cover on the tine shaft. Slide the gear assembly of the shaft and locate the oil seal. Remove the old oil seal. Clear the area any dirt and old oil with a clean cloth before installing the new oil seal. Apply lubricant to the oil seal to help with installation and sealing. Reinstall all parts. This oil seal is made of heavy-duty rubber and sold as an individual unit. It is designed for tillers manufactured by Troy-Bilt, MTD, Bolens, Craftsman, and Yard Machines.

This genuine OEM replacement part is a push cap designed for snowblower, tiller, and edger wheel assemblies. A push cap is a special type of nut, or fastener, that helps to hold unthreaded shafts in place. Although small, this push cap helps to secure the wheel to the axle. Push caps are most commonly damaged if the operator uses their appliance in rough terrain. If damaged, it can fall off, causing the wheel to also fall off. Replacing push caps is an easy repair as they attach to the outside of the wheel assembly. The only hardware required to make this repair is a nut driver. If you do not have a nut driver, a pair of pliers can also be used to attach the new push cap. This part is a high-quality replacement part meant for Yard Man, Husky, Ryobi, Yard Machines, Troy-Bilt, MTD, Bolens, and Cub Cadet appliances. It is sourced direct from its original manufacturer and ships individually.

This replacement part is a plastic lawnmower wheel, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. These wheels are typically found in different types of lawnmowers. The wheels are attached to the deck of the lawnmower to prevent it from coming into contact with the ground. This allows easy maneuvering by the user of heavy machinery. A new lawnmower wheel might be needed if the current ones are damaged or broken in any way. Wheels are one of the most used parts of the lawnmower and easily become worn down over time. This is due to normal wear and tear. This wheel fits on the axle of the mower and is usually held in place by a bolt and locknut. Because of this, these wheels are easy to replace when using the correct tools. This part is compatible with different types of equipment made by MTD and is a genuine OEM replacement part.

This replacement part is a depth stake tube, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. Depth stake tubes are used to measure the depth of something. This can come in handy when measuring the depth of grass or of certain areas of the lawn. A new depth stake tube might be needed if the current one is damaged or broken in any way. It is important that the measurements on the stake tube are accurate so if any part of the device has been damaged or has fallen off, it's important to replace it right away. This part is made of durable material and is meant to last a long while.This depth stake tube is sold individually and is compatible with many different lawn mowers. Also note that this is a genuine OEM replacement part sourced directly from the manufacturer.

This tap hex screw is a genuine MTD part, sold individually. A tap hex screw can be used as a replacement part for outdoor appliances including lawn mowers, tillers, and edgers. This is a small fastener.The tap hex screw for one of these outdoor appliances might be subject to damage or to a loss or misplacement that can necessitate the full replacement of the screw. Refer to the manual for detailed instructions.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This tap hex screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Troy-Bilt, Murray, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.
