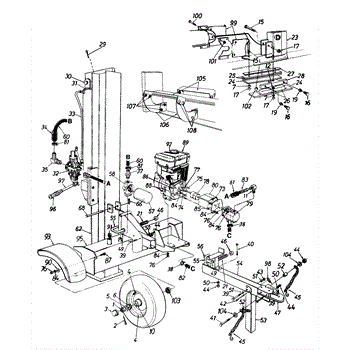

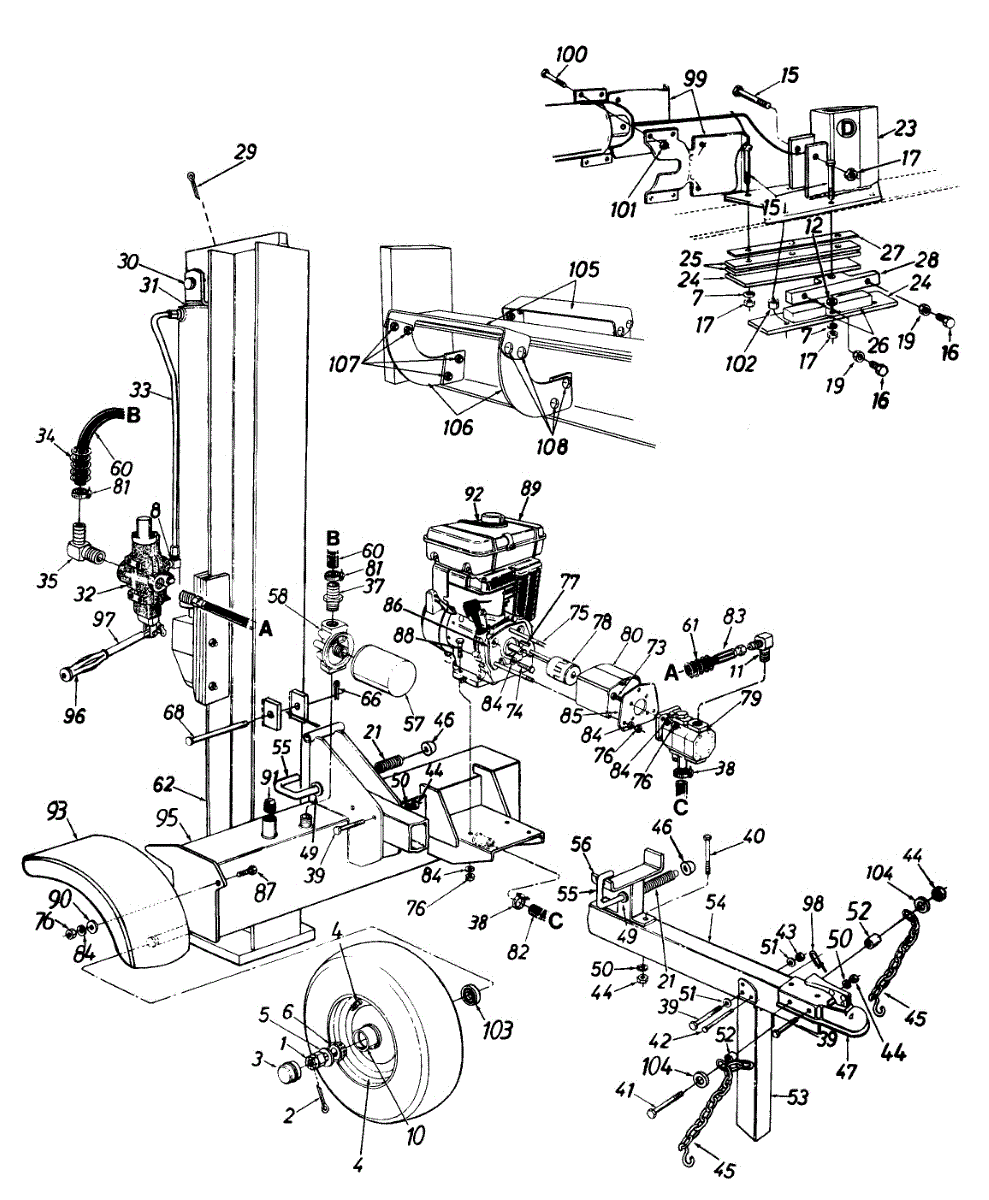

Parts for Yard Machines 247B522A062 / 1997: General Assembly Parts

This nut, or slotted nut, is a genuine MTD part. It is a replacement part for use on lawn mowers, log splitters, wood chippers, lawn tractors, and chipper shredders. It is hexagonal in shape.The uses for this nut vary greatly depending on the machine with which owners plan to use it. Generally speaking, nuts work to secure various parts of components together. Loosening and tightening most nuts can be accomplished with a wrench. Before making any repairs, be sure that the engine has completely cooled, empty the fuel tank to avoid spillage, and disconnect the spark plug or battery. Wear work gloves and other protective gear.This nut is a genuine OEM part sourced directly from the manufacturer. It is sold individually; very often, more than one nut is used on machines such as these, so be sure to check how many are needed. It is designed for compatibility with various machines made by Agway Craftsman, Cub Cadet, Duerr, MTD, Lawn Chief, OEM, Ranch King, Remington, Ryobi, White Outdoor, Yard Machines, and Yard-Man.

Secures wheels and attachments to axles on lawn mowers and tractors. Replace if bent, rusted, broken, or lost to restore safe equipment operation.

This hubcap is an authentic OEM replacement part sourced directly from the manufacturer for use on log splitter and chipper wheels. The hubcap covers the central opening of the wheel assembly. This prevents dirt and debris from getting into the wheel assembly. If the hubcap comes off during use or is lost when replacing tires, a new one should be installed. The machine will work without a hubcap; however, the interior wheel assembly will be open to flying debris and could be damaged if rocks or large limbs go into the wheel assembly. During routine inspection and maintenance, the hub caps should be checked for damage and to make sure they are in place.The hubcap is easily removed and replaced with a screwdriver needed to pry the old hubcap off if it is still on the machine. The new hubcap simply snaps into place. This hubcap is made of high-quality metal and is sold individually. This hubcap is designed to be used with log splitters and chippers manufactured by MTD, Cub Cadet, Troy Bilt, Husky, and Yard-Man.

Replacement hex bolt for lawn tractors, log splitters, and wood chippers. Secures components when original is stripped, missing, or corroded.

Replacement spring for lawn tractors and riding mowers. Restores tension and function when original spring is broken, stretched, or missing.

Back plate pusher for log splitters. Installs in the pushing mechanism to help drive logs through the cutting blade. Replace if cracked, worn, or broken.

This part is a replacement floating gib plate. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It can be used to replace a broken or defective floating gib plate in a variety of different log splitter models.The floating gib plate works to support the wedge assembly and keep it in good alignment. This part can become worn or broken over time and will require replacement to keep the equipment functioning properly. Proper tools may be required to install this part. When working on or near an engine, ensure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this floating gib plate, the appropriate owner's manual and equipment diagrams should be referenced. As an authentic replacement part, this floating gib plate is suitable for use on several different models of lawnmowers manufactured by MTD. Please note that this is a genuine part made of high-quality, durable materials and is sold individually.

Hydraulic tube for log splitters. Connects hydraulic components and reduces vibration. Replace if cracked, leaking, or damaged during operation.

Replace cracked or missing 3/4 inch hose barb fitting on lawn tractors, log splitters, and chippers. Secures hose connections for proper operation.

Hex center nut secures components on lawn mowers and outdoor power equipment. Replace if stripped, corroded, or missing to ensure proper assembly.

Replace a lost, stripped, or corroded nut on your lawn mower, tractor, or outdoor power equipment. Secures components for safe operation.

This OEM replacement push cap can be used in a variety of lawn and garden equipment. The push cap is secured to the end of a shaft, providing protection to the user from the sharp metal edge of the shaft. The push caps that are included with the machines may wear out over time or fall off in some cases, creating an injury risk involving sharp metal edges. These push caps are high-quality and made from durable plastic. They are easy to install. The OEM push cap is a genuine part made by the original manufacturer, to ensure quality and s proper fit. The push caps can be used on lawn tractors, chippers, shredders, log splitters, and other equipment. Some of the brands that this push cap is compatible with include MTD, Husky, Yard-Man, Bolens, Troy-Bilt, Ryobi, Yard Machines, and cub Cadet.

This part is a replacement jack stand. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It can be used to replace a broken or malfunctioning jack stand in a variety of different log splitter models.The jack stand is what enables the log splitter to be easily raised, steadied, or leveled out when stationary and ready to be used. If the jack stand becomes dented or broken in any way, the equipment may not be sufficiently stabilized and may not be able to be used safely. Always wear work gloves to protect the hands when replacing equipment parts. Additionally, when working on or near an engine, ensure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this jack stand, the appropriate owner's manual and equipment diagrams should be referenced. As an authentic replacement part, this jack stand is suitable for use on several different models of log splitters manufactured by MTD, Cub Cadet, and Troy-Bilt. Please note that this is a genuine part made of high-quality, durable materials and is sold individually.

Replacement locking rod for log splitters. Secures and fastens components together. Order a new rod if yours is bent, broken, or missing.

This beam support assembly is a genuine MTD part, sold individually. This beam support assembly can be used as a replacement part for a log splitter. The purpose of the beam support assembly is to reduce stress on the beam so that the appliance can continue to operate under extreme conditions without wearing down quickly.The beam support assembly might need to be replaced at some point within the standard lifespan of a log splitter if the appliance becomes worn with long-term use or is otherwise damaged. If either of these incidents result in damage to the beam support assembly, the component should be removed and replaced with this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement. This is an OEM part sourced directly from the manufacturer, and it is sold individually. This beam support assembly is compatible with the following outdoor appliance brands: MTD, Craftsman, Troy-Bilt, and Cub Cadet.

This is an oil filter designed for use in larger gasoline-powered landscaping and outdoor equipment such as log splitters and chippers. An oil filter is an essential safeguard to maintain a good operating condition and ensure long life in a gas engine. Oil filters remove toxic chemicals as small pieces of debris that can end up in the engines. Because these contaminants, if improperly removed, could also end up in the air or in the environment in other ways, oil filters must be meet EPA emission regulations. This filter not only meets federal environmental standards but also is an OEM guaranteed replacement part that is manufactured to the identical specification of the original parts being replaced. By the very nature of what it's supposed to accomplish, eventually, the filter will need to be replaced. Over time the filter's elements will become full of debris, and failing to replace it in a timely manner runs the risk of allowing the captured pollutants to escape back into the engine oil. When replacing the old filter, make sure to follow environmental guidelines as well, disposing of the oil and filter according to posted regulations. Replacing the filter is the ideal time to replace the engine oil as well. This filter is compatible with Husky, Cub Cadet, Troy-Bilt, Yard-Man, and MTD equipment.

This part is a replacement return hose. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a damaged or detached return hose in a variety of outdoor power equipment. The return hose returns any excess fuel from the carburetor back into the fuel pump. Over time, this part can become worn or may be punctured, which can cause fuel leaks. In this case, it should be replaced immediately before the equipment is used again. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this return hose, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this return hose is suitable for use on several different models of chippers, shredders, and log splitters manufactured by MTD, Troy-Bilt, Yard Man, Cub Cadet, Husky, and Yard Machines. This is a genuine part made of high-quality, durable materials and is sold individually.

Hex head screw for securing components on lawn mowers, tractors, and outdoor power equipment. Replace if missing, stripped, or damaged during maintenance.

Protective coupling shield for log splitters. Guards the coupling connection from debris and damage. Replace if cracked, bent, or missing for safety.

Suction hose for log splitters. Replace if cracked, leaking, or causing hydraulic performance issues. Verify fit with your model number before ordering.

Hydraulic hose transports fluid between ports in log splitters and lawn equipment. Replace if cracked, leaking, or damaged. Verify fit with your model.

This part is a replacement stripper half. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It can be used to replace a broken, detached or malfunctioning stripper half in a variety of different log splitter models.The stripper helps to remove a partially split log if it gets stuck within the wedge assembly. This enables the log splitter to remain clear and unclogged of debris and keeps it functioning properly. This part is subject to wear and tear and may require replacement within the lifespan of the equipment. Wear work gloves to protect the hands when replacing equipment parts. Additionally, when working on or near an engine, ensure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this stripper half, the appropriate owner's manual and equipment diagrams should be referenced. As an authentic replacement part, this stripper half is suitable for use on several different models of log splitters manufactured by MTD. Please note that this is a genuine part made of high-quality, durable metal and is sold individually.

The replacement screw seen here is made from high-quality, durable metal. It is an identical replacement for a faulty screw in many types of lawn and garden equipment. The screw features a hex-bolt shaped head and is used for various applications in the machines. Owners will want to refer to diagrams of their model to ensure the correct application for the screw. A screw may need to be replaced for any number of different reasons. In some cases, the screw could become lost when making other repairs to the machine. It could also become bent or the threads could be damaged. Corrosion is also a possibility over time. Replacing the screw is typically considered a fast and easy repair. The screw is a genuine OEM replacement part that is sold individually. The screw can be used for many models of snowblower, lawnmower, chainsaw, tiller, string trimmer, log splitter, edger, and wood chipper. Compatible brands include Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

Hex lock nut for lawn mowers and outdoor power equipment. Secures blade assemblies, wheels, and components. Replace if stripped, corroded, or missing.

This flat washer is used to attach the idler pulley in a number of small and medium sized gasoline powered engines. These engines include snow blowers, log splitters, riding mowers, lawn tractors, and chippers. Because the idler pulley is subject to a great deal of resistance when the pulley is engaged, eventually the pulley will wear out. Should there be a squealing sound when engaging the drive, the problem is likely the idler pulley. In these cases, the pulley must be replaced. It is a good idea to replace the surrounding hardware when replacing the idler pulley; tNhis includes the flat washer, which is subject to corrosion during heavy use. To replace the idler pulley, first detach the spark plug cap. If on a mower or tractor, drop the mower deck. Remove the original pulley and install in order: replacement pulley, hex bolt, flat washer, flange nut. Apart from dropping the mower deck, the only tools required to complete this installation may be a 9/16 ratchet and combination wrench. This washer is a genuine OEM replacement part, designed to perfectly replicate the original piece. This washer is compatible with Troy-Bilt, Yard Man, Yard Machines, MTD, and Craftsman devices.
