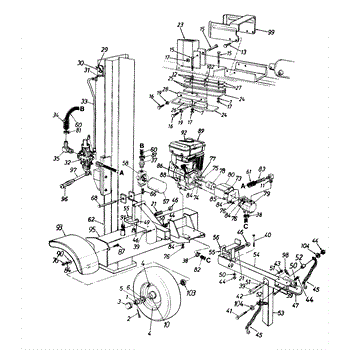

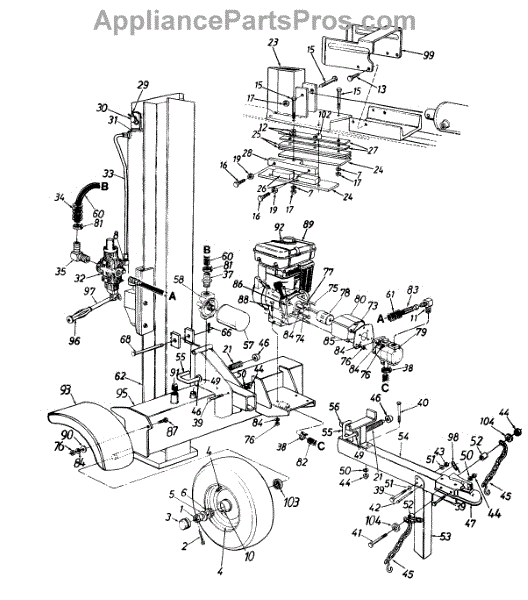

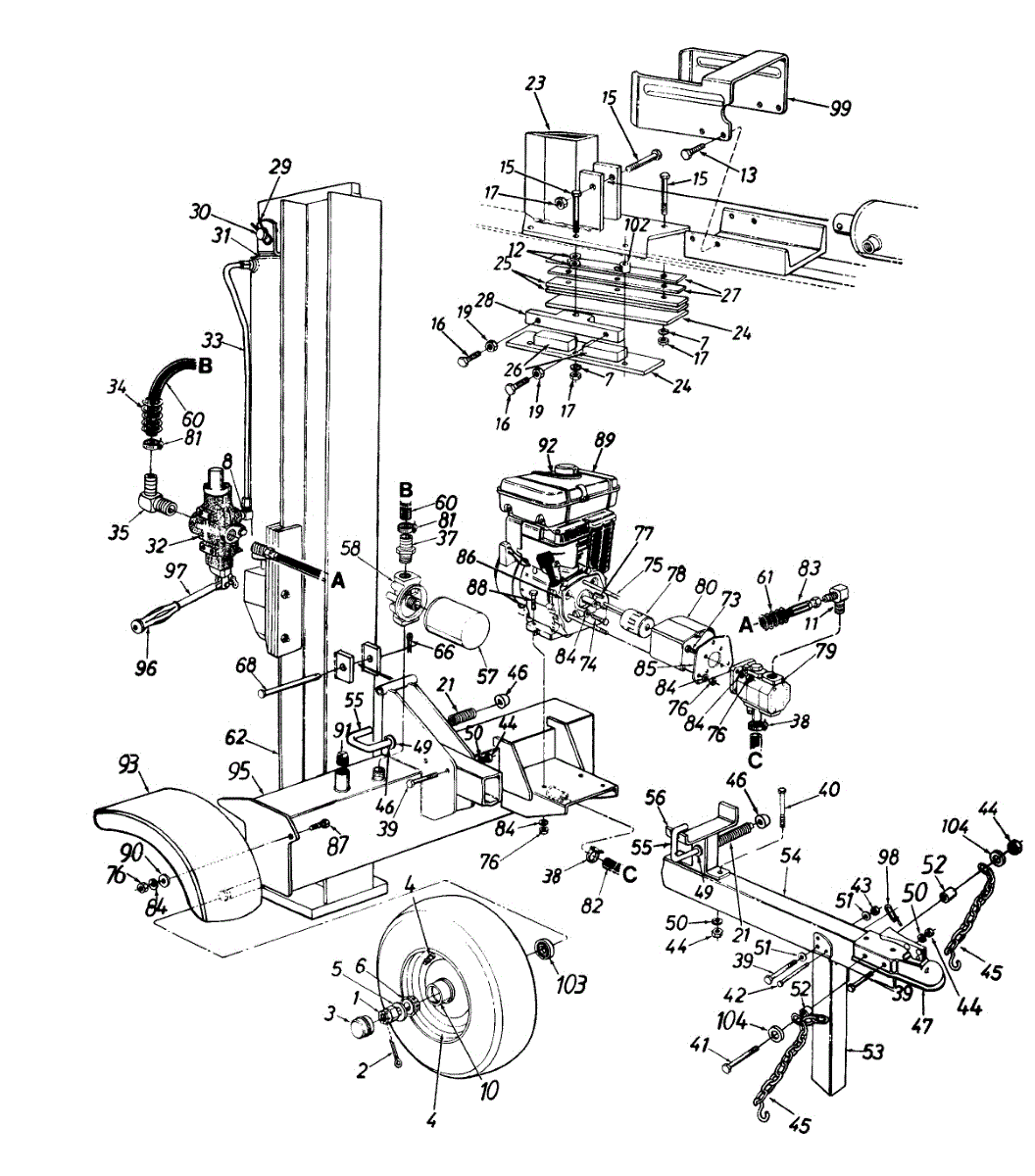

Parts for Yard Machines 247D555A129 / 1997: General Assembly Parts

This nut, or slotted nut, is a genuine MTD part. It is a replacement part for use on lawn mowers, log splitters, wood chippers, lawn tractors, and chipper shredders. It is hexagonal in shape.The uses for this nut vary greatly depending on the machine with which owners plan to use it. Generally speaking, nuts work to secure various parts of components together. Loosening and tightening most nuts can be accomplished with a wrench. Before making any repairs, be sure that the engine has completely cooled, empty the fuel tank to avoid spillage, and disconnect the spark plug or battery. Wear work gloves and other protective gear.This nut is a genuine OEM part sourced directly from the manufacturer. It is sold individually; very often, more than one nut is used on machines such as these, so be sure to check how many are needed. It is designed for compatibility with various machines made by Agway Craftsman, Cub Cadet, Duerr, MTD, Lawn Chief, OEM, Ranch King, Remington, Ryobi, White Outdoor, Yard Machines, and Yard-Man.

A cotter pin is a standard piece of hardware typically used on lawn and garden equipment as a method of securing something to an axle or round shaft. These pins are thin and, although they are durable, they can rust or become damaged over time. In some instances, they can break off or become lost in the process of other repairs. A replacement with the right size and style of cotter pin will ensure that equipment is in working order at all times. This genuine OEM cotter pin replacement can be used with select lawn and garden equipment from MTD, Huskee, Yard Man, Yard Machines, Troy-Bilt, Bolens, Cub Cadet, and Murray. It can be used on lawn tractors, log splitters, chipper/shredder units, and snowblowers. There are more than 150 compatible units, so owners should consult their parts diagram for application(s) of this pin. Note that this pin may have multiple applications on a single machine. This cotter pin is sold individually and may require needle nose pliers to replace.

This hubcap is an authentic OEM replacement part sourced directly from the manufacturer for use on log splitter and chipper wheels. The hubcap covers the central opening of the wheel assembly. This prevents dirt and debris from getting into the wheel assembly. If the hubcap comes off during use or is lost when replacing tires, a new one should be installed. The machine will work without a hubcap; however, the interior wheel assembly will be open to flying debris and could be damaged if rocks or large limbs go into the wheel assembly. During routine inspection and maintenance, the hub caps should be checked for damage and to make sure they are in place.The hubcap is easily removed and replaced with a screwdriver needed to pry the old hubcap off if it is still on the machine. The new hubcap simply snaps into place. This hubcap is made of high-quality metal and is sold individually. This hubcap is designed to be used with log splitters and chippers manufactured by MTD, Cub Cadet, Troy Bilt, Husky, and Yard-Man.

This nipple pipe is a genuine MTD part, sold individually. This nipple pipe can be used as a replacement part for lawn mowers, edgers, log splitters, and wood chippers. The purpose of a nipple pipe is to serve as a fastening connector for various components with female threads, as nipple pipes have male threads on either end.The nipple pipe is a small component, so it can easily be lost or misplaced while the outdoor appliance is in operation. Additionally, the nipple pipe can be stripped over time so it cannot fasten components to one another. If this occurs, the component should be removed and replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is an OEM part sourced directly from the manufacturer. It is sold individually. This nipple pipe is compatible with the following outdoor appliance brands: MTD, Yard Machines, Cub Cadet, Troy-Bilt, Huskee, Yard Man, and MasterCut.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

This hex bolt is a genuine MTD part, sold individually. This hex bolt can be used as a replacement part in lawn mowers, edgers, log splitters, and wood chippers. The purpose of the hex bolt for these outdoor appliances is to serve as a fastening component in conjunction with a nut so that one or more components can be held together with the aid of this fastener.The hex bolt in an outdoor appliance might need to be replaced if it is lost, misplaced, or stripped. If the hex bolt is lost or misplaced, it should be replaced by this genuine OEM replacement part. If the hex bolt suffers damage in the form of scraping, denting, cracking, or eroding over time, the component should be replaced immediately.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex bolt is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Yard Machines, Huskee, Yard Man, and MasterCut.

This replacement part is a back plate pusher, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. Back plate pushers are part of many log splitters and help in the pushing mechanism while the device is cutting logs. This part is important as the plate pusher is the main device that pushes logs to be split during use. A new back plate pusher might be needed if the current one is dented or broken. If this is the case, the device might struggle with holding the logs steady and can affect the integrity of the machine altogether. It is recommended that the back plate pusher be replaced so that logs are able to be split correctly and efficiently. Always use work gloves while repairing parts on log splitters. This is a genuine OEM replacement part and is told individually. Reference the appropriate user guide for more specific instructions on how to replace this part. This part is sourced directly from the manufacturer.

This part is an adjustable gib that is used on log splitters and chipper shredders. This component is also called a keyway. The adjustable gib locks two shafts together so that they can rotate.A new adjustable gib may be needed if the shaft is freely spinning and will not spin with the drive shaft. If the adjustable gib is cracked, broken, or damaged in any way, it will need to be replaced. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment. Never perform care and maintenance on outdoor power equipment that is powered on.This adjustable gib is a genuine MTD part. It is sold individually. This specific adjustable gib is compatible with log splitters and chipper shredders that are manufactured by MTD, Yard Machines, Cub Cadet, Yard-Man, Husky, and Troy-Bilt.

This part is a replacement floating gib plate. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It can be used to replace a broken or defective floating gib plate in a variety of different log splitter models.The floating gib plate works to support the wedge assembly and keep it in good alignment. This part can become worn or broken over time and will require replacement to keep the equipment functioning properly. Proper tools may be required to install this part. When working on or near an engine, ensure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this floating gib plate, the appropriate owner's manual and equipment diagrams should be referenced. As an authentic replacement part, this floating gib plate is suitable for use on several different models of lawnmowers manufactured by MTD. Please note that this is a genuine part made of high-quality, durable materials and is sold individually.

This replacement part is a hydraulic tube. It is a genuine replacement part made by MTD. This tube is typically found in appliances such as log splitters. The tube allows for movement between two different parts as well as reduces vibration and movement while powered on. This is very important while log splitting as it can be dangerous if the appliance moves too much during use. A new hydraulic tube might be needed if the appliance is very shaky or moving too much during use. This can mean that the tube itself is damaged or even missing. Be sure the appliance is powered down before attempting to replace this tube as parts of it are close to the engine. This hydraulic tube is sourced directly from the manufacturer and is a genuine OEM replacement part to ensure a proper fit. This tube is sold individually.

This OEM replacement push cap can be used in a variety of lawn and garden equipment. The push cap is secured to the end of a shaft, providing protection to the user from the sharp metal edge of the shaft. The push caps that are included with the machines may wear out over time or fall off in some cases, creating an injury risk involving sharp metal edges. These push caps are high-quality and made from durable plastic. They are easy to install. The OEM push cap is a genuine part made by the original manufacturer, to ensure quality and s proper fit. The push caps can be used on lawn tractors, chippers, shredders, log splitters, and other equipment. Some of the brands that this push cap is compatible with include MTD, Husky, Yard-Man, Bolens, Troy-Bilt, Ryobi, Yard Machines, and cub Cadet.

This part is a replacement jack stand. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It can be used to replace a broken or malfunctioning jack stand in a variety of different log splitter models.The jack stand is what enables the log splitter to be easily raised, steadied, or leveled out when stationary and ready to be used. If the jack stand becomes dented or broken in any way, the equipment may not be sufficiently stabilized and may not be able to be used safely. Always wear work gloves to protect the hands when replacing equipment parts. Additionally, when working on or near an engine, ensure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this jack stand, the appropriate owner's manual and equipment diagrams should be referenced. As an authentic replacement part, this jack stand is suitable for use on several different models of log splitters manufactured by MTD, Cub Cadet, and Troy-Bilt. Please note that this is a genuine part made of high-quality, durable materials and is sold individually.

This locking rod is a genuine MTD part, sold individually. This locking rod can be used as a replacement part in a log splitter. The purpose of a locking rod in a log splitter is to serve as a fastening component that holds one or more parts together.The locking rod in a log splitter might need to be replaced with this genuine OEM replacement part at some point within the typical lifespan of the appliance. This could occur if the locking rod is damaged in the form of puncturing, scraping, denting, cracking, eroding, or warping. If this occurs, the locking rod should be immediately replaced in accordance with the proper set of instructions sourced from a relevant appliance manual.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This locking rod is compatible with the following outdoor appliance brands: MTD, Yard Man, Ryobi, Cub Cadet, Craftsman, and Yard Machines.

This beam support assembly is a genuine MTD part, sold individually. This beam support assembly can be used as a replacement part for a log splitter. The purpose of the beam support assembly is to reduce stress on the beam so that the appliance can continue to operate under extreme conditions without wearing down quickly.The beam support assembly might need to be replaced at some point within the standard lifespan of a log splitter if the appliance becomes worn with long-term use or is otherwise damaged. If either of these incidents result in damage to the beam support assembly, the component should be removed and replaced with this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement. This is an OEM part sourced directly from the manufacturer, and it is sold individually. This beam support assembly is compatible with the following outdoor appliance brands: MTD, Craftsman, Troy-Bilt, and Cub Cadet.

This is an oil filter designed for use in larger gasoline-powered landscaping and outdoor equipment such as log splitters and chippers. An oil filter is an essential safeguard to maintain a good operating condition and ensure long life in a gas engine. Oil filters remove toxic chemicals as small pieces of debris that can end up in the engines. Because these contaminants, if improperly removed, could also end up in the air or in the environment in other ways, oil filters must be meet EPA emission regulations. This filter not only meets federal environmental standards but also is an OEM guaranteed replacement part that is manufactured to the identical specification of the original parts being replaced. By the very nature of what it's supposed to accomplish, eventually, the filter will need to be replaced. Over time the filter's elements will become full of debris, and failing to replace it in a timely manner runs the risk of allowing the captured pollutants to escape back into the engine oil. When replacing the old filter, make sure to follow environmental guidelines as well, disposing of the oil and filter according to posted regulations. Replacing the filter is the ideal time to replace the engine oil as well. This filter is compatible with Husky, Cub Cadet, Troy-Bilt, Yard-Man, and MTD equipment.

This part is a replacement return hose. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a damaged or detached return hose in a variety of outdoor power equipment. The return hose returns any excess fuel from the carburetor back into the fuel pump. Over time, this part can become worn or may be punctured, which can cause fuel leaks. In this case, it should be replaced immediately before the equipment is used again. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this return hose, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this return hose is suitable for use on several different models of chippers, shredders, and log splitters manufactured by MTD, Troy-Bilt, Yard Man, Cub Cadet, Husky, and Yard Machines. This is a genuine part made of high-quality, durable materials and is sold individually.

This replacement part is a hydraulic hose, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. Hydraulic hoses are an important part to many lawn mowers. Typically these hoses transport fluids between two different ports within the appliance. This allows the engine to run smoothly and efficiently. A new hydraulic hose might be needed if the lawn mower system is not working at all. It is common that the hose needs replacing about every year or two. Because this part is heavily used during lawn mowing, it is not uncommon for it to need to be replaced. Be sure the engine is completely powered off before starting the repair. Note that there may be fluid inside the hose when removed. This hydraulic hose is a genuine OEM part and is sold individually. Refer to the specific owner's manual for more detailed instructions on how to replace this part.

This dislodger is a genuine MTD part, sold individually. This dislodger can be used as a replacement part for a log splitter. The purpose of a dislodger is to unclog and remove chopped logs that are stuck in the mechanism of the appliance so it can continue to be operated.The dislodger might have to be replaced in the event that it can no longer serve its typical function; this could occur if the dislodger has been damaged from general wear and tear over long-term usage or as a result of a collision with a hard object. If the dislodger is punctured, scraped, eroded, or warped to the point that it does not remove logs from the appliance, the component should be removed and replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement. This is an OEM part sourced directly from the manufacturer, and it is sold individually. This dislodger is compatible with the following outdoor appliance brands: MTD, Troy-Bilt, Craftsman, and Cub Cadet.

This flat washer is used to attach the idler pulley in a number of small and medium sized gasoline powered engines. These engines include snow blowers, log splitters, riding mowers, lawn tractors, and chippers. Because the idler pulley is subject to a great deal of resistance when the pulley is engaged, eventually the pulley will wear out. Should there be a squealing sound when engaging the drive, the problem is likely the idler pulley. In these cases, the pulley must be replaced. It is a good idea to replace the surrounding hardware when replacing the idler pulley; tNhis includes the flat washer, which is subject to corrosion during heavy use. To replace the idler pulley, first detach the spark plug cap. If on a mower or tractor, drop the mower deck. Remove the original pulley and install in order: replacement pulley, hex bolt, flat washer, flange nut. Apart from dropping the mower deck, the only tools required to complete this installation may be a 9/16 ratchet and combination wrench. This washer is a genuine OEM replacement part, designed to perfectly replicate the original piece. This washer is compatible with Troy-Bilt, Yard Man, Yard Machines, MTD, and Craftsman devices.
