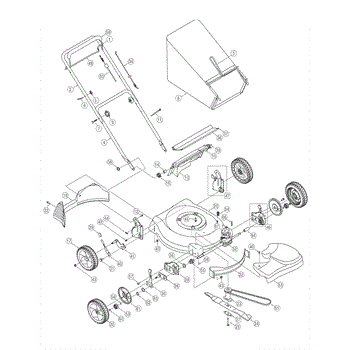

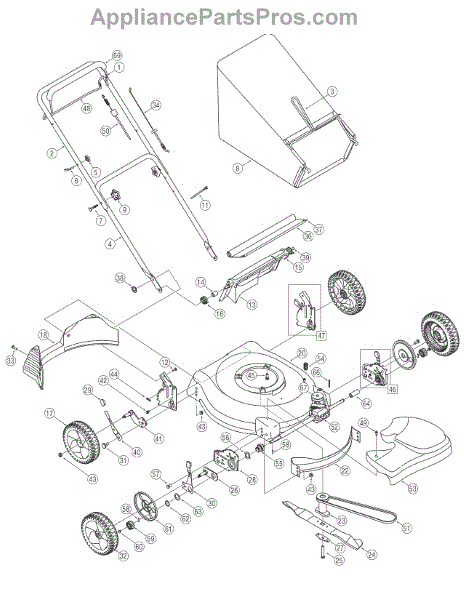

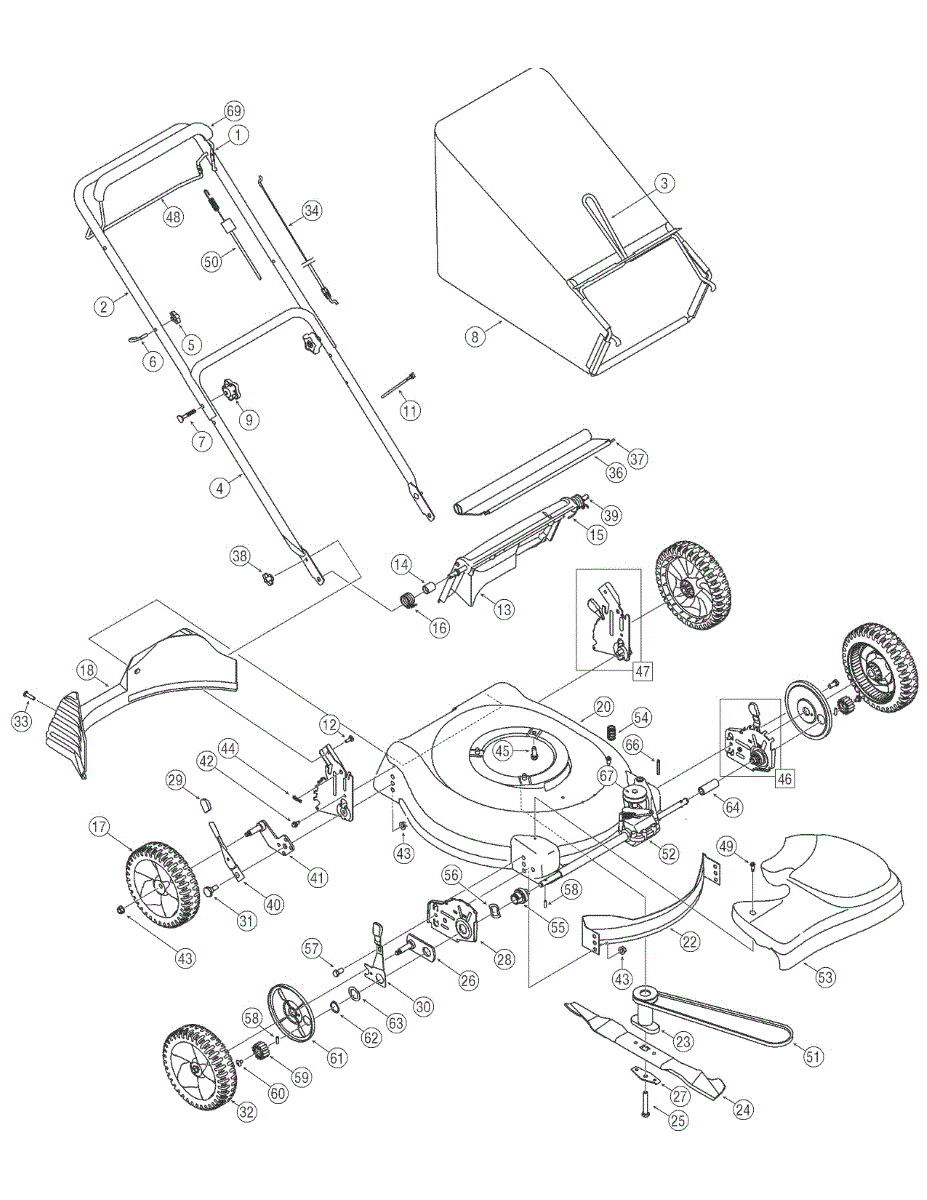

Parts for Yard-Man 12A-445C701 / 2006: General Assembly Parts

This control handle is designed specifically as a replacement for use on select walk-behind lawn mowers. The control handle is the safety that is engaged to allow the engine to run. When holding the control handle in, the pull start can be activated and the engine will run. Once the control handle is released, the engine will stop. In the event that the control handle becomes damaged or fails, it will need to be replaced so that the mower can continue to be used. This handle can provide a genuine replacement for compatible models. This control handle is manufactured to exact standards by MTD and provides an exact fit. It is compatible with hundreds of models, including select models from RYOBI, Yard Machines, Troy-Bilt, Yard-Man, Husky, Bolens, and Cub Cadet. This part is also known as the control bar, control handle, engine stop handle, bail control, or mower bail. It is made of durable metal and sold individually. No tools are required for the installation of this part. To replace the handle, simply squeeze the existing control handle to remove it from the outer handle, and then align the new handle and slide it into place. When properly installed, the pressure will hold it in place and allow for proper operation.

A lawn mower lower handle is exactly what it sounds like: a handle replacement part for different types of lawnmowers. It works with a variety of mowers, including push mowers, mulching mowers, and self-propelled lawnmowers. It designed for use and is compatible with these brands: Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, MTD, Huskee, Bolens, Yard-Man, and MasterCut.The lawn mower lower handle allows the user to drive or guide the lawn mower. The replacement and repair process for a broken lower handle is relatively simple and straightforward. The user must simple remove the faulty handle and disassemble it into its two component pieces. Then, this lawn mower lower handle replacement part can be attached to the base of the mower.This lawn mower lower handle is made out of metal. It is a genuine OEM part sourced directly from the manufacturer and is sold individually. The manufacturer of this particular lower handle is MTD.

This is a knob handle that is used on various types of lawn and garden equipment. It is responsible for helping to make adjustments to the upper handle of the lawnmower or other machine. If the knob handle no longer works, is broken, or falls off, adjustments can no longer be made to the equipment. If this situation occurs, the knob handle will need to be replaced.Take a look at the knob handle and determine if it has been damaged. It could have cracks, broken areas, or excessive scratches that make it hard or impossible to use. If the knob handle is not present, this also necessitates a replacement. The part is easy to replace and requires no tools to install. Simply remove the old handle and place the new one in the same location.This is an authentic OEM replacement knob handle that is directly sourced from the manufacturer. It is sold as an individual component. The knob handle is used on lawnmowers, snowblowers, string trimmers, leaf blowers, wood chippers, and edgers. It fits various models offered by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

A rope guide eyebolt is an important piece of hardware designed for use with pieces of outdoor lawn and garden power equipment that have small engines, such as lawn mowers. It is compatible with products by brands such as Craftsman, Bolens, Husky, Yard Machines, Yard Man, MTD, and Troy-Bilt.The rope guide eyebolt part plays a valuable role in making the lawn mower easier to operate. The metal rope guide eyebolt is to be mounted to the side rail of the handle, which then keeps it secured with a handle knob. The rope guide eyebolt keeps the starter rope on the upper handle for ease of access. The purpose of all of this is simply to keep the rope out of the way while operating. The replacement or repair process of the rope guide eyebolt should be straightforward, but the user replacing the part should always be sure to wear gloves during any assembly, replacement, or installation processes.The user should also refer to the owner's manual of their equipment and any guiding diagrams that clarify the placement location. This part is made out of metal. This rope guide eyebolt is an original OEM part sourced directly from the manufacturer, MTD. It is sold individually.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

Carriage bolts are flat-tipped with round heads, and their function in small engine appliances is to fasten together components and to secure that connection with a nut. There are various reasons that a carriage bolt might have to be removed and replaced, among them misplacement of the small, easily lost part. Other reasons to replace a carriage bolt could include damage or erosion that prevents the bolt from attaching the materials to one another effectively. If a carriage bolt is subject to this kind of damage, it should be replaced before using the small engine appliance. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This genuine MTD carriage bolt can be used as a replacement part for several different kinds of appliances that require small engines, including lawnmowers, snowblowers, wood-chippers, tillers, string trimmers, leaf blowers, and edgers. The OEM carriage bolt is compatible with the following brands: Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut. This part is sold individually.

This replacement part is a torsion spring. This is a genuine replacement part made by MTD. Torsion springs ensure that the engine is able to work properly and effectively using the torque provided by this part. A new torsion spring might be needed if the current one is missing or damaged in any way. Springs can become brittle under pressure and snap after years of use. Be sure to replace this spring as soon as possible if this is the case. Work gloves are recommended as this part can be dangerous and cause injury if handled improperly. This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

This hex screw can be used as a replacement part for the small engine of a lawn mower or a lawn tractor. The hex screw is a fastener with a six-sided head that is responsible for fastening components to one another. A hex screw might be lost or misplaced, which is a frequent occurrence in small engine appliances as a result of long-term usage. Hex screws are easily lost and misplaced as they are small components that do not necessarily cause damage upon unscrewing unless it results in the materials coming loose. If this is the case, or if the hex screw suffers from impact or corrosion to the metal material, the hex screw should be removed and replaced with this genuine OEM replacement for lawn mowers and lawn tractors. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer, MTD. It is sold individually. This hex screw is compatible with the following brands: MTD, Troy-Bilt, Yard Man, and Bolens.

The blade support is found between the blade and the bolt. As its name suggests, it is designed to provide support for the blade to ensure it is secured to the base of the mower deck. It is made of metal and it will need a replacement if it becomes worn or damaged. To replace a blade support or blade spacer, first, the engine needs to be cool. Remove the wire and boot from the spark plug. Tip the mower back on its handle assembly and use a piece of wood or sturdy object to hold the cutting blade in place. Remove the old blade support and blade. When installing the new one, ensure that the blade's sharp edge faces away from the mower deck. Re-thread and torque the bolt between 40 and 50 ft-lbs. This is an original OEM replacement part for lawnmower blade support made by Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, MasterCut. It is sold individually.

This is a height adjuster knob for walk-behind lawn mowers. It attaches to the height adjuster lever. This component is used to adjust the front wheels on the lawnmower deck. This adjustment allows the user to select the desired cutting height of the grass. This component is made out of a hardened foam material that is easy to grip.If the height adjuster knob falls off of the height adjust lever and will not reattach, it is likely that it will need to be replaced. The height adjuster lever itself is sold separately. The repair person may wish to wear gloves when replacing this part.This component is sourced straight from the manufacturer. It is sold individually and is a genuine OEM part. This height adjuster knob is compatible with walk-behind lawnmowers that are manufactured by the Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, Craftsman, and Husky brands.

This part is a replacement trail shield wire. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a broken or faulty trail shield wire in a variety of lawnmower models.This part securely attaches the lawnmower's rear skirt to the back of the deck. This is what enables the rear skirt to easily move back and forth. If the trail shield wire is damaged, the rear skirt may stick or will not pivot properly, effecting equipment functionality. When working on or near an engine, ensure the equipment is powered off and completely cooled down before starting any work. For more accurate information on how and where to install this trail shield wire, the appropriate owner's manual and equipment diagrams should be referenced. As an authentic replacement part, this trail shield wire is suitable for use on several different models of lawnmowers manufactured by MTD, Troy-Bilt, Yard Man, Yard Machines, Cub Cadet, and Bolen. This is a genuine part made of high-quality, durable metal and is sold individually.

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

The shoulder screw is used in places where a spacer or bearing surface is needed, since the top half of the screw is unthreaded. These fasteners are often used for guides, pivot points, mounting pins, axles, and even a shaft for bearings and bushings in various MTD engines. With regular use, the screws can wear down or be lost. Always repair the missing hardware promptly with genuine OEM replacements. Disengage the spark plug and wear gloves when performing work on engines for safety. This genuine OEM replacement shoulder screw has been designed to be compatible with machines from MTD, Troy-Bilt, Yard-Man, Yard Machines, Bolens, Cub Cadet, and Craftsman. It can be used for multiple applications and in multiple locations in different models of lawnmowers, tractors, and chippers that use the screw in various applications. Check your parts diagrams for the exact location and use of these screws before ordering. This is sold as an individual unit; order multiple quantities as needed.

This replacement part is a hex screw. This is a genuine replacement part made by MTD. This type of screw is commonly found in many types of machinery and appliances. Screws are able to keep certain parts stable and connected so that they are secure during use. A new hex screw might be needed if the current one is visibly damaged in any way or missing. It is not uncommon for screws to become stripped down or lodged in place after years of normal use. If this is the case they should be replaced as soon as possible. If the screw is lodged in place, pliers might be required on top of a screwdriver to complete this repair. This part is sold individually and is sourced directly from the manufacturer. This part is a genuine OEM replacement part to ensure proper fit and long-lasting use.
