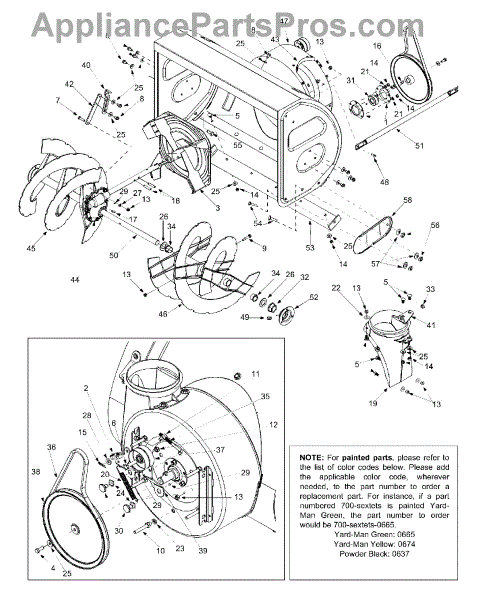

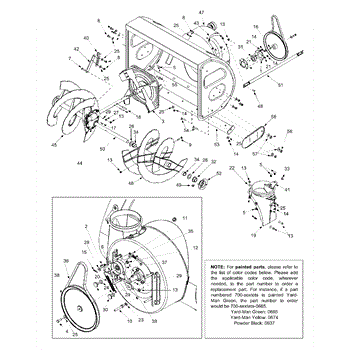

Parts for Yard-Man 31AE993J401 / 2002: General Assembly Parts

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

This replacement part is a hex screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This screw can be used in a variety of ways depending on the repair needed. Hex screws are similar to normal screws except they have a six-sided head, like a hexagon. A new hex screw might be needed if the current one is damaged or missing. It is common that screws may become stripped or loose overtime, causing them to fall out. If any parts of the lawn mower are becoming loose or falling off, the hex screw might be missing. This replacement should be fairly easy and should only require a screwdriver and possibly pliers. This part is a genuine OEM replacement part and is sold individually. Be sure to purchase the correct amount as some appliances require more than one hex screw.

This is a replacement shear bolt that is used on snowblowers. The shear bolt has an important role and an interesting one—it is supposed to break, or shear off, when the unit malfunctions. Therefore, it may be necessary to replace this part sooner than expected if something else happens to the machine. When the already-weakened bolt is connected to the shaft and the impeller, it ensures that the machine can rotate and collect the snow. If the impeller or auger experiences an impact or other problem, the shear bolt will break, causing the unit to stop operating for the sake of safety. There are also instances where the shear bolt could become damaged without being engaged. Either will require a replacement and this OEM part will provide an exact fit for compatible models. The snowblower shear bolt is sold individually and is compatible with select models from MTD, Cub Cadet, Yard Machines, and Yard Man. It is manufactured to exact standards for compatible units and will provide an ideal replacement so that the unit can be used safely once again. Be sure to disconnect the power to the unit and wear gloves for hand safety. A wrench or socket will be needed to replace this bolt.

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

This flat washer is a genuine MTD part, sold individually. This flat washer can be used as a replacement part for lawn mowers, lawn tractors, and snowblowers. The purpose of a flat washer for one of these appliances is to serve as part of a fastening mechanism so components like screws, bolts, nuts, and spacers can be protected from friction and heat generated by the appliance.A flat washer is a small component that can be easily lost or misplaced while the device is in operation. If the washer is found to be lost at any point, it should be replaced. Flat washers can also become warped over time, and if this occurs, the component should be removed and replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is an OEM part sourced directly from the manufacturer. It is sold individually. This flat washer is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, Yard Man, and MasterCut.

This part is a replacement flange bushing. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part is intended for use as a replacement in a broken, misplaced, or defective flange bushing on snow blowers. The flange bearing got its name from the “flange” that appears at its end. This flange helps with the mounting and proper alignment of the bearing, as well as improved ease of installation. If this part is worn down, lost, or broken in any way, it will require replacement for the equipment to function properly. Wear work gloves to protect the hands and check that equipment is powered off and cooled down before starting the repair process. For more accurate information on how and where to install this flange bearing, the appropriate owner's manual and equipment diagrams should be referred to. This flange bearing is a genuine OEM part made of durable plastic and is sold individually. It is suitable for use with snowblowers that have been manufactured by MTD, Yard Man, Troy-Bilt, Yard Machines, and Cub Cadet.

This is a genuine replacement flat idler pulley used in snowblowers. The idler pulley applies tension to the belt, allowing the belt to turn. If the pulley is causing loud noises or is seizing up, which can cause the belt to break, a replacement may be necessary. A broken belt will cause a snowblower to be unusable.The process for replacing this part will vary depending on the model of the snowblower, so consult the equipment's manual and diagrams for specific instructions. For all replacements, a wrench and/or a socket set of the correct size depending on the machine is needed. Dependent upon the repair needed, bearings and bushings may also need replacement, they are not included and must be bought separately. This is a genuine MTD replacement part. This replacement flat idler pulley is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, and Yard-Man brands.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

This replacement part is a bolt and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This bolt has many different uses and is a versatile part in lawn mowers and power tools. Bolts help other parts of the machine or appliance stay together and in place so that the entire machine is able to run smoothly. A new bolt might be needed if the current one is missing or damaged in any way. It is common for bolts to become stripped overtime due to normal wear and tear and need to be replaced. It's common for users to have some on hand so consider purchasing more than one. This repair should be simple and require no more than a screwdriver and possible pliers if the previous part is stuck. This bolt is sold individually and is a genuine OEM replacement part.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This part is a replacement skid shoe. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part's intended use is to replace a broken or defective skid shoe in snow blowers.Skid shoes attach to the snow blower's auger housing in order to enable the equipment to slide easily across the ground. This part is subject to significant wear and tear and thus will require replacement if broken, worn, or detached. When working on or near an engine, it's important to make sure the equipment is powered off and completely cool before starting any repairs. For more accurate information on how and where to install this skid shoe, reference the appropriate owner's manual and specific equipment diagrams.This is an authentic OEM replacement part made of high-quality materials. This skid shoe can be used with different models of snow blowers that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands. Part sold individually.
