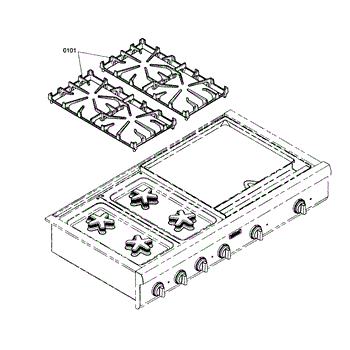

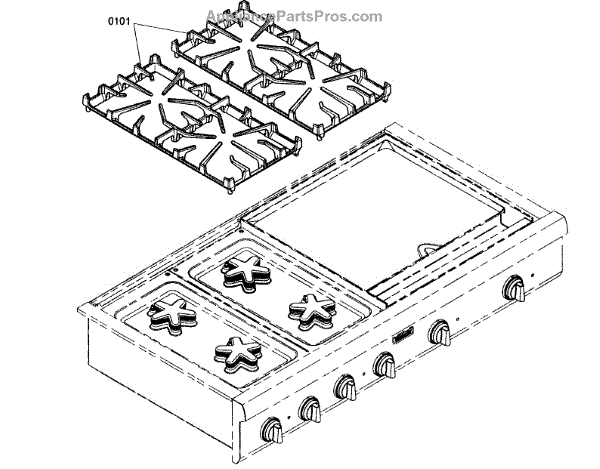

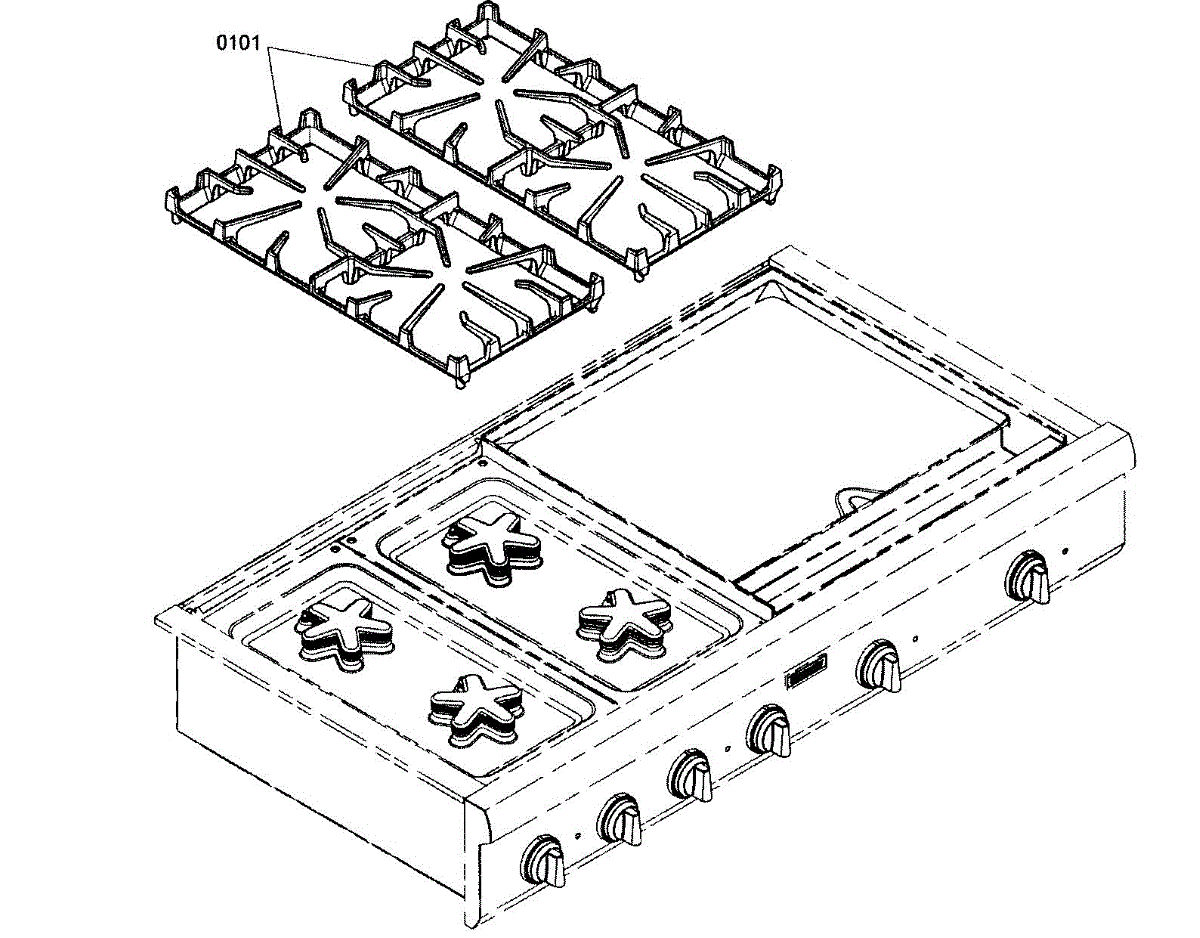

Parts for Thermador PCD484EE01: Grate Assy Parts

This cooktop burner grate supports cookware over the flame, keeping pots and pans stable during use. Replace a cracked or warped grate to restore a level cooking surface and proper clearance above the burners.

• Provides a stable surface for pots and pans above each burner
• Maintains correct spacing between flame and cookware for consistent heating
• Replace if cracked, severely chipped, or warped
• Replace when cookware rocks or the grate no longer sits level

• Allow the appliance to cool completely; turn off gas and power before servicing
• Lift off the old grate; clean the cooktop and burner caps are seated
• Position the new grate with feet aligned to the burner layout
• Test burner ignition after installation

This cable harness routes power and signals between key components to restore reliable electrical connections and normal appliance operation. Replace a damaged harness to fix intermittent power, control failures, or non-responsive functions. What it does:

• Provides the multi-conductor wiring path that links control boards, sensors, and motors
• Carries low-voltage signals and/or line power needed for normal appliance functions
• Commonly replaced when wires or connectors are damaged, burned, or corroded
• Can resolve symptoms such as intermittent operation, no power to components, or control errors

• Disconnect all power before accessing wiring or controls to avoid shock
• Route harness along original clips and channels to prevent pinching or chafing
• Inspect connectors for damage and replace if terminals are loose or burned

This cable harness connects a dishwasher's electrical components to the control board, restoring reliable signal and power routing for proper operation. Designed as a direct-fit replacement to replace damaged or worn wiring. What it does:

• Routes power and control signals between the control board and components such as pumps, valves, or sensors
• Restores intermittent or failed electrical connections caused by frayed wires or broken terminals
• Helps stop issues like controls not responding, lights not working, or certain cycles not starting when the harness is faulty
• Maintains factory routing and connector fit for correct plug-in installation

• One replacement cable harness as shown

• Disconnect power and water before beginning any repair
• Verify connectors match and route wiring according to original harness path; secure with clips or ties as needed
• Handle connectors carefully to avoid bending pins; replace if terminals are corroded or damaged
