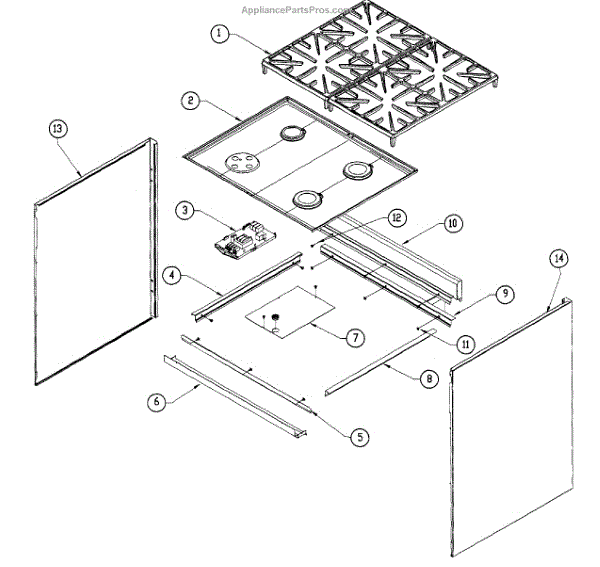

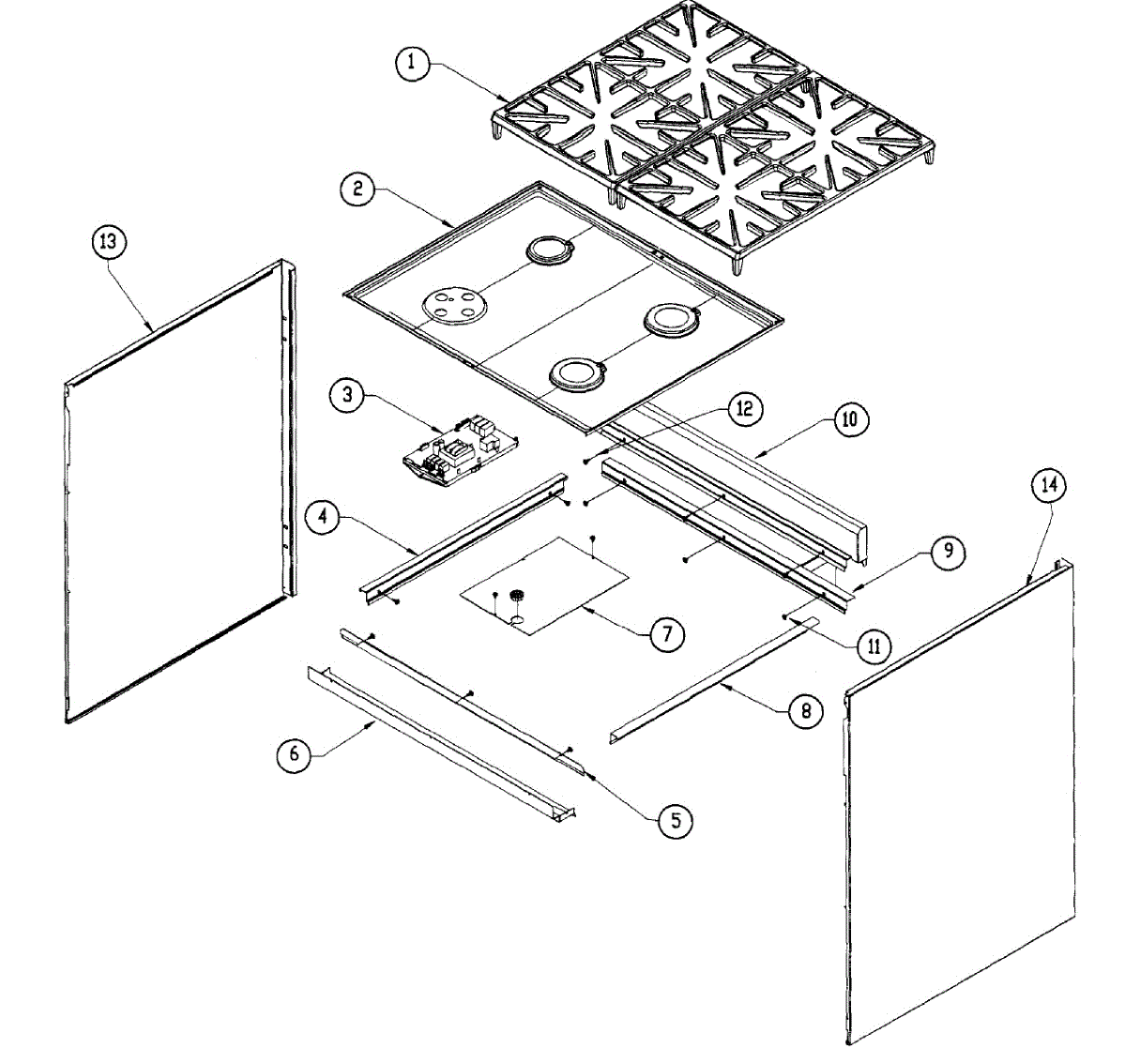

Parts for Dacor ER30DSRSCHLPH: Grates Parts

This black porcelain spill tray catches and contains liquid spills under the refrigerator to protect the cabinet and floor. Durable porcelain finish resists staining and is easy to clean, keeping the area dry and tidy. What it does:

• Collects leaked or condensed water to prevent puddling beneath the appliance
• Directs spills to a contained area, reducing risk of damage to flooring or cabinet base
• Helps prevent stains and makes cleanup faster with a smooth, wipeable surface
• Fits into the service access area where the original tray mounts

• Disconnect power to the appliance before performing service or removing access panels
• Remove the old tray carefully to avoid spilling collected water; wear gloves if needed
• Slide or seat the replacement tray into the same mounting location until it fits securely
• Handle porcelain parts gently to avoid chipping; test for proper fit before restoring power

This backsplash assembly replaces the oven/microwave rear control/back panel to restore surface protection and support for controls. It provides a finished appearance and helps protect internal components from heat and spills. What it does:

• Replaces a damaged, bent, or corroded backsplash that exposes internal parts
• Restores mounting surface and alignment for control components and trim
• Reduces heat and moisture exposure to internal electronics and wiring
• Helps stop drafts or light leaks behind the control area

• 1 backsplash assembly

• Mounting hardware may be required
• Disconnect power before starting any repair to avoid shock or damage
• Handle edges carefully; wear gloves to avoid cuts from sheet metal

A replacement service screw used to secure appliance panels and components. Durable fastener sized for common service points, making repairs and panel reassembly quick and reliable. What it does:

• Secures trim, access panels, brackets or small components during service and reassembly
• Commonly used where a shallow truss/wafer head is needed to sit flush without catching
• Helps stop rattling or loose parts caused by missing or stripped screws
• Matches OEM fit for compatible assemblies when the OEM part number is required

• One service screw (#8 x 1/2" truss/wafer head) as specified by the OEM part number

• Use the matching size driver to avoid cam-out and head damage
• Hand-start fasteners to avoid cross-threading; tighten until snug — do not overtighten
• Wear safety glasses and disconnect power before working on electrical appliances
• If a screw threads into plastic or thin sheet metal, consider replacing with the same OEM screw to preserve original threads

This left side service panel is a replacement exterior trim piece that covers and protects the appliance's internal components while restoring a clean, finished appearance. It helps keep wiring and parts shielded from damage and debris. What it does:

• Replaces a cracked, dented or missing left side service panel to restore protection and appearance
• Shields internal wiring, controls and components from dust, spills and accidental contact
• Helps maintain proper airflow paths and prevents gaps that can allow pests or moisture
• Reduces the risk of accidental contact with electrical or mechanical parts behind the cabinet

• One left side service panel

• Disconnect power to the appliance before starting any repair
• Handle panel edges carefully; use gloves to avoid cuts
• Typically secured with screws or clips—retain and reuse fasteners or replace as needed

This replacement service panel mounts on the side of the appliance to restore exterior protection and access cover where the original was damaged or missing. It lets technicians and owners secure internal components and maintain a finished appearance. What it does:

• Replaces a cracked, dented, or missing right-side service panel to protect internal parts from debris and damage
• Restores the appliance's exterior fit and finish for safe operation
• Provides the correct opening and attachment points for routine service access
• Helps prevent accidental contact with internal wiring and components

• Remove power and disconnect appliance from its power source before servicing
• Handle edges carefully; use proper fasteners and torque per OEM guidance
• If mounting holes or clips are damaged, replace fasteners or retainers as required
