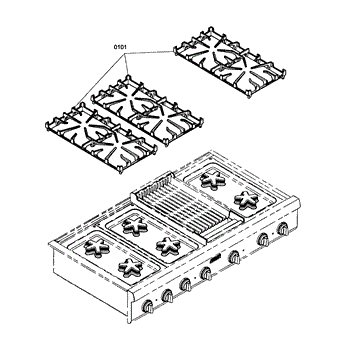

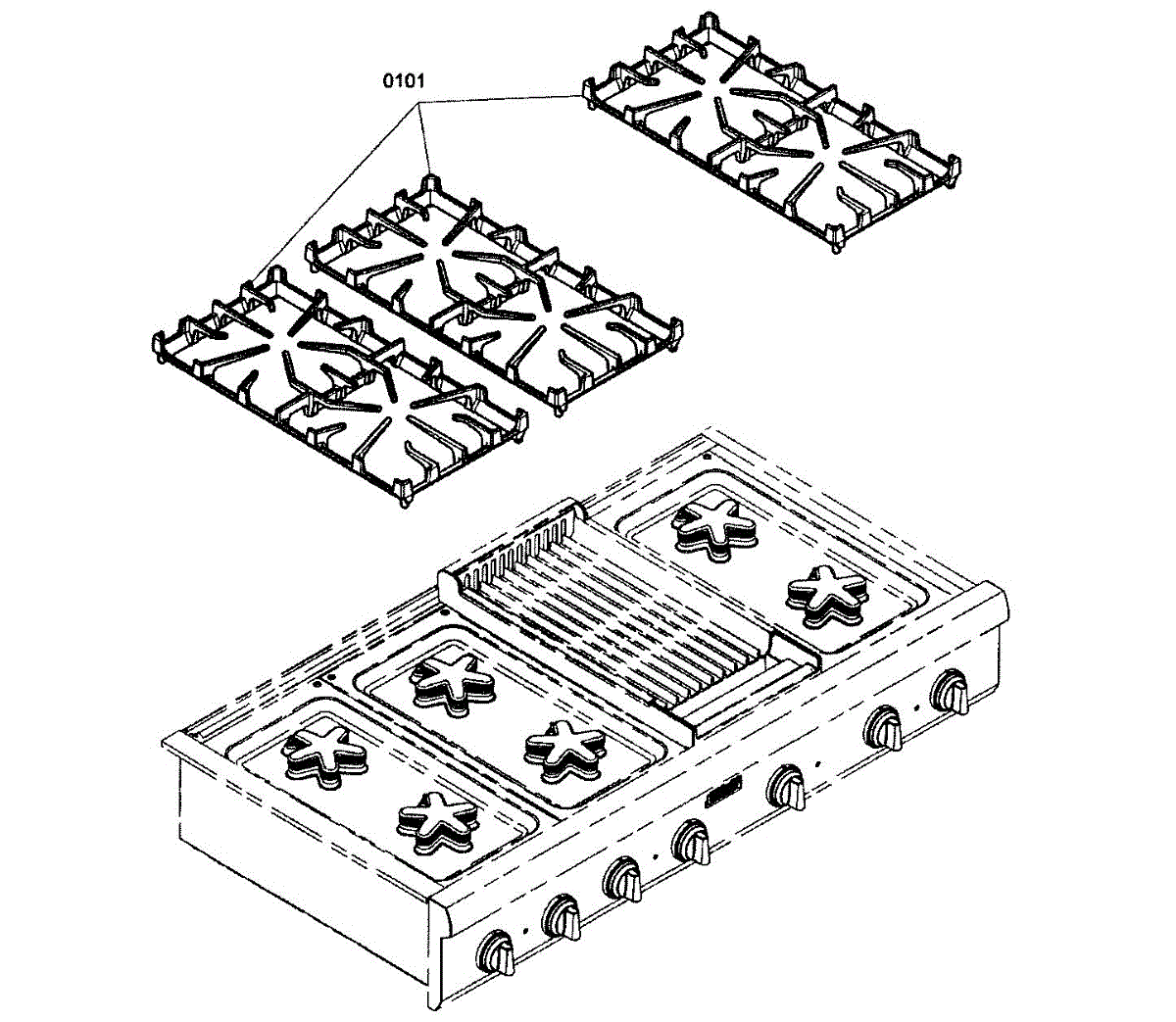

Parts for Thermador PCG486EL01: Grates Parts

This cooktop burner grate supports cookware over the flame, keeping pots and pans stable during use. Replace a cracked or warped grate to restore a level cooking surface and proper clearance above the burners.

• Provides a stable surface for pots and pans above each burner
• Maintains correct spacing between flame and cookware for consistent heating
• Replace if cracked, severely chipped, or warped
• Replace when cookware rocks or the grate no longer sits level

• Allow the appliance to cool completely; turn off gas and power before servicing
• Lift off the old grate; clean the cooktop and burner caps are seated
• Position the new grate with feet aligned to the burner layout
• Test burner ignition after installation

This cable harness routes power and signals between key components to restore reliable electrical connections and normal appliance operation. Replace a damaged harness to fix intermittent power, control failures, or non-responsive functions. What it does:

• Provides the multi-conductor wiring path that links control boards, sensors, and motors
• Carries low-voltage signals and/or line power needed for normal appliance functions
• Commonly replaced when wires or connectors are damaged, burned, or corroded
• Can resolve symptoms such as intermittent operation, no power to components, or control errors

• Disconnect all power before accessing wiring or controls to avoid shock
• Route harness along original clips and channels to prevent pinching or chafing
• Inspect connectors for damage and replace if terminals are loose or burned

This side-trim gasket seals the edge of the appliance door/trim to help maintain a clean fit and reduce rattling or light air leakage. It restores the door edge seal for a neater appearance and improved closing performance. What it does:

• Seals the door side trim to help reduce noise and prevent light air or moisture intrusion
• Helps maintain proper alignment and fit of the door trim for smooth opening and closing
• Replaces worn, torn or compressed trim gasket that can cause rubbing or gaps
• Supports overall door aesthetics by restoring a continuous seal line

• One side-trim gasket

• Basic trim removal may be required
• Inspect mating surfaces and remove old adhesive or debris before installing the new gasket
• Use gentle pressure to seat the gasket; avoid stretching or over-tensioning
• Disconnect power to the appliance before doing any service that exposes electrical components

The Re-Ignition Spark Module is an OEM replacement part Bosch ranges. It is an electronic component that generates sparks to reliably light the burners on a gas cooktop. Consistent sparking is necessary for fully lighting the burner flames and facilitating safe and efficient cooking operation.

Causes of a bad spark module can include normal component wear over time or damage from exposure to moisture or other contaminants. Improper cleaning methods could potentially impact performance.

Symptoms of a bad spark module include:

• Burners not lighting or sparking when the knob is turned
• Unreliable or intermittent lighting requiring multiple attempts
• Burner flames that emit an inconsistent or unstable pattern
• Sparks appearing outside of the burner ring pose a safety risk

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore model
