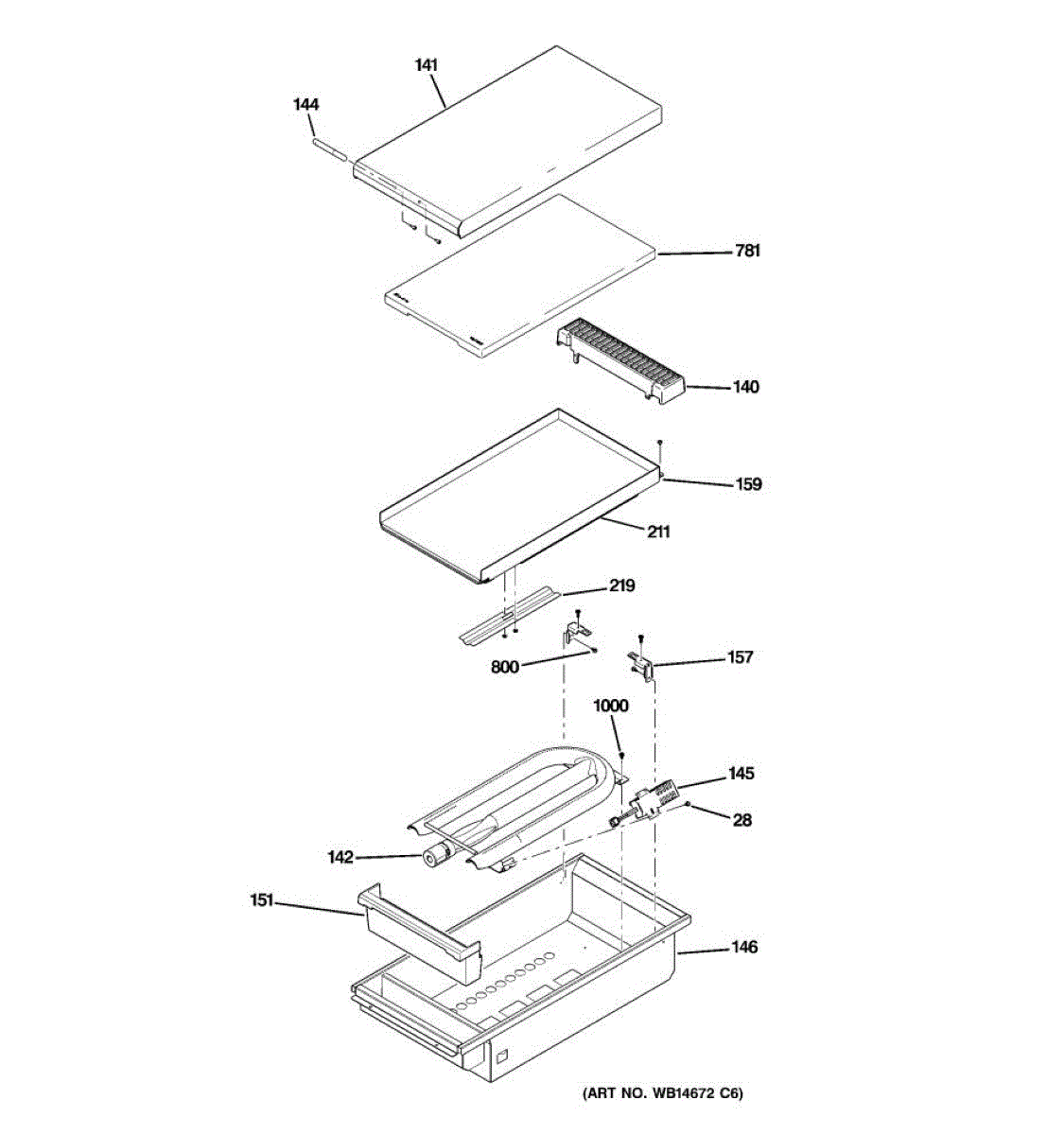

Parts for Ge ZDP486LDP4SS: 03 - Griddle Assembly Parts

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Replace your damaged or missing cooktop housing cover. This protective cover installs over internal components and may crack or break over time.

Flat griddle surface that covers range burners for cooking pancakes and eggs. Replace your warped, damaged, or hole-burned griddle with this part.

If your gas oven won't heat or takes too long to preheat, a weak igniter is usually the cause. This oven igniter lights the burner for reliable heating.

Grease trough assembly collects spills and debris on your gas cooktop. Replace when cracked, warped, or rusted to maintain proper drainage and cleanliness.

Mounting bracket for cooktop griddle plates. Secures griddle accessory to cooktop surface. Replace if bent, broken, or missing to properly install griddle.

Griddle plate assembly for gas ranges and cooktops. Replaces cracked, warped, or damaged griddle surfaces. Installs on cooktop for flat cooking.

This bracket support secures and stabilizes appliance panels and components to restore proper alignment and reduce vibration. It replaces a worn or broken mounting support so doors, panels, or assemblies sit and operate correctly. What it does:

• Secures a panel or assembly to the appliance frame to prevent sagging or misalignment
• Restores structural support that can reduce rattling or vibration during operation
• Helps maintain proper clearance so doors and moving parts open and close smoothly
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• One bracket support

• Confirm correct bracket orientation and mounting location before tightening fasteners
• Use appropriate hand tools; do not overtighten screws to avoid cracking the part
• Disconnect power (and water supply if applicable) before accessing internal panels

Griddle plate for gas ranges and cooktops. Replaces cracked, warped, or damaged griddle surfaces. Installs over burners for flat cooking area.

Protects the thermostat sensing bulb in your range. Replace if the shield is bent, cracked, or missing to prevent damage to the thermostat probe.

Mounting screw hardware for ranges and cooktops. Replace missing, stripped, or corroded screws used to secure panels, brackets, or components.

Stainless steel #8-18 x 3/8" screw secures panels, brackets, and components in ranges, cooktops, and ovens. Replace if stripped, missing, or corroded.
