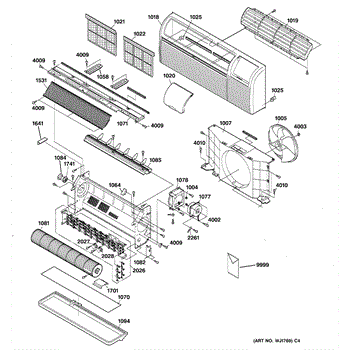

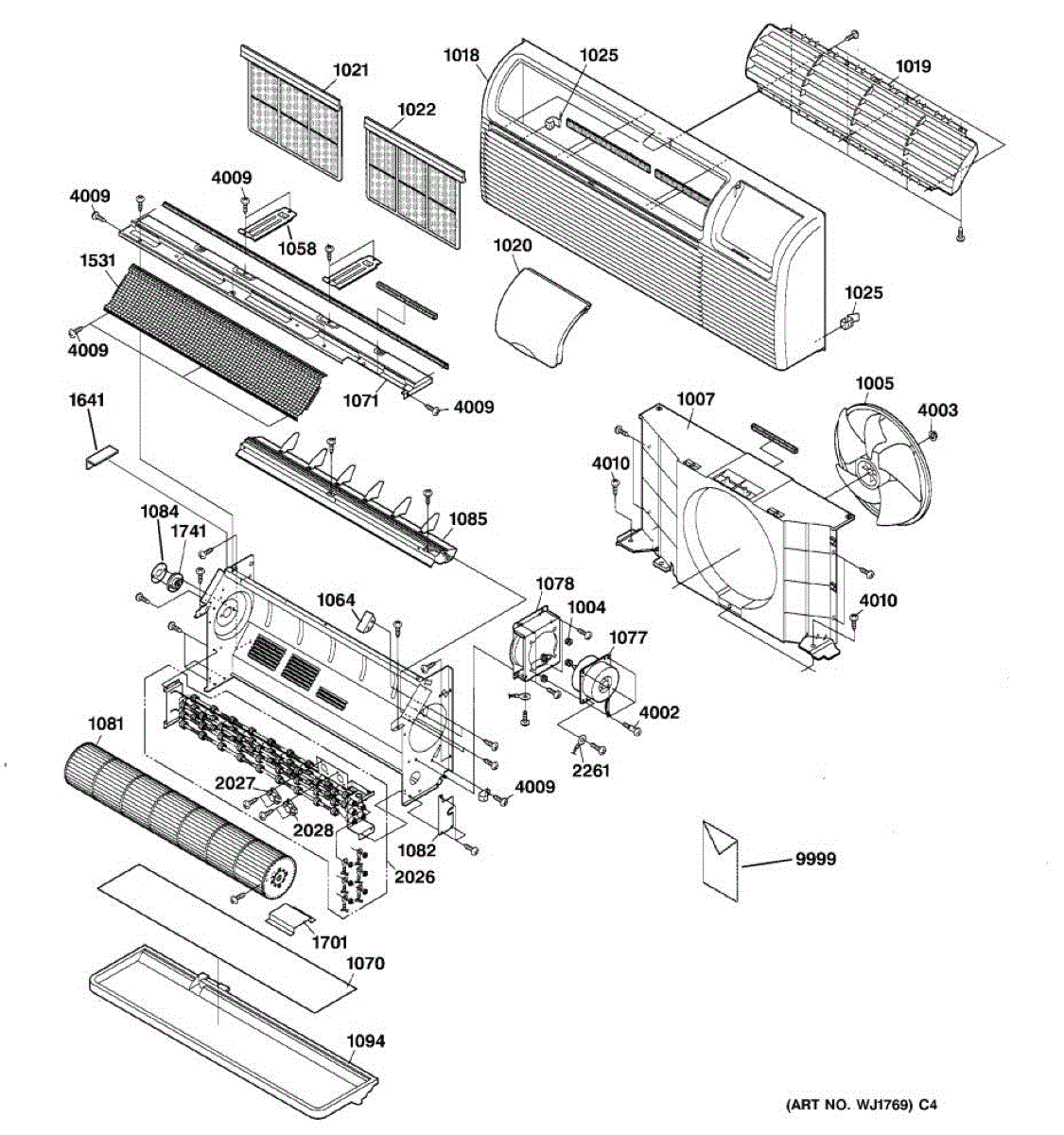

Parts for Ge AZ55H12EABM1: 01 - Grille & Chassis Parts

This replacement front panel restores the appliance's appearance and protects internal components by covering the front cabinet and providing mounting for the console and door trim. Ideal when the existing panel is cracked, dented, or cosmetically worn. What it does:

• Covers the front of the appliance to protect internal parts from impact and debris
• Provides mounting points and alignment for the console, door trim, or lower access area
• Restores a flush, finished appearance to the appliance cabinet
• Commonly replaced for visible cracks, dents, peeling finish, or loose/misaligned trim

• Disconnect power (and water if applicable) before starting any repair
• Remove surrounding trim, screws, or door as required to access panel fasteners
• Handle panel carefully to avoid scratching the finish; align tabs before seating screws
• Reuse original hardware unless new fasteners are explicitly required by the OEM

This control panel cover is used on many General Electric Zoneline air conditioners. Color: cream. It measures about 7-1/2 inches wide by 5-1/2 inches high.

Color: beige. It measures about 15 inches wide by 10 inches high.

General Electric Zoneline air conditioner filter. Color: beige. It measures about 17 inches wide by 10 inches high.

This fan motor assembly circulates air inside the appliance to help maintain proper temperature and airflow. Replaces a worn or failed motor to restore normal fan operation and reduce noise. What it does

• Spins the appliance fan blade to move air for cooling, heating or ventilation
• Restores normal airflow when the original motor has stopped running
• Reduces grinding, squealing or rattling caused by a failing motor
• Helps prevent temperature imbalances due to poor circulation

• Disconnect power to the appliance before beginning any repair
• Remove panels and fan blade as needed; handle the motor and wiring harness carefully
• Reconnect original wiring and secure mounting hardware; ensure proper blade clearance

This bearing assembly supports the dryer drum and helps the drum rotate smoothly for quiet, even drying. Replacing a worn bearing restores stable drum movement and reduces noise and vibration. What it does:

• Provides a low-friction support surface for the dryer drum, helping it spin properly
• Prevents drum wobble and off-center rotation that can wear belts and rollers
• Reduces squealing, grinding, or rumbling noises caused by a failing bearing
• Helps maintain even drying by keeping the drum aligned

• Disconnect power and fuel (gas) supply before starting any repair
• Access typically requires removing the dryer front or rear panel and drum; refer to a model-specific repair guide
• Use proper tools and support the drum during removal to avoid damage
• Inspect adjacent parts (shaft, seal, rollers) for wear and replace if visibly damaged

This safety device protects the compressor by interrupting power if it overheats or draws excessive current. Replacing a weak or failed protector restores reliable starts and helps prevent nuisance shutdowns and compressor damage.

• Opens the compressor circuit during overheat/overload to prevent motor damage
• Common symptoms include: compressor won't start, clicks and briefly hums, or starts then quickly shuts off
• Can contribute to poor cooling while fans or controls still operate
• Visual clues may include heat discoloration or damaged terminals at the protector

• Disconnect power before servicing; capacitors in the system can retain a charge—discharge safely
• Access the compressor terminal cover; note wire locations and remove the old protector
• Inspect terminals/connectors; replace any burnt or loose spade connectors for a secure fit
• Fully seat the new protector on the compressor terminal and reconnect wires firmly; check any companion start relay or capacitor if symptoms persist
