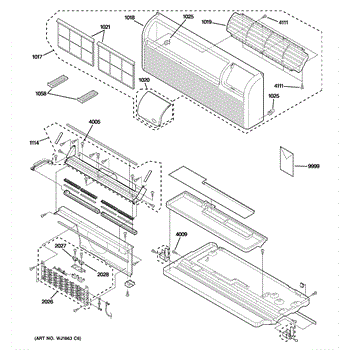

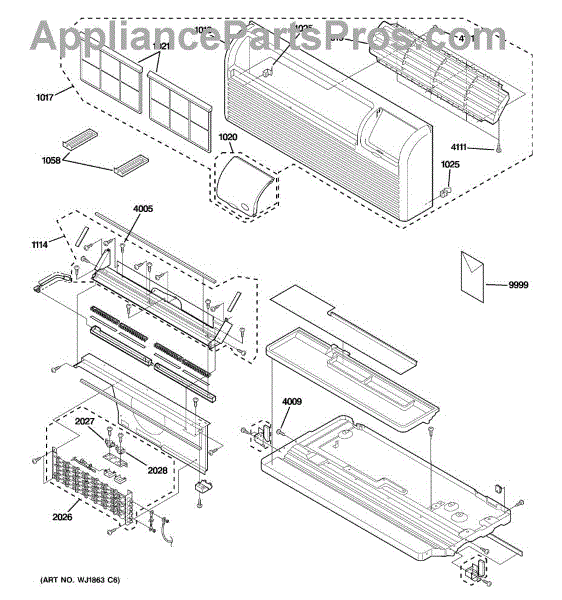

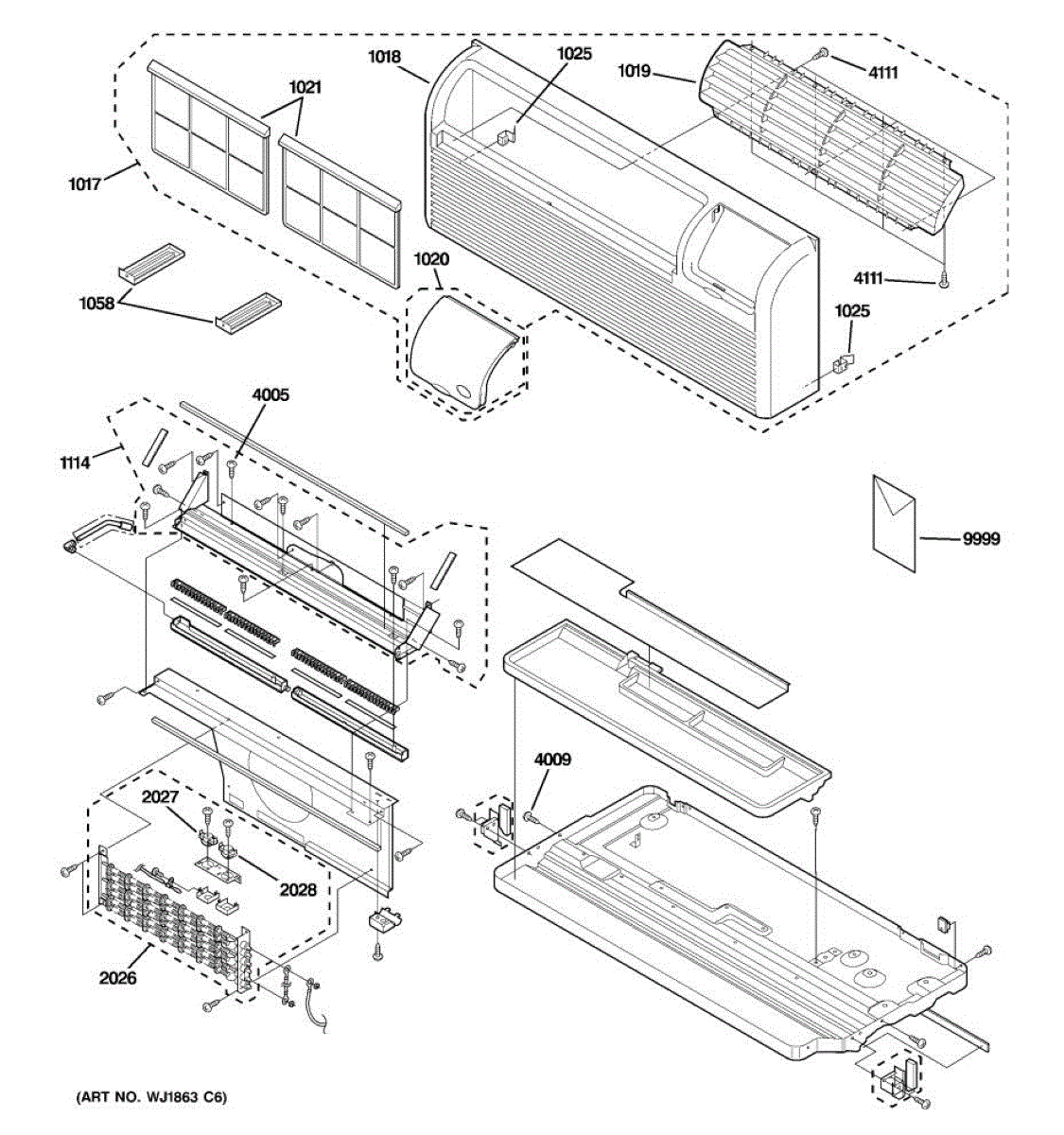

Parts for Ge AZ28E09DAMM2: 01 - Grille, Heater & Base Pan Parts

Parts for Ge AZ28E09DAMM2: 01 - Grille, Heater & Base Pan Parts

Location on Diagram
Part Description
Price & Availability
1017
By: Ge
Part Number: WP71X10021
$169.33

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1018
By: Ge
Part Number: WP71X10022
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1019
By: Ge
Part Number: WP71X10023
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1020
By: Ge
Part Number: WP71X10024
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1021
By: Ge
Part Number: WP85X10010
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1025
Product photo
5.0 (1)
By: Ge
Part Number: WP02X10001

Replacement spring for room air conditioners. Installs internally to provide tension or support. Order if your original is broken, stretched, or missing.

More
$6.72

IN STOCK
Ships Today Guaranteed
Add to Cart
1058
By: Ge
Part Number: WP65X10003
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1114
By: Ge
Part Number: WP71X10016
$58.46

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
2026
Product photo
5.0 (1)
By: Ge
Part Number: WP27X22080

Fix no-heat issues in your air conditioner with this heater kit. Restores proper heating function and brings temperatures back to normal operating range.

More
$122.58

IN STOCK
Ships Today Guaranteed
Add to Cart
2027
Product photo
5.0 (2)
By: Ge
Part Number: WP28X10013

This high limit thermostat is a safety device that monitors the heating element temperature in a room air conditioner with a built-in heater. It shuts off the heater if the temperature exceeds a safe threshold, preventing overheating and potential fire hazards. Replace this thermostat if the heater stops working, cycles erratically, or if the unit shuts off unexpectedly during heating mode.

More
$43.66

IN STOCK
Ships Today Guaranteed
Add to Cart
2028
Product photo
5.0 (2)
By: Ge
Part Number: WP28X10014

This is a high-limit thermostat that monitors the temperature of the heater element in a window or room air conditioner equipped with supplemental heat. It acts as a safety device by cutting power to the heater if temperatures exceed safe levels, preventing overheating and potential fire hazards. Replace this thermostat if the heater shuts off prematurely, fails to turn on, or if the unit is tripping due to overheating.

More
$61.95

IN STOCK
Ships Today Guaranteed
Add to Cart
4005
By: Ge
Part Number: WJ01X10038
$6.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
4009
By: Ge
Part Number: WJ01X10037

Special mounting screw for air conditioner assembly. Replace if screw is stripped, missing, or damaged during maintenance or installation work.

More
$7.45

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
4111
Product photo
By: Ge
Part Number: WJ01X10110
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

9999
By: Ge
Part Number: 49-7484-1
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
