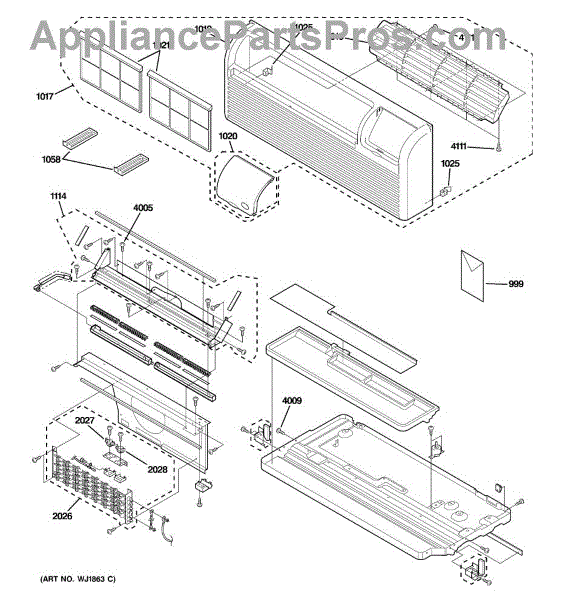

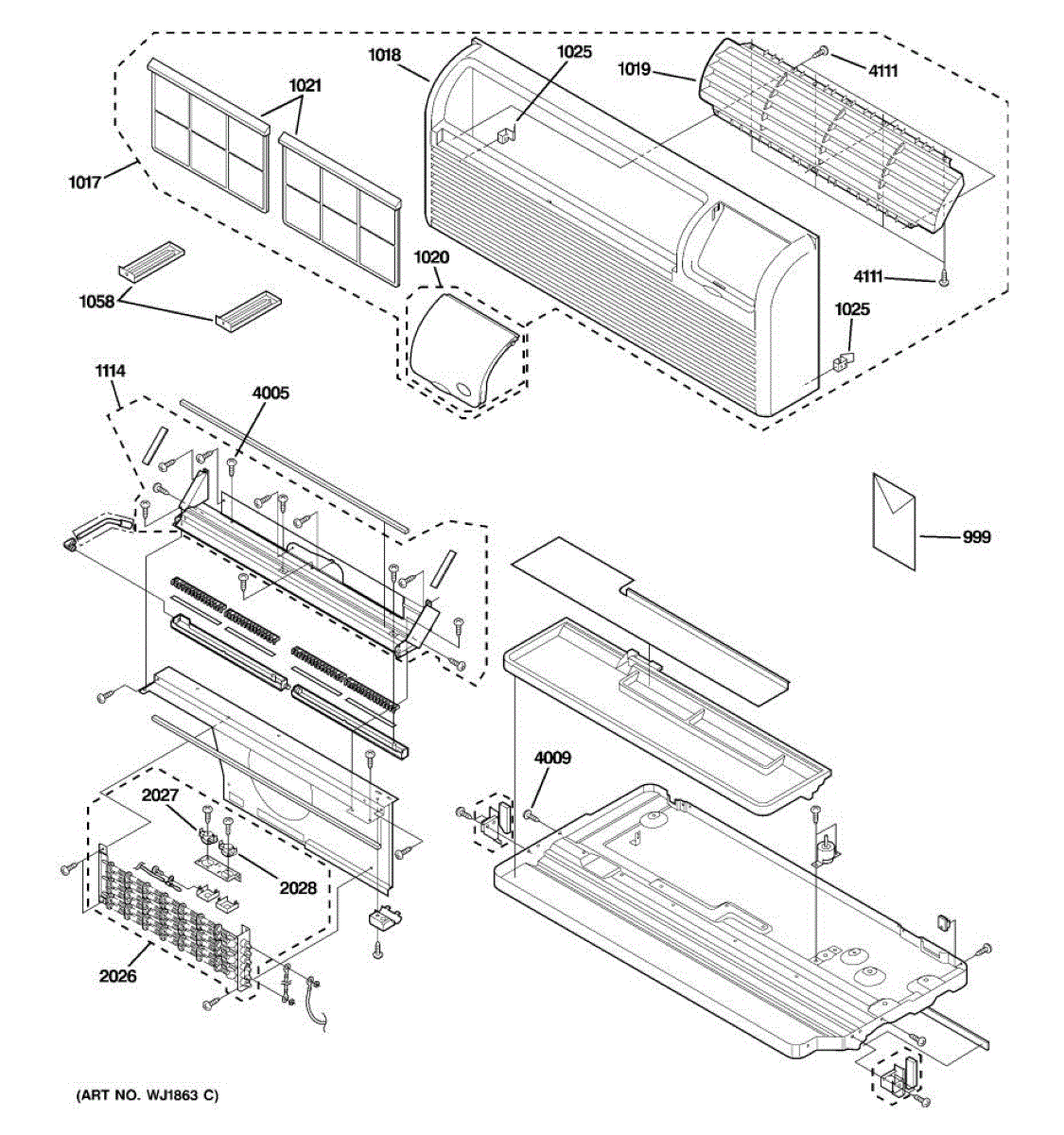

Parts for Ge AZ28E09DASM1: 01 - Grille, Heater & Base Pan Parts

Restore proper heating performance with this Heater Kit. It replaces the original heater assembly so the appliance can perform its designed heating function, helping resolve no-heat issues and bring temperatures and cycle times back to normal. What it does:

• Generates heat for the designated circuit or compartment of the appliance
• Works with existing controls and safeties to reach and maintain target temperatures
• Common symptoms of a failed heater include no heat, insufficient heat, extended cycles, or temperature-related fault codes
• Physical damage or an open reading on a continuity test typically indicates the heater needs replacement

• 1 heater kit

• Disconnect power at the breaker before servicing; allow all components to cool completely
• Note wire routing and connections; move connectors one at a time to avoid miswiring
• Mount the heater securely and keep wiring clear of hot, sharp, or moving parts
• Reassemble and run a test cycle to confirm proper heating operation

This protector heater is a small heating element used with the overload/thermal protector in the motor or compressor circuit. It provides calibrated warmth so the protector trips correctly under heavy load, helping prevent overheating and protecting the unit. What it does:

• Works with the overload/thermal protector to ensure proper trip timing
• Helps prevent overheating and potential damage to the motor/compressor
• Common signs include repeated clicking near the compressor area or frequent overload trips

• 1 protector heater

• Disconnect power and safely discharge the run capacitor before servicing
• Photograph or label wiring and component orientation for accurate reassembly
• Install in the same position/orientation as the original with secure, insulated connections and proper wire routing
• Inspect the overload, start device, and terminals; replace any burnt or loose connectors to prevent repeat failures

This protector heater provides a small, controlled heat source inside the appliance to keep sensitive components within range. It helps prevent condensation and nuisance trips so the unit operates reliably in cool or humid conditions.

• Provides low-watt heat around a protected area or thermostat
• Helps prevent moisture buildup and condensation
• Stabilizes temperature to reduce nuisance protector/thermal cutout trips
• Symptoms include intermittent operation, unexpected shutoffs, or visible condensation near controls

• Disconnect power before servicing and allow components to cool
• Note wire positions and routing on the original; move one connection at a time
• Mount in the original location and secure leads away from sharp edges, moving parts, and high-heat surfaces
• After installation, restore power and verify normal operation
