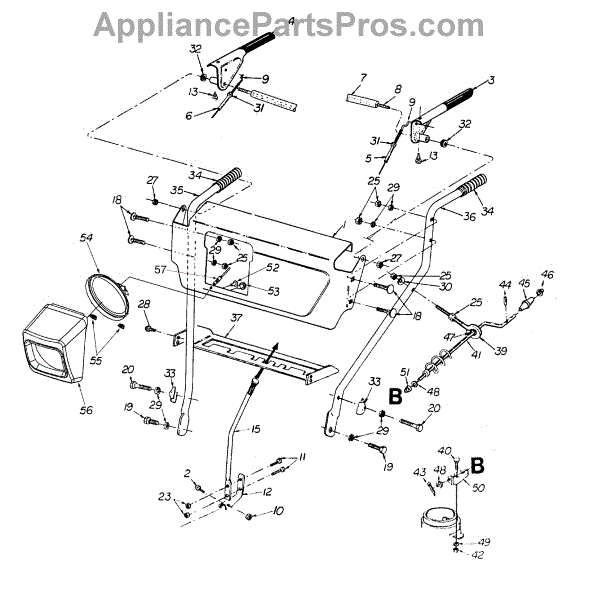

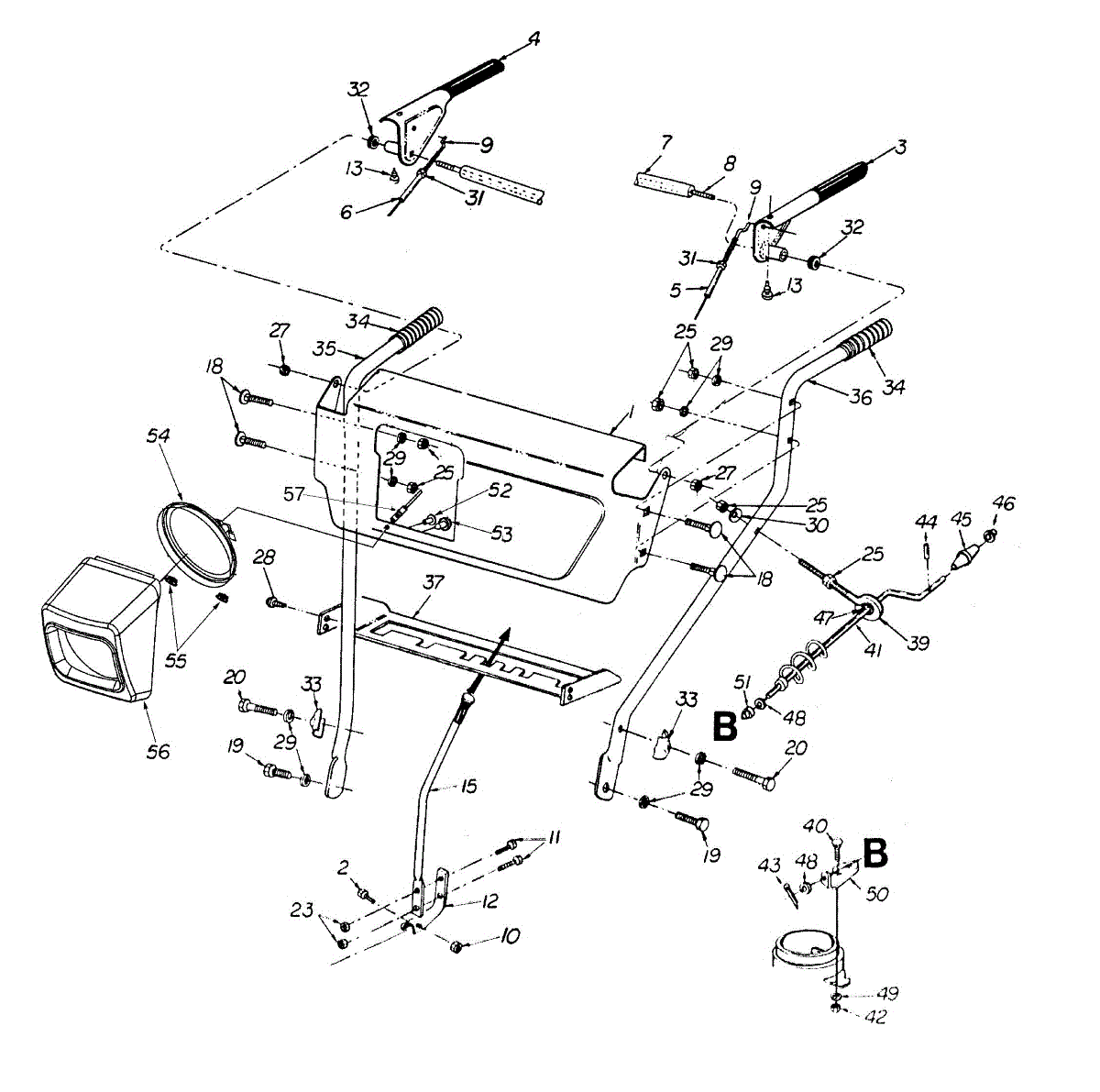

Parts for Yard Machines 31AE645E352 / 1998: Handle Assembly Parts

This is a carriage bolt, which is found on lawnmowers, snowblowers, and many other types of lawn and garden equipment. The carriage bolt is made of metal and the location will vary based on the model of the tool. The carriage bolt is used to fasten together two components on lawn and garden equipment. It can become damaged, break, or stripped and will need to be replaced.If the carriage bolt is broken, stripped, or has damage, a wrench will be needed to replace it. Make sure that the spark plug wire has been disconnected and the tool is turned off before you begin. Use the wrench to remove the carriage bolt before installing the new part in the same location. Replace any additional disassembled components removed to gain access to the bolt before using the tool.This carriage bolt is sold as an individual component. It is a genuine OEM replacement part that is sourced directly from the manufacturer. The bolt is designed to work with lawnmowers, chainsaws, snowblowers, tillers, and leaf blowers manufactured by Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Husky, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

This hex bolt is a necessary component used in a variety of small to medium sized gasoline powered engines used primarily in yard work, gardening, and landscaping. The primary use of this hex bolt is to secure the idler pulley assembly to the body of the machine. The idler pulley functions to engage the turning mechanism of the yard tool when engaged. The power yard tools that require an idler pulley which would use this screw are tillers, riding mowers, yard tractors, tillers, snow blowers and chippers. Engaging the rotating part of the yard tool places a great deal of resistance on the idler pulley, which may eventually result in it needing to be replaced. When replacing the idler pulley assembly, it's important to remember that the attaching hardware, such as the hex bolt, has also experienced a great deal of wear and should be replaced as well. This hex bolt attaches the idler pulley assembly directly to the machine housing and can be removed with a 9/16 wrench. Make sure when replacing the bolt to use a genuine OEM manufactured part that is identical to the manufacturer's original piece. This bolt is compatible with the following brands: Yard-Man, Bolens, Craftsman, Yard Machines, Troy-Bilt, Cub Cadet, Huskee, Ryobi, Murray, MTD, MasterCut, and Montgomery Wards.

This replacement part is a nut, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. Nuts are a small part found in many different types of machinery and are used to connect different parts and secure things together.A new nut might be needed if the current ones are missing or damaged in any way. It is common that nuts become stripped overtime and might get stuck or fall out of place. In this case, it is recommended that the nut be replaced. Be sure to review the specific owner's manual for more information on how to replace the nuts. This part is sold as an individual piece. Be sure to purchase the correct amount as many different machines use more than one during operation. This is also a genuine OEM replacement part sourced directly from the manufacturer.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

This handle grip part is used on many kinds of lawn and garden equipment that is pushed or otherwise moved around a yard. The handle grips are made out of flexible rubber and are used on the two handles. The purpose of the handle grip is to offer a more secure grip on the power tool and lessen the feel of vibrations.Over time, one or both of the handle grips can start to experience wear. Sometimes, the grips will become damaged or broken. If the grips are very damaged, they may come off of the machinery. There is no need to use tools to replace the handle grip on yard equipment. The old part just needs to be removed from the tool so that the new component can be slipped on. Wear a pair of work gloves to make the process easier.This is a genuine OEM handle grip replacement that is sourced directly from the manufacturer. It is sold individually. The part is compatible with lawnmowers, snowblowers, tillers, and chainsaws created by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

This is a genuine replacement truss tap screw that is manufactured for use in select outdoor equipment engines. The truss tap screw has several applications and is generally used to secure various components. Owners will need to consult the parts diagram for exact application. These screws play an integral role, however, and if they are lost or damaged, the machine may not operate until they are replaced. This genuine OEM screw will provide an exact fit for compatible units. This screw is something that some people order in multiple quantities to keep extras on hand in case of emergency. It is sold as an individual part and does not come with any other parts or hardware. The screw is made of durable metal and will require a Phillips screwdriver to replace. Although the truss tap screw doesn't typically require a lot of disassembly to access, it will still be wise to wear gloves for hand protection and work in a well-ventilated area, as well as to allow the machine to cool completely before doing any repairs.

This hex washer screw is a genuine OEM replacement part for a variety of household and outdoor appliances. A hex washer screw is a self-piercing screw with an attached washer at the head of the screw. Self-piercing screws are quite sharp and feature a twin-lead thread to screw into a surface more effectively. The built-in hexagonal washer helps to balance weight and force throughout the connection and prevent breakage. Hex washer screws can become damaged over time through repeated stress or tension. Their threading can become stripped or the head can eventually snap off. Replacing a hex washer screw is simple as long as you have the right tool. The unique shape of the screw head makes it incompatible with a flathead or Phillips head screwdriver. Instead, replacing this type of screw requires a unique hex head screwdriver. This part is compatible with Yard Machines, MTD, Yard Man, Troy-Bilt, and Craftsman products and will fit lawn mowers, tractors, snowblowers, vacuums, and chippers. This is a high-quality replacement part sourced from the original manufacture and ships independently of any other hardware.
