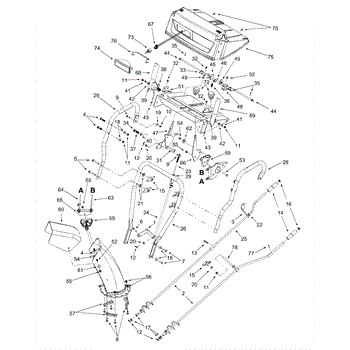

Parts for Yard-Man 31AE663H401 / 2000: Handle Assembly Parts

This is a carriage bolt, which is found on lawnmowers, snowblowers, and many other types of lawn and garden equipment. The carriage bolt is made of metal and the location will vary based on the model of the tool. The carriage bolt is used to fasten together two components on lawn and garden equipment. It can become damaged, break, or stripped and will need to be replaced.If the carriage bolt is broken, stripped, or has damage, a wrench will be needed to replace it. Make sure that the spark plug wire has been disconnected and the tool is turned off before you begin. Use the wrench to remove the carriage bolt before installing the new part in the same location. Replace any additional disassembled components removed to gain access to the bolt before using the tool.This carriage bolt is sold as an individual component. It is a genuine OEM replacement part that is sourced directly from the manufacturer. The bolt is designed to work with lawnmowers, chainsaws, snowblowers, tillers, and leaf blowers manufactured by Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Husky, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This genuine OEM part is a compression spring for a lawnmower. The compression spring is the spring that holds the mower deck onto the lawnmower. Over time, the compression spring can become degraded due to excessive wear and tear. If it is no longer securing the mower deck, it will need to be replaced. Luckily, replacing this part is a relatively simple process.To replace the spring, make sure the mower deck is set to the lowest position. Locate the old retainer spring and pull it out and away from the mower. Once removed, slide the new spring into its proper position. Make sure it fits tightly, and the mower deck is secured. Once secured, power the mower to see if the spring stays in place during operation. If it does, then the installation was a success. This replacement part is sold individually and is compatible with MTD brand lawnmowers.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This cam rod, also called a rod cam or a cam-rod, is a genuine MTD part. It is manufactured as a replacement part for snow blowers and snow throwers from a number of makers.This rod is long and thin, and although the original is made from durable material, it can become warped or damaged over time. It is an important component in the push function of the machine and must be replaced if damaged for safety purposes.This cam rod is a genuine OEM part which is sourced directly from the manufacturer. It is sold individually. It is compatible with snow blowers and snow throwers made by ACE, Craftsman, Huskee, Husky, Lawn Chief, Montgomery Ward, MTD, Power Pro, Ranch King, Ryobi, Select Series, White Outdoor, Yard Machines, and Yard-Man. Many of the compatible machines were made in the 1990s.

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

This hex washer screw is a genuine OEM replacement part for a variety of household and outdoor appliances. A hex washer screw is a self-piercing screw with an attached washer at the head of the screw. Self-piercing screws are quite sharp and feature a twin-lead thread to screw into a surface more effectively. The built-in hexagonal washer helps to balance weight and force throughout the connection and prevent breakage. Hex washer screws can become damaged over time through repeated stress or tension. Their threading can become stripped or the head can eventually snap off. Replacing a hex washer screw is simple as long as you have the right tool. The unique shape of the screw head makes it incompatible with a flathead or Phillips head screwdriver. Instead, replacing this type of screw requires a unique hex head screwdriver. This part is compatible with Yard Machines, MTD, Yard Man, Troy-Bilt, and Craftsman products and will fit lawn mowers, tractors, snowblowers, vacuums, and chippers. This is a high-quality replacement part sourced from the original manufacture and ships independently of any other hardware.
