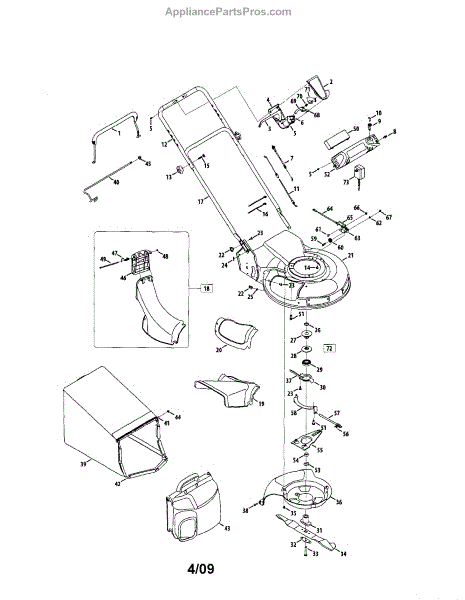

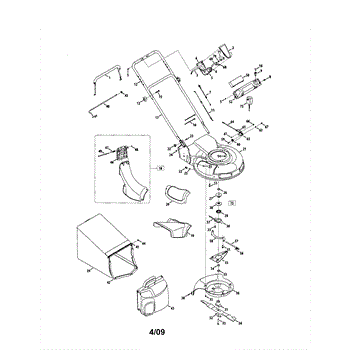

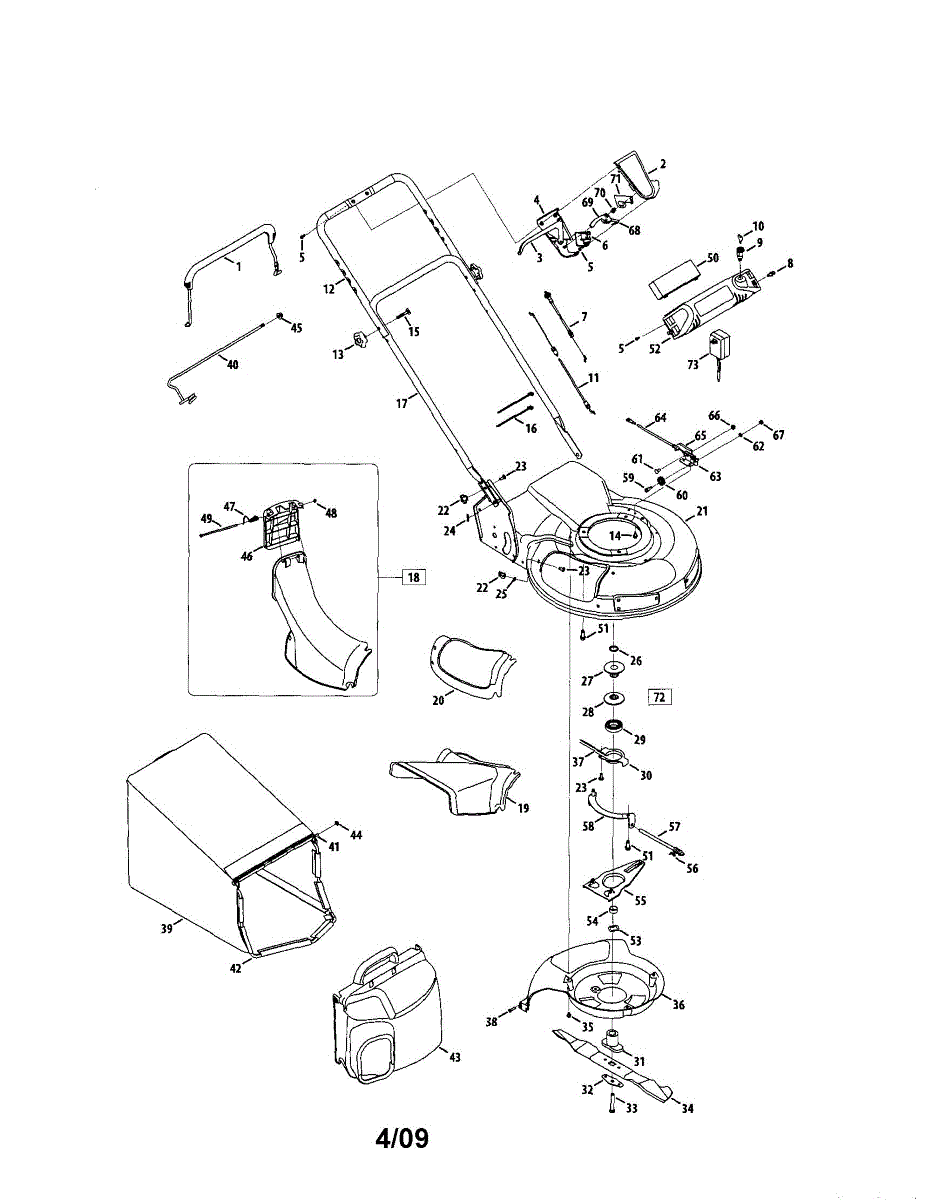

Parts for Craftsman 247887210: Handle / Deck / Grass Catcher Parts

Secures handle controls to the upper handle of your walk-behind mower. Replace this plastic housing kit if cracked, broken, or worn from outdoor use.

Control lever won't stay engaged or releases unexpectedly? This lawn mower latch secures the control lever in position. Quick DIY fix in 15 minutes.

Countersunk Phillips head screw for lawn mowers and snow throwers. Replaces lost, stripped, or damaged screws. Used to secure various panels.

Mower won't move forward when self-propel engaged? This drive cable connects the handle control to the transmission. Straightforward repair.

Replacement plastic rivet for lawn mowers and tractors. Secures panels, covers, and trim pieces. Order a new rivet if yours is broken or missing.

This is a simple set of lawnmower ignition keys. They’re also used for an array of riding mowers, lawn tractors, and even snowblowers. To simplify repair and replacement procedures, most manufacturers use standardized keys for all their machines in a given class. As a result, a single key can be used for dozens of machines. The keys are manufactured from stainless steel, with an INDAK logo stamped into the center. Regardless of whether the machine is a walk-behind mower or a full-sized lawn tractor, a keyed ignition is easier to operate than a recoil cord. Similarly, replacing a key is generally straightforward. The exception is if the old key has snapped off in the ignition. In this case, a set of needle-nosed pliers can sometimes be used to extract the key. A powerful magnet can also be helpful if the broken key is being stubborn. In the worst-case scenario, the ignition may need to be replaced. This is an OEM part sourced directly from MTD, and it is sold as a set of two.

Star knob connects upper and lower handles on lawn mowers and outdoor equipment. Replace if threading is worn, cracked, or knob is missing for secure assembly.

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

Replace your broken or missing lawn mower discharge chute assembly. Directs grass clippings away from the mower deck during operation. Essential part.

Replace your lawn mower's cracked or broken 21-inch top discharge chute. Directs grass clippings away from the deck during mowing operations.

Replace your cracked or missing lawn mower mulch cover. This protective plate installs on the deck to shield internal components and users from debris.

This is a genuine wing nut replacement designed for use in select walk-behind lawn mowers. Although some wing nuts are considered standard hardware on lawn mowers and other equipment, this specific wing nut connects to a bolt and secures the front baffle to the deck of the mower. Over time, this plastic wing nut can crack, fall off, or the threads may become damaged. This will result in the mover assembly being affected and the unit may not be able to be used until the nut has been properly replaced. This genuine replacement part will provide the exact fit for compatible mowers. This genuine OEM wing nut is manufactured to exact standards and comes from MTD. It can be used with hundreds of walk-behind lawn mower models from the brand, as well as those from Cub Cadet, Ryobi, Troy-Bilt, Bolens, Yard Man, Yard Machines, and Huskee. This plastic wing nut is sold individually. The carriage bolt that it connects to will need to be purchased separately if that also needs to be replaced. No tools are required for this installation, as it can simply be hand-tightened into place. Wear gloves for hand protection when performing equipment repairs.

Carriage bolt for lawn mowers and outdoor power equipment. Fastens components together with a nut. Replace if lost, stripped, or damaged during repair.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

Retainer bolt for lawn mowers and tractors. Secures components in place. Replace if lost, stripped, or damaged to restore proper fastening.

Spacer sleeve for lawn mower assembly. Replaces worn, damaged, or missing sleeves. Maintains proper spacing between components during operation.

Pulley half for gas snowblowers and walk-behind mowers. Replace this drive component if cracked, worn, or damaged to restore proper function.

Drive pulley half for gas snowblowers and walk-behind mowers. Replaces worn, cracked, or damaged pulley components in the drive system assembly.

Ball bearing for snowblowers and mowers ensures smooth operation of moving parts. Replace when you notice grinding noise or resistance during use.

Metal blade support spacer that mounts between the mower blade and bolt. Secures the blade to the deck base. Replace if worn, damaged, or missing.

Hex screw fastener for lawn mower and lawn tractor small engines. Secures components together. Replace if lost, stripped, or corroded during maintenance.

Replaces worn, dull, or damaged 21-inch mulching blades on walk-behind mowers. Features curved design for effective mulching. Upgrade your rusty blade.

This v-belt is a genuine MTD part, sold individually. This v-belt can be used as a replacement part for a lawnmower. This v-belt facilitates rotation so that power is directed to the wheels and the mower deck. The v-belt works in conjunction with the small engine to power the lawnmower.Visible signs of damage include punctures, tears, scratches, rips, and erosion to the material that could prevent it from properly facilitating rotation in the lawnmower. If this occurs, the v-belt should be removed and replaced with this genuine OEM replacement part before using the lawnmower again.This is an OEM part sourced directly from the manufacturer. It is sold individually. This v-belt is compatible with the following outdoor appliance brands: MTD, Craftsman, Yard Man, Troy-Bilt, and Cub Cadet.

This is a versatile screw designed with flanged hex head and double-lead threads. It is a high-low self-tapping screw with one thread that is high and the other low for easier penetration. The twin threads also reduce the amount of material displaced when the screw is driven into the material. This type of screw also creates a firmer grip. This screw can also be used to secure a newly installed front cover or grill. This part is available as an individual replacement part. It is a genuine OEM part for use with specific models of snow throwers, lawn tractors, electric mowers, chippers, and log splitters from Bolens, Cub Cadet, Craftsman, Poulan, Ryobi, Toro, MTD, Troy-Bilt, Yard Machines, and Yard-Man.

Replacement grass bag for walk-behind lawn mowers. Attaches to the mower deck to collect clippings. Replace if torn, damaged, or missing.

Replacement top discharge cover for lawn mowers. Protects the discharge chute opening when side discharge is not in use. Order now if cracked or missing.

Push nut for lawn mowers and tractors. Secures components in place. Replace if missing, damaged, or no longer holding parts firmly during operation.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

12-volt battery for gas walk-behind and self-propelled mowers. Replace when engine won't start or cranks slowly. Verify voltage matches your model.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

Fix electrical issues in your walk-behind mower with this wire harness assembly. Connects cables and wires while protecting from damage. Moderate DIY repair.

This replacement part is a washer. It is a genuine replacement part made by MTD. Washers are small but important components, allowing spacing in between certain parts near and around the engine. Washers are typically used alongside screws and nuts to provide a tight and secure fit of many different parts in the appliance.A new washer might be needed if the current one is damaged or missing. Washers need to be replaced as they become stripped. This is usually due to friction inside the machine. Be sure the engine is turned off before replacing this part. Typically washers are easy to replace and might only need a screwdriver during the repair. This washer is a genuine OEM replacement part. Note that it is sold individually. Be sure to purchase the correct amount as some machines require more than one.

Can't shift speeds smoothly on your mower? This 6-speed control arm restores precise gear selection. Compatible with walk-behind and self-propelled models.

Pivot bracket for lawn mowers. Mounts to the mower deck or frame to support moving components. Replace if cracked, bent, or broken to restore stability.

The roller cable guide is designed for use with lawnmowers. It supports and guides cables to the lasher in the mower.This roller cable guide is a genuine OEM part sourced directly from the manufacturer and is sold individually. This roller cable guide is compatible with the following brands: Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, and Yard-Man.

Metal carriage bolt with round head and threaded shank for lawn mowers and snow blowers. Replaces broken or missing hardware during repairs or assembly.

Fix inconsistent mower speed or unresponsive throttle control with this cable pulley. Controls machine speed throughout operation. Simple repair.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

Hex nut fastener for lawn mowers, tractors, and outdoor power equipment. Replaces missing, stripped, or damaged nuts. Standard 1/4-28 threading.

Mower won't shift speeds or self-propel won't engage? This tooth rack gear insert transfers rotational motion to linear movement. DIY repair in 30 minutes.

This pulley assembly is a genuine MTD part, sold individually. This pulley assembly can be used as a replacement part in a lawn mower. The purpose of a pulley assembly in a lawn mower is to facilitate the rotation of the drive belt such that the wheels of the lawn mower can be rotated to propel the appliance forward across a variety of surfaces while in use.The pulley assembly in a lawn mower might need to be replaced at some point within the typical lifespan of the appliance if the pulley assembly or the general components around it suffer damage that renders it incapable of performing its usual function. If the pulley is significantly damaged to that point, the pulley assembly should be removed and replaced by this genuine OEM replacement part as soon as possible.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This pulley assembly is compatible with the following outdoor appliance brands: MTD, Craftsman, and Cub Cadet.
