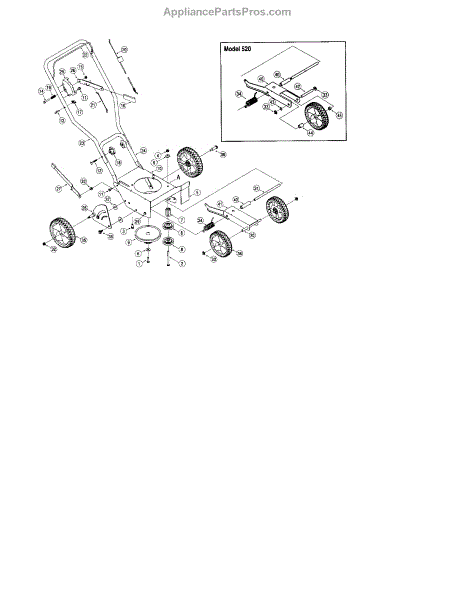

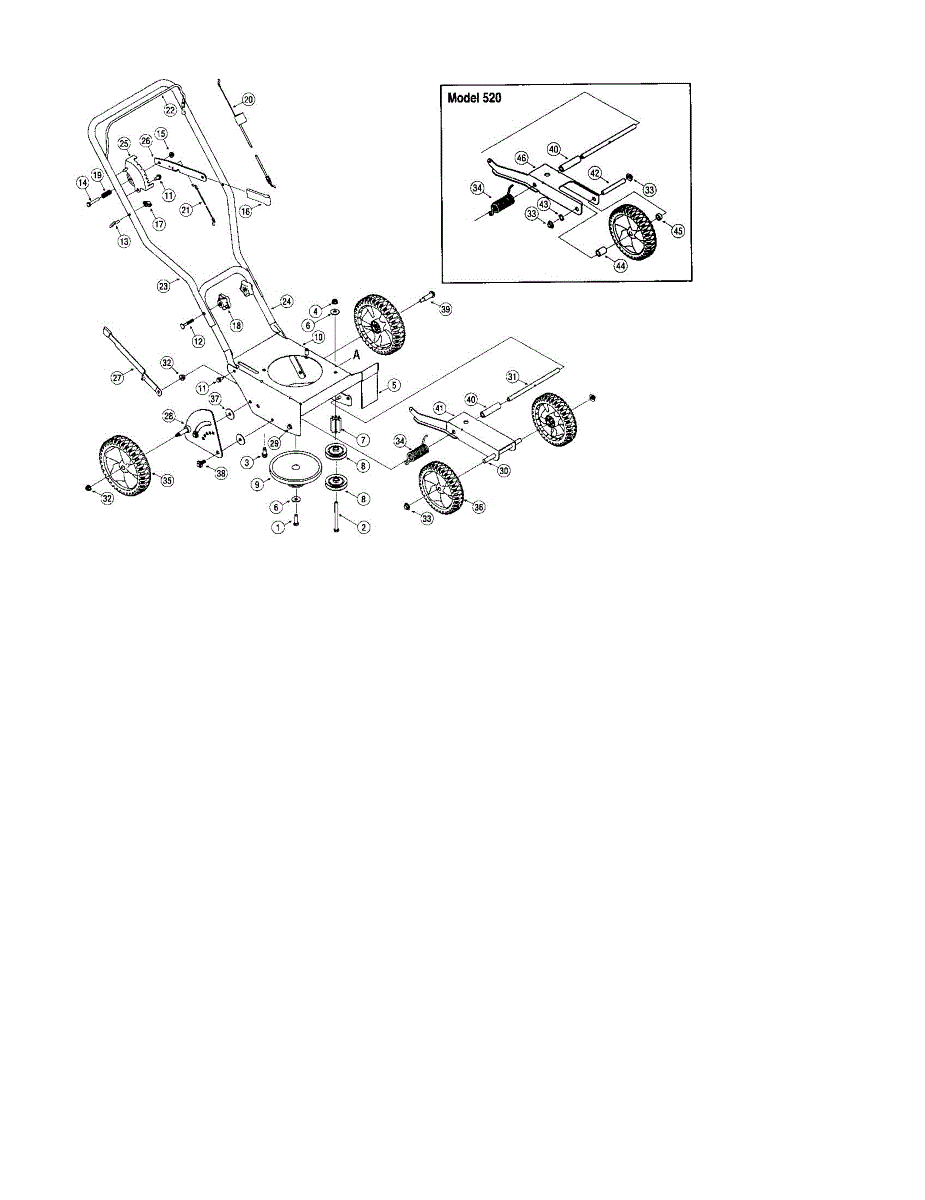

Parts for Mtd 520-EDGER: Handle / Frame Parts

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

Protective guard that mounts to the edger blade housing to shield against flying debris. Replace if cracked, broken, or missing for safe operation.

Replacement idler pulley for outdoor power equipment. Installs on the deck assembly to guide belts. Replace if cracked, worn, or spinning rough.

Engine pulley for gas line trimmers and wheeled trimmers. Mounts to engine shaft to drive belts. Replace if cracked, worn grooves, or missing.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

Rope guide eyebolt for lawn mower recoil starters. Guides the starter rope smoothly during pull starts. Replace if bent, broken, or missing.

This hex bolt is a necessary component used in a variety of small to medium sized gasoline powered engines used primarily in yard work, gardening, and landscaping. The primary use of this hex bolt is to secure the idler pulley assembly to the body of the machine. The idler pulley functions to engage the turning mechanism of the yard tool when engaged. The power yard tools that require an idler pulley which would use this screw are tillers, riding mowers, yard tractors, tillers, snow blowers and chippers. Engaging the rotating part of the yard tool places a great deal of resistance on the idler pulley, which may eventually result in it needing to be replaced. When replacing the idler pulley assembly, it's important to remember that the attaching hardware, such as the hex bolt, has also experienced a great deal of wear and should be replaced as well. This hex bolt attaches the idler pulley assembly directly to the machine housing and can be removed with a 9/16 wrench. Make sure when replacing the bolt to use a genuine OEM manufactured part that is identical to the manufacturer's original piece. This bolt is compatible with the following brands: Yard-Man, Bolens, Craftsman, Yard Machines, Troy-Bilt, Cub Cadet, Huskee, Ryobi, Murray, MTD, MasterCut, and Montgomery Wards.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

This is a knob handle that is used on various types of lawn and garden equipment. It is responsible for helping to make adjustments to the upper handle of the lawnmower or other machine. If the knob handle no longer works, is broken, or falls off, adjustments can no longer be made to the equipment. If this situation occurs, the knob handle will need to be replaced.Take a look at the knob handle and determine if it has been damaged. It could have cracks, broken areas, or excessive scratches that make it hard or impossible to use. If the knob handle is not present, this also necessitates a replacement. The part is easy to replace and requires no tools to install. Simply remove the old handle and place the new one in the same location.This is an authentic OEM replacement knob handle that is directly sourced from the manufacturer. It is sold as an individual component. The knob handle is used on lawnmowers, snowblowers, string trimmers, leaf blowers, wood chippers, and edgers. It fits various models offered by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

Star knob connects upper and lower handles on lawn mowers and outdoor equipment. Replace if threading is worn, cracked, or knob is missing for secure assembly.

Replacement wheel adjustment control cable for edgers and gas line trimmers. Connects control handle to wheel height mechanism. Order if broken or frayed.

Upper handle for edgers and gas line trimmers. Mounts to the main frame for user control during operation. Replace if cracked, broken, or damaged.

Replacement lower handle for edgers and trimmers. Installs at the base of the handle assembly. Replace if cracked, broken, detached, or damaged.

Hex head screw for securing components on lawn mowers, tillers, and snow blowers. Replace missing, stripped, or corroded fasteners during repair.

This genuine OEM replacement part is a push cap designed for snowblower, tiller, and edger wheel assemblies. A push cap is a special type of nut, or fastener, that helps to hold unthreaded shafts in place. Although small, this push cap helps to secure the wheel to the axle. Push caps are most commonly damaged if the operator uses their appliance in rough terrain. If damaged, it can fall off, causing the wheel to also fall off. Replacing push caps is an easy repair as they attach to the outside of the wheel assembly. The only hardware required to make this repair is a nut driver. If you do not have a nut driver, a pair of pliers can also be used to attach the new push cap. This part is a high-quality replacement part meant for Yard Man, Husky, Ryobi, Yard Machines, Troy-Bilt, MTD, Bolens, and Cub Cadet appliances. It is sourced direct from its original manufacturer and ships individually.

Replacement wheel assembly for walk-behind mowers and lawn equipment. Installs on axle to restore mobility. Order when wheel is cracked, broken, or worn.

Replacement wheel for walk-behind lawn mowers and tillers. Mounts to the axle to support the deck and aid maneuverability. Replace if cracked or worn.

Shoulder screw for lawn mowers, tillers, and edgers. Secures components together. Replace if worn, stripped, or missing for proper assembly.

Wheel bracket for edgers and wheeled trimmers. Secures the wheel assembly to the frame. Replace if cracked, bent, or broken to restore stability.

Fastener washer for lawn mowers and outdoor power equipment. Replaces worn, damaged, or missing washers on mounting hardware and bolt assemblies.
