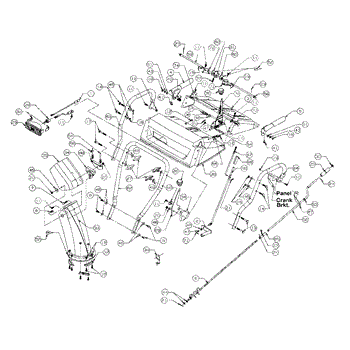

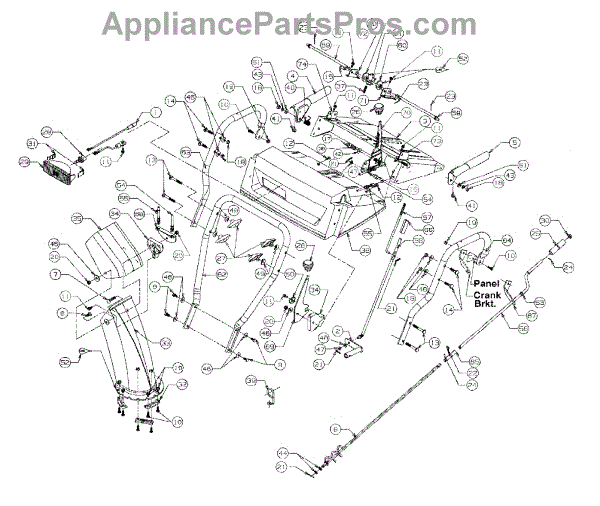

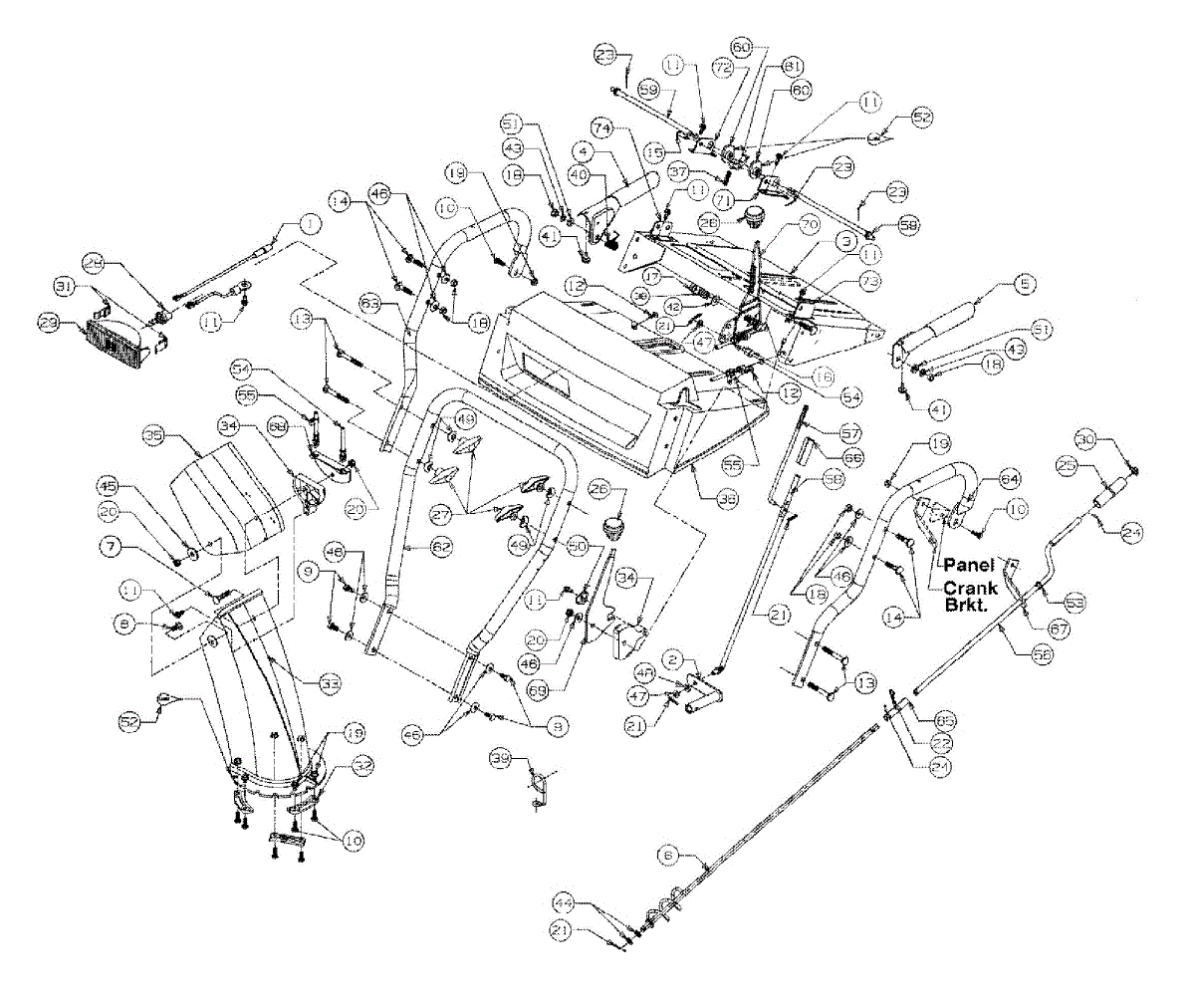

Parts for White Outdoor 317E753F190 / 1997: Handle & Panel Parts

Replacement wire harness for snow blowers. Connects electrical components throughout the unit. Replace if wiring is damaged, frayed, or corroded.

Metal carriage bolt that fastens components together on lawn mowers, snow blowers, and garden equipment. Replace if bent, rusted, or missing.

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.

Hex washer screw for lawn mowers, tractors, and snow blowers. Replaces stripped, missing, or damaged screws on deck panels and housing assemblies.

Replacement bolt for lawn mowers and outdoor power equipment. Secures components and ensures stable assembly. Order a new bolt if yours is missing or damaged.

The lock nut is a piece of standard hardware that may have a variety of applications on lawn and garden equipment, including on engines, housings, and other components. The lock nut offers a secure fit by tightening into a flange that prevents the nut from loosening like a regular nut might. Over time, the flange or the nut can become worn or damaged. In some cases, lock nuts may be lost during the process of other repairs or maintenance. Replacing them with genuine OEM parts like this lock nut is the best solution. This lock nut is compatible with hundreds of machines, including mowers, snowblowers, and chippers from MTD, Troy-Bilt, Cub Cadet, RYOBI, Yard-Man, Yard Machines, Bolens, and Husky. The ¼-inch lock nut has multiple locations and applications, so owners should consult their parts diagram for exact placement and part number identification. This lock nut is made of durable metal and sold as a single unit. Those who need additional pieces will have to order multiple quantities. This part will require a wrench or a socket to replace, as well as pliers and/or a screwdriver to hold the bolt or screw in place.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

Click pins are used in various lawn equipment machines to hold the wheels on. For larger riding lawn mowers, click pins are only used on the smaller front wheels. The click pin penetrates through the axle spindle to hold the tire in place. The part can get lost, damaged, or wear out with regular use. It's also possible to misplace the click pin when changing a tire because it has to be removed first before working on the wheel. A missing, damaged, or worn click pin must be replaced.Click pins are very easy to replace with only a pair of pliers. Wear gloves when making the repair. Start by pulling out the old click pin from its location with the pliers. Insert the new click pin back into the hole located in the spindle.This click pin is a genuine OEM replacement part. It is made with durable, high-quality metal. It is supplied by the manufacturer. It is compatible with both MTD and Murray brands. The equipment the click pin can be used with includes lawn tractors, lawn machines, and other lawn equipment. It is sold as an individual unit.

Chute crank knob for snow throwers. Installs on the chute rotation control. Replace if cracked, broken, or missing to restore manual chute adjustment.

Star knob connects upper and lower handles on lawn mowers and outdoor equipment. Replace if threading is worn, cracked, or knob is missing for secure assembly.

Halogen headlight lamp for snow blowers. Replace when light dims or burns out to maintain visibility during winter clearing. Verify fit with model number.

Snow blower headlight housing assembly. Replace when housing is cracked, broken, or light won't secure properly. Verify fit with your model number.

This part is a replacement push nut. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part's intended use is to replace a broken or detached push nut in snow blowers.Push nuts are a special type of fastener that secures together different equipment components. Push nuts will need to be replaced if worn, broken, lost, or otherwise ineffective. When working on or near an engine, it's important to make sure the equipment is powered off and completely cool before starting any repairs. For more accurate information on how and where to install this push nut, reference the appropriate owner's manual and specific equipment diagrams.This is an authentic OEM replacement part made of high-quality materials. This push nut can be used with different models of snow blowers that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands. Part sold individually.

Replacement chute flange keeper for snow throwers. Secures the discharge chute assembly to the housing. Replace if broken, cracked, or missing.

Lower chute assembly for snow blowers. Directs snow discharge flow from the auger housing. Replace if cracked, broken, or missing for proper operation.

Cable guide for snowblowers. Keeps control cables properly routed and secured. Replace if cracked, broken, or missing to maintain smooth cable operation.

Upper discharge chute for snow blowers. Directs snow away from the machine. Replace if cracked, broken, or missing to restore proper snow discharge.

This genuine OEM part is a compression spring for a lawnmower. The compression spring is the spring that holds the mower deck onto the lawnmower. Over time, the compression spring can become degraded due to excessive wear and tear. If it is no longer securing the mower deck, it will need to be replaced. Luckily, replacing this part is a relatively simple process.To replace the spring, make sure the mower deck is set to the lowest position. Locate the old retainer spring and pull it out and away from the mower. Once removed, slide the new spring into its proper position. Make sure it fits tightly, and the mower deck is secured. Once secured, power the mower to see if the spring stays in place during operation. If it does, then the installation was a success. This replacement part is sold individually and is compatible with MTD brand lawnmowers.

Return spring for snow blowers. Mounts to the control mechanism to provide tension and return function. Replace if stretched, broken, or missing.

This part is a replacement handle lever bumper. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. The intended use for this part is to properly replace a defective or misplaced handle lever bumper in snow blowers.The handle lever bumper provides some cushioning between the frame of the handle and the control lever, making it easier for the user to operate the snow blower. If this part is damaged or misplaced, it will need to be replaced to ensure optimal functionality. Always ensure that the equipment is completely powered off and is cooled down before attempting to start the repair process. For more accurate information on the installation of this particular handle lever bumper, reference the owner's manual or equipment diagrams for specific instructions and part location. This is an authentic OEM part and as such is sold individually and made from durable and high-quality rubber. This handle lever bumper can be used with a variety of snow blower models manufactured by Craftsman, MTD, and other brands.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

Flat washer for lawn tractors and outdoor power equipment. Replace if washer is missing, worn, or damaged during maintenance or repair work.

Bell washer adds spacing on shafts in lawn tractors, tillers, mowers, and chipper shredders. Replace if washer is missing, worn, or damaged during maintenance.

Replacement washer for snow blower and snow thrower models. Needed when original washer is lost, damaged, or worn. Secures components properly.

This is a bushing made from black plastic with a cleft down the middle to provide enough flex for easy insertion. It has a flanged design, which means it won’t easily pop out after installation, even under stress from constant vibration. The bushing’s primary purpose is to protect wires and cables from damage as they pass through a channel. As such, the material is fairly durable and does not need to be replaced under ordinary circumstances. That said, there are some situations in which it can become damaged. For one thing, it’s easy to damage while repairing the wires or cables that run through the bushing. If the bushing does need to be replaced, it requires disconnecting any cables or wires that run through the bushing. Pop out the old bushing with a rubber mallet, install the new bushing the same way, reconnect the wires, and the repair is complete. This is an OEM part sourced directly from MTD, and it is sold individually. It was initially used on snowblowers but has also been used on lawnmowers and lawn tractors.

Lower shift rod for snow blower shift mechanism. Replaces worn, bent, or broken shift rods that prevent smooth gear changes. Direct fit part.

Replace a worn or bent cam rod that causes poor shifting or control issues in your snow blower. Direct fit part restores smooth operation.

Cable mounting bracket for snow throwers. Secures control cables in position. Replace if bent, cracked, or missing to properly route cables along frame.

Left handle bracket for gas snowblowers. Mounts to the frame to secure the left handlebar. Replace if cracked, bent, or broken from impact or wear.

Handle support bracket for snow blowers. Secures and stabilizes the upper handle assembly. Replace if bracket is bent, cracked, or broken.

Replace a cracked, broken, or missing handle bracket on your snow blower. This structural bracket secures the handle assembly to the frame. Easy install.
