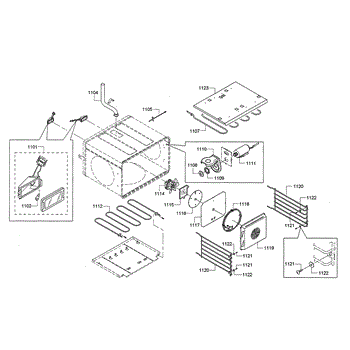

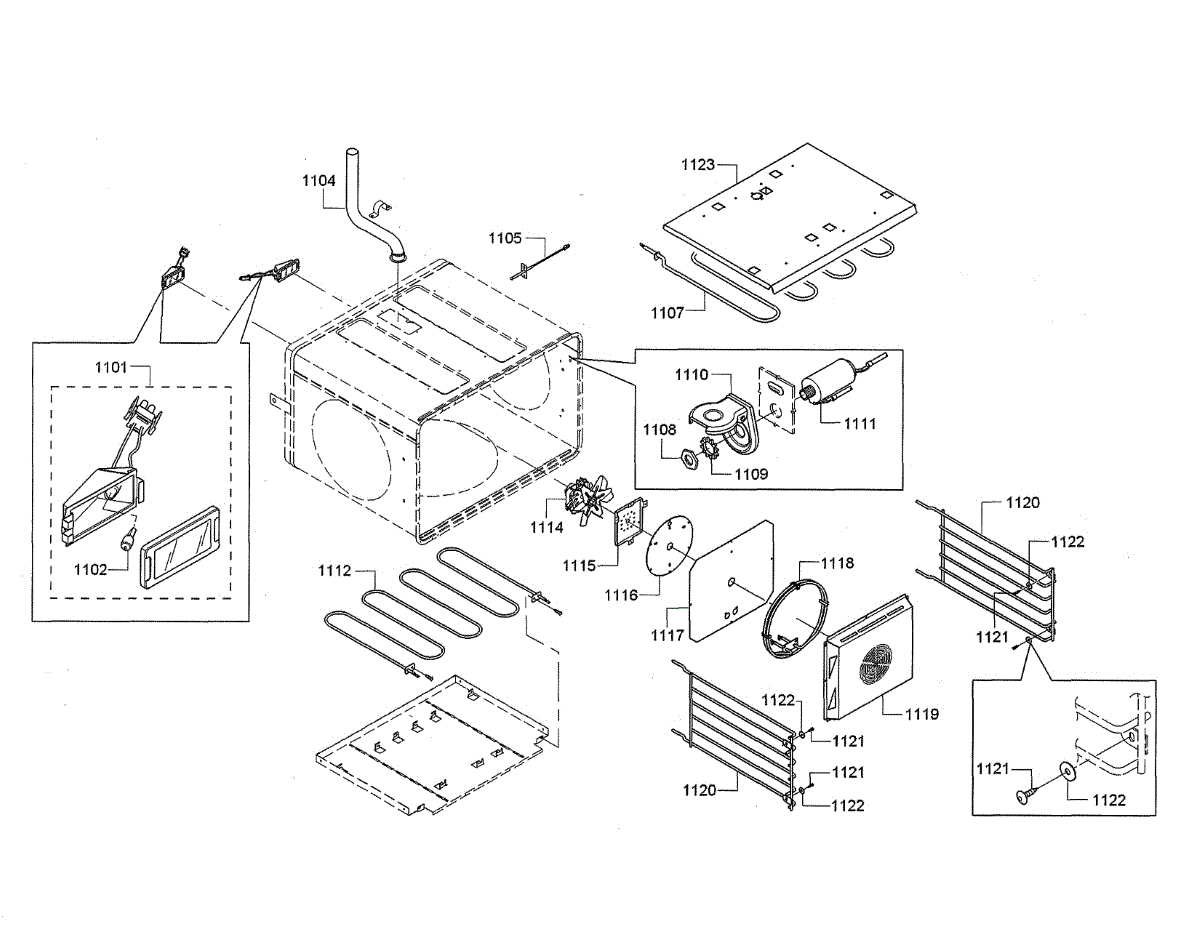

Parts for Thermador PRD48JDSGU/01: Heating Element / Lamp Parts

The Lamp is an OEM part for Bosch ranges and ovens. The range lamp provides visibility when viewing food through the oven window or checking on items cooking on the stove.

Causes of a bad range lamp can include normal wear and tear over time, as well as accidental damage from impact or handle mishandling.

Symptoms of a bad range lamp include:

• Diminished light that does not adequately illuminate the cooking space
• Flickering or unstable illumination
• A burned out or broken bulb

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Bulb is an OEM part for Bosch ovens. This component provides illumination inside the oven, allowing you to easily monitor the cooking process without opening the door and losing heat.

Causes of a bad bulb can include filament burnout due to extended use, electrical issues that cause power surges, or physical damage from accidental impacts.

Symptoms of a bad bulb include:

• The oven light not turning on
• Flickering light inside the oven
• Dim or uneven lighting
• The bulb appearing visibly damaged or burnt out

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The temperature sensor is an electronic probe that monitors internal appliance temperature and reports it to the control so it can regulate operation. Replacing a failed sensor restores more accurate temperatures and can clear temperature-related error codes. What it does:

• Senses internal temperature via resistance changes and sends the signal to the electronic control
• Helps the control reach and maintain the set temperature during operation
• Common failure symptoms: too hot/cold, won't reach set temp, long/short cycles, temperature error codes
• Can cause preheat to stall or the unit to shut off early (model dependent)

• Includes: 1 temperature sensor

• Disconnect power at the breaker before servicing
• Location and access vary by model; typically mounts with screws or a clip and connects to a 2-wire harness
• Handle the connector and wiring carefully; route and secure away from hot or moving parts
• After installation, clear stored errors and run a test cycle to proper readings

This Broil Heating Element is an OEM part for Bosch Ranges. It is responsible for providing high heat for broiling functions and evenly distributing heat within the oven cavity. It ensures efficient broiling performance for cooking various dishes.

A common issue with a malfunctioning Broil Heating Element is wear and tear over time, leading to potential element damage or failure. Frequent usage, or heating irregularities can compromise its function.

Symptoms of a defective Broil Heating Element may include:

• Uneven broiling or cooking results
• Inadequate heating or failure to reach desired temperatures
• Visible damage or signs of wear on the heating element

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This heating element is the dryer heater assembly that produces the hot air needed for drying. It replaces a failed or burned-out element so the appliance can heat normally during cycles. What it does:

• Heats incoming air so the drum reaches proper drying temperatures
• Commonly fails when the dryer produces no heat or only low/weak heat
• Can cause longer dry times and trigger thermostat safety trips when degraded
• Works as the core heating component alongside the blower and thermostats

• Disconnect power before starting; this part requires working near live electrical connections
• Inspect thermal fuses and thermostats when replacing the element; replace any faulty safety components
• Handle element carefully to avoid bending or damaging the heating coils

This OEM replacement part is a motor assembly for ovens. The motor assembly is the main motor that powers the oven fan which is responsible for maintaining and adjusting the temperature in an oven. If the oven is no longer heating properly, turning on, or maintaining temperature, then the motor assembly will need to be replaced.To replace this part, make sure that the oven is unplugged. After it has been powered off, proceed to pull the oven out and away from the wall. Once moved, uninstall the back panel of the oven by removing the panel's mounting screws. After detaching the back panel, locate the motor housing on the back of the oven. Unthread the screws that hold the housing in place. Once removed, locate the mounting brackets that hold the motor in place and remove the screws that attach to the motor. Pull the old motor out of its place and install the new motor. Reinstall the back panel and restore power to the appliance.This genuine replacement part is sold individually and is compatible with Bosch, Gaggenau, and Thermador brand ovens.

A cable harness that routes and connects power and signal wires to restore proper electrical continuity and control communication in your appliance. Replaces a worn or damaged harness to help eliminate intermittent power or control faults. What it does:

• Provides bundled wiring and connector interfaces between control boards, motors, sensors, and switches
• Restores reliable electrical connections when original wires or terminals are frayed, broken, or corroded
• Can resolve symptoms such as intermittent operation, loss of power to components, or control panel communication errors
• Matches OEM connector types and wire routing to maintain correct electrical function

• Disconnect all power (unplug appliance or switch off breaker) before starting service
• Note wire routing and connector positions during removal to ensure correct reinstallation
• Handle connectors by the housing; avoid pulling on individual wires

This replacement screw fastens appliance components to restore secure assembly and stable operation. It's a direct-fit fastener used where the original screw has stripped, corroded, or been lost. What it does:

• Secures panels, brackets, or small assemblies to prevent vibration and misalignment
• Restores proper fit where a damaged or missing screw causes rattling or loose parts
• Provides the correct fastening point for unchanged OEM mounting locations
• Works as a like-for-like replacement when the original screw is worn or missing

• Screw

• Turn off and unplug the appliance before beginning any repair
• Use the matched screwdriver or driver bit to avoid stripping the head
• Replace with the same thread engagement depth; do not force or overtighten
• Repair with the appropriate method before installing
