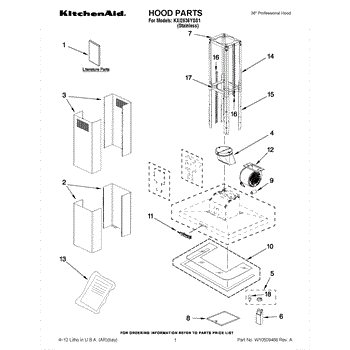

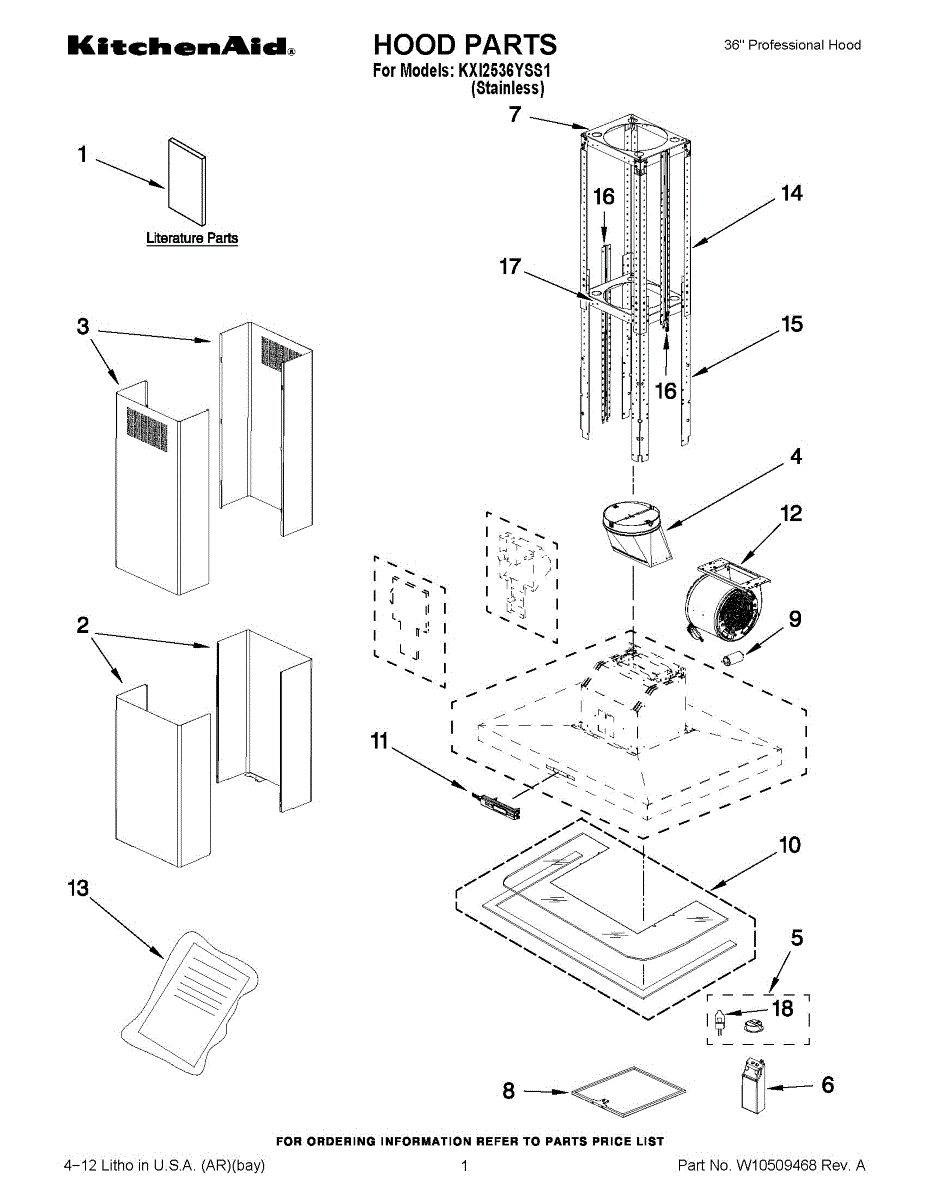

Parts for Kitchenaid KXI2536YSS1: 01 - Hood Parts

This interior light bulb provides bright, direct lighting so you can clearly see food and settings inside your appliance. It replaces a burned-out or cracked interior lamp to restore visibility and safe use. What it does:

• Illuminates the appliance interior for cooking, loading, and inspection
• Replaces bulbs that are cracked, dark, flickering, or no longer working
• Helps you monitor food without opening the door frequently
• Fits the appliance's original lamp socket and housing when used as a direct replacement

• Disconnect power or unplug the appliance before replacing the bulb
• Allow the old bulb to cool completely before handling
• Use a clean cloth or gloves to handle the new bulb; avoid touching the glass with bare hands if the bulb type specifies
• Match this part number to your appliance label or parts diagram to ensure correct fit; dispose of old bulbs according to local regulations

The Grease Filter is an OEM part for Whirlpool range hoods. This part traps grease particles from the air as it circulates through the range hood, preventing grease buildup on the blower and other internal components, thus maintaining the efficiency and longevity of the range hood.

Causes of a bad grease filter can include clogging from excessive grease accumulation, physical damage from improper cleaning or handling, and general wear and tear over time.

Symptoms of a bad grease filter include:

• Reduced air flow from the range hood
• Visible grease buildup on or around the filter
• Unusual odors persisting in the kitchen
• Filter appearing worn or damaged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This motor run capacitor helps the appliance motor start and run more smoothly, restoring proper motor performance and reducing hum or startup problems. It's a direct-replacement electrical component used in compatible Whirlpool appliances. What it does:

• Provides the phase-shifted current the motor needs to start and maintain normal operation
• Helps reduce motor humming, slow starts, or intermittent motor stalls
• Restores proper motor torque and efficiency when the original capacitor has failed
• Works as the electrical timing/storing component for motor cycles

• One motor run capacitor

• Disconnect power to the appliance before attempting replacement to avoid electrical shock
• Discharge the capacitor before touching terminals; use insulated tools and follow safe procedures
• Match terminal configuration and mounting to the original part

This is an electronic control that is used on oven range hoods. This part is what is used to control the speed of the fan and the light control. It has a total of five buttons on the unit, each with its own function.If the electronic control no longer responds to the buttons being pushed, it is likely that it will need to be replaced. This component could wear out due to normal wear and tear over time. Make sure to disconnect the oven range hood from the power source prior to attempting to replace the electronic control. Wear gloves to protect the hands during this process.This electronic control is an OEM part that is sourced directly from the manufacturer. It is sold individually. This particular part is compatible with oven range hoods that are manufactured by Whirlpool, Maytag, KitchenAid, Jenn-Air, Admiral, Norge, Roper, Kenmore, and Amana.

This fan motor is the rotating blower assembly that moves air through the appliance to support cooling, ventilation and proper operation. Replacing a worn motor restores airflow and helps maintain temperature control and performance. What it does:

• Drives the blower wheel to circulate air through the appliance cabinet and vents
• Restores airflow when the motor has failed or stalled
• Stops or reduces abnormal noise when the original motor bearings are worn
• Helps prevent overheating by maintaining proper ventilation

• Disconnect power before attempting any service to avoid shock or injury
• Handle the motor and blower wheel carefully to avoid damaging blades or connectors
• Verify wiring connections and mounting orientation match the original part before powering on

This replacement hood light bulb restores bright illumination over your cooktop so you can see while cooking and cleaning. Install a new bulb when the hood light is out, dim, or damaged to keep your range hood working as intended.

• Provides task lighting for the cooking surface when the hood light is switched on
• Replace if the light won't turn on, flickers, or the bulb glass is darkened/cracked
• Restores visibility for safer meal prep and cleanup
• Installs in the lamp socket specified for your model; match the bulb type and rating in your owner's manual

• Disconnect power to the hood at the breaker and allow the bulb/area to cool fully
• Remove the lens or retainer per your model, then remove the old bulb
• Handle the new bulb with a clean cloth or gloves; avoid touching the glass
• Install without overtightening and do not exceed the bulb type/wattage specified for your hood

This duct kit provides the exhaust connection needed to route appliance airflow to a home vent, helping maintain proper venting and reduce moisture and lint buildup for safer, more efficient operation. What it does

• Connects the appliance exhaust outlet to the home vent, creating a secure airflow path
• Helps restore proper airflow that can reduce long drying times or poor ventilation
• Minimizes gaps where lint and moisture can escape into the cabinet or room
• Works with standard rigid or flexible venting to complete a proper exhaust run

• Always disconnect power (and gas, if applicable) before accessing or servicing the appliance.
• Follow all local venting codes and the appliance manufacturer's installation instructions.
• Ensure all connections are tight and supported; avoid crushing or sharp bends that restrict airflow.
• Use appropriate clamps or fastening hardware and inspect for leaks after installation.

This filter traps cooking grease and airborne particles as air moves through your appliance's ventilation system. It helps protect the blower and internal surfaces and supports proper airflow for effective venting during everyday cooking.

• Captures grease and debris from cooking vapors to reduce buildup on internal components
• Helps maintain ventilation airflow and fan performance
• Replace if the mesh is torn, warped, heavily clogged, or no longer stays seated
• Common symptoms include reduced airflow, lingering smoke or odors, and visible grease accumulation

• Disconnect power and allow surfaces to cool before servicing
• Access the filter from the underside of the hood or over-the-range unit
• Release retaining tabs or screws, remove the old filter, and slide the new filter into place
• Ensure the filter is fully seated and secured before restoring power
