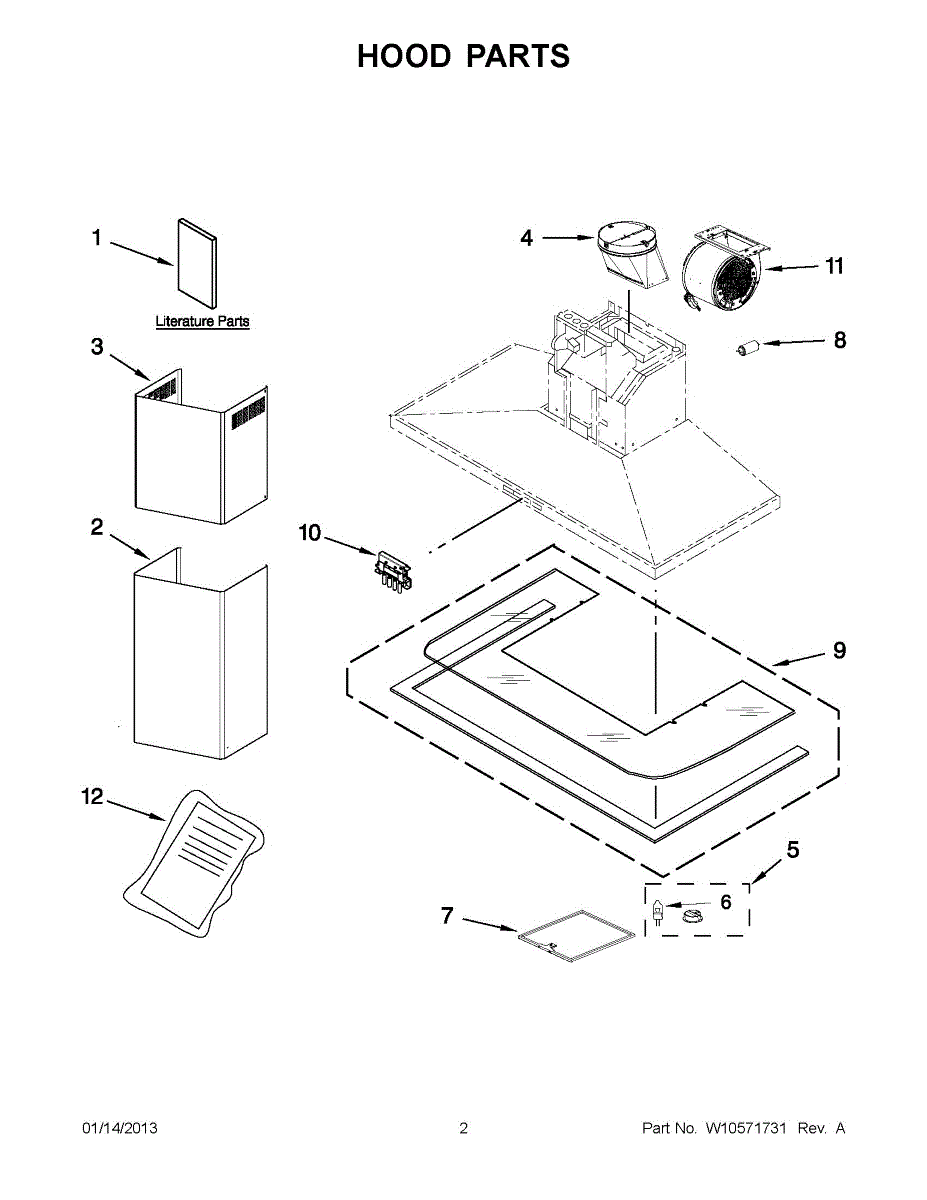

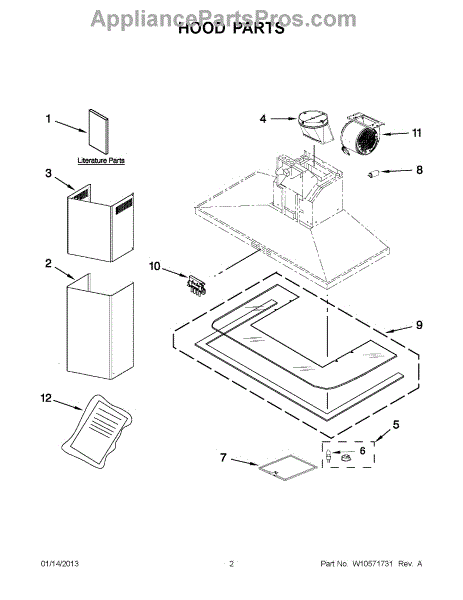

Parts for Whirlpool IHW2530BS0: 01 - Hood Parts

The Chimney is an OEM component specifically designed for Whirlpool ventilation hoods used above cooktop ranges. It vents fumes, steam, and smoke from the cooking surface up and out of the kitchen area.

Symptoms of a bad chimney include grease caking and blocking proper airflow. Physical damage like dents could also disrupt venting performance.

Causes of a bad chimney include:

• Reduced or inefficient venting of fumes from cooking
• Greasy film forming on range backsplash/walls near the hood
• Physical blockages restricting maximum airflow
• Vent motor straining from obstruction resistance

It keeps indoor air fresh for brands including KitchenAid, Jenn-Air and select Broan-Noren product lines.

The Chimney is an OEM component specifically designed for Whirlpool ventilation hoods used above cooktop ranges. It vents fumes, steam, and smoke from the cooking surface up and out of the kitchen area.

Symptoms of a bad chimney include grease caking and blocking proper airflow. Physical damage like dents could also disrupt venting performance.

Causes of a bad chimney include:

• Reduced or inefficient venting of fumes from cooking
• Greasy film forming on range backsplash/walls near the hood
• Physical blockages restricting maximum airflow
• Vent motor straining from obstruction resistance

It keeps indoor air fresh for brands including KitchenAid, Jenn-Air and select Broan-Noren product lines.

This replacement light bulb restores bright, dependable illumination in your appliance, making it easier to see contents and controls. Replace a burned-out or flickering bulb to bring lighting back to normal day-to-day operation.

• Supplies interior or work-area lighting when the door opens or the light switch is turned on
• Restores visibility for monitoring, loading/unloading, and cleaning
• Typical failure symptoms: no light, dim or flickering light, intermittent lighting, or visibly darkened/broken glass

• Disconnect power to the appliance before servicing
• Allow the existing bulb and surrounding area to cool completely
• Remove any lens or cover as designed; install the new bulb carefully and do not overtighten
• Match the bulb type and ratings specified by the appliance manufacturer or on the original bulb/label

This replacement light bulb restores interior illumination inside your appliance. Swap it in for a burned-out bulb so you can clearly see contents and monitor operation when the door opens or the light button is pressed.

• Provides interior light inside the appliance cavity
• Direct replacement for a failed or broken bulb
• Common symptoms: no light when the door opens, flickering/intermittent light, visibly darkened or broken bulb

• Disconnect power to the appliance before servicing
• Allow the old bulb and nearby surfaces to cool completely
• Remove any lens or cover to access the socket; install the new bulb in the same orientation as the original
• Handle with clean, dry hands or gloves; do not overtighten. Restore power and test

The Grease Filter is an OEM part for Whirlpool range hoods. This part traps grease particles from the air as it circulates through the range hood, preventing grease buildup on the blower and other internal components, thus maintaining the efficiency and longevity of the range hood.

Causes of a bad grease filter can include clogging from excessive grease accumulation, physical damage from improper cleaning or handling, and general wear and tear over time.

Symptoms of a bad grease filter include:

• Reduced air flow from the range hood
• Visible grease buildup on or around the filter
• Unusual odors persisting in the kitchen
• Filter appearing worn or damaged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This motor run capacitor helps the appliance motor start and run more smoothly, restoring proper motor performance and reducing hum or startup problems. It's a direct-replacement electrical component used in compatible Whirlpool appliances. What it does:

• Provides the phase-shifted current the motor needs to start and maintain normal operation
• Helps reduce motor humming, slow starts, or intermittent motor stalls
• Restores proper motor torque and efficiency when the original capacitor has failed
• Works as the electrical timing/storing component for motor cycles

• One motor run capacitor

• Disconnect power to the appliance before attempting replacement to avoid electrical shock
• Discharge the capacitor before touching terminals; use insulated tools and follow safe procedures
• Match terminal configuration and mounting to the original part

This is an electronic control that is used on oven range hoods. This part is what is used to control the speed of the fan and the light control. It has a total of five buttons on the unit, each with its own function.If the electronic control no longer responds to the buttons being pushed, it is likely that it will need to be replaced. This component could wear out due to normal wear and tear over time. Make sure to disconnect the oven range hood from the power source prior to attempting to replace the electronic control. Wear gloves to protect the hands during this process.This electronic control is an OEM part that is sourced directly from the manufacturer. It is sold individually. This particular part is compatible with oven range hoods that are manufactured by Whirlpool, Maytag, KitchenAid, Jenn-Air, Admiral, Norge, Roper, Kenmore, and Amana.

This fan motor is the rotating blower assembly that moves air through the appliance to support cooling, ventilation and proper operation. Replacing a worn motor restores airflow and helps maintain temperature control and performance. What it does:

• Drives the blower wheel to circulate air through the appliance cabinet and vents
• Restores airflow when the motor has failed or stalled
• Stops or reduces abnormal noise when the original motor bearings are worn
• Helps prevent overheating by maintaining proper ventilation

• Disconnect power before attempting any service to avoid shock or injury
• Handle the motor and blower wheel carefully to avoid damaging blades or connectors
• Verify wiring connections and mounting orientation match the original part before powering on

This filter traps cooking grease and airborne particles as air moves through your appliance's ventilation system. It helps protect the blower and internal surfaces and supports proper airflow for effective venting during everyday cooking.

• Captures grease and debris from cooking vapors to reduce buildup on internal components
• Helps maintain ventilation airflow and fan performance
• Replace if the mesh is torn, warped, heavily clogged, or no longer stays seated
• Common symptoms include reduced airflow, lingering smoke or odors, and visible grease accumulation

• Disconnect power and allow surfaces to cool before servicing
• Access the filter from the underside of the hood or over-the-range unit
• Release retaining tabs or screws, remove the old filter, and slide the new filter into place
• Ensure the filter is fully seated and secured before restoring power
