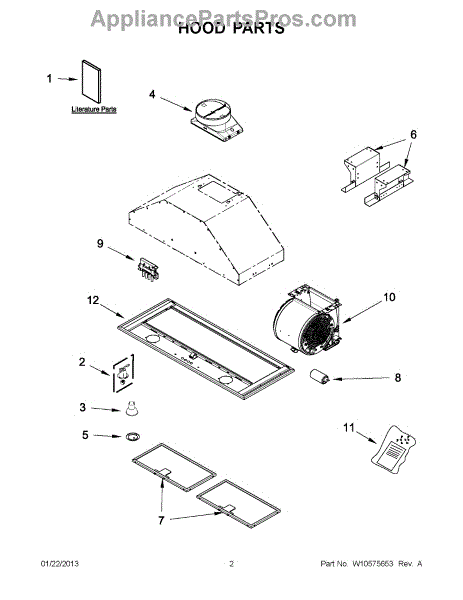

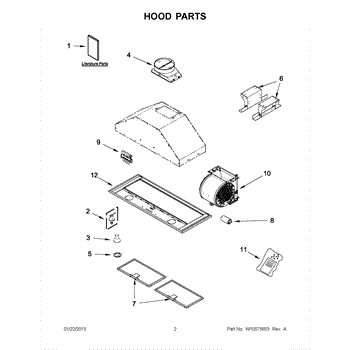

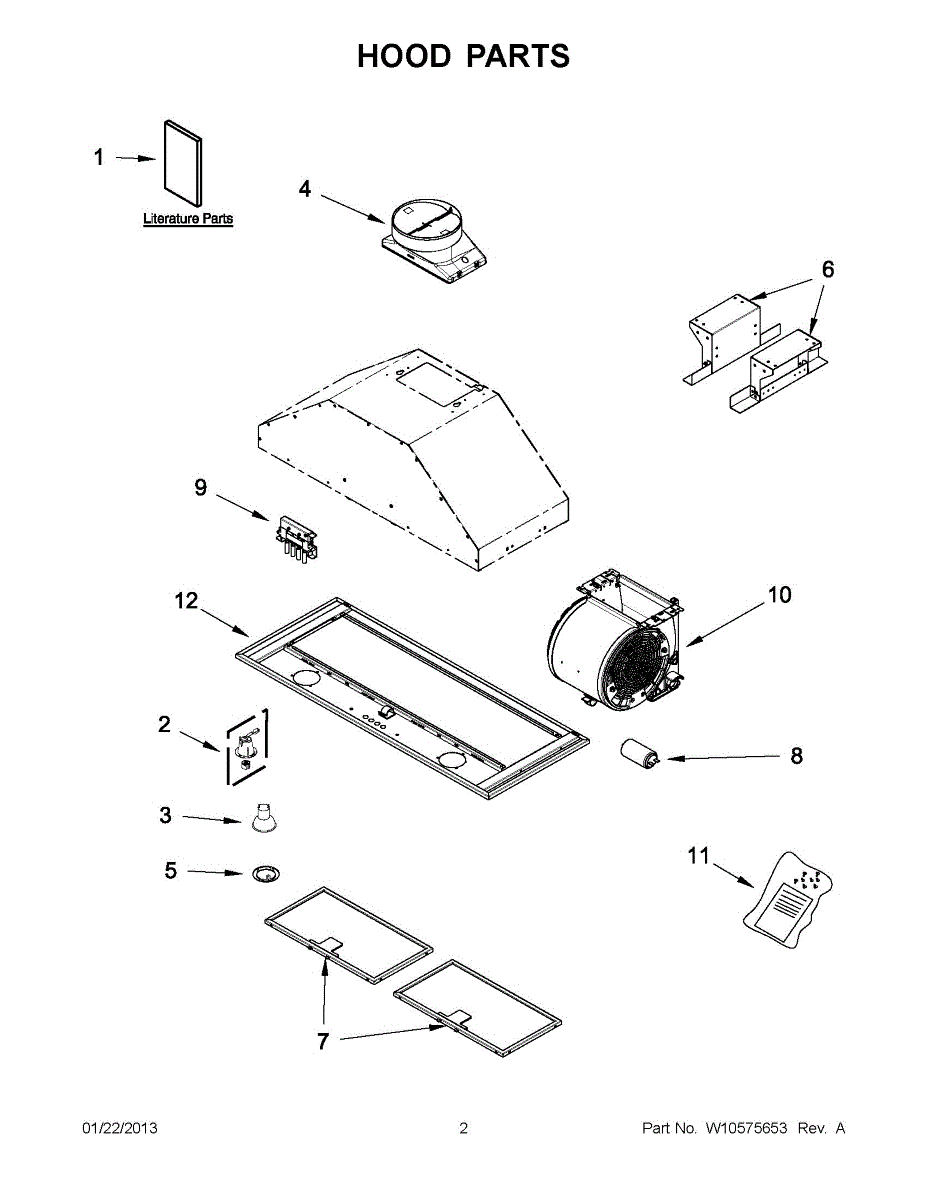

Parts for Whirlpool IXL5430BS0: 01 - Hood Parts

This is a replacement electrical socket used to reconnect wiring to an appliance component, restoring a secure, insulated connection and reliable electrical contact. It's a like-for-like connector designed for direct replacement of a damaged or worn socket. What it does:

• Provides a secure electrical connection between wiring and a component to restore power or signal flow
• Replaces cracked, melted, loose, or corroded sockets that cause intermittent operation or failure
• Helps prevent short circuits and arcing by restoring proper insulation and fit
• Fits into the existing wiring harness or component receptacle to restore OEM-style connections

• One replacement electrical socket

• Disconnect power (unplug or shut off circuit breaker) before beginning any repair
• Inspect mating terminals, harness, and surrounding insulation; replace damaged wiring or terminals as needed
• Ensure correct orientation and full seating of the socket; confirm secure wire crimps or fasteners

Bulb only - Socket must be ordered separately

This refrigerator water filter cartridge reduces sediment and improves the taste and odor of drinking water and ice from compatible Whirlpool refrigerators. It provides a straightforward replacement to restore filtered water performance. What it does:

• Filters particulates and common taste/odor contaminants to improve water and ice quality
• Helps reduce visible sediment and chlorine-like tastes that affect drinking water
• Restores proper flow and filtration when an old or clogged filter is replaced
• Matches the OEM form for a direct replacement in specified refrigerator filter housings

• One replacement refrigerator water filter cartridge

• Replace according to the refrigerator manufacturer's instructions; typically twist or push into the filter housing until seated
• Run and discard the recommended amount of water after installation to purge air and activate the filter
• Use only the exact replacement to ensure proper fit and avoid leaks
• If you smell or taste filter media after installation, flush additional water; stop use and consult manufacturer guidance if issues persist

This motor run capacitor helps the appliance motor start and run more smoothly, restoring proper motor performance and reducing hum or startup problems. It's a direct-replacement electrical component used in compatible Whirlpool appliances. What it does:

• Provides the phase-shifted current the motor needs to start and maintain normal operation
• Helps reduce motor humming, slow starts, or intermittent motor stalls
• Restores proper motor torque and efficiency when the original capacitor has failed
• Works as the electrical timing/storing component for motor cycles

• One motor run capacitor

• Disconnect power to the appliance before attempting replacement to avoid electrical shock
• Discharge the capacitor before touching terminals; use insulated tools and follow safe procedures
• Match terminal configuration and mounting to the original part

The Push Button Switch is an OEM part for Whirlpool range hoods. As an electronic component located on the control panel, it allows activation of the ventilation fan and light functions.

Symptoms of a bad push button switch include:

• Failure to turn the fan or lights on when pressed
• Non-responsive or stuck buttons
• Flickering or buzzing from the control area

Causes can be normal wear over time, moisture damage, or breakage from accidental impact. This OEM replacement restores full functionality to the control panel.

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore brands.

This replacement light support holds the refrigerator cabinet light or lens assembly in place, restoring a secure fit and proper beam alignment so the interior light stays positioned and stable. What it does

• Secures the light housing or lens to the refrigerator cabinet
• Prevents the light or lens from rattling or shifting during door movement
• Restores proper alignment so the bulb and lens illuminate the interior correctly
• Replaces cracked, broken, or worn mounting points that let the light hang loose

• One light support

• Disconnect power or unplug the appliance before starting work
• Remove bulb and lens cover per your model's service instructions to access the support
• Use basic hand tools; handle bulb and lens carefully to avoid damage
• If mounting tabs are damaged, inspect surrounding trim for additional breakage before finishing

This duct kit routes dryer exhaust from the appliance to the home vent, restoring proper airflow and helping the dryer operate safely and efficiently. Designed to replace damaged or missing venting components. What it does:

• Provides a secure path for hot, moist air to exit the dryer to the exterior vent
• Restores airflow to help reduce extended dry times and improve drying performance
• Helps reduce lint buildup in the cabinet and exhaust path when properly installed
• Supports safe operation by allowing heat and moisture to vent outdoors, lowering overheating risk

• One duct kit

• Disconnect power to the appliance before installing; follow local building codes for dryer venting
• Inspect and clean the vent path after installation and periodically to prevent lint buildup

This replacement grease filter captures airborne grease and cooking residue in your appliance's venting system, helping protect the blower and ductwork while maintaining effective ventilation and airflow.

• Traps grease and food particles carried by the exhaust airstream
• Helps sustain proper airflow and reduce smoke and lingering odors
• Replace if mesh is torn, warped, missing, or remains clogged after cleaning
• Common symptoms include persistent smoke/odors, visible grease buildup, or a loose/rattling filter

• Disconnect power before servicing and allow the appliance to cool completely
• Open the filter access, release the retaining latch or screws, and remove the old filter
• Slide the new filter into place, matching the original orientation/tabs
• Ensure the filter is fully seated and secured; do not operate the unit without a filter
