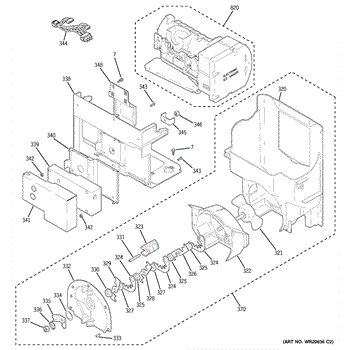

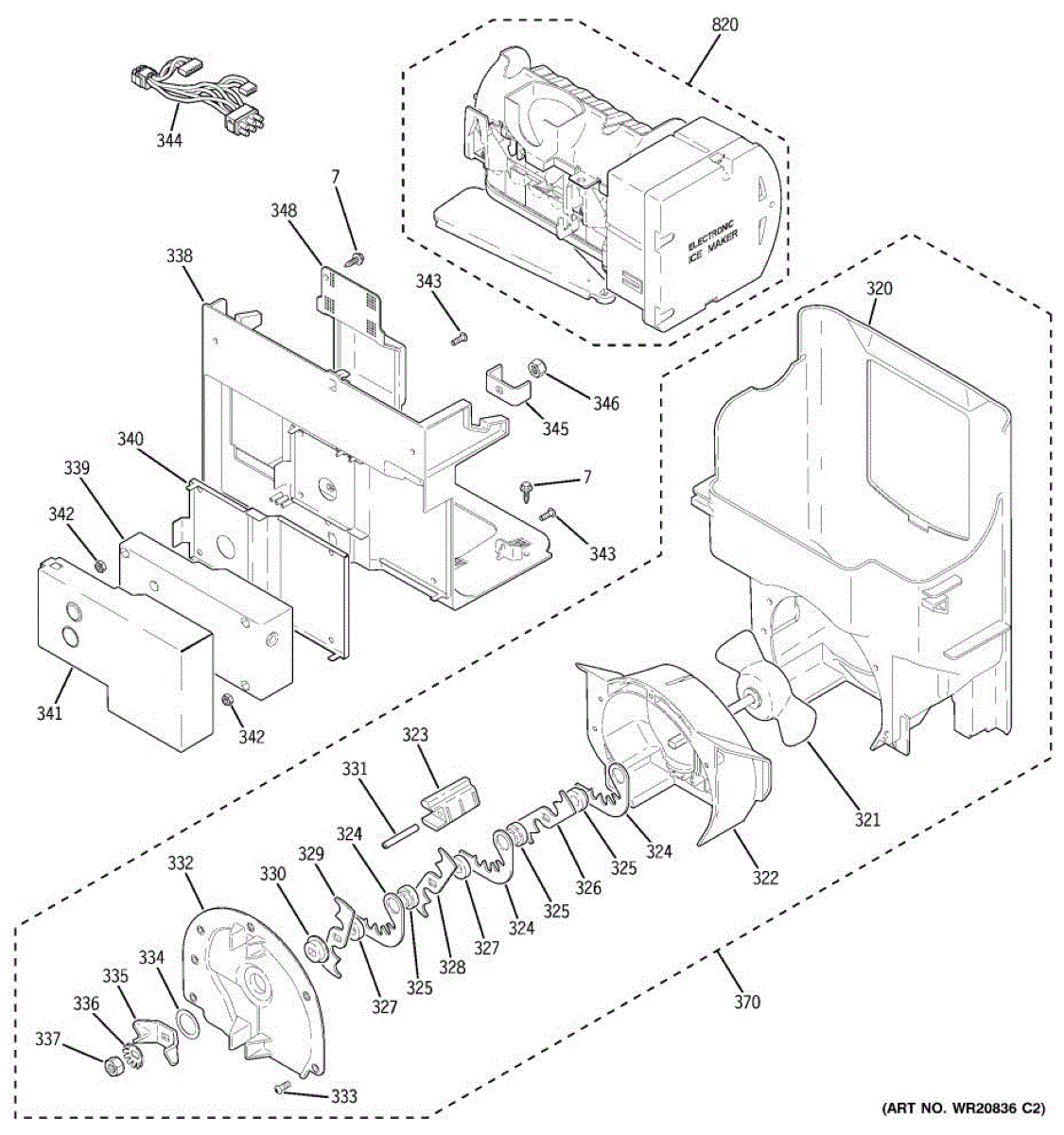

Parts for Ge PFCF1RKZABB: 05 - Ice Maker & Dispenser Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


8-18 CA HX 1/2 S

This spacer is a small mounting support used to maintain proper clearance and alignment between refrigerator panels, doors, or components. It helps reduce rubbing, vibration, and noise by restoring correct spacing and fit. What it does:

• Keeps panels, trim, or components spaced correctly to prevent metal-on-metal contact and wear
• Helps align doors and panels for a flush fit and smoother operation
• Reduces vibration and rattling caused by misaligned parts
• Used wherever a fixed clearance or gap is required during reassembly

• Disconnect power to the appliance before beginning any service that requires panel or component removal
• Inspect mating surfaces for damage or debris before installing the spacer; replace any damaged fasteners
• Install in the same orientation and location as the original spacer; do not overtighten mounting hardware

This DC auger motor drives the ice-dispensing auger in the freezer door, restoring proper ice delivery from the dispenser. It replaces a worn or failed motor to get the auger turning again for reliable dispensing. What it does:

• Turns the ice auger so cubes or crushed ice move from the bin to the dispenser
• Stops common symptoms like no ice dispensed, intermittent auger movement, or a stuck auger when motor failure is the cause
• Operates as the motorized drive for the dispenser auger assembly
• Works with the existing auger shaft and housing when the motor is the failed component

• One DC auger motor

• Disconnect power to the appliance before starting any repair
• Access may require removing the freezer door liner or dispenser housing; keep fasteners organized
• Observe wiring connections and routing; transfer connectors exactly or document before disconnecting

This refrigerator ice maker assembly freezes water and automatically ejects cubes into the bin. Replacing a failed unit restores steady, hands-free ice production and helps resolve common ice maker cycling and cube-ejection issues.

• Freezes water in its mold, then harvests and drops finished cubes into the ice bin
• Controls fill and harvest timing for consistent cube production
• Typical failure symptoms: no ice production, unit stuck mid-cycle, cubes not ejecting, or loud clicking/grinding from the drive
• Works with the refrigerator's controls to pause ice making when the bin is full

• Disconnect power and shut off the water supply before servicing
• Remove the ice bin and any covers; unmount the old ice maker and disconnect its wiring harness
• Transfer any brackets, covers, or guides from the old unit if needed
• Mount the new assembly, reconnect wiring, restore power/water, and allow up to 24 hours for full ice production
