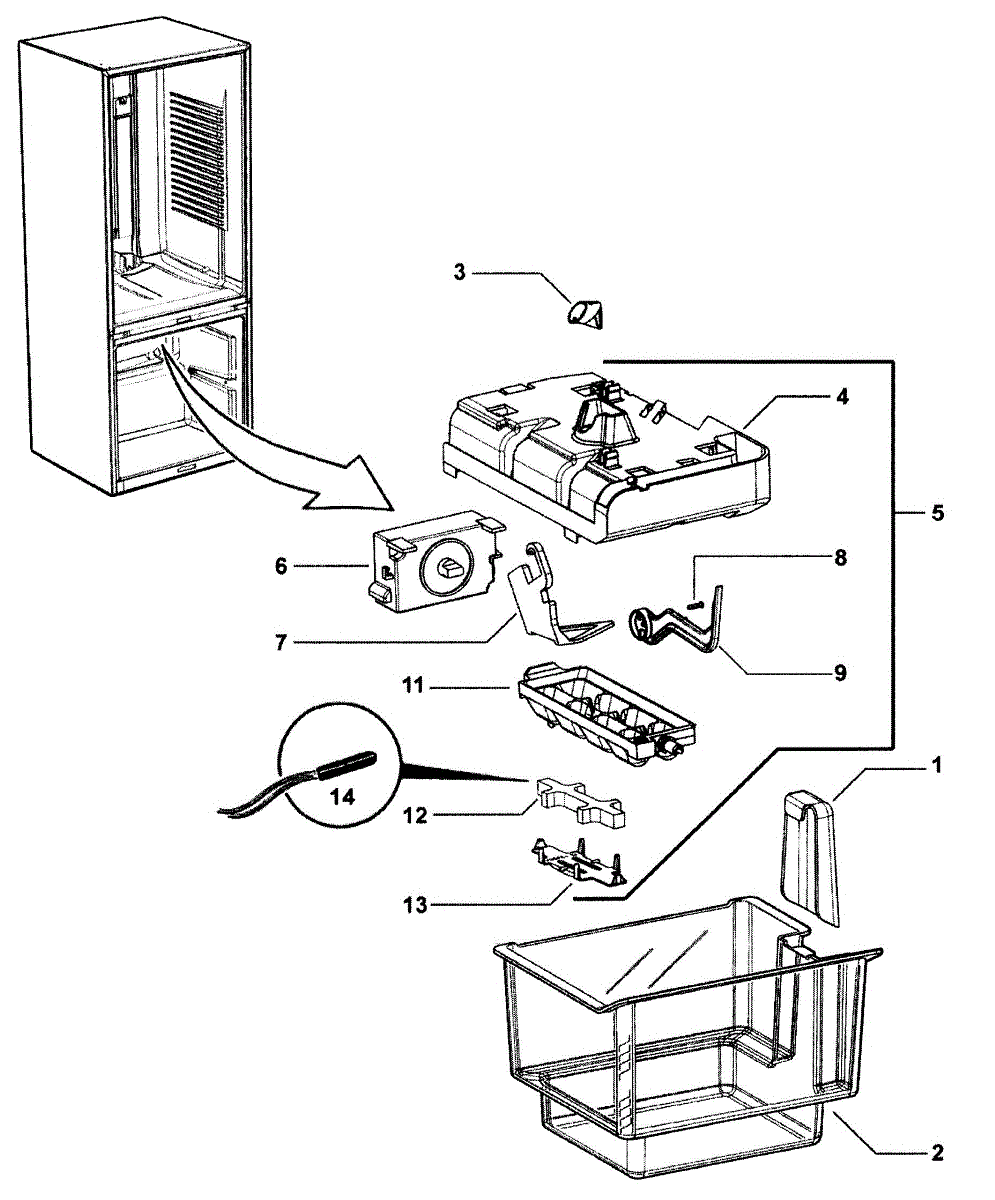

Parts for E522BLXU-22273A: Ice Maker Parts

Replacement ice bin and scoop assembly that stores and produced ice and provides a convenient scoop for serving. Restores a cracked, stained, or missing ice bin so ice is contained and easy to retrieve. What it does

• Collects and contains ice produced by the refrigerator's icemaker to prevent spills and clumping.
• Includes a handheld scoop for hygienic, easy serving and portioning of ice.
• Keeps ice off freezer surfaces to reduce mess and make dispensing cleaner.
• Helps the icemaker feed and access stored ice without obstruction when seated correctly.

• Always unplug the appliance or shut off power to the refrigerator before removing or installing parts.
• Empty existing ice and remove the old bin; slide the new bin into the same position until it seats securely.
• Rinse or sanitize the new bin and scoop before first use; discard any old ice.

This complete icemaker and tray assembly produces and ejects ice into the freezer bin, restoring normal ice production and delivery. Replaces a failed icemaker module to stop missed fills and empty ice buckets. What it does:

• Cycles water fill and freezes measured portions to form ice cubes
• Releases finished ice into the collection tray/bin for user access
• Commonly used when ice production stops, ice is not dispensing, or cubes are irregular/soft
• Works with the refrigerator's fill and harvest controls to maintain regular ice supply

• Disconnect power and shut off water supply before starting work
• Handle the assembly carefully to avoid bending connectors or damaging the tray
• Basic hand tools typically required; follow the refrigerator's service manual for exact steps
• After install, restore power/water and run a test cycle; discard first batch of ice

This icemaker sensor lead connects the ice maker's temperature sensor to the control system so the unit can detect freezing cycles and regulate ice production. Replaces a damaged or broken sensor lead to restore proper sensor signaling. What it does:

• Transmits temperature sensor signals from the icemaker to the refrigerator control
• Helps ensure the icemaker senses freeze/thaw cycles and cycles correctly
• Commonly replaced when ice production is intermittent, stops, or the icemaker won't cycle
• Prevents errors caused by cracked insulation or broken connector wires

• One icemaker sensor lead (wire harness)

• High-level DIY friendly: disconnect power before accessing the icemaker assembly
• Handle connectors gently; align pins before seating to avoid bending
• Inspect surrounding wiring and insulation for damage; replace if frayed
