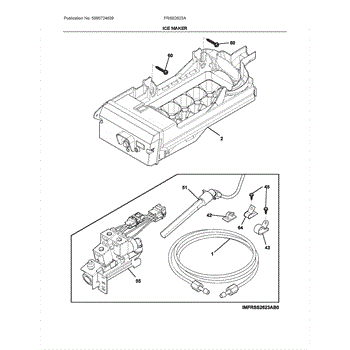

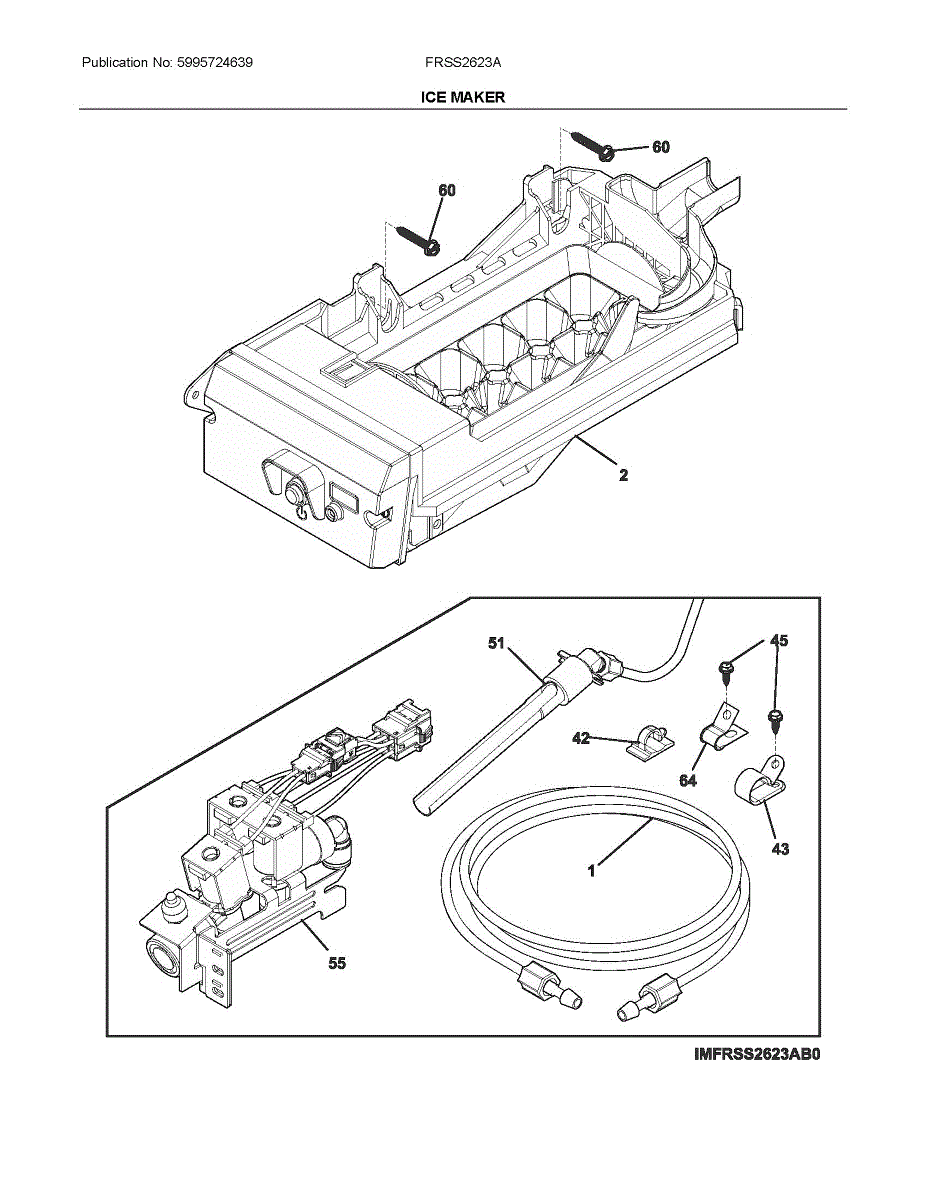

Parts for Frigidaire FRSS2623AS0: Ice Maker Parts

Water tube routes water between refrigerator components like the inlet valve, filter, dispenser, and ice maker. Replace if brittle, kinked, or leaking.

Ice maker not producing ice or making very little? This ice maker assembly restores automatic ice production. DIY-friendly 5-minute installation fix.

Secures refrigerator grille or trim to cabinet, preventing rattles and gaps. Replace when broken or missing to restore proper panel alignment. Verify fit with your model number before ordering.

Water fill extension tube assembly directs water into your ice maker's fill cup. Replace if cracked, misrouted, or blocked to prevent leaks or ice buildup.

This triple-solenoid water inlet valve controls water flow to the ice maker and water dispenser in Frigidaire and Electrolux side-by-side and French door refrigerators. If the ice maker has stopped producing ice, water is leaking from the back of the refrigerator, or the dispenser has low or no water flow, a failed water inlet valve is a common cause. The valve requires at least 20 psi of water pressure to close properly - if pressure is adequate and the valve still leaks or fails to supply water, the valve itself is likely defective and should be replaced. Disconnect water supply and unplug the refrigerator before installation. Note the positions of the color-coded water lines before removing the old valve, and confirm all push-connect fittings are fully seated with retention clips in place after installing the new one.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

Secures refrigerator hoses to fittings with spring tension to prevent leaks. Replace when clamp loses grip or shows rust. Verify fit with model number.

Fix no water from dispenser or slow ice production with this refrigerator water inlet tube. Routes water from valve to dispenser and ice maker assembly.

Small retainer clip that secures components, panels, tubes, or wires in place inside your refrigerator. Replace when worn, broken, or missing to restore fit.

Connects sections of water tubing inside your refrigerator. Replace this adapter if cracked, leaking, or popping off to stop drips and water damage.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

Brown water tube that connects the valve to the dispenser and ice maker in side-by-side refrigerators. Replace if cracked, leaking, or damaged.

Carries fresh water between the valve, reservoir, dispenser, and ice maker. Replace if cracked, kinked, or leaking to restore proper water flow.
