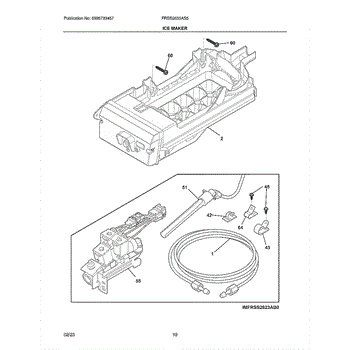

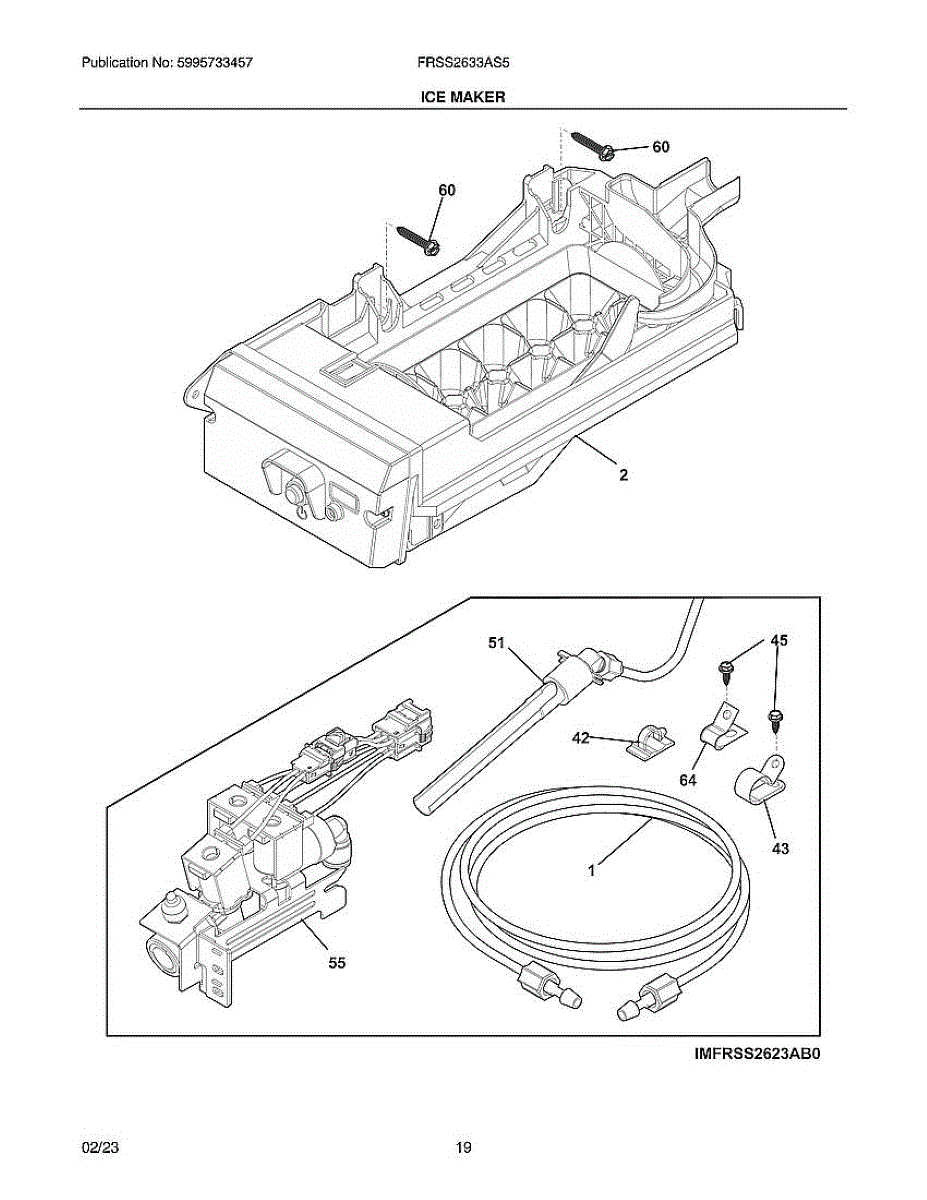

Parts for Frigidaire FRSS2633AS5: Ice Maker Parts

This refrigerator water tube carries water between internal components such as the inlet valve, filter/reservoir, dispenser, or ice maker. Replacing a brittle, kinked, or leaking tube helps restore proper water flow and prevents messy leaks. What it does:

• Routes water within the refrigerator's water and ice system
• Helps deliver water to the dispenser and/or ice maker
• Common symptoms of a bad tube: leaks, poor dispenser flow, no ice production, visible cracks/kinks, or dripping at connections
• Restores dependable water delivery when tubing is damaged

• 1 water tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the tube's routing and connection points; take photos for reference
• Cut tubing ends squarely if trimming and fully seat into existing fittings
• Turn water back on and check all connections for leaks; flush the system to clear air

The Ice Maker Assembly is an OEM part for Frigidaire refrigerators. This part produces ice automatically by freezing water and dispensing the ice cubes into the storage bin.

Common causes of a bad ice maker include wear and tear from regular use, issues with the water supply line, or malfunctions in the electronic controls.

Symptoms of a bad ice maker assembly include:

• The ice maker not producing ice
• Ice cubes being smaller than usual or irregularly shaped
• Leaks or puddles around the ice maker area
• Unusual noises coming from the ice maker

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This grille clip is a small plastic retainer that secures a refrigerator grille or trim piece to the cabinet, keeping the front panels aligned and preventing rattles or gaps for a tidy appearance. What it does:

• Secures the lower/front grille or trim to the appliance cabinet to hold it in place
• Prevents grille movement, rattling, or sagging that can occur with worn clips
• Helps maintain a tight fit between trim and cabinet for a finished look
• Simple replacement part when existing clip is cracked, broken, or missing

• One grille clip

• Typically snaps into place; inspect mating slot and clip orientation before installing
• Replace any damaged adjacent clips for even support and fit
• Work carefully to avoid damaging the grille or surrounding trim

This replacement screw fastens appliance components such as panels, brackets, and covers. Installing a new fastener restores a snug, rattle-free fit when the original screw is missing, stripped, or corroded.

• Secures covers, brackets, or trim to the cabinet or liner
• Replaces missing, stripped, or rusted hardware
• Helps reduce vibration and rattling from loose parts
• Supports proper alignment and stability of assemblies

• Disconnect power before servicing the appliance
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Do not overtighten, especially into plastic or thin sheet metal
• Retain and reinstall any original washers or spacers, if present

This water fill extension tube assembly directs water into the ice maker's fill cup, providing a clear path for each cycle and helping reduce leaks or ice buildup caused by a cracked, misrouted, or blocked tube.

• Routes water from the inlet toward the ice maker fill cup
• Maintains a clear, controlled water path to help minimize drips and spray in the freezer
• Replaces cracked, kinked, or frozen fill tubes that can disrupt ice production
• Typical symptoms: ice maker not filling, water dripping/pooling in the freezer, or ice/frost around the fill area

• Disconnect power and turn off the household water supply before service
• Access the fill tube at the freezer/ice maker area; thaw any ice with warm air—avoid sharp tools or excessive heat
• Match the original routing and insertion depth; seat the tube fully in the fill cup/channel
• Restore water and power, then run a fill cycle and check for leaks

This solenoid assembly is an electromechanical plunger actuator that restores linear motion to a linked mechanism. Replacing a failed solenoid helps return reliable actuation for latches, valves or dispenser-style components and stops intermittent or non-moving operation. What it does

• Converts electrical signals into linear movement to operate a latch, valve or dispenser actuator.
• Typical symptoms: clicking or humming without movement, intermittent operation, or complete loss of actuation.
• Restoring the solenoid can eliminate sticking mechanisms and return consistent operation.

• Disconnect power (and water, if applicable) before starting work to avoid shock or flooding.
• Remove access panels and note wiring locations; reconnect matching connectors securely.
• Handle the plunger and coil carefully; do not force into place or bend mounting tabs.
• Test operation after installation.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

Color: Black/natural. Nylon

This water inlet tube routes potable water from the refrigerator's inlet/valve to the dispenser and ice-making components, helping restore normal water delivery and prevent leaks when damaged. What it does

• Channels water from the inlet valve to the dispenser/ice maker assembly.
• Replaces cracked, kinked, or clogged tubing that can cause leaks or reduced flow.
• Helps stop visible dripping, puddling, or intermittent water flow at the dispenser.
• Works as a direct-fit plumbing replacement when the original tube is damaged.

• One water inlet tube

• Turn off refrigerator power and shut off the water supply before starting.
• Inspect fittings and seals; replace any damaged ferrules or gaskets for a watertight connection.
• Use basic hand tools; avoid sharp bends or kinks when routing the tube.
• After installation, restore water and power, then check all connections for leaks.

This refrigerator clip is a small retainer that secures a component in place so it stays properly seated during use. Replacing a worn or missing clip restores a snug fit and helps eliminate looseness, rattling, or misalignment.

• Holds a part, panel, tube, or wire securely in its mounting point
• Maintains alignment to prevent shifting or vibration
• Helps preserve proper fit and airflow when components are correctly seated
• Symptoms can include loose or sagging pieces, rattling noises, or parts that won't stay attached

• Unplug the refrigerator; if working near water lines, shut off the water supply
• Note the clip's orientation before removal; take a photo for reference
• Use needle-nose pliers to release/install; avoid over-flexing the clip
• After installation, tug-test gently to confirm a secure fit before reassembling

This is a 93.5" brown refrigerator water tube that carries water from the valve to the dispenser/ice area, restoring a sealed water path for dispensing and ice production. It replaces a damaged, cracked, or leaking tube. What it does:

• Channels water from the refrigerator water valve to the dispenser/ice maker area.
• Prevents leaks and water spraying caused by cracked or pinched tubing.
• Restores normal water flow when existing tubing is clogged, split, or deteriorated.
• Helps stop intermittent dispenser flow and reduces chance of water damage.

• Recommended for technicians or experienced DIYers; inspect fittings and routing before installation.
• Turn off water supply and unplug the appliance before replacing the tube.
• Use proper connectors and secure clamps to avoid leaks; avoid kinks or tight bends in the tube.

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle

This refrigerator water tube carries fresh water between the valve, reservoir, dispenser, and/or ice maker. Replacing a cracked or kinked tube restores proper water flow and helps stop leaks inside or behind the refrigerator.

• Directs pressurized water between components in the refrigerator's water system
• Common failure signs: leaks, visible cracking, kinks, or pinhole sprays
• May cause no or slow dispenser flow, or an ice maker that doesn't fill
• Restores correct routing after tubing becomes brittle or damaged with age

• Unplug the refrigerator and shut off the household water supply before servicing
• Place a towel under connections and dispense water to relieve line pressure
• Depress quick-connect collars or loosen clamps to remove the old tube; route the new tube exactly like the original
• Fully seat tubing in fittings, perform a gentle tug test, restore water, check for leaks, and flush several cups to clear air

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
