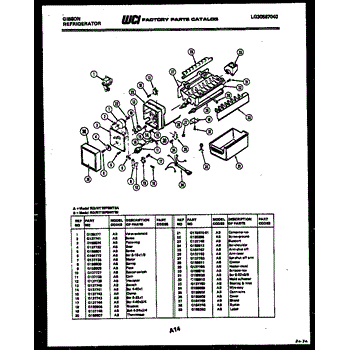

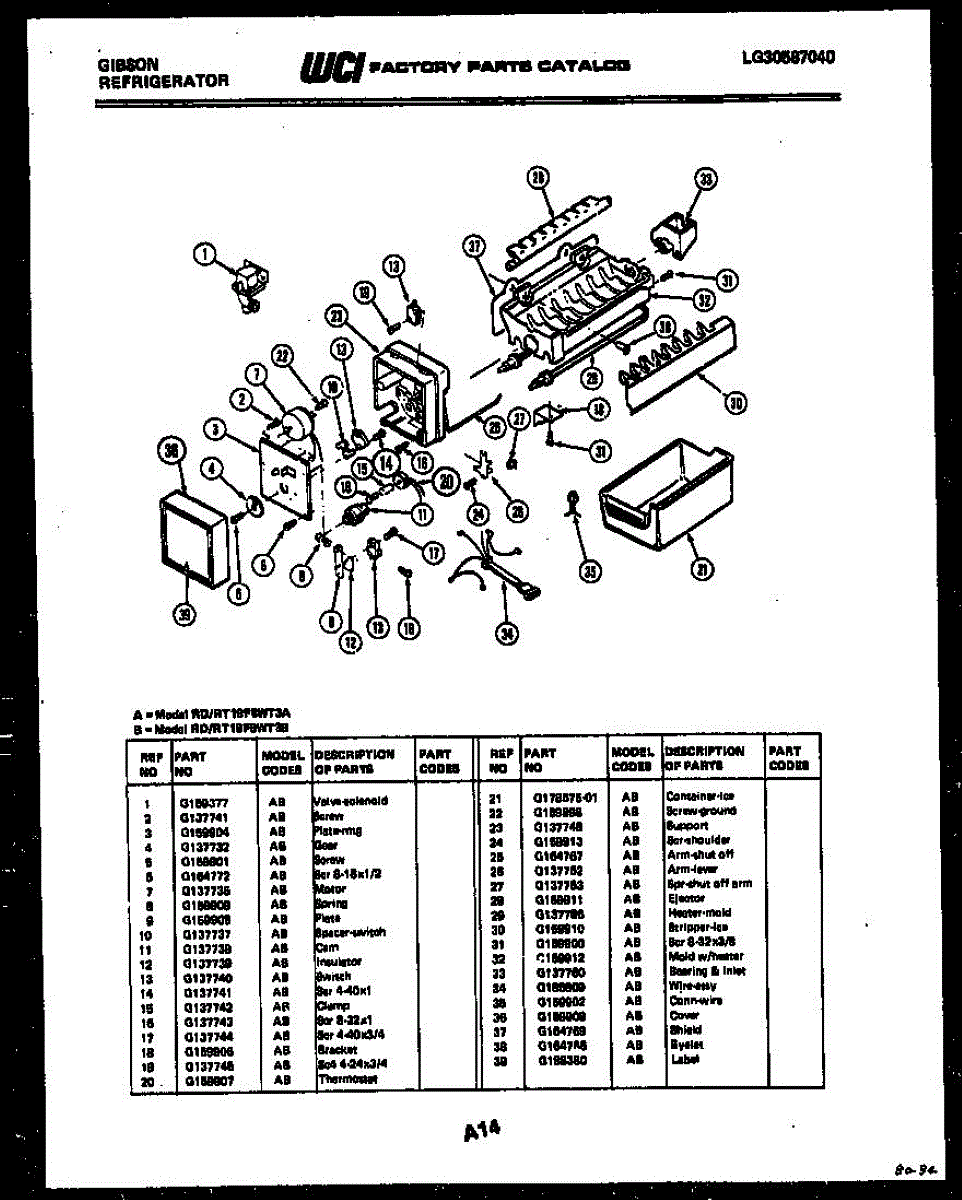

Parts for Frigidaire RT19F8WT3A: 05 - Ice Maker Parts

05 - Ice Maker Parts
Gib(V1) / Refrigerator

Parts for Frigidaire RT19F8WT3A: 05 - Ice Maker Parts

Location on Diagram
Part Description
Price & Availability
1
Product photo

Water Valve

4.8 (5)
By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2

Screw 4 - 40 X 1

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3

Plate - Mounting

By: Frigidaire

This part has been discontinued by the manufacturer and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4
Product photo

Icemaker Drive Gear

5.0 (12)
By: Frigidaire

This is the drive gear for the ice maker module. It transfers motor power to the ejector/harvest mechanism so cubes release consistently; worn or stripped teeth can cause clicking, stalls, or little to no ice production.

  • Transfers motor torque to rotate the ejector and complete the harvest cycle
  • Replaces a cracked, stripped, or worn gear that prevents proper ice ejection
  • Typical symptoms: no ice production, icemaker stuck mid-cycle, clicking or grinding from the module
  • Helps restore reliable ice maker cycling
What's included: 1 drive gear Installation notes:
  • Unplug the refrigerator before service; turn off the water supply if moving the icemaker
  • Remove the icemaker assembly for access; note the original gear's orientation before removal
  • Align the new gear with the shaft; do not force it—inspect mating parts for wear
  • After reassembly, verify the ejector turns freely; restore power and run a test cycle

More
$27.46
Compare At:
$32.95
You Save:
$5.49

IN STOCK
Ships Today Guaranteed
Add to Cart
5

Screw - Gear

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6

Screw

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7

Not Available

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8

Spring

By: Frigidaire

More
$5.95
Compare At:
$7.08
You Save:
$1.13

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
9

Plate - Valve Switch

By: Frigidaire

This part has been discontinued by the manufacturer and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10

Spacer - Hold Switch

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11

Cam

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

12

Insulator

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13

Switch, Dispenser

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14

Screw 4 - 40 X 1

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15

Clamp

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16

Screw 8 - 32 X 1

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17

Screw 4 - 40 X 3/4

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18

Bracket

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19

Screw 4 - 24 X 3/4

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

20

Thermostat

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

21
Product photo

Ice Container (Ice Bin), 1 Count

By: Frigidaire

This replacement ice container catches and stores ice produced by the freezer ice maker so loose cubes stay contained and easy to access. Restores proper ice collection and organization in the freezer compartment. What it does:

  • Collects and holds ice dispensed from the ice maker so cubes don't scatter inside the freezer
  • Keeps ice organized and accessible for removal or serving
  • Prevents ice from blocking the dispenser chute or falling onto shelves
  • Helps maintain a cleaner freezer interior by containing drips and loose cubes
What's included: One ice container Install notes:
  • Disconnect power to the appliance before starting any work
  • Remove existing ice and, the ice maker assembly per appliance access procedure to free the container
  • Slide the container into the ice bin tracks or seat it in the freezer compartment until it clicks or seats firmly
  • Wash the new container in warm, soapy water and dry thoroughly before first use; avoid abrasive cleaners

More
$72.45
Compare At:
$86.94
You Save:
$14.49

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
22

Screw 8 - 32 X 1/4

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23

Support

By: Frigidaire

This part has been discontinued by the manufacturer and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

24

Shoulder Screw

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25
Product photo

Shut-Off Arm

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

26
Product photo

Lever Arm

5.0 (1)
By: Frigidaire

More
$49.35
Compare At:
$59.22
You Save:
$9.87

IN STOCK
Ships Today Guaranteed
Add to Cart
27
Product photo

Spring - Shut - Off Arm

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

28

Ejector

By: Frigidaire

This part has been discontinued by the manufacturer and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

29

Heater Element

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

30

Scraper

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

31

Screw 8, 32 X 3/8

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

32

Tray

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

33

Bearing

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

34

Wiring Harness - Internal

By: Frigidaire

More
$74.95
Compare At:
$75.78
You Save:
$0.83

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
35

Connector - Wire

By: Frigidaire

More
$2.95
Compare At:
$3.15
You Save:
$0.20

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
36

Cover

By: Frigidaire

More
$57.95
Compare At:
$68.38
You Save:
$10.43

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
37

Shield

By: Frigidaire

This part has been discontinued by the manufacturer and is no longer available.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

38

Eyelet

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

39

Label

By: Frigidaire

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
