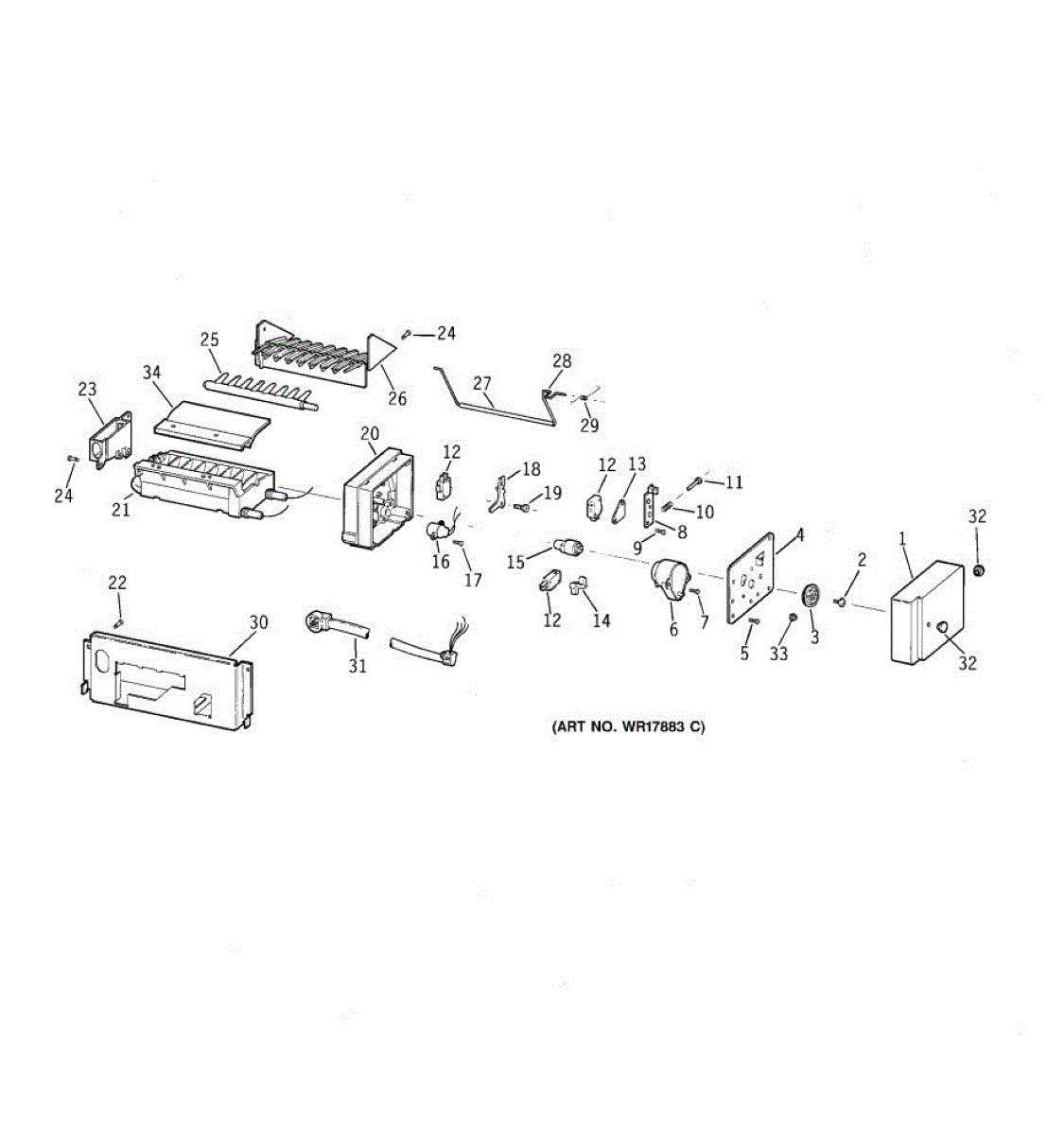

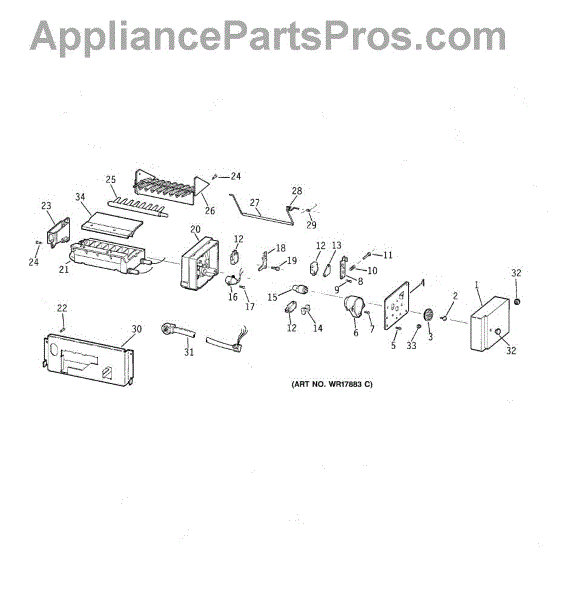

Parts for Ge TBX22PCSMLWW: 09 - Ice Maker Parts

This is the installation instruction sheet and reference documentation for a refrigerator. It provides step-by-step guidance on proper setup, leveling, water line connections, and safety warnings. Replace this document if your original was lost or damaged and you need accurate installation details for your refrigerator.

Assembly screw kit for refrigerators. Secures handles, shelf tracks, door hinges, and interior panels. Replace missing, stripped, or lost screws.

Seals freezer door to keep cold air in and warm air out. Replace if torn, cracked, or not sealing properly. Verify fit with your model number.

This push-button plug insulates and seals a control panel push-button, helping keep the button stable and protecting the switch from moisture and debris. Fits where a small plastic button bushing or insulator is needed on the control panel. What it does:

• Provides an insulating bushing for a control panel push-button or switch
• Helps hold the button aligned and reduces wobble or uneven operation
• Shields the switch contacts from moisture and dirt that can cause intermittent operation
• Commonly replaced when the button is loose, damaged, cracked, or missing

• Disconnect power to the appliance before removing the control panel or working near electrical components
• Remove the control panel or trim; use appropriate tools to avoid cracking surrounding plastic
• Install the plug gently; do not force or use excessive heat

Hardware kit with 12 mounting screws for refrigerator assembly and component installation. Replace missing, stripped, or corroded screws during repairs.

Color: White.

White dispenser recess housing for refrigerators. Covers the dispenser opening in the door. Replace if cracked, discolored, or damaged. Direct fit.

Spring for recess duct. For spring sleeve use WR2X4822.
