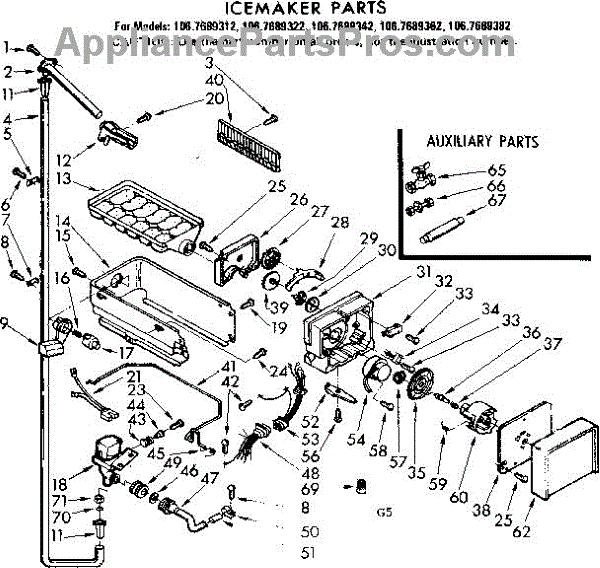

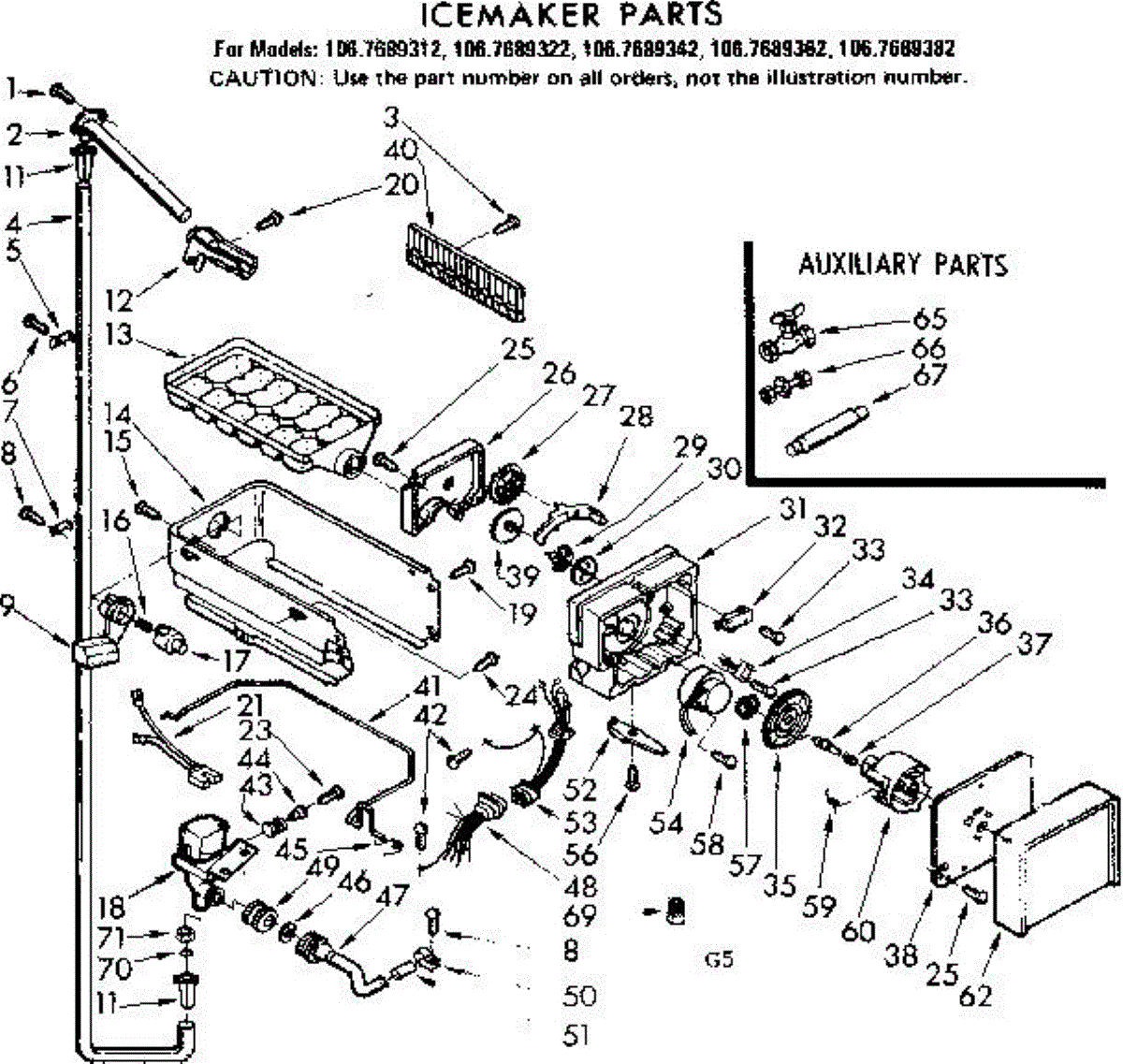

Parts for Kenmore 106.7689312 (1067689312, 106 7689312): Icemaker Parts

The Icemaker Fill Tube Fitting is an OEM part for Whirlpool refrigerators. This part connects the water supply line to the icemaker, ensuring a seamless and leak-free delivery of water into the icemaker mold.

Causes of a bad Icemaker Fill Tube Fitting can include wear and tear over time, mineral buildup from hard water, which can block the water flow or damage the fitting, and improper installation that may lead to leaks or restricted water flow.

Symptoms of a bad Icemaker Fill Tube Fitting include:

• Water leakage at the connection points, leading to potential water damage or ice buildup in the freezer
• Insufficient ice production if the fitting is partially blocked or not properly connected, restricting water flow to the icemaker
• Unusual noise during the icemaker fill cycle, indicating a potential issue with the fitting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged

This ice tray is the molded bin that holds and releases ice cubes in your refrigerator freezer, offering a simple replacement for cracked, warped, or leaking trays so you can make and store ice reliably. What it does:

• Holds water in individual pockets that freeze into ice cubes
• Releases cubes when twisted, flexed, or used with the ejector mechanism
• Restores proper water containment if the original tray is cracked or warped
• Helps prevent water leakage into the freezer compartment

What's included:

• One replacement ice tray

Install notes:

• Remove any remaining ice and empty water before removing the old tray
• Typically installs by sliding or snapping into the freezer shelf or bracket—align trays before seating
• Handle carefully to avoid breaking brittle plastic; wear gloves if needed
• No tools usually required; follow refrigerator manual for any model-specific steps

The Single Water Valve is an OEM part for Whirlpool refrigerators. This valve controls the flow of water to the refrigerator’s ice maker and water dispenser, ensuring a consistent and reliable supply of water for ice production and dispensing.

Causes of a bad single water valve can include wear and tear over time, mineral buildup from hard water, or electrical malfunctions.

Symptoms of a bad single water valve include:

• No water dispensing from the refrigerator
• The ice maker not producing ice
• Leaks around the valve area
• Unusual noises when the water dispenser is activated

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

Made by Whirlpool. Flex tray icemaker replacement kit. Fits all Whirlpool/Kenmore top freezer flex tray models, except 22 cubic feet. Harness is 14 inches and plugs into rear wall.

Epoxy repair kit - aluminum tubing.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

The Adhesive is an OEM part for Whirlpool appliances, designed for securing and sealing various components within the appliances. This adhesive is ideal for use in situations where a durable and heat-resistant bond is necessary.Size: 2 oz. tube. This silicone rubber adhesive can be used on door gaskets, felt seals, and much more.

Over time, seals and insulation can become loose or detached due to wear, heat, or mechanical action, potentially compromising the appliance's functionality, efficiency, or safety.

The need for this adhesive may become apparent through symptoms such as:

• Loose seals or gaskets that result in heat loss, inefficiency, or the escape of moisture.
• Detached insulation leading to increased noise, heat transfer, or loss of energy efficiency.
• Components that have become unattached, affecting the appliance's performance or structural integrity.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
