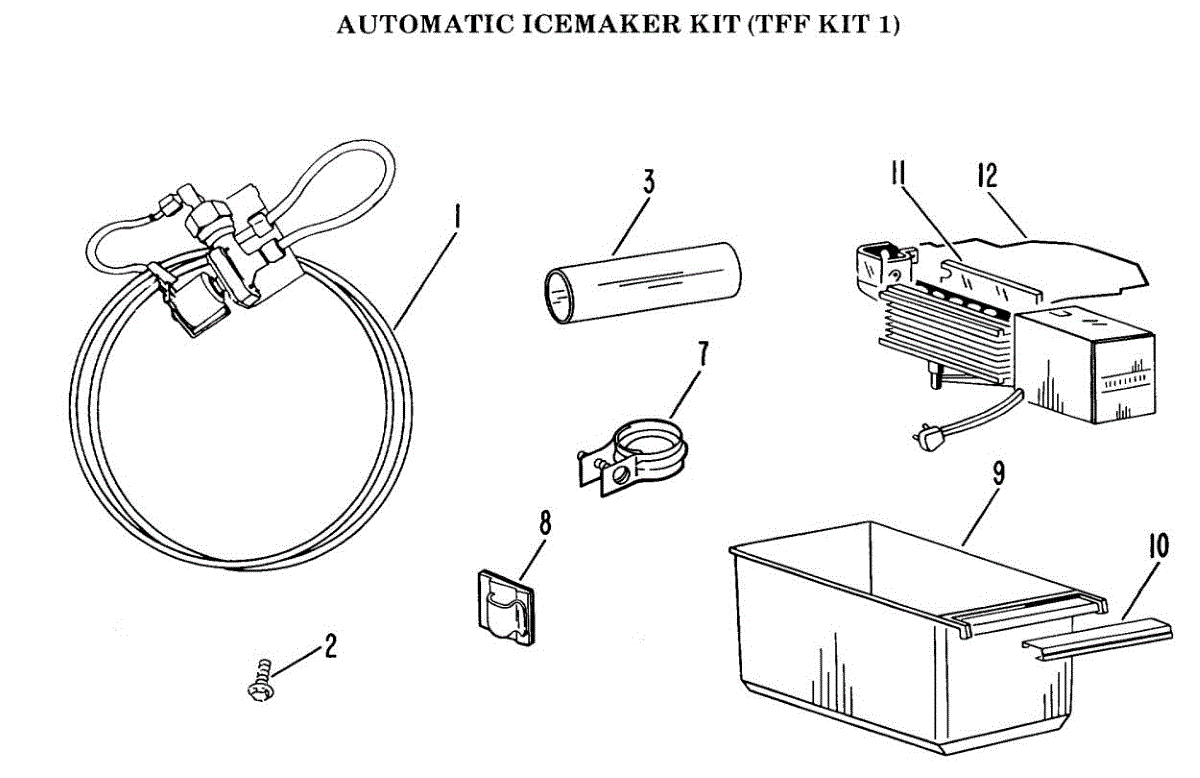

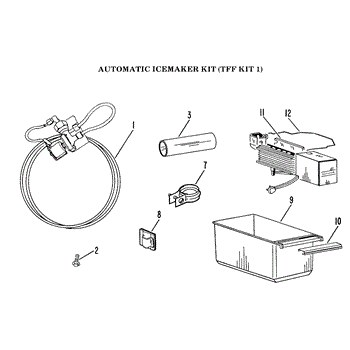

Parts for Ge TFF KIT 1: 01 - Section1 Parts

Single fill valve (round ice cube)

Nut for 1/4 inch tubing.

This refrigerator water line is the plastic tubing that routes pressurized water through the appliance's water system. Replacing a cracked, brittle, or kinked line helps restore proper water flow and prevents leaks inside or around the unit.

• Carries water between the inlet valve and the refrigerator's water system components
• Helps maintain a sealed path for reliable flow to the dispenser and/or ice maker
• Replace if tubing is cracked, kinked, brittle, or leaking
• Common symptoms include puddling, dripping, reduced/No water at the dispenser, or ice maker not filling

• Disconnect power and shut off the water supply before servicing
• Note the original routing and clip locations; avoid sharp bends and kinks during installation
• Fully seat tubing into existing connectors/fittings on your model
• Turn water back on, check all connections for leaks, and purge air by dispensing water

This clamp secures small hoses or tubing and nearby wiring inside the appliance to keep lines held in place and reduce rubbing, leaks, or vibration noise. It's a direct-fit replacement designed to restore proper hose routing and stability. What it does:

• Holds water, drain or vent tubing securely to prevent sagging and rubbing that can cause leaks or wear
• Keeps hoses and wires aligned to reduce vibration and rattling during operation
• Helps maintain proper connections at fittings so seals stay seated and drip risk is minimized
• Simple mechanical clip action — no special tools or adhesives required

• Disconnect power and shut off the water supply before starting any repair
• Remove the old clamp and install this clamp in the same orientation; tubing sits fully in the fitting
• Use standard pliers (or the OEM-recommended tool) to compress/seat the clamp; avoid twisting or pinching the tubing
• Inspect surrounding tubing and fittings for wear; replace damaged hoses or seals if found

This small hardware clamp is used on select refrigerators to secure tubing or wiring to the cabinet or frame. Replaces a missing or damaged clamp to keep lines stable, reduce vibration, and help prevent rubbing or leaks.

• Secures small water tubing or electrical harnesses along the cabinet/frame
• Helps prevent vibration, rattling, and abrasion of lines
• Maintains correct routing to keep lines clear of moving or hot components
• Common clues: loose or noisy lines, chafing marks, or moisture near tubing connections

• Unplug the appliance and shut off the water supply before servicing
• Note the original location and routing; take a photo for reference
• Reuse the existing mounting screw/fastener if required; tighten only enough to hold without crushing tubing
• Restore power and water, then run and inspect for vibration and leaks

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.
