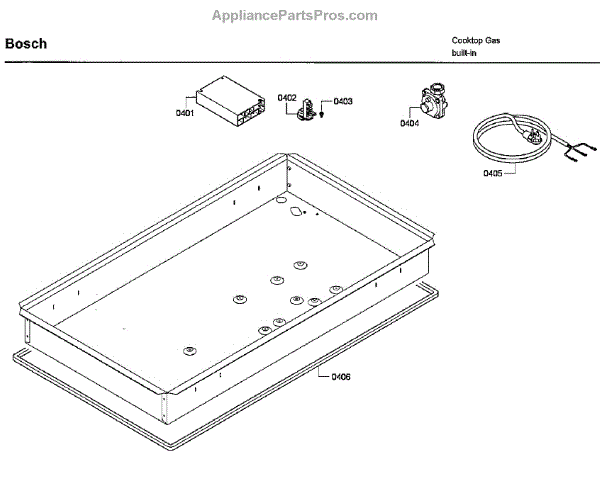

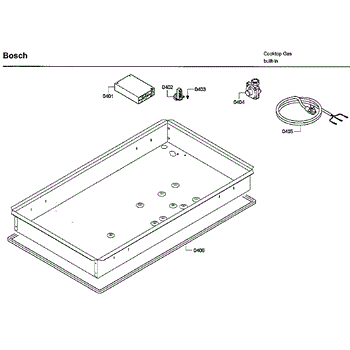

Parts for Bosch NGM8654UC/04: Ignition Asy Parts

This ignition device generates the high-voltage pulses that light your gas cooktop or rangetop surface burners. Replace a failed module to restore fast, dependable burner ignition when you turn the knob.

• Supplies high-voltage spark to ignite the surface burners
• Common symptoms include no click/no spark on any or multiple burners
• Intermittent or weak sparking; burners require multiple tries to light
• Can help restore consistent ignition performance after module failure

• Disconnect power and shut off gas before servicing
• Access location varies by model; typically under the cooktop or behind a panel
• Move wires from the old module to the new one one at a time to avoid miswiring
• Inspect igniter electrodes, burner caps, and wiring; clean/replace if damaged for best results

This gas pressure regulator reduces and stabilizes the incoming supply to your appliance's manifold, helping ensure consistent burner and oven performance. Replacing a failing regulator can correct weak, fluttering, or uneven flames that affect multiple burners. What it does:

• Regulates inlet gas to a steady, appliance-safe manifold pressure
• Helps maintain consistent flame height and heat across burners and in the oven
• Can address symptoms like all burners running low, surging flames, or poor overall heating
• If only one burner is affected, the regulator is unlikely the cause; check that burner/valve first

• 1 gas pressure regulator

• Disconnect electrical power and shut off the gas supply before servicing
• Install with the flow arrow oriented toward the appliance; support piping and use approved thread sealant on threaded connections
• After installation, restore gas and check all joints for leaks using an approved leak-detection solution

This replacement cable is a direct-replacement wiring harness used to restore electrical connections for the appliance control and components. It provides the needed wiring continuity so controls and sensors can communicate reliably. What it does:

• Reestablishes a secure electrical connection between components and the main control
• Restores signal/power routing when a frayed or damaged wire causes intermittent operation
• Can resolve symptoms such as failure to power on, intermittent cycles, or related error codes tied to wiring faults
• Prevents shorting or poor contact that can lead to inconsistent appliance behavior

• Recommended for technicians or experienced DIYers; disconnect power before replacing
• Verify matching connector shapes and wire colors before installation
• Route the cable away from heat and moving parts to avoid future damage

The Tape, Foam is an OEM part for Bosch cooktops. This foam tape creates a tight seal between the cooktop surface and surrounding countertop. It helps contain spills and keeps external surfaces heat-isolated.

Causes of bad foam tape can include wear and breakdown of the adhesive over repeated exposure to cooking heat and cleaning chemicals.

Symptoms of a bad foam tape include:

• Fluids leaking down around the edges of the cooktop
• Hot surfaces outside the cooktop area that can cause burns
• Reduced heat containment impacting cooking efficiency

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This cable harness is the factory-style wiring assembly that connects electrical components, making it easier to restore reliable power and signal paths in the appliance. Replaces damaged or frayed harnesses to help resolve intermittent or no-power issues. What it does

• Routes and connects power and control signals between components (connectors included).
• Restores electrical continuity when worn, pinched, or damaged wiring causes failures.
• Common symptoms: appliance won't power on, controls unresponsive, intermittent operation, or visible burned/ frayed wires.
• Helps prevent short circuits caused by exposed conductors when replaced promptly.

• One complete cable harness as shown

• Disconnect all power (unplug or shut off circuit) before starting repairs.
• Label or photograph connector locations before removal to ensure correct reassembly.
• Avoid crushing or kinking the harness; route and secure per original routing to prevent wear.
• Replace with the exact part number to ensure correct fit and connector types.

The Cooktop Bracket Kit is an OEM part for Bosch cooktops. This bracket and hardware kit serves to securely fasten the cooktop surface to the underlying countertop.

Causes of a bad bracket can include wear and deformation from heavy cooktop use over time, or damage to fastening screws from accidental impacts.

Symptoms of a bad bracket and fastening kit include:

• The cooktop surface becoming loose, wobbly, or unstable during use
• Gaps appearing between the cooktop and countertop edges
• Reduced heat containment and risk of burns from loose surfaces

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.
