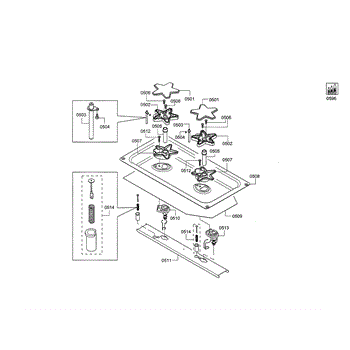

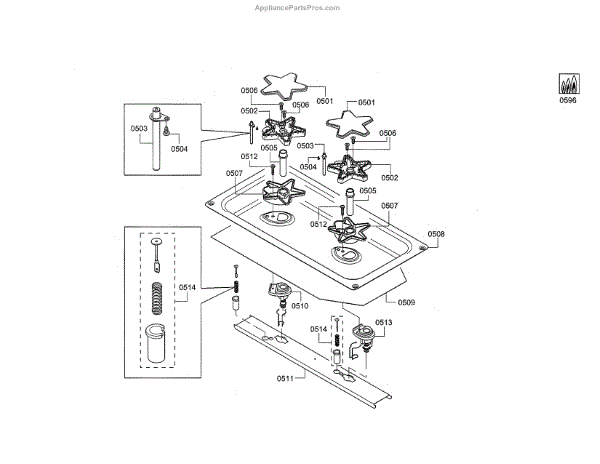

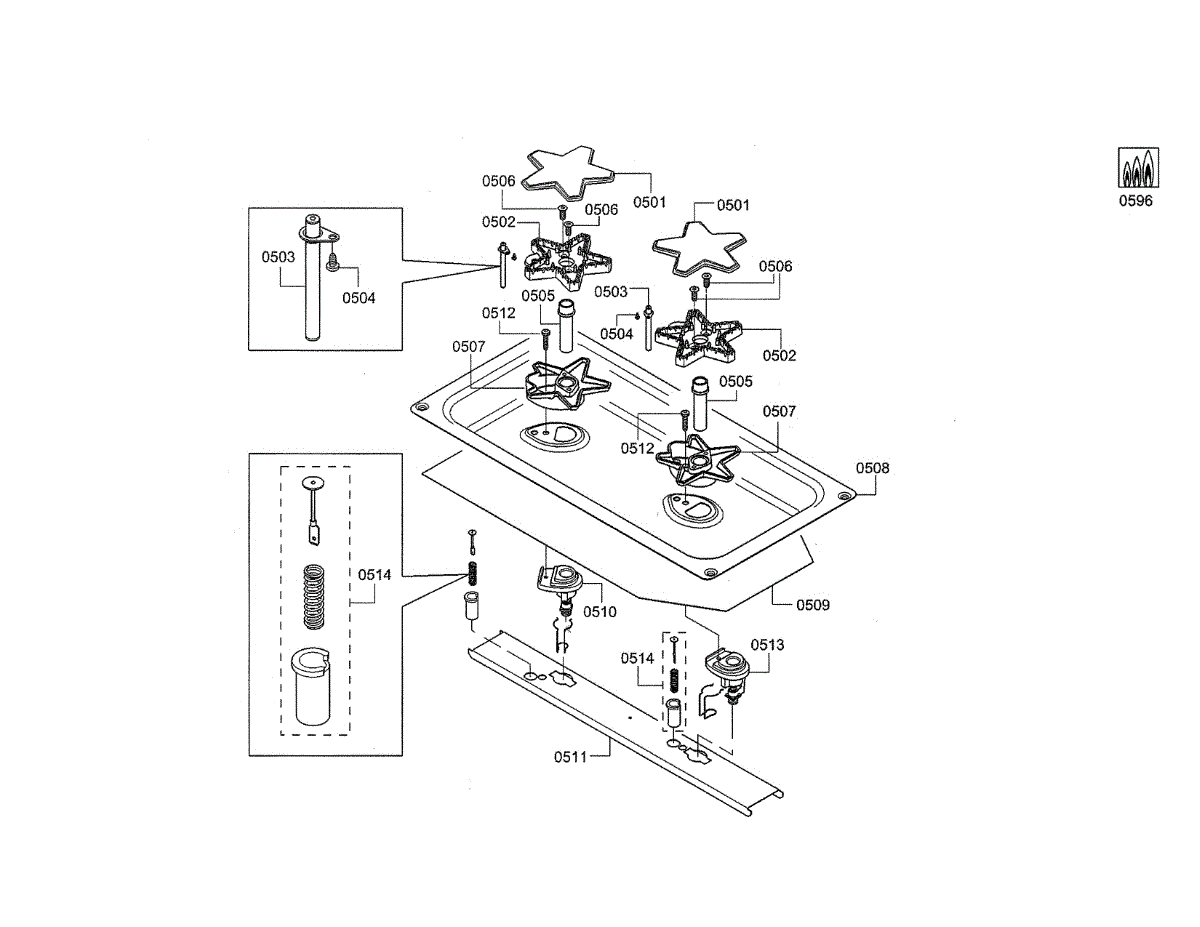

Parts for Thermador PRD48JDSGU/10: Ignition / Electrode Parts

This cap covers and protects its mating opening or fastener on the appliance, helping keep debris and moisture out while restoring a clean, finished look. Replace a cracked or missing cap to maintain proper protection and appearance. What it does:

• Provides a finished cover for an opening or fastener
• Helps prevent dust, debris, and moisture intrusion
• Supports proper fit of the assembly it mates with
• Common signs include a cracked, loose, or missing cap; exposed hardware; or difficulty securing the area

• 1 cap

• Disconnect power; shut off water or gas to the appliance before servicing
• Note the original cap's orientation; release any tabs or threads to remove
• Clean the mating area; press or thread the new cap on until fully seated—do not overtighten
• The cap is secure and that surrounding components operate normally

The Screw is an OEM part for Bosch ranges. It plays a crucial role in connecting and securing range components and panels. Over time, screws can strip, corrode, or break, preventing tight connections and proper alignment of parts.

Causes can include normal wear and tear over time, as well as damage during repair or maintenance. Replacing missing or faulty screws with genuine OEM parts is important to ensure the range operates as designed and presents no safety issues.

Symptoms of bad or missing screws include:

• Doors, panels, or panels not sitting flush
• Components detaching or coming loose
• Alignment issues between connected parts
• Reduced structural integrity

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This burner pipe directs gas from the valve to the burner for safe, consistent ignition. Replaces a damaged or corroded pipe to restore normal burner function and reduce gas leaks or poor ignition. What it does

• Channels gas from the control valve to the burner for proper flame delivery
• Helps maintain consistent, even flames for cooking
• Common replacement when a pipe is cracked, corroded, or leaking
• Resolves symptoms like weak or no flame, gas odor, or uneven heating

• One replacement burner pipe

• Turn off gas supply and unplug the appliance before beginning work
• Use correct fittings and hand-tighten then snug with a wrench; avoid overtightening
• After installation, test all connections for leaks with a soap-and-water solution or approved leak detector

This screw secures appliance panels and internal components. Replacing a missing, rusted, or stripped fastener restores proper fit and alignment to prevent movement, rattling, and premature wear.

• Fastens appliance components and panels for a secure assembly
• Helps maintain proper alignment to reduce vibration and noise
• Replaces missing or damaged hardware that can cause loose fits
• Supports reliable operation after service or repair

• Disconnect power and, shut off water or gas before service
• Use the correct driver for the head type; start threads by hand to avoid cross-threading
• Tighten evenly and do not overtighten to prevent stripping or damage

This support is a genuine replacement that secures and aligns an associated component inside the appliance, keeping it stable and operating as intended. Replacing a damaged support helps restore proper fit, reduce vibration, and prevent premature wear.

• Provides structural mounting and support for the designated assembly
• Maintains correct alignment and spacing of parts
• Helps prevent wobble, rattling, or rubbing during operation
• Symptoms can include loose or sagging parts, misalignment, unusual noise, or visible cracks in the original support

• Disconnect power; shut off water supply before servicing
• Refer to your model's parts diagram to orientation and fastener locations
• Transfer any screws/clips from the original part if new hardware is not supplied
• Tighten fasteners evenly and avoid overtightening plastic components

This Jet is the small spray nozzle that directs a focused stream of water inside the dishwasher's wash system. Replacing a clogged or damaged jet helps restore proper spray coverage, wash pressure, and overall cleaning performance.

• Directs and meters water flow within the wash system
• Helps maintain spray arm/wash zone pressure and coverage
• Replace if clogged with mineral deposits or physically damaged
• Symptoms include poor cleaning, weak spray, unusual wash noise, or leaks near the nozzle

• Disconnect power and shut off the water supply before servicing
• Access the nozzle location and note its orientation and any seals/clips
• Clean mating surfaces; transfer any reusable seal/clip if present
• Seat and lock the jet fully; run a test cycle and check for leaks
