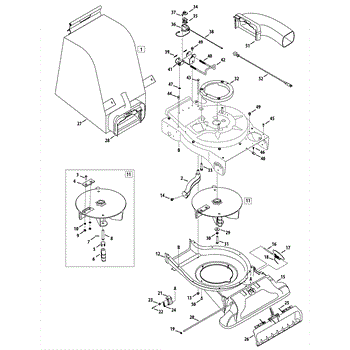

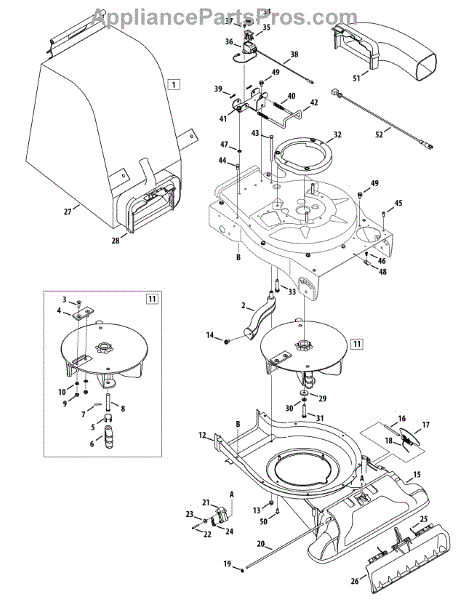

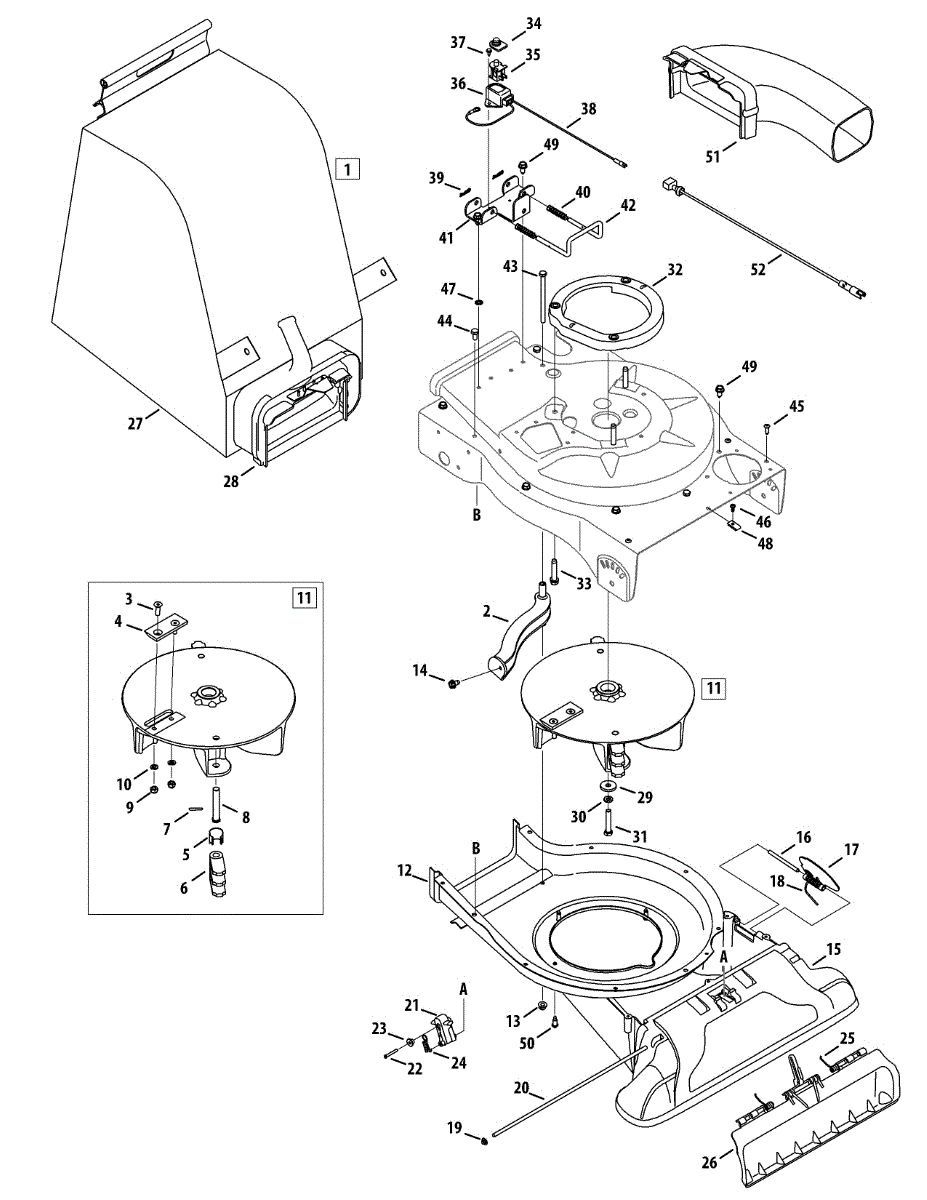

Parts for Craftsman 247.770131 / 2012: Impeller Assembly Parts

This part is a replacement grass bag. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a damaged or torn grass bag in a variety of lawnmower models. This lawn bag attaches to the lawnmower to catch grass clippings as they are expelled. This helps to keep the mowed area clean as well as allows for easy disposal of clippings. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. No special tools are necessary to replace this part. For more accurate information on how and where to install this grass bag, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this grass bag is suitable for use on several different models of lawnmowers manufactured by MTD and Yard Man. This is a genuine part made of high-quality, durable materials and is sold individually.

This is a replacement screw for lawn and garden equipment that is typically used on the blades. The flat head of the screw ensures that they will sit flush once they have been installed. These screws, which have hex-socket heads, are often found on the blades of chippers and shredders. If a blade is loose, it could be a problem with the screws that are holding it in place. This could make the machine inefficient and even dangerous to operate. Therefore, if there are screws that are worn down or that are no longer doing their job, it is important to replace them. It is essential to use the appropriate screws for a repair. This is a genuine OEM sourced replacement part that comes from the manufacturer. This helps to ensure quality and compatibility. The screw is sold individually. It is compatible with a range of chippers and shredders from MTD, Troy-Bilt, Cub Cadet, Ryobi, Yard-Man, Yard Machines, and Mastercut.

This is a chipper blade, which is installed on wood chippers and is used for cutting up pieces of wood into small chunks. Chipper blades need to be sharpened at least once a year or after about 25 hours of use. If the chipper blades aren't maintained, they will become dull and won't provide the required level of cutting power needed for wood chippers. If wood chips from the chipper are uneven, shredded, or rough, then sharpening or replacement may be needed. Make sure to take out the spark plug before the hopper is removed and connected to the tool. Next, remove the housing around the blades and the rotor assembly. The bolts around the blades can be taken off using an Allen wrench. Remove the blades, but be sure that work gloves are used to prevent injury. The replacement blade can be installed at this time. This is an OEM replacement chipper blade that can be used on wood chippers from Craftsman, MasterCut, Cub Cadet, Yard-Man, Yard Machines, and MTD. It's sold individually and comes directly from the manufacturer. The replacement will require an Allen wrench set, a wrench set, a socket set, and pliers.

This is a genuine replacement pin clip for select models of chipper-shredder equipment. This pin clip is a specialty part that is responsible for helping to secure the blade bail. If the blade bail cannot be secured, it will be difficult or impossible to operate the machine. This is a safety part that is required for operation and if it is missing or damaged, it needs to be replaced immediately. This pin clip is small and can become worn, corroded, or lost over time. A genuine part like this offers an exact replacement for compatible models. This genuine OEM pin clip is manufactured by MTD and meets exact standards to offer an identical replacement for select chipper/shredder units from the brand, along with those from Troy-Bilt, Yard Machines, Huskee, and Cub Cadet. There are over 150 chippers that will take this part, but it may have different locations depending on the model. Owners should consult the parts diagram for the exact location of this clip prior to replacement. This is sold as an individual item. Additional hardware and parts will require a separate purchase. To replace the pin clip, a screwdriver and pliers will be necessary.

This is a replacement flail blade that is used with various models of chippers and shredders. The purpose of the flail blade is to rotate so it can shred grass and other types of debris. The blade will attach to the impeller assembly. It will help to break down the material, as long as it is in good condition. The flail blade works hard, and it is sometimes in contact with materials that could cause damage. The blade could become bent or broken. In some cases, it could become corroded and rusty. When the flail blade is in poor condition, it will no longer work as efficiently or effectively as it once did. If they are no longer in good condition, owners will want to replace the flail blades on their machines as soon as they can. This is a genuine OEM replacement flail blade. It is sold individually, but machines may require more than one. Buyers should consider replacing them all at the same time. The blades are used specifically for chippers and shredders. They are compatible with models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Yard-Man, and MasterCut.

This is a genuine OEM replacement pin commonly found in chippers and shredders. This pin is part of a larger clevis pin and helps secure the larger pin into an engine. Clevis pins are inexpensive metal fasteners that connect parts without having to thread into the body of another part. They have a three-part construction consisting of the clevis, a pin, and a tang. This part is the pin that fasteners the clevis. The most likely reason why this pin would need replacing is if it fell out while the engine was running. Engines produce enough heat to cause parts to expand, and it is possible that a clevis could have expanded and the pin fell out. Should this happen, the clevis will no long fasten, and the pin will need to be replaced. Clevises are found in multiple places throughout an engine, so be sure to follow the user's manual to identify the right part. This pin is compatible with MTD, Huskee, Bolens, and Troy-Bilt clevises and comes sourced from the original manufacturer. This pin does not include a replacement clevis. It ships individually.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This vacuum impeller is a genuine MTD part, sold individually. This vacuum impeller can be used as a replacement part in a lawn mower or a wood chipper. The purpose of a vacuum impeller in a lawn mower or a wood chipper is to spin at a high enough speed to generate air flow so that the vacuum of the appliance can draw in or push out pressurized air, a crucial feature of both a lawn mower and a wood chipper.The vacuum impeller in a lawn mower or a wood chipper might need to be replaced if the vacuum impeller suffers too much damage to serve its typical function. If the vacuum impeller cannot rotate at a high enough speed due to reduced functionality or cannot spin at all due to potential damage to the component, the vacuum impeller should be removed and replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This vacuum impeller is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, and Yard Machines.

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

This replacement part is a nzle assembly. This is a genuine replacement part made by MTD. Nzle assembly and is used in different machines and appliances. The nzle is able to open and close when needed based on the user's desired settings. A new nzle assembly might be needed if the current one is damaged or missing. This can be from normal wear and tear over time. The nzle is susceptible to damage and should be replaced if it is not up to working standard. Work gloves are recommended for this repair as pieces can cause injury. Refer to the user manual for more specific information before attempting to replace this part. This nzle assembly is a genuine OEM replacement part to ensure proper fit. This part is sold individually and is sourced directly from the manufacturer.

This hex screw is a genuine MTD part, sold individually. This hex screw can be used as a replacement part in a lawn mower, snowblower, or wood chipper.The hex screw in a lawn mower, snowblower, or wood chipper might have to be replaced if it is lost, misplaced, or damaged. The screw is a small component which can easily disappear while the appliance is in operation without necessarily noticing its absence; additionally, the screw can suffer from puncturing, scraping, denting, warping, or eroding over time. If this occurs, the screw should be replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This hex screw is compatible with the following outdoor appliance brands: MTD, Cub Cadet, Craftsman, Ryobi, Troy-Bilt, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, and MasterCut.

This replacement part is a shoulder spacer, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. A shoulder spacer is found in different areas inside lawn mowers. This type of spacer allows for two parts to operate together but prevents friction from building up during use.A new shoulder spacer might be needed if the user is able to see that the current one is damaged or missing. Any spacer that is missing causes unnecessary friction and can then cause the machine to overheat. If there are noises coming from inside the machine that are unfamiliar, it might be because of the spacer. This spacer is sold individually and is a genuine OEM replacement part. This part is sourced directly from the manufacturer to ensure proper fit on many different devices. Be sure that the engine is completely powered off before attempting this repair.

This replacement part is an extension spring and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This extension spring is found in different types of lawn mowers and helps other parts to work together and allow the engine to run properly and smoothly.A new extension spring might be needed if the current one is damaged or missing from the appliance. Because of the nature of the extension spring, it is not unusual for it to become stripped or snapped due to normal wear and tear within the machine. Unusual sounds may come from inside the machine if this spring is not working properly. This is a genuine OEM replacement part and is sold individually. This spring is sourced directly from the manufacturer to ensure proper fit.

This is a replacement torsion spring that can be used for a range of purposes on various machines. The helical spring is used as a means to create a torque or rotary force. The ends of the springs are attached to other elements in the machine. When those other elements rotate around the center of the spring, the spring will push them to their original position. If the spring is damaged, the machine will not function properly.The torsion spring could become worn out due to a lot of use over the years. It could also become corroded, or it could be lost when making another repair on the machine. If there are issues with the spring, it should be replaced to ensure the machine works correctly.The replacement torsion spring can be used for models of yard vacuums and chippers from Craftsman, MTD, and Troy-Bilt. This is a genuine OEM replacement part that has been sourced from the manufacturer. It is sold individually.

This replacement part is a door nzle intended for use in different lawn mowers. This is a genuine replacement part made by MTD. Door nzles are used attach to the door of the lawn mower and protect the user from the sharp and dangerous blades that are inside. A new door nzle might be needed if the current one is damaged or broken in any way. It is common for this part to be replaced after years of normal wear and tear. Be sure the appliance is completely powered down and cooled off before attempting to replace this part. For more detailed instructions on how to replace this specific part, please reference the user guide.This is an OEM part sourced directly from the manufacturer. It is sold individually. This replacement part is compatible with lawn mowers made by MTD.

This grass catching bag assembly is a genuine MTD part, sold individually. This grass catching bag assembly can be used as a replacement part in a lawn mower. The purpose of the grass catching bag assembly is to provide a storage place for grass clippings.The grass catching bag assembly might suffer damage that could necessitate its replacement within the standard lifespan of a lawn mower. This could occur if the grass catching bag assembly is ripped, torn, punctured, frayed, or otherwise damaged. If the grass clippings fall out of the bag, that is a sign that the bag needs to be removed and replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement. Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This grass catching bag assembly is compatible with the following outdoor appliance brands: MTD and Craftsman.

This part is a replacement discharge chute. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a damaged or faulty discharge chute in a variety of chipper or shredder models.This discharge chute ensures that debris is efficiently expelled from the chipper or shredder. This part is subject to significant wear and tear and therefor may require replacement. Proper tools are required to install this part. When working on or near an engine, ensure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this discharge chute, the appropriate owner's manual and equipment diagrams should be referenced. As an authentic replacement part, this discharge chute is suitable for use on several different models of chipper/shredders manufactured by MTD, Yard Machines, Cub Cadet, Yard Man, and Troy-Bilt. This is a genuine part made of high-quality, durable materials and is sold individually.

This washer is a genuine MTD replacement part for lawn and garden appliances that are operated by small engines, such as lawn tractors, snowblowers, chipper shredders, leaf blowers, and lawn mowers. The purpose of a washer is to protect and insulate nuts, bolts, and other types of fasteners, preventing these fasteners from gradually loosening. A washer will have to be replaced in the event that it is lost or misplaced, a common occurrence given its extremely small size and its ability to slide off without calling any attention to its absence. Other reasons to replace a washer could include general wear and tear or visible damage in the form of erosion, bending, or cracking metal as a result of overuse or overexposure. If a washer is subject to any of this kind of damage, it should be replaced immediately to avoid nuts and bolts coming loose and separating the materials that they protect and hold together. Remember that gloves must always be worn when handling, repairing, and operating outdoor equipment. This washer part is compatible with the brands MTD, Yard Machines, Cub Cadet, and Yard Man.

This replacement part is a switch cover and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This switch cover is meant to protect the user from parts that can be dangerous. A new switch cover might be needed if the current one is missing or damaged. Though this part is small, it is very important and should be replaced if needed. This should be a simple repair and will only take a few minutes. work gloves are recommended if the previous part is damaged. Be sure the engine is powered down before replacing this part to ensure safety to the user and those in the vicinity. This switch cover is sold as a single part and is sourced directly from the manufacturer to ensure a proper fit in different appliances. This part is a genuine OEM replacement part.

This is a snap mount safety switch that is a part of many types of lawn and garden equipment. The safety switch is made of plastic and has a metal four-pronged plug on the bottom. A button is located on the top. Inside of the base, there are two sets of contacts. One set is used to create a circuit between two blades, while the other set makes the circuit for the other pair of blades. One set is grounded and the other connects to the engine of the tool.Replacing the safety switch is required if it is no longer working or has been damaged. Turn off the tool, allow it to cool, and disconnect the spark plug wire. Remove the engine cover before taking off the fuel tank assembly. The engine blower housing will also need to be removed. Access the snap mount safety switch and take it out of the tool before attaching a new switch.This is a genuine OEM replacement part that is directly sourced from the manufacturer. It is sold as an individual part. The snap mount safety switch is designed to be used with wood chippers, leaf blowers, and lawnmowers manufactured by Craftsman, Yard Machines, Cub Cadet, Yard-Man, and MTD.

This genuine safety switch cover is designed to be used in select chippers as a durable plastic part that provides protection for the switch when the unit is in use and being stored. The safety switch is responsible for keeping the user safe while the chipper is in operation. if something goes wrong, the safety switch can be engaged, which will shut the unit down immediately. Without the plastic cover, this switch is exposed to potential impacts and other damage. It will be important to replace the safety switch cover as soon as possible to prevent further damage. This durable plastic part is made to exact OEM standards and fits machines from MTD, Troy-Bilt, Cub Cadet, and Yard Machines. It will require a screwdriver to replace, but the screws used to install the part will require a separate purchase. The safety switch cover should be replaced when the unit is off and the power has been disconnected so that no accidents occur. It will also be important to wear gloves and eye protection when working on outdoor equipment like chippers and splitters for safety.

This replacement part is a wire harness assembly. It is a genuine replacement part made by MTD. This wire harness assembly is used in many different types of machines and aids in connecting different parts so that the appliance runs smoothly and effectively. A new wire harness assembly might be needed if the user notices that the current wires are stripped or detached. This can be because of normal wear and tear and is common after years of use. Be sure to wear work gloves when replacing this part as the wires can be harmful when handled. It's also recommended that the user refer to the proper owner's manual before attempting to replace this part. This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer to ensure proper fit.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

This screw is a genuine MTD part. A screw can be used as a replacement part in lawn mowers, snowblowers, tillers, chainsaws, log splitters, and wood chippers. The purpose of this genuine OEM part is to rotate and pierce into one or more components within the internal or external machinery of the appliance so that the stability of those components is maintained throughout general use of the appliance.The screw in an lawn equipment might need to be replaced if it has been lost, misplaced, or has suffered enough damage as to loosen the components that it is supposed to secure.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This screw is compatible with equipment manufactured by MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, Huskee, Montgomery Wards, Yard Man, Turf King, and MasterCut.

This is a self-tapping screw that can be used on a wide variety of lawn and garden equipment in many applications. A self-tapping screw is used to secure metal, wood, plastic, and brick together. When using a self-tapping screw, there's no need to drill a pilot hole since the screw makes its own hole. The only exception is with metal, which will still need a drilled hole before installation. There are many situations when a screw may need to be replaced. Some screws are damaged or broken, while others can become loose and no longer hold materials together. Screw heads can become stripped, which will also mean they need to be replaced. A visual inspection can often give an indication of whether you should replace a self-tapping screw. This is a genuine OEM hex head screw that can be used on various lawn and garden equipment, including wood chippers, lawn mowers, snowblowers, log splitters, tillers, edgers, and leaf blowers. It's compatible with products by MasterCut, Craftsman, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Troy-Bilt, Montgomery Wards, Murray, Huskee, Yard Machines, MTD, and more. This screw is sold individually.

The shoulder screw is used in places where a spacer or bearing surface is needed, since the top half of the screw is unthreaded. These fasteners are often used for guides, pivot points, mounting pins, axles, and even a shaft for bearings and bushings in various MTD engines. With regular use, the screws can wear down or be lost. Always repair the missing hardware promptly with genuine OEM replacements. Disengage the spark plug and wear gloves when performing work on engines for safety. This genuine OEM replacement shoulder screw has been designed to be compatible with machines from MTD, Troy-Bilt, Yard-Man, Yard Machines, Bolens, Cub Cadet, and Craftsman. It can be used for multiple applications and in multiple locations in different models of lawnmowers, tractors, and chippers that use the screw in various applications. Check your parts diagrams for the exact location and use of these screws before ordering. This is sold as an individual unit; order multiple quantities as needed.

This part is a replacement blower chute. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a detached or broken chute in a variety of blower models. The blower chute is what allows snow to be expelled from the snow blower. The chute may become worn, cracked, or damaged over time, as it is subject to significant wear and tear. If this occurs, it should be replaced as soon as possible to ensure the blower functions properly. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. Proper tools are required to replace this part. For more accurate information on how and where to install this blower chute, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this blower chute is suitable for use on several different models of snow blowers manufactured by MTD, Craftsman, Yard Machines, Yard Man, and Troy-Bilt. This is a genuine part made of high-quality, durable materials and is sold individually.
