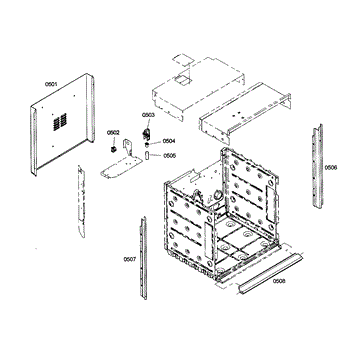

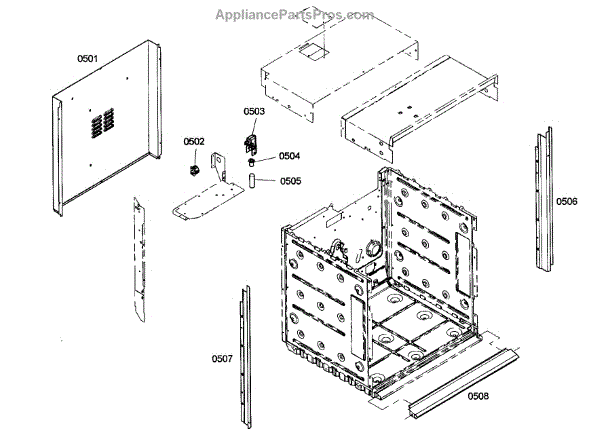

Parts for Bosch HBN5420UC/01: Inside Parts

A small chassis knockout protector that shields wiring and components where factory knockout holes are removed. Helps prevent wire abrasion and keeps openings tidy for safe appliance operation. What it does:

• Fits into a chassis knockout to protect wiring from sharp sheet-metal edges
• Helps prevent cable chafing and short circuits by covering exposed openings
• Keeps out debris while allowing routed harnesses to pass through the cabinet
• Commonly used where service or modifications require a sealed knockout

• One chassis knockout protector

• Install by pressing the protector into the knockout until it seats securely
• Ensure wiring is routed through the protector and not pinched between metal edges
• Disconnect power before servicing appliance to avoid shock or injury

This trim plate is a decorative panel that restores the finished look of the appliance opening and helps cover gaps around the control or access area. It provides a clean, factory appearance and prevents dirt from collecting in the seam. What it does:

• Covers and finishes the edge of an opening or control area for a seamless appearance
• Helps keep crumbs, dust and spills from entering gaps around the appliance face
• Replaces bent, scratched or discolored trim that affects the appliance look
• Restores proper alignment where a damaged trim creates visible gaps

• One trim plate

• Disconnect power to the appliance before attempting removal or installation
• Handle carefully to avoid scratching the finished surface; use soft gloves if available
• Retain any mounting screws or clips from the original trim and reuse if appropriate

This trim plate is a decorative panel that restores the finished look of the appliance opening and helps cover gaps around the control or access area. It provides a clean, factory appearance and prevents dirt from collecting in the seam. What it does:

• Covers and finishes the edge of an opening or control area for a seamless appearance
• Helps keep crumbs, dust and spills from entering gaps around the appliance face
• Replaces bent, scratched or discolored trim that affects the appliance look
• Restores proper alignment where a damaged trim creates visible gaps

• One trim plate

• Disconnect power to the appliance before attempting removal or installation
• Handle carefully to avoid scratching the finished surface; use soft gloves if available
• Retain any mounting screws or clips from the original trim and reuse if appropriate
