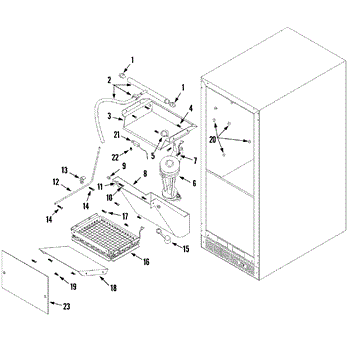

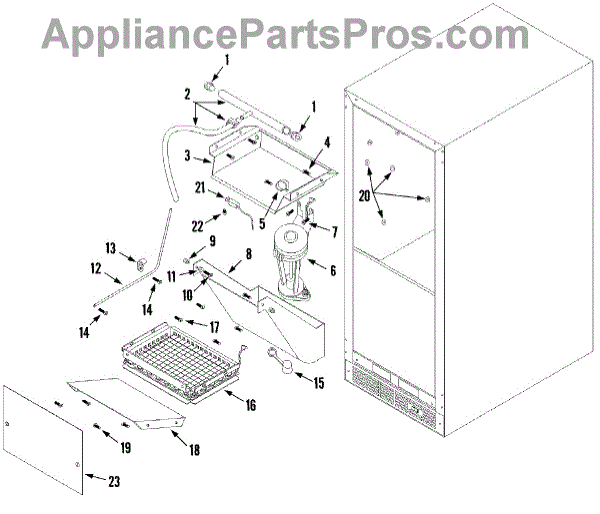

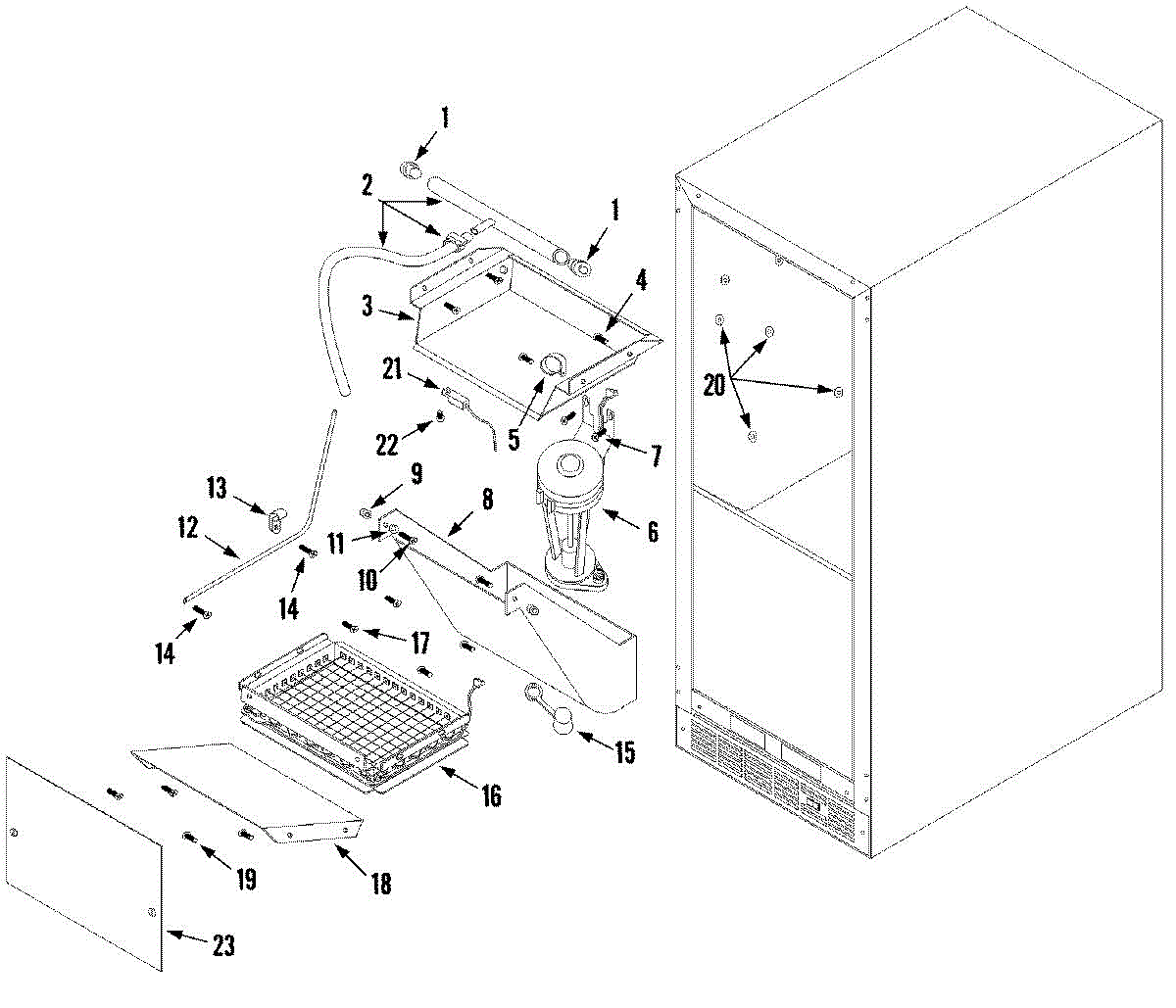

Parts for Jenn-Air JIM1550ARB: 03 - Interior Parts

This replacement screw secures appliance panels, trim and small components so parts stay aligned and stable. It's an exact-fit fastener when the original screw is missing, stripped or damaged. What it does:

• Secures cabinet panels, control trim or interior fittings to prevent rattling and misalignment
• Restores proper fastening where the original screw is corroded, stripped or lost
• Helps maintain a safe, stable appliance assembly by keeping parts fastened
• Small, service-grade fastener sized for appliance sheet metal and plastic connections

• One replacement screw

• Use the screwdriver or driver bit that matches the screw head to avoid stripping
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Disconnect power to the appliance before working near electrical components
• Replace all matching screws for consistent fit

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

This is a replacement drain plug that seals the washer tub drain opening to prevent leaks and allow proper water removal during drain cycles. It restores a tight seal and helps the appliance drain as designed. What it does:

• Seals the tub drain opening to prevent water leaks during fill and soak cycles
• Directs drained water into the drain path during spin/drain cycles
• Helps stop intermittent leaking or slow draining caused by a damaged or missing plug
• Matches OEM fit and form to maintain proper tub-to-drain alignment

• One drain plug (quantity: 1)

• Turn off power and water supply before beginning any repair
• Access may require removing the washer cabinet or front panel
• Ensure the drain area is clean and dry before installing to achieve a proper seal

This 10-32 machine screw secures panels, brackets, and internal assemblies in your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and helps keep components properly aligned.

• Provides a threaded fastener for metal-to-metal connections
• Helps maintain correct alignment of panels, brackets, and housings
• Replaces missing, rusted, or stripped screws
• Symptoms include loose or vibrating panels, gaps/misalignment, or hardware that won't tighten

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Match the 10-32 thread and length to the original screw for the location
• Start by hand to avoid cross-threading; tighten snugly without over-torquing
• Retain and reinstall any original clips, spacers, or washers used in your model

This 10-32 machine screw secures panels, brackets, and internal assemblies in your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and helps keep components properly aligned.

• Provides a threaded fastener for metal-to-metal connections
• Helps maintain correct alignment of panels, brackets, and housings
• Replaces missing, rusted, or stripped screws
• Symptoms include loose or vibrating panels, gaps/misalignment, or hardware that won't tighten

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Match the 10-32 thread and length to the original screw for the location
• Start by hand to avoid cross-threading; tighten snugly without over-torquing
• Retain and reinstall any original clips, spacers, or washers used in your model
