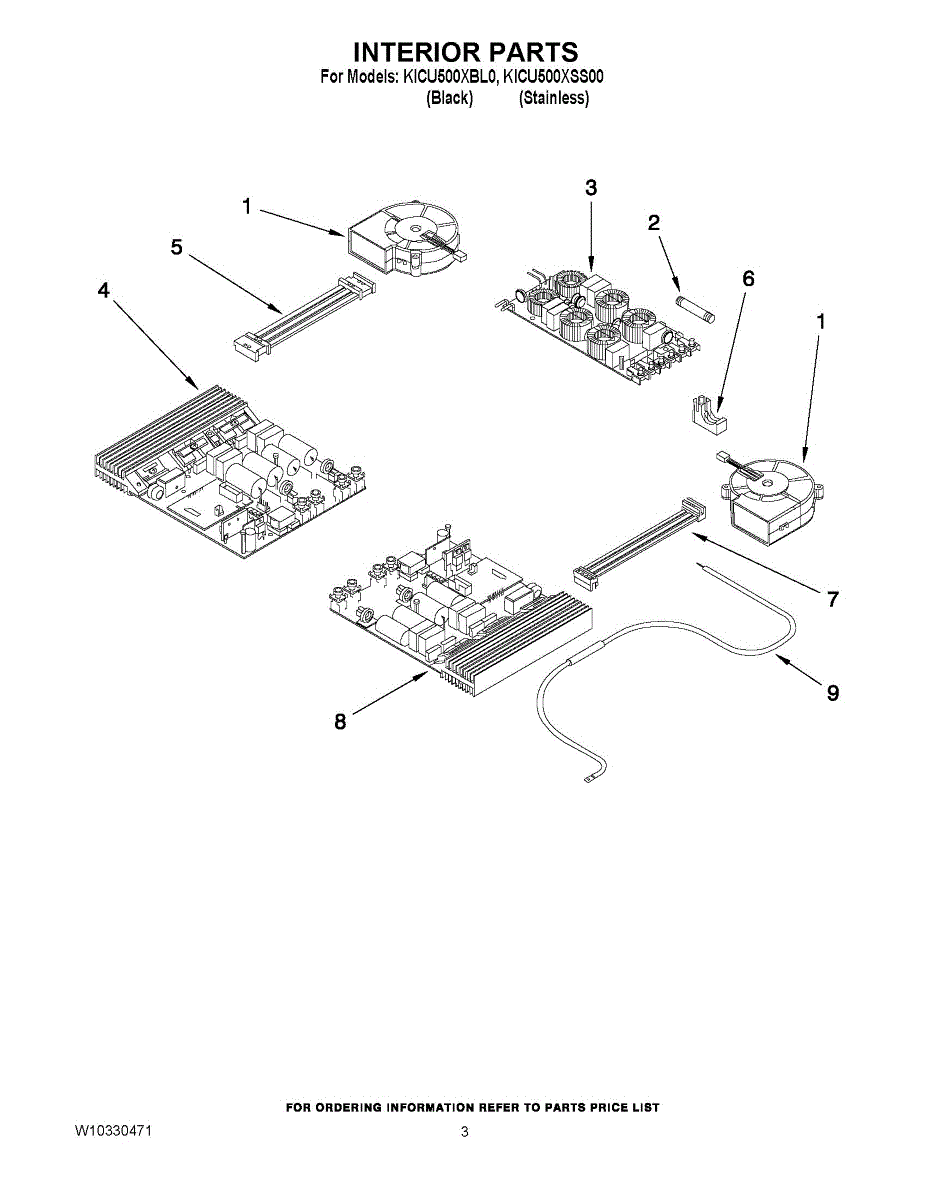

Parts for Kitchenaid KICU500XBL0: 02 - Interior Parts

Replace your range hood blower motor if the fan won't run or makes loud grinding noises. Moderate DIY repair restores proper kitchen ventilation.

Replace a noisy or failed cooktop ventilation fan with this blower motor. Restores proper air circulation. Moderate DIY repair for electric cooktops.

Cooktop burners not heating? A blown thermal fuse cuts power to prevent overheating. Test for continuity and replace to restore heating function.

This part is a cooktop control board. This part sends power to the induction coils. Before the induction power control board goes completely out, the user may notice some inconsistencies in the operation of the cooktop. For example, the burners may not work correctly or some buttons may stop working. It's also possible that the display is not working correctly. When all of these features are no longer working, then the part is definitely bad. The cooktop should be unplugged from its outlet prior to replacing this part. The person replacing the part may wish to wear work gloves to protect hands during this procedure. This specific induction power control board is compatible with cooktops that are manufactured by Whirlpool, KitchenAid, and Maytag. This part is sold individually and is sourced straight from the manufacturer. It's a high-quality part made from durable materials.

Wire harness for electric cooktops. Connects electrical components to provide power distribution. Replace if wires are damaged, frayed, or connections are loose.

Wire harness for electric cooktops and range hoods. Connects electrical components inside the appliance. Replace if wires are frayed or damaged.

Fix an unresponsive cooktop or erratic burner control with this electronic control board. Moderate difficulty repair requiring basic tools and care.

This wire harness routes power and signals between the appliance's control board and its components, restoring reliable electrical connections for lights, motors and switches. It's a direct-fit harness used to replace damaged or worn wiring. What it does:

• Carries power and control signals from the main control to motors, sensors and lights
• Re-establishes broken or shorted connections that can cause intermittent operation
• Helps stop issues like non-functioning lights, unresponsive controls or motors that fail to start
• Maintains proper routing and connector fit to prevent chafing and electrical faults

• One complete wire harness as shown

• Disconnect power (unplug unit or shut off breaker) before starting any repairs
• Inspect connectors and matching terminals for damage; replace harness only if connectors match OEM locations
• Route harness along original clips and channels; secure with existing fasteners to avoid pinching

Mounting bracket that secures your cooktop to the countertop cutout. Replace if bracket is bent, broken, or missing to ensure proper appliance support.

Mounting bracket that secures your cooktop to the countertop cutout. Replace if bracket is bent, broken, or missing to ensure proper appliance support.

General-purpose adhesive bonds and seals cooktop trim, gaskets, and panels. Replace when components loosen or detach. Confirm fit with your model number.

General-purpose adhesive bonds and seals cooktop trim, gaskets, and panels. Replace when components loosen or detach. Confirm fit with your model number.
