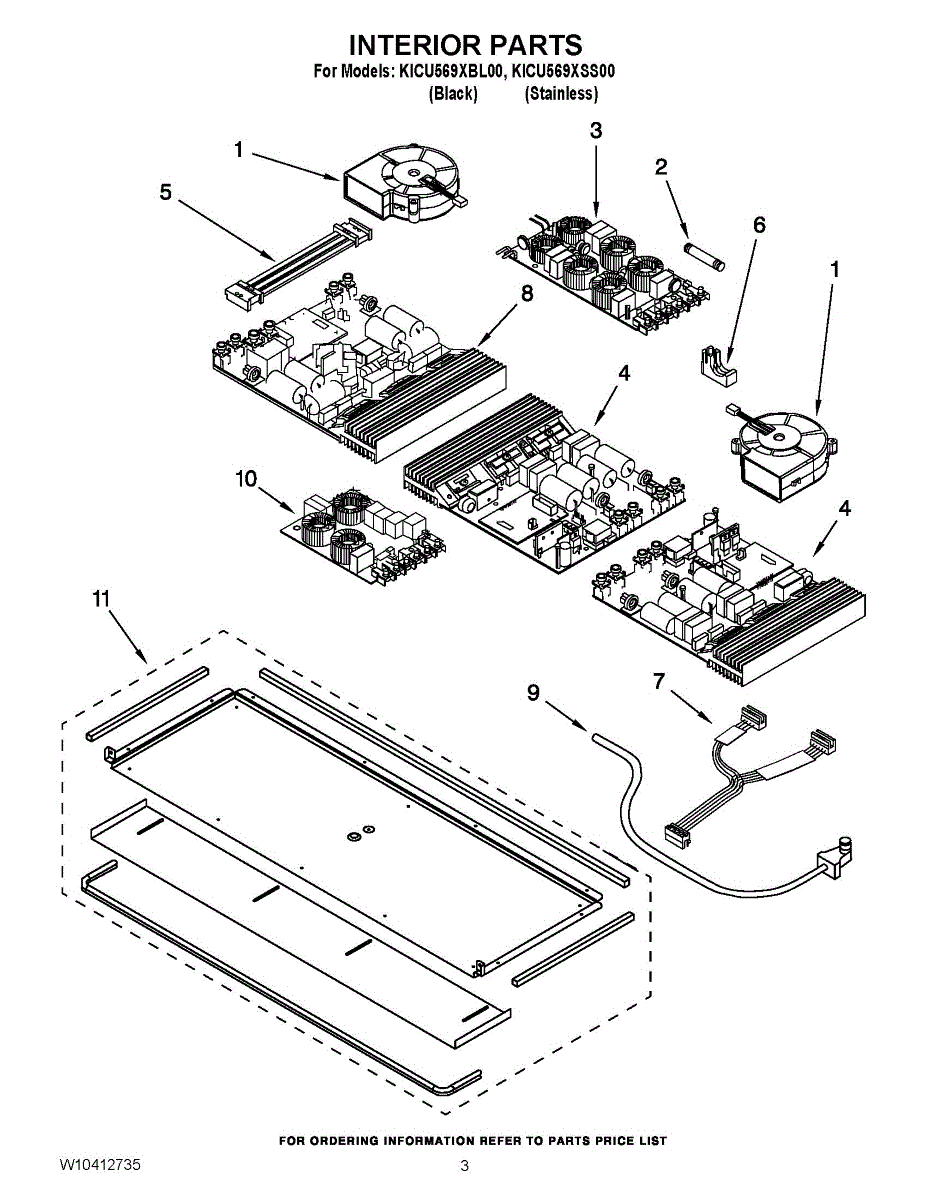

Parts for Kitchenaid KICU569XBL00: 02 - Interior Parts

This thermal fuse is a one-time safety cutoff that stops heat when temperatures rise above safe limits, protecting the appliance from overheating. Replace a blown fuse to restore proper thermal protection and heating control. What it does:

• Opens the circuit to the heating element when overheating is detected to prevent unsafe temperatures.
• Common symptom: dryer runs but produces little or no heat.
• Can cause dryers to stop heating even though the motor and controls seem to work.
• Helps prevent thermal damage or fire by cutting power to the heater when needed.

• Disconnect power to the appliance before accessing the heating assembly.
• Replace with the exact OEM part; match terminals and mounting location.

This electronic control board regulates the oven's user interface and key functions so the range responds correctly to temperature settings and commands. Replaces a faulty console control to restore normal cycle selection and display behavior. What it does:

• Receives and processes user inputs from the touchpad/knobs and sends commands to the oven's systems
• Controls oven functions like bake, broil, timers and display output
• Commonly replaced for symptoms such as unresponsive controls, incorrect display, or failure to start selected cycles
• Works only with the specific control assembly designed for the range model

• One electronic control board

• Power off and unplug the appliance before starting any repair to avoid electrical shock
• Access typically requires removing the console or back panel; follow the manufacturer service manual
• Handle the board by its edges and avoid static discharge—use an anti-static strap if available

This electronic control board replaces the appliance's main control module to restore reliable cycle selection and display feedback. It resolves control-related faults so the unit responds correctly to user inputs. What it does:

• Manages cycle selection, timing, and user interface signals
• Controls power to motors, heaters, valves, and other subsystems via programmed commands
• Stops erratic behavior caused by failed or intermittent control electronics
• Clears symptoms such as unresponsive buttons, incorrect cycles, or display errors

• Disconnect power to the appliance before starting any repair
• Handle the board by its edges and avoid static-sensitive contact; use proper ESD precautions if available
• Verify connector seating and wiring harness orientation; do not force connectors

This wire harness routes power and signal connections between the appliance's control and electrical components, restoring reliable electrical pathways for proper operation. What it does

• Reconnects controls, sensors, motors, lights and other circuits that use the harness
• Replaces damaged, frayed or melted wiring that can cause intermittent or no power
• Helps stop shorts and electrical faults caused by broken connectors or exposed conductors
• Useful when appliances won't start, have non-responsive controls, or show intermittent operation

• One complete wire harness as shown

• Disconnect power (unplug or switch off breaker) before starting any repair
• Compare new harness to the original for routing and connector fit before installing
• Route harness along OEM clips and channels; avoid contact with sharp edges or hot surfaces

A general-purpose appliance adhesive used to bond and seal interior and exterior components. Restores secure attachment of trim, insulation, and small panels so parts stay in place and function properly. What it does

• Bonds loose trim, gaskets, and small plastic or metal panels to prevent shifting and rattles
• Seals minor seams and gaps to improve fit and finish
• Helps reattach insulation or padding that has come unglued
• Reduces noise from vibrating parts by securing components

• Clean and dry surfaces thoroughly before applying for the best bond
• Use in a well-ventilated area and avoid skin or eye contact; follow product safety directions
• Apply sparingly and allow full cure time per manufacturer instructions before reassembling
