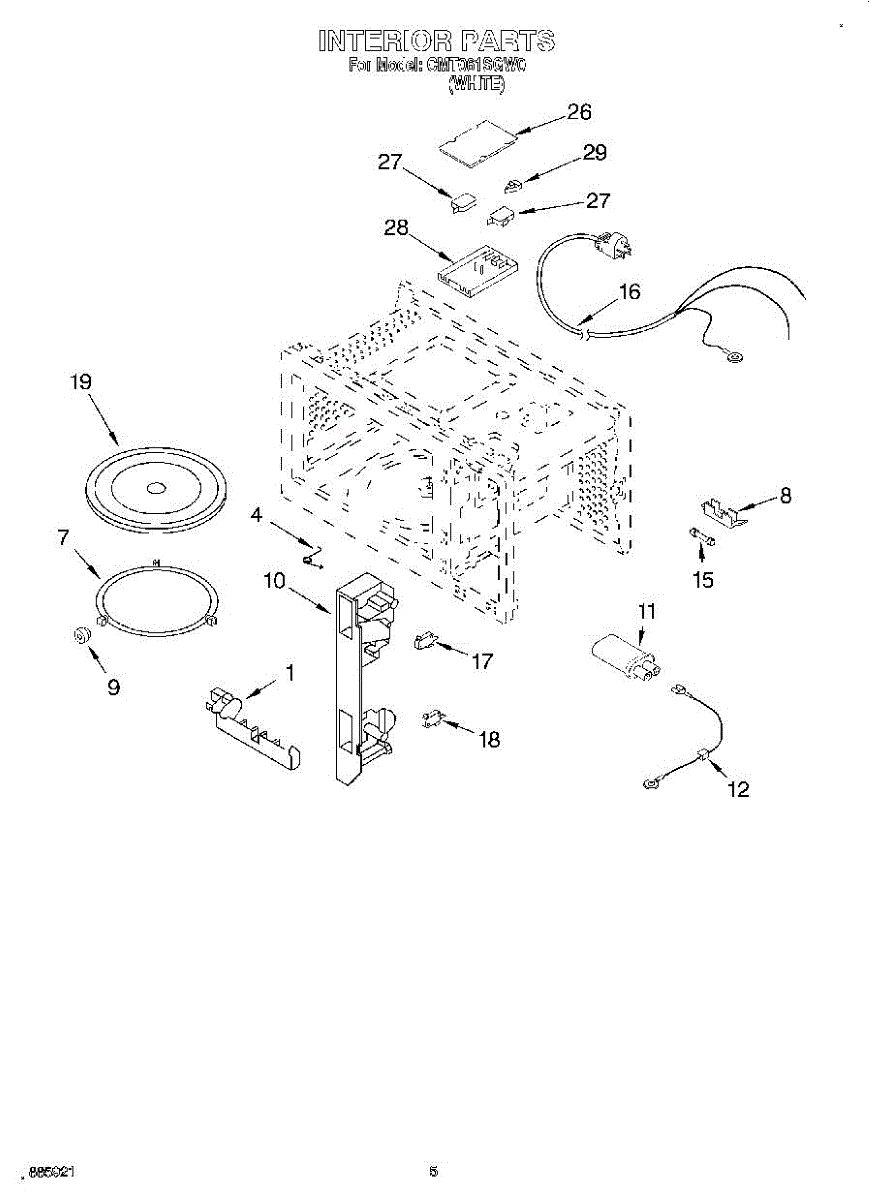

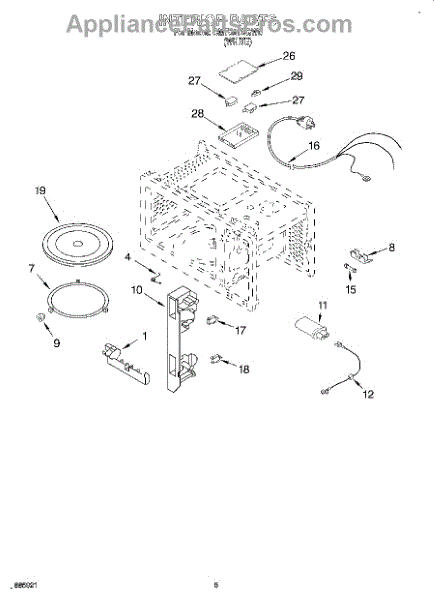

Parts for Whirlpool CMT061SGW0: 04 - Interior Parts

This high-voltage magnetron capacitor stores and delivers the pulse of energy the microwave magnetron needs to generate heat. Replacing a failed unit restores proper high-voltage function so the oven can heat reliably. What it does:

• Stores and releases high-voltage energy to the magnetron during cooking cycles.
• Works with the oven's diode and transformer to produce microwave energy.
• A failed capacitor can cause no heat, weak heating, or a blown fuse/circuit interruption.
• Designed for the microwave high-voltage assembly; handle as a high-voltage component.

• Disconnect power and unplug the appliance before service.
• Discharge the capacitor with an insulated tool before touching terminals.
• Verify this part number matches your appliance before ordering.

This is a thermal safety fuse that opens the circuit if temperatures rise beyond a safe limit, protecting the appliance from overheating and preventing further damage. Replacing a failed fuse restores power to the affected circuit once the underlying cause is addressed.

• Monitors temperature in a protected circuit and cuts power if unsafe heat is detected
• Helps prevent overheating-related damage
• Typical failure signs: no power/no operation, cycle won't start, shuts off mid-cycle after overheating event
• Must not be bypassed; replace if open and investigate the root cause of overheating

• Unplug appliance or disconnect power before service
• Verify the fuse is open with a multimeter; replace only after correcting any airflow/overheating issues
• Install in the same orientation and location as the original to ensure proper temperature sensing
• Handle wiring carefully; transfer connectors one at a time to avoid miswiring

The Switch is an OEM part for Whirlpool microwaves. This switch is crucial for the proper operation of the microwave, as it ensures the correct function of the door mechanism and the control panel.

Causes of a bad microwave switch can include wear and tear over time, damage due to frequent use, or electrical faults that prevent it from functioning correctly.

Symptoms of a bad microwave switch include:

• The microwave not starting or stopping unexpectedly
• The door not latching properly
• Error messages on the control panel
• The microwave light not turning on or off as expected

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Microwave Door Interlock Switch is an OEM part for Whirlpool microwaves. This safety device ensures that the microwave only operates when the door is securely closed. The interlock switch prevents the microwave from running with the door open, protecting users from exposure to microwave energy.

You should replace the door interlock switch if it becomes faulty or damaged. Causes of a bad switch can include wear and tear from frequent use, electrical malfunctions, or physical damage from slamming the microwave door.

Symptoms of a bad microwave door interlock switch include:

• Microwave not starting or running intermittently
• Microwave running with the door open
• Error messages or safety warnings
• The interior light not turning on or off properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Switch is an OEM part for Whirlpool microwaves. It controls the turning on and off of power to the microwave during cooking cycles as well as detects positions within cycles to signal appropriate actuations of the microwave's magnetron, fans, and lights. The switch is a crucial electrical component that facilitates the fully automatic operation of preset cooking programs.

Causes of a bad switch can include wear and tear over time or unexpected surges that cause electrical component failure.

Symptoms of a bad switch include:

• Cooking programs failing to advance properly or stopping mid-cycle unexpectedly
• The microwave failing to turn on or experiencing power issues
• Random noises, humming, or lights occurring when the microwave is supposed to be idle
• Buttons or controls acting intermittently unresponsive

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
