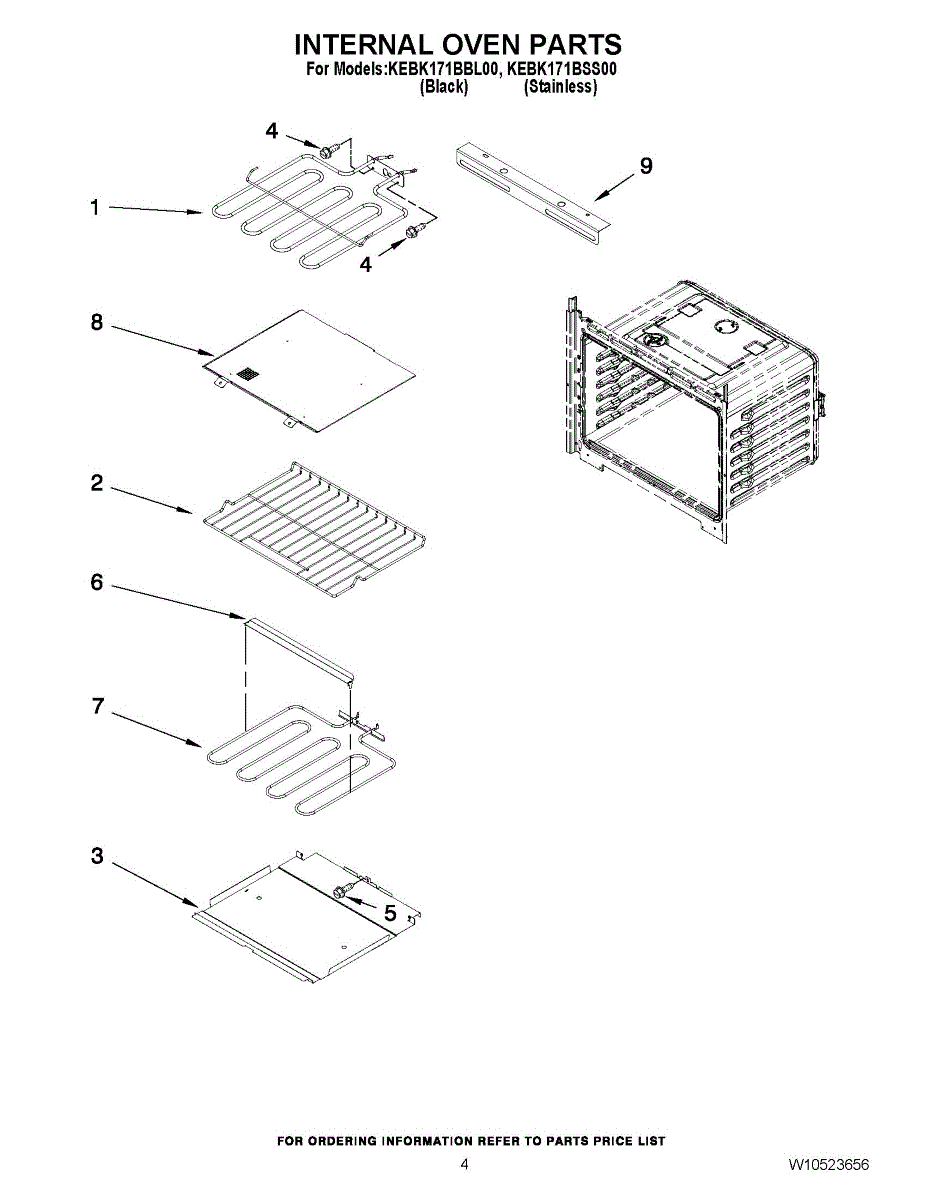

Parts for Kitchenaid KEBK171BBL00: 03 - Internal Oven Parts

Broiler not heating or browning unevenly? This upper broil element restores intense top heat for searing and finishing. Moderate DIY repair.

Replacement oven rack that slides smoothly on oven guides to hold cookware securely. Restore stable cooking surface if your rack is warped, discolored, or missing.

This bake tray replaces a worn or damaged oven baking surface to help you cook and roast evenly while containing spills. Durable metal construction offers a flat, stable surface for pans, cookies and sheet-baked foods. What it does:

• Provides a flat baking surface for cookies, roasting and sheet-pan meals
• Replaces trays that are warped, dented, rusted or have a damaged cooking surface
• Helps contain drips and spills to protect the oven floor from messes
• Restores proper tray function when missing or broken

• Allow the oven to cool completely before removing or installing the tray
• No tools required — slide into oven racks or support ledges as designed
• Wear work gloves to avoid sharp edges on damaged trays

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This is a metal crossbar support bracket that holds the hidden bake element in place beneath the oven floor. It ensures the bake element remains properly positioned for even heat distribution. Replace this bracket if the bake element is sagging, misaligned, or not heating evenly due to a broken or bent support.

Fix slow preheating or uneven baking with a new bake element. This heating component generates consistent heat throughout your oven cavity. DIY-friendly repair.

Heat shield insulates internal wall oven components from high cooking temperatures. Replace if cracked, charred, or damaged from heat exposure.

Support plate for wall oven and range models. Mounts internally to provide structural reinforcement. Replace if cracked, broken, or missing.
