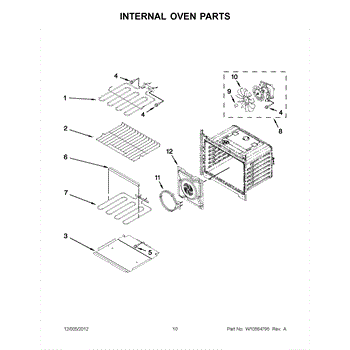

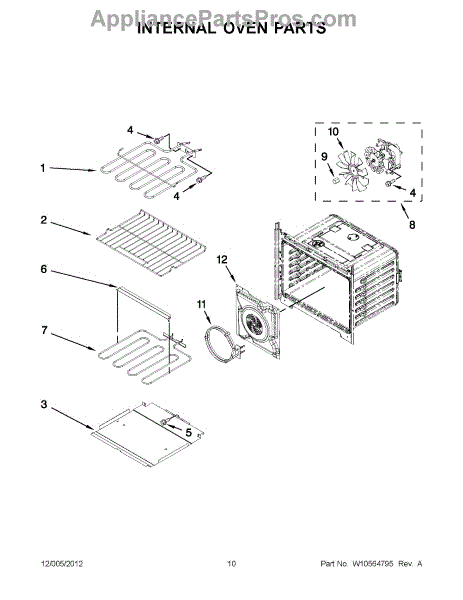

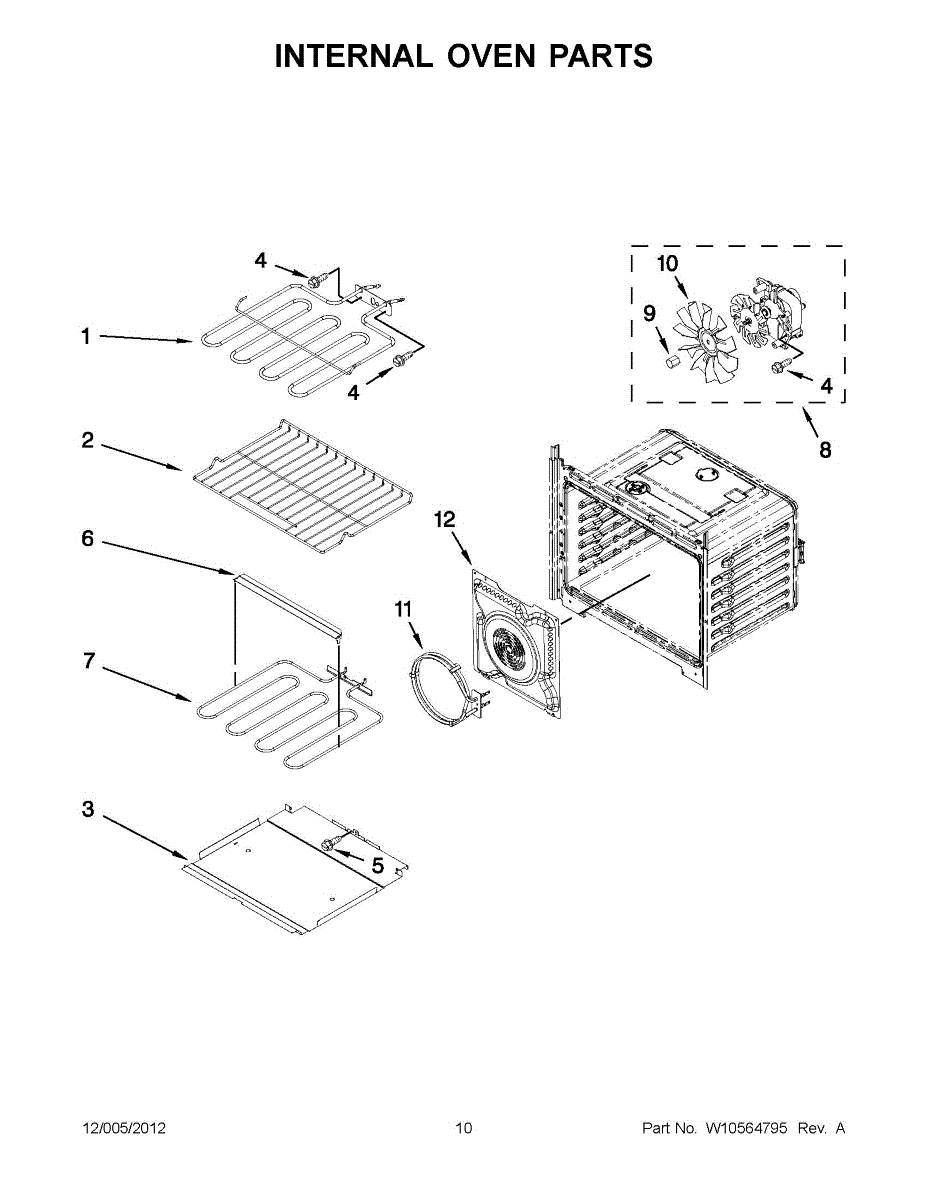

Parts for Whirlpool WOD93EC0AB01: 05 - Internal Oven Parts

The Broil Element is an OEM part for Whirlpool ranges. This heating element is located at the top of the oven and is responsible for providing intense, direct heat for broiling.

Causes of a bad broil element can include electrical faults, repeated exposure to high temperatures, and damage from food spills or cleaning.

Symptoms of a bad Broil Element include:

• The broil element not heating up
• Uneven broiling or cooking results
• Visible damage or breaks in the element
• Sparking or electrical arcing during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement oven rack restores a stable, level surface for baking and roasting. Use it to replace a bent, damaged, or missing rack so cookware sits properly in the oven and slides along the side rails as intended.

• Supports pans and dishes across multiple rack positions inside the oven cavity
• Helps position cookware correctly for consistent airflow and heating
• Replace if the original rack is warped, broken, rusted/flaking, or no longer slides smoothly in the side supports
• Useful when an additional rack is needed for multi-rack baking

• Allow the oven to cool completely; disconnect power or shut off gas for safety
• Open the door fully; lift the front of the old rack and pull it straight out of the side rails
• Align the new rack with the side rails, guide the rear over the stops, level it, and slide fully in
• Refer to your owner's manual for self-cleaning guidance; many models require removing racks before starting a self-clean cycle

This bake tray replaces a worn or damaged oven baking surface to help you cook and roast evenly while containing spills. Durable metal construction offers a flat, stable surface for pans, cookies and sheet-baked foods. What it does:

• Provides a flat baking surface for cookies, roasting and sheet-pan meals
• Replaces trays that are warped, dented, rusted or have a damaged cooking surface
• Helps contain drips and spills to protect the oven floor from messes
• Restores proper tray function when missing or broken

• Allow the oven to cool completely before removing or installing the tray
• No tools required — slide into oven racks or support ledges as designed
• Wear work gloves to avoid sharp edges on damaged trays

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This support bracket secures internal appliance components to restore proper alignment and stable operation. A simple replacement for damaged or bent brackets to stop shifting parts and reduce noise. What it does:

• Holds and supports internal assemblies or panels to maintain correct positioning
• Prevents movement that can cause rubbing, rattling, or binding during operation
• Restores mounting points that may be cracked, bent, or worn
• Helps ensure smooth operation of connected parts by keeping them firmly anchored

• One support bracket

• Disconnect power (and water for dishwashers) before servicing
• Remove any panels or racks necessary to access the bracket; keep fasteners for reuse unless replacement specified
• Use basic hand tools; avoid over-tightening fasteners to prevent stripping or cracking

The Bake Element is an OEM part for Whirlpool ranges. This part provides the necessary heat for baking by generating and distributing heat evenly throughout the oven cavity.

Common causes of a bad bake element include wear and tear from frequent use, electrical faults, or physical damage from impacts or spills.

Symptoms of a bad Bake Element include:

• The oven not heating up or taking too long to reach the desired temperature
• Uneven baking results
• Visible damage such as burns, blisters, or breaks on the element
• The element not glowing red when turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This fan motor powers the cooling fan that moves air through your unit. Replacing a worn or noisy motor restores proper airflow to help maintain stable temperatures and reliable performance. What it does:

• Drives the fan blade to circulate air for cooling and temperature control
• Helps prevent component overheating caused by weak or stalled airflow
• Fixes: fan not running or starting intermittently
• Fixes: loud humming, grinding, or rattling from the fan area
• Fixes: longer run times or warm spots due to poor airflow

• Includes: 1 fan motor

• Disconnect power before servicing; allow moving parts to stop
• Note wire positions and motor orientation; take a photo for reference
• Transfer the existing fan blade and mounting hardware as needed
• After install, ensure the fan spins freely and no wiring contacts moving parts before restoring power

This convection fan blade mounts to the fan motor and circulates hot air during convection cycles. Replacing a bent or damaged blade restores proper airflow, promoting more even temperatures and consistent baking and roasting performance.

• Mounts on the convection motor shaft to drive airflow through the oven cavity
• Helps maintain uniform temperatures for consistent convection baking/roasting
• Typical failure signs: rattling or scraping noises, visible wobble or damaged fins, weak airflow, or the fan not spinning freely
• A worn blade can contribute to uneven results in convection mode

• Disconnect power and allow the appliance to cool completely before servicing
• Access the blade behind the interior fan cover or rear panel (varies by model); note blade orientation and any spacers/washers for reassembly
• Handle sharp edges; avoid bending fins and ensure the blade spins freely without rubbing before restoring power
• For microwave/OTR convection units, high-voltage components are present.

This convection baffle directs hot air from the fan for more even heat distribution in convection ovens. It helps maintain consistent cooking temperatures and prevents uneven baking or roasting caused by disrupted airflow. What it does

• Guides convection fan airflow to improve heat circulation and even cooking
• Helps reduce hot spots and uneven browning in the oven cavity
• Keeps airflow path clear of direct contact with foods or components
• Works with the oven's fan and ducting as part of the convection system

• Disconnect power to the appliance before starting any repair to avoid shock
• Handle part carefully; some edges may be sharp—wear gloves and eye protection
• Install in the same orientation as the original; secure fit with mounting points
