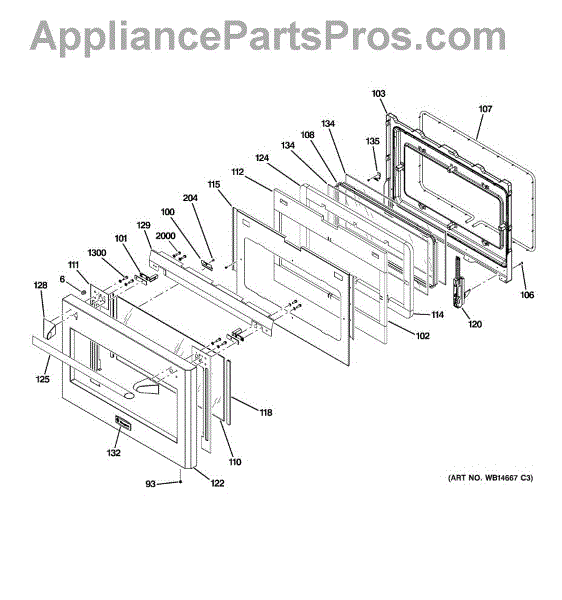

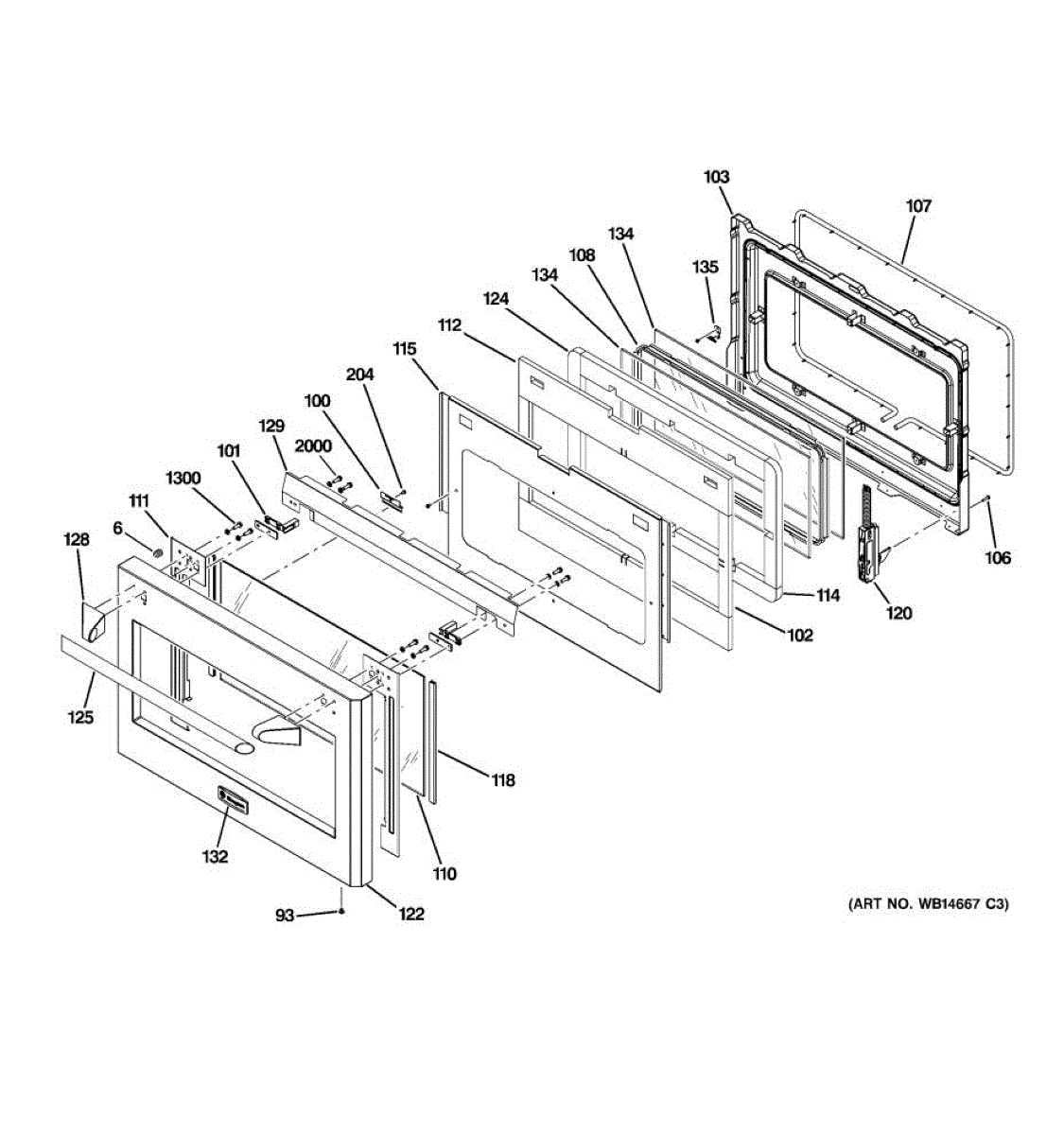

Parts for Ge ZDP486LRP2SS: 08 - Large Door Assembly Parts

This small set screw secures components inside your refrigerator. Replacing a missing or stripped set screw restores a tight, reliable hold so attached parts stay aligned and are less likely to loosen or rattle during use.

• Fastens an attached part to its mounting point to prevent movement or slipping
• Helps maintain proper alignment of handles, brackets, or trim pieces
• Reduces wobble, vibration, and rattling noises caused by loose hardware
• Replaces missing, stripped, or corroded set screws

• Unplug the refrigerator and shut off water if working near door/dispenser areas
• Support the part being secured; start the screw by hand to avoid cross-threading
• Tighten with the correct driver for your model; do not overtighten to prevent stripping
• The component is secure and aligned before restoring power

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Glass bracket for gas ranges. Secures and supports glass components on your range. Replace if cracked, broken, or missing to restore proper fit and stability.

Small end cap that fits the end of a range extension rail or rod to prevent over-travel and provide a finished edge. Replace if cracked, missing, or worn.

Replace your range oven door liner assembly if the inner panel is cracked, warped, or damaged. This structural component forms the interior surface of your oven door.

Replacement screw for gas ranges. Secures various components and panels. Needed when original screw is stripped, missing, or damaged during repair work.

Seals your range door to maintain cooking temperature and prevent heat escape. Replace when worn, cracked, or loose to restore efficiency. Confirm fit with your model.

Seals the gap between your oven door and body to maintain proper cooking temperature. Replace when worn, torn, or heat escapes. Confirm fit with model number.

Replace cracked, chipped, or broken 27-inch oven door glass. Restores heat-resistant viewing window for monitoring cooking. Direct fit for range door.

This right-side outer support glass is the oven door glass component that helps stabilize the door assembly and maintain a finished exterior. Replacing damaged support glass restores proper door alignment and reduces drafts, rattles, and heat escape. What it does:

• Provides structural support for the oven door outer glass panel on the right side
• Helps keep the door aligned for smooth opening and closing
• Reduces air and heat leakage that can occur with damaged or loose glass supports
• Stops rattling or vibration caused by a cracked or broken support

• Disconnect power to the appliance before beginning any repair.
• Handle glass carefully and wear cut-resistant gloves and eye protection.
• Removal typically requires taking the oven door off and removing retaining screws; keep fasteners organized.

This support outer glass is the OEM replacement piece that secures and protects the outer oven door glass for the left-front position. Restores proper door fit and helps maintain safe, even heat containment. What it does

• Holds and stabilizes the outer glass panel in the oven door assembly.
• Prevents glass movement or rattling during use.
• Helps maintain proper door alignment and seal to reduce heat loss.
• Commonly replaced when cracked, warped, broken, or when glass no longer sits flush.

• One support outer glass (left-front) as pictured.

• Disconnect power to the appliance and allow all surfaces to fully cool before beginning.
• Handle glass carefully and wear cut-resistant gloves and eye protection.
• Door removal or partial disassembly is often required; follow the oven's service manual for safe removal procedure.

Replace your gas range's left door hinge if it's cracked, broken, or worn. This structural component secures the oven door in place for smooth operation.

Replace your worn, dented, or damaged 27-inch range door panel assembly. This outer door panel restores the appearance of your range's front surface.

Replaces cracked, cloudy, or discolored inner oven door glass. Installs inside the door assembly to restore clear viewing and proper sealing.

Secures the glass window in your oven door. Replace if the window is loose, rattling, or misaligned. Confirm fit with your model number.

Single fastening screw for range components. Replaces missing, stripped, or damaged screws that secure panels, brackets, and trim pieces in place.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

This is a 1/4-20 x 3/4 inch hex washer head screw used to fasten appliance components securely. It provides a durable, low-profile fastening point to keep panels and assemblies aligned and stable. What it does:

• Secures panels, brackets, and assemblies to prevent movement and maintain alignment
• Helps stop rattling or vibration caused by loose fasteners
• Restores proper fit where a missing or damaged screw causes gaps or instability
• Works with metal-to-metal fastening points requiring 1/4-20 thread engagement

• Disconnect power to the appliance before starting any repair
• Start threads by hand to avoid cross-threading, then tighten with the appropriate hex driver or socket
• Do not overtighten; snug until secure to avoid stripping threads or damaging parts
